Limited 2024 Availability
2025

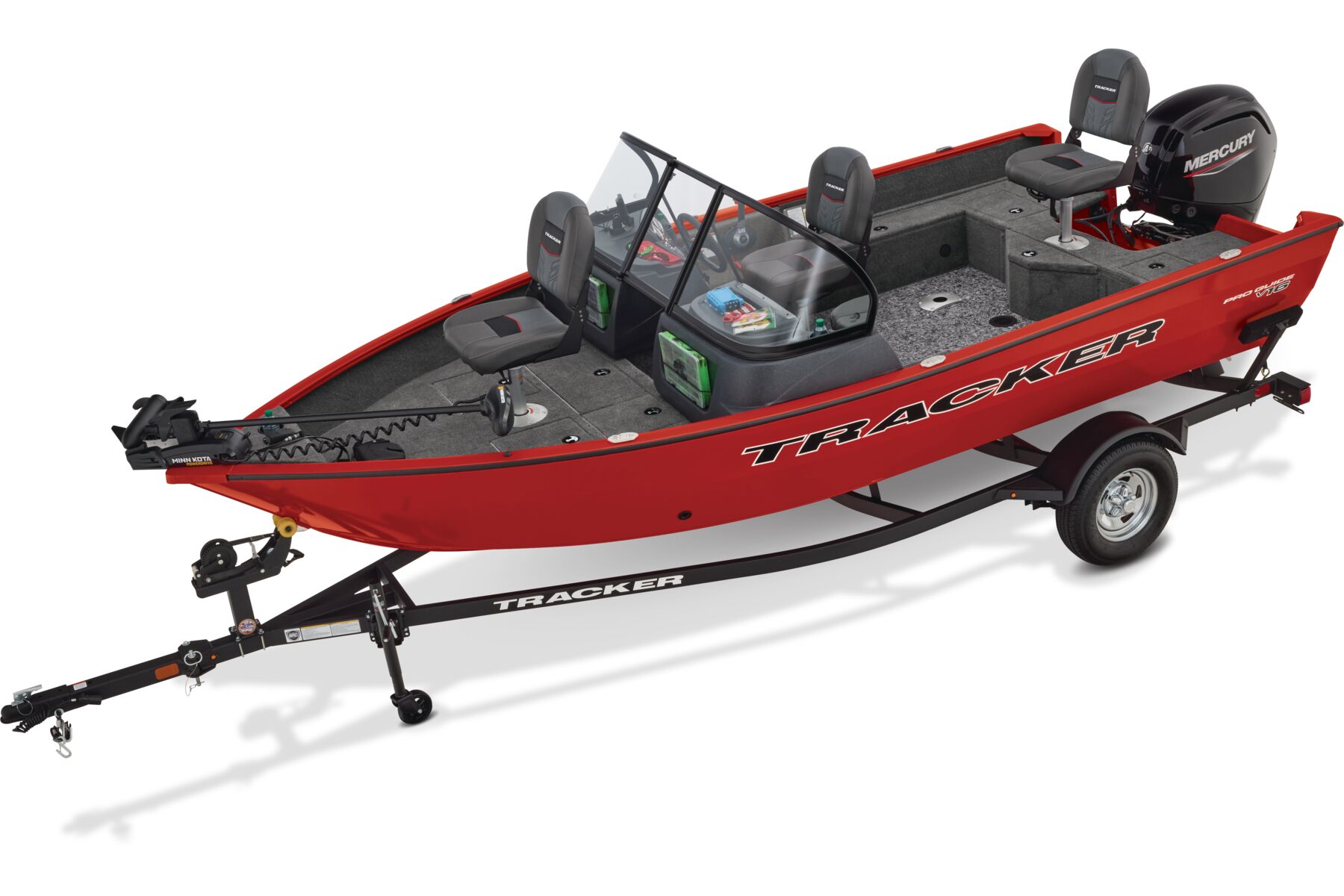

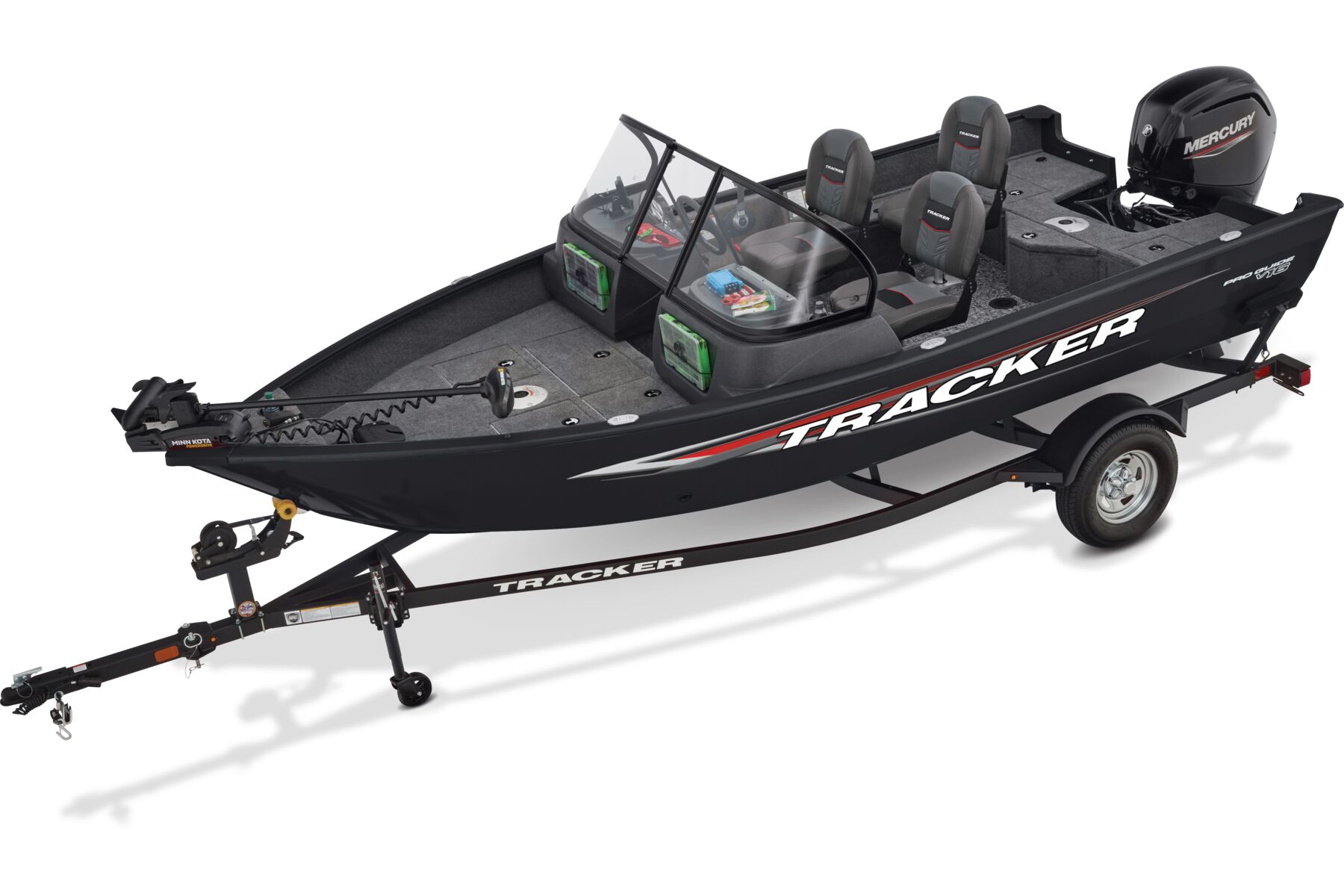

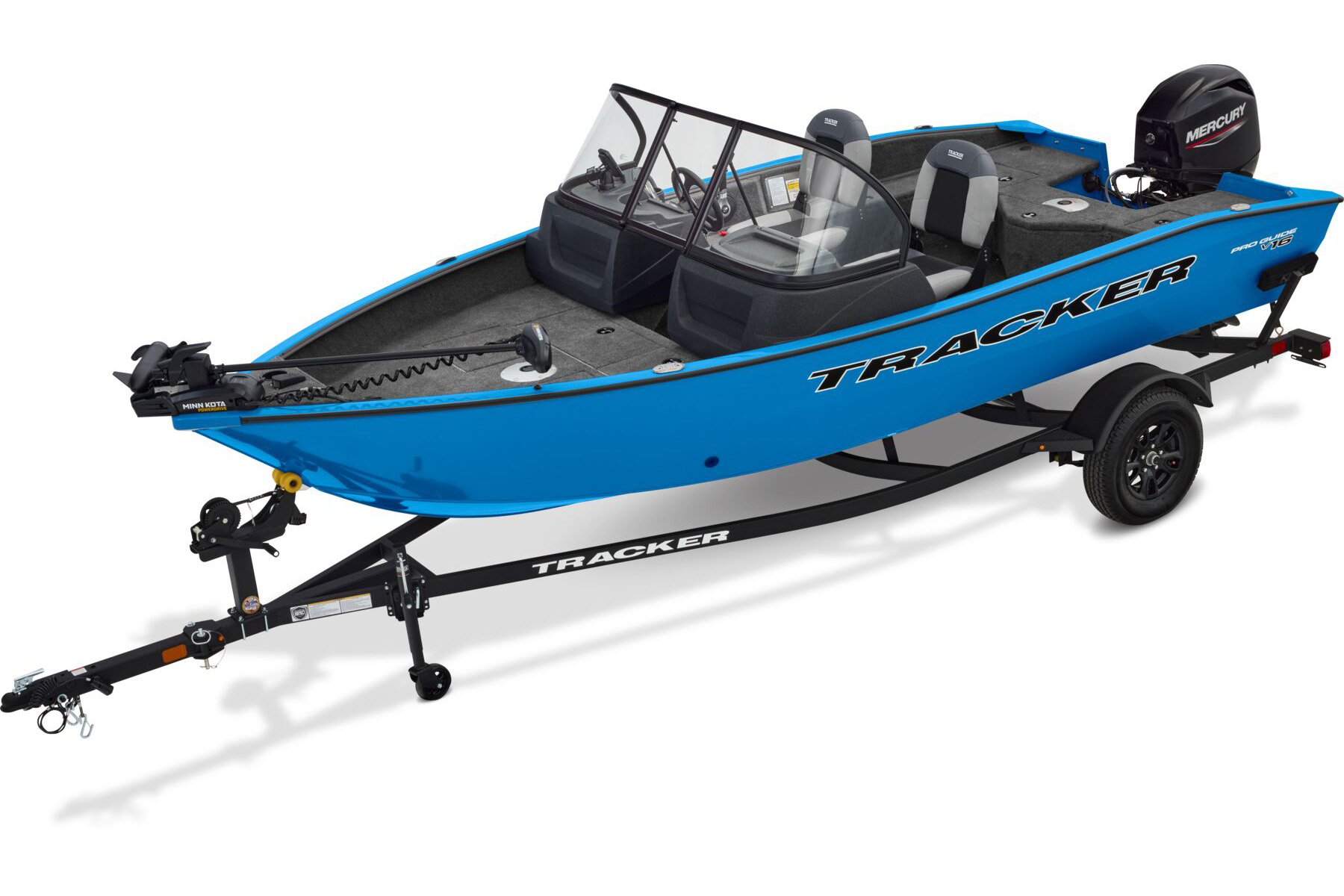

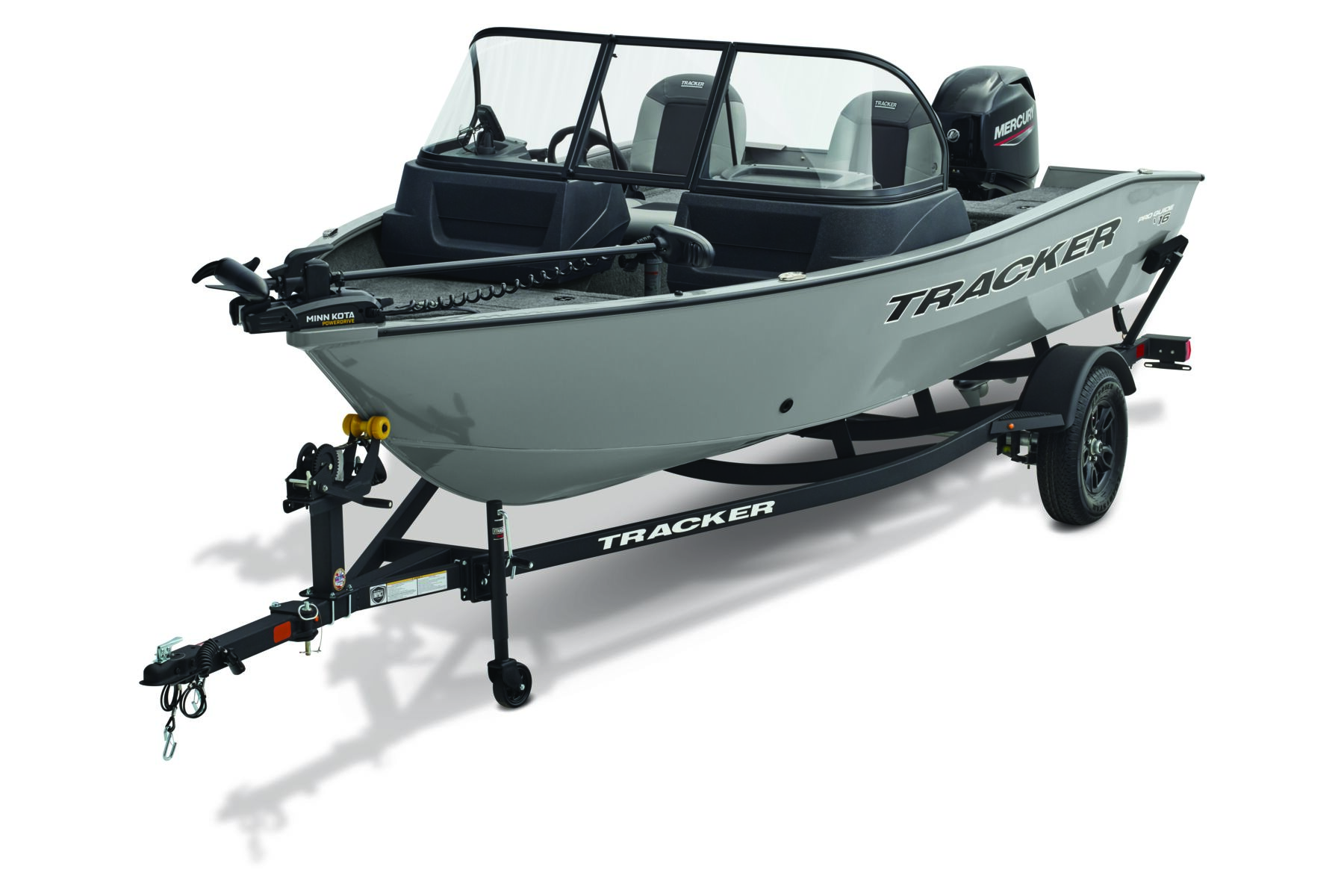

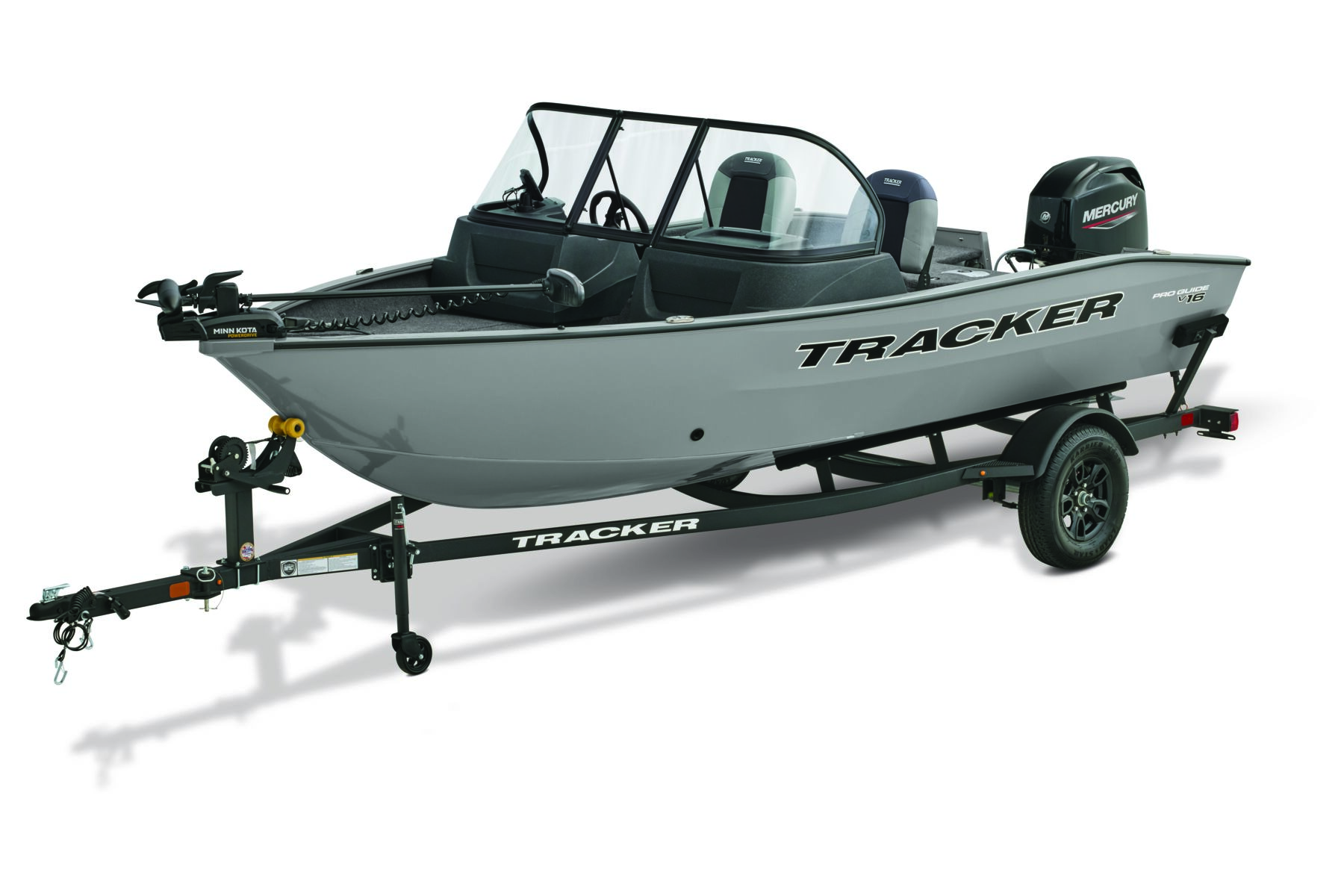

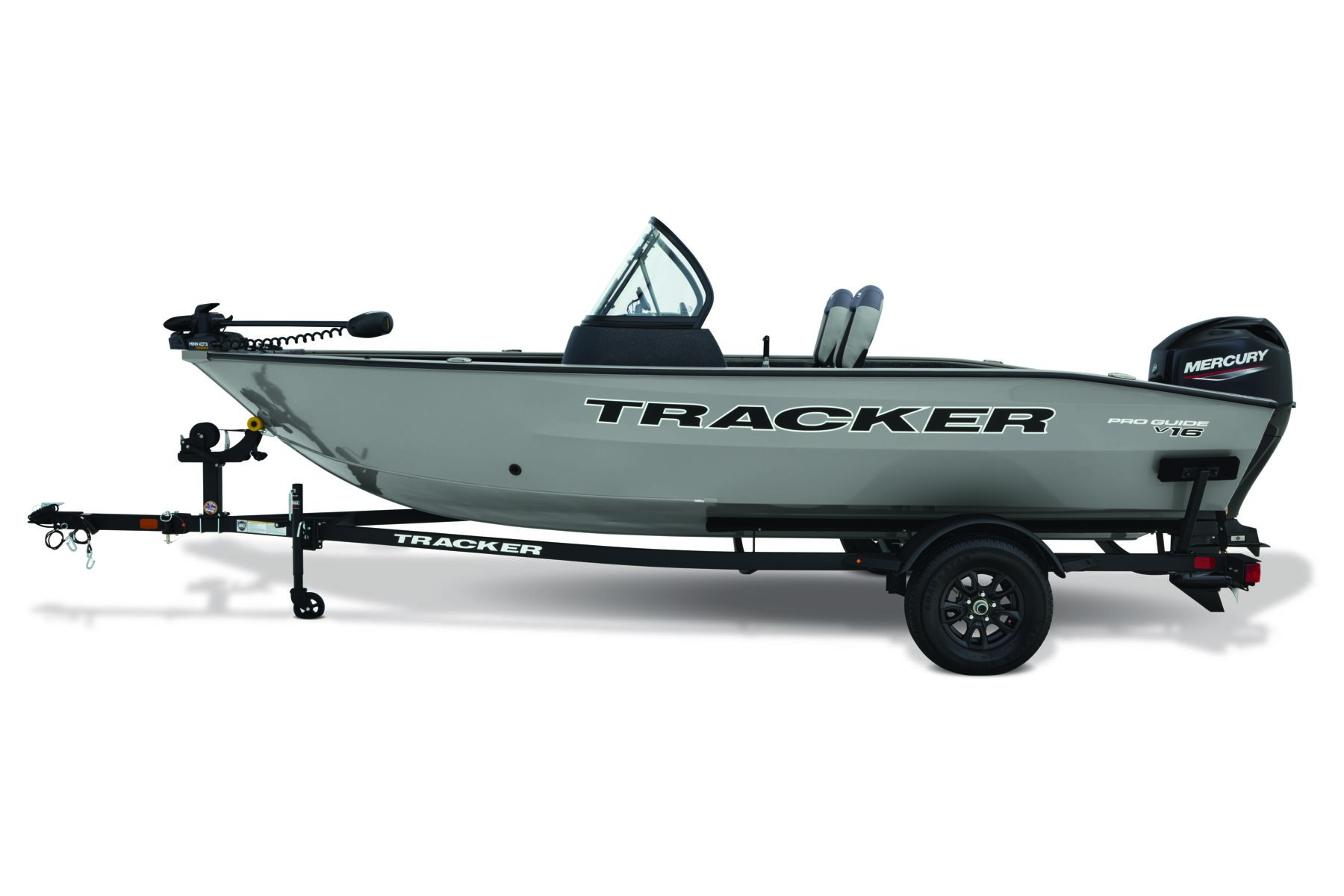

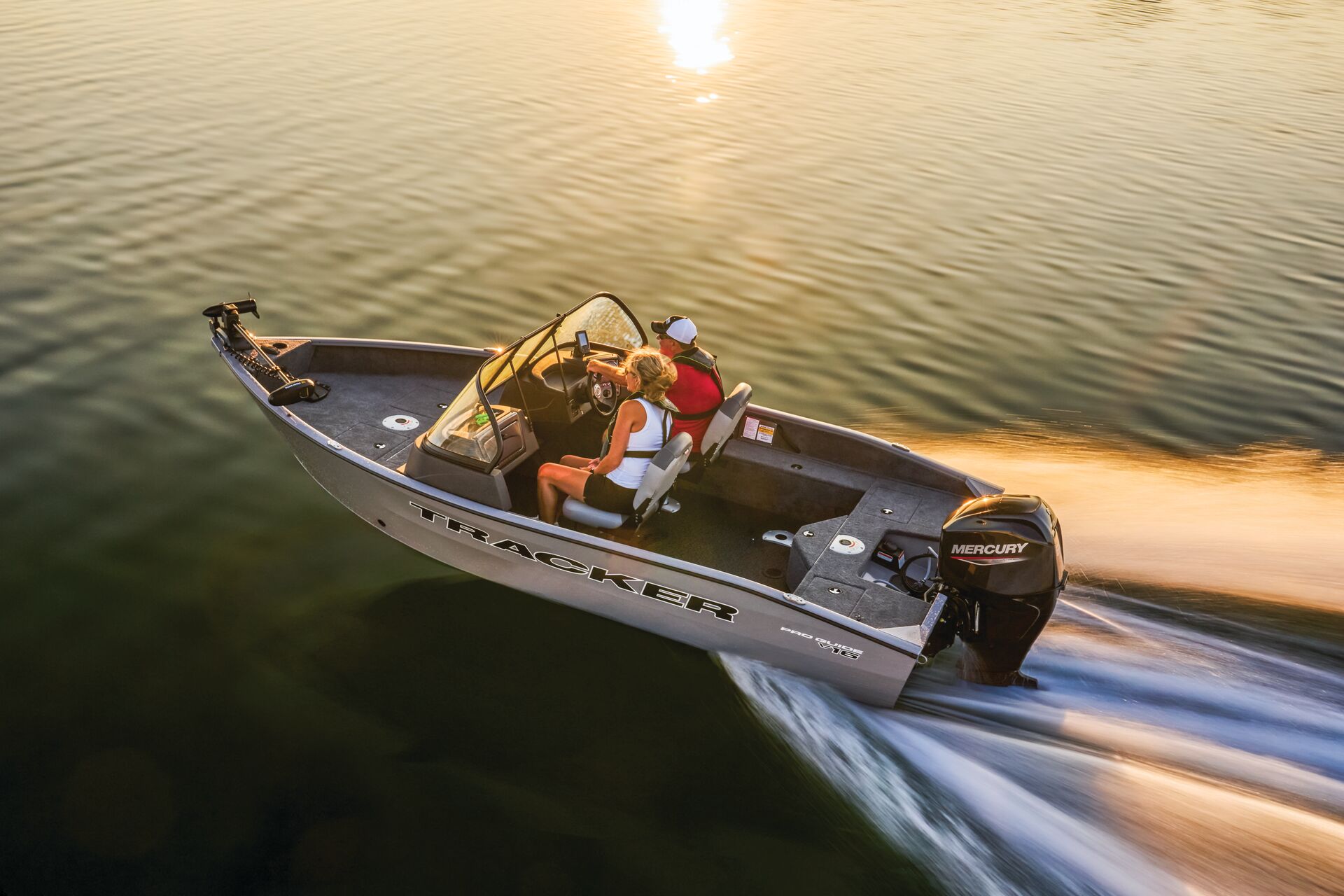

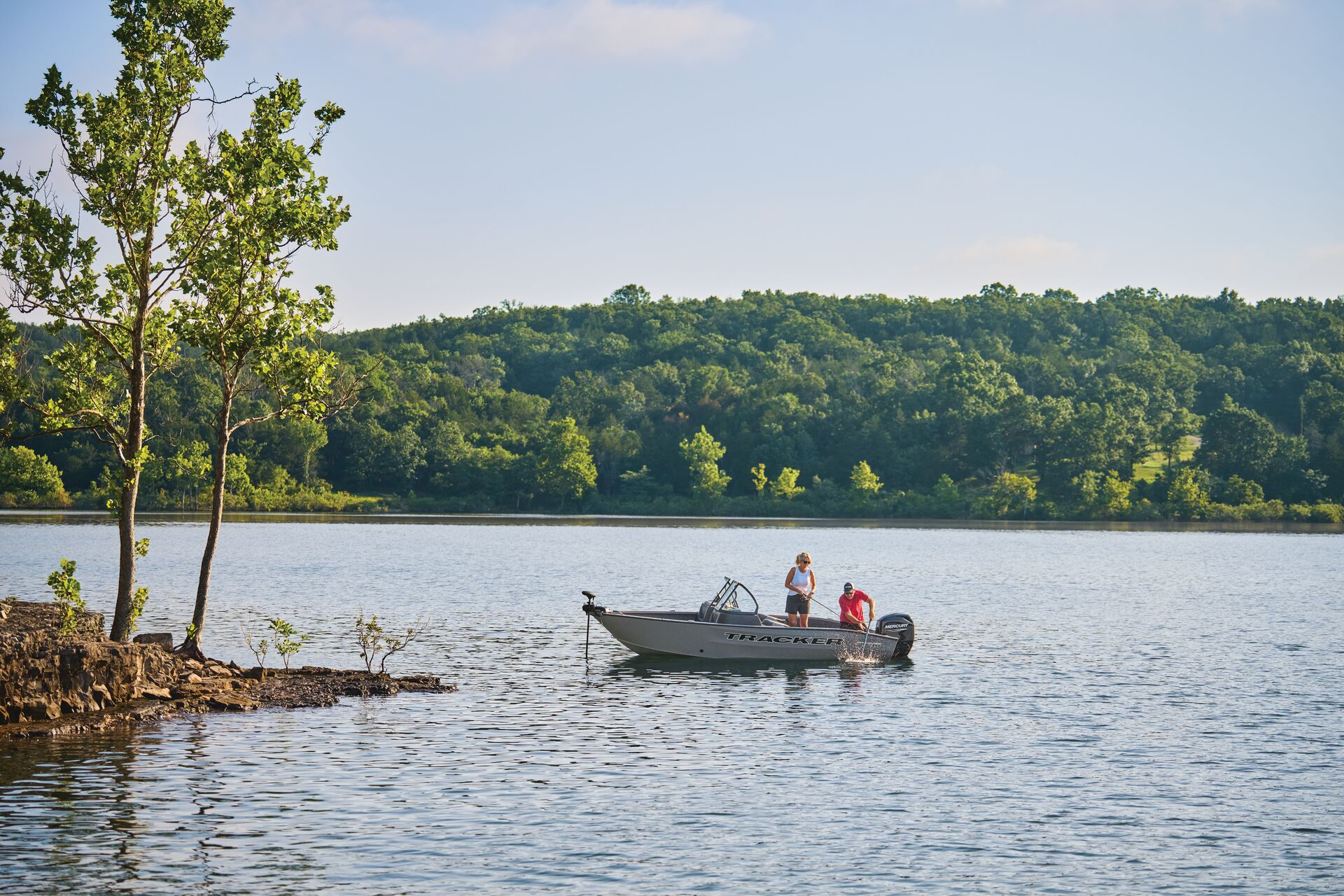

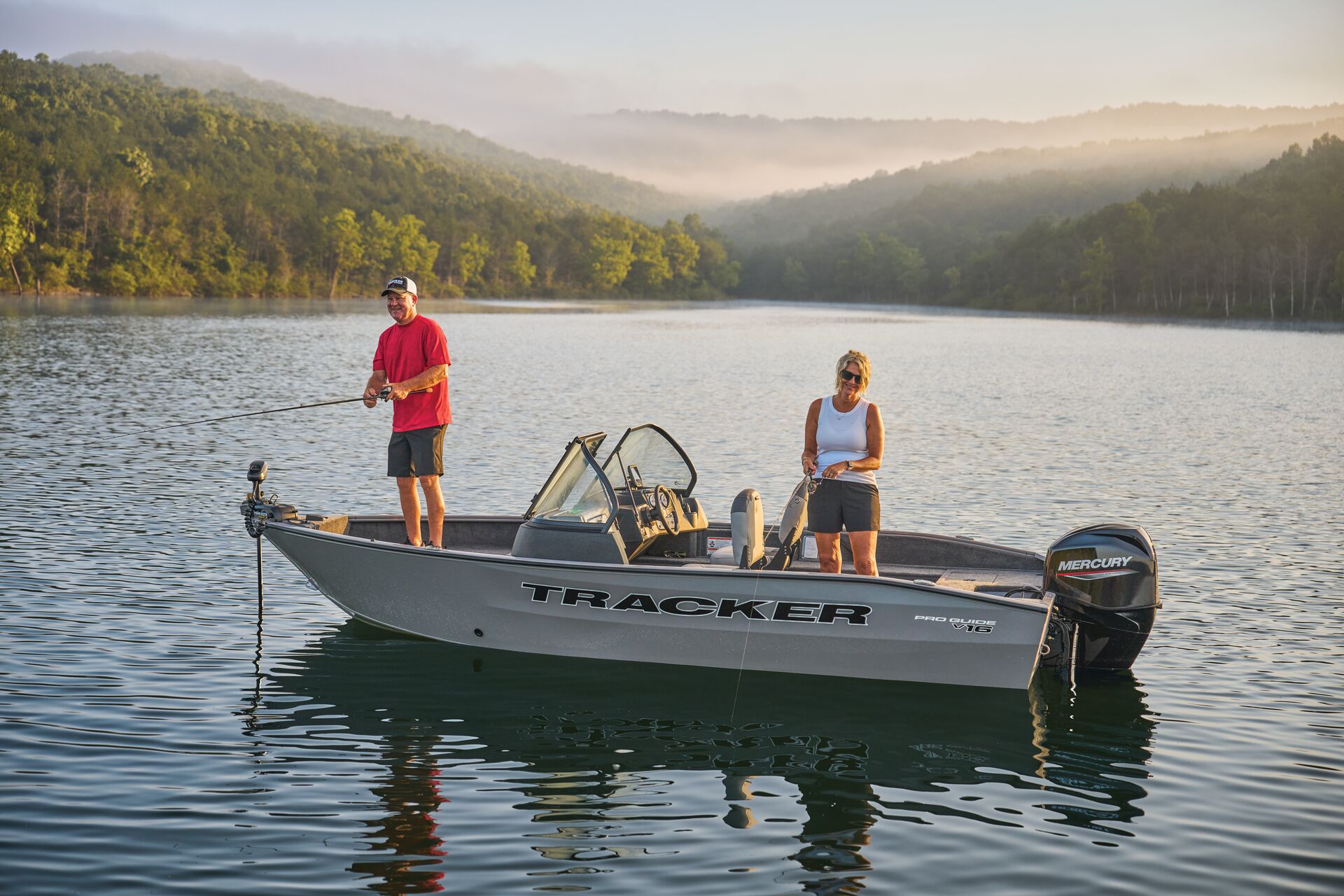

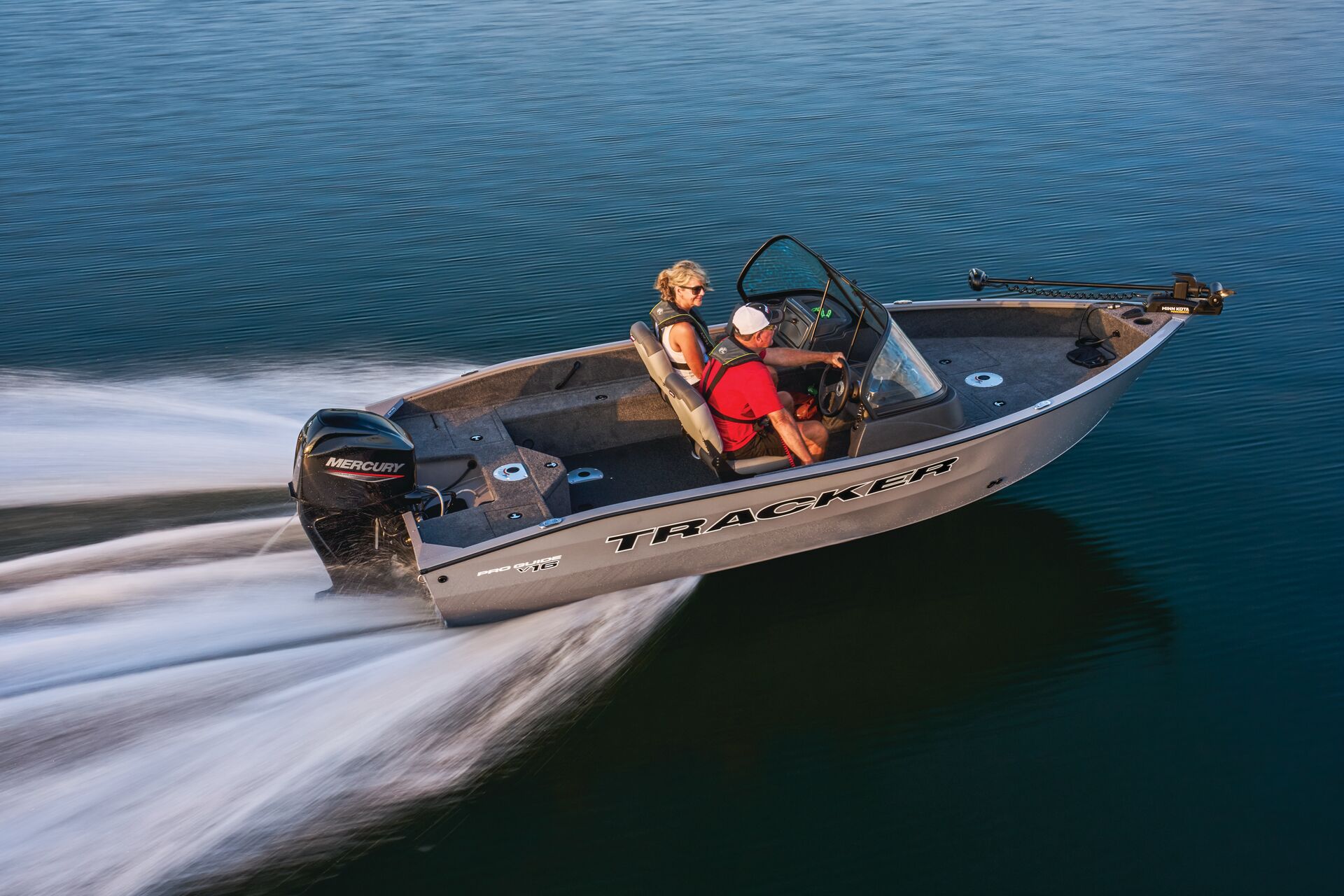

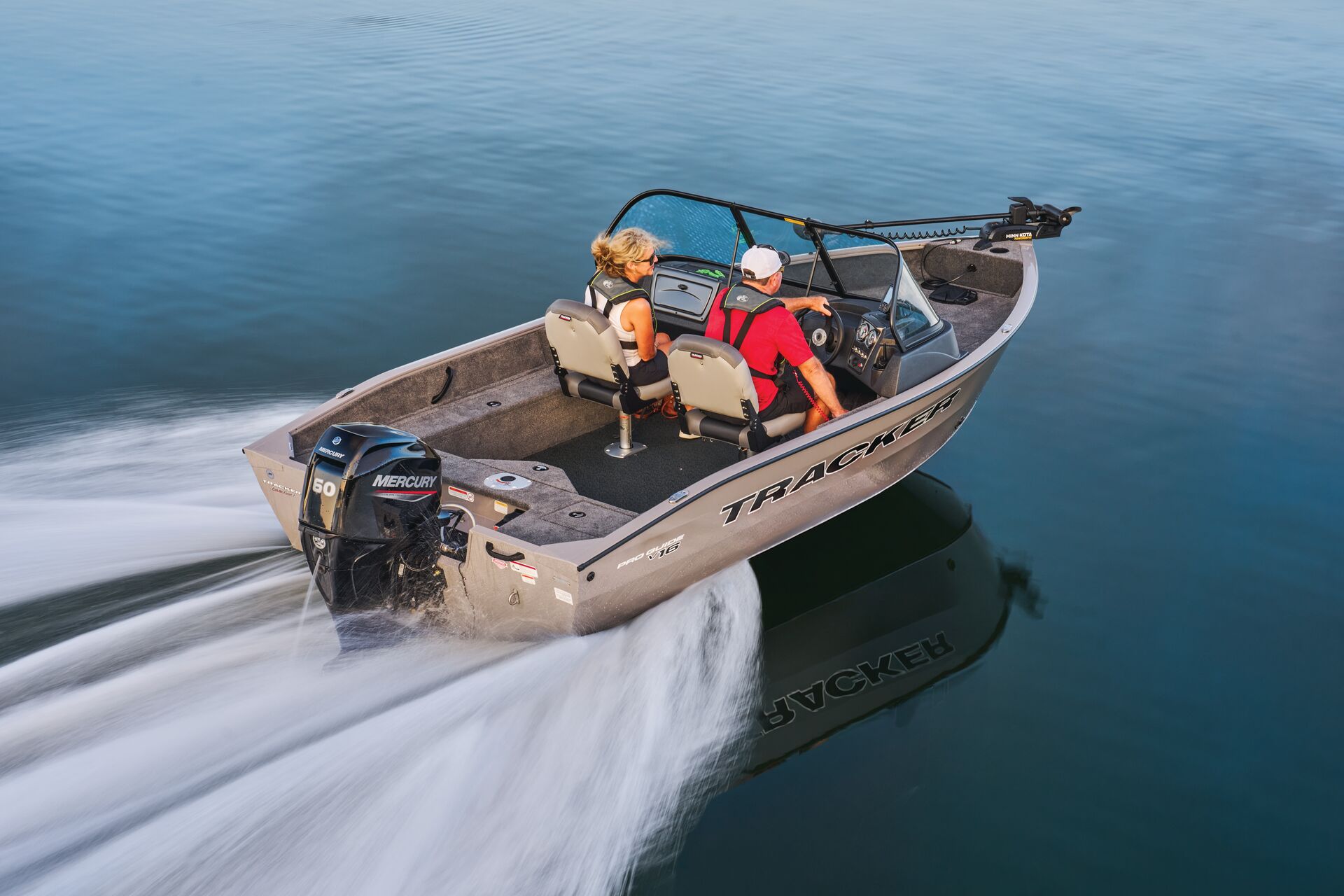

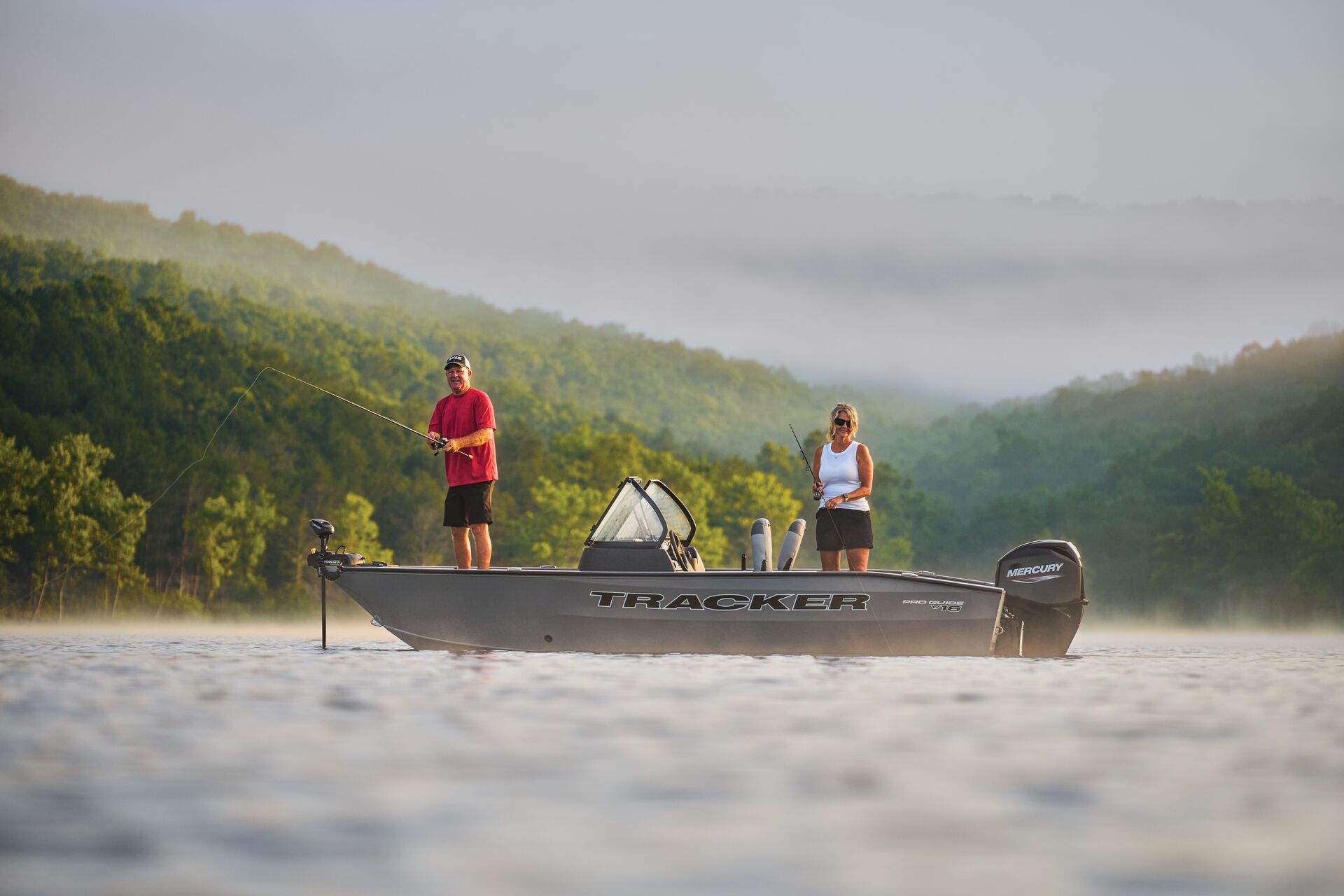

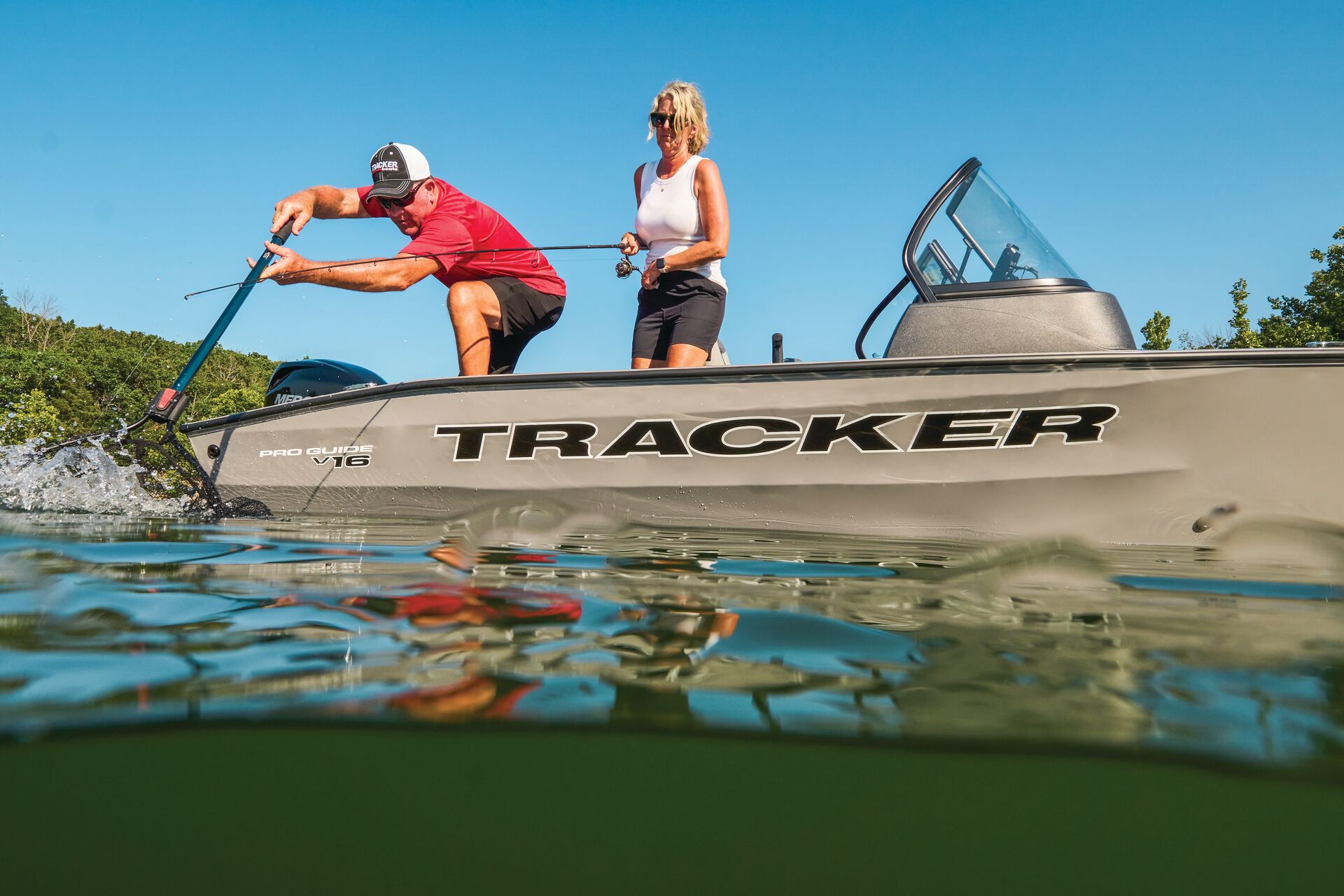

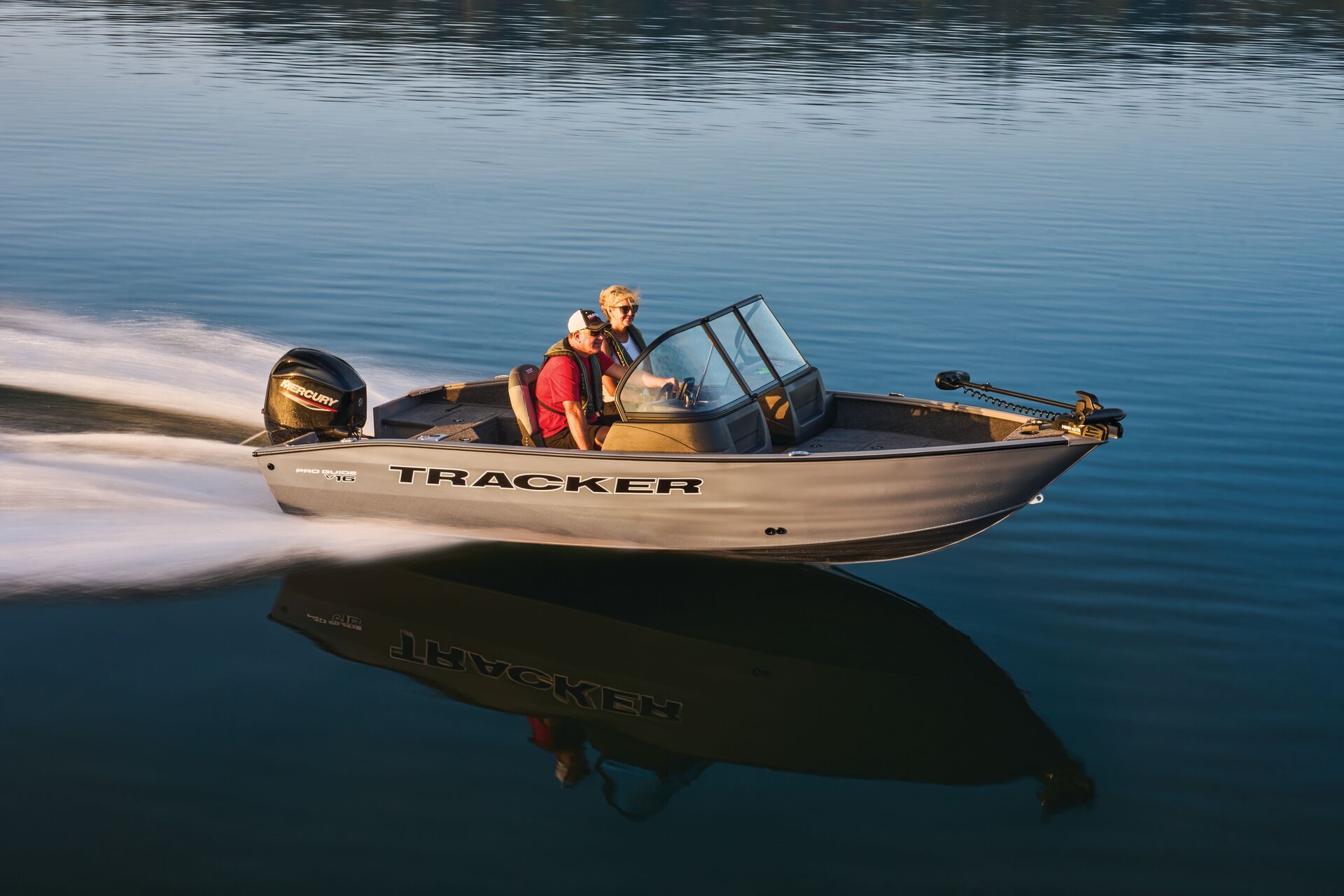

PRO GUIDE™ V-16 WT
w/ 60 ELPT FourStroke Mercury® FourStroke
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$24395
USD
|
Specifications
| Length | 5.03 m | 16' 6'' |
| Beam | 2.24 m | 7' 4'' |
| Bottom Width | 1.78 m | 5' 10'' |
| Max. Recommended HP | 90 HP | |
| Fuel Capacity | 96.52 L | 25.5 gal. |
| Max. Person Capacity | 5 persons | |
| Max. Person Weight | 297.1 kg | 655 lbs. |
| Max. Person, Motor & Gear Weight | 544.31 kg | 1200 lbs. |
| Interior Depth | 64.77 cm | 25.5'' |
| Transom Height | 53.34 cm | 21'' |
| Deadrise At Bow | 35 degrees | |
| Deadrise At Transom | 20 degrees | |
| Draft | 38.1 cm | 15'' |
| Hull Material | 0.100 5052 marine alloy | |
| Average Dry Weight | 542.04 kg | 1195 lbs. |
| Average Package Weight | 1161.2 kg | 2560 lbs. |
| Package Height | 2.03 m | 6' 8'' |
| Package Width | 2.29 m | 7' 6'' |
| Towing Length | 6.73 m | 22' 1'' |
| Storage Length (w/Outboard Trimmed Down) | 6.05 m | 19' 10'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 60 ELPT FourStroke | 28-30 mph |
$24395 USD
|
Select Dealer | ||
| 75 ELPT FourStroke | 37-39 mph |
$26115 USD
|
Select Dealer | ||
| 90 ELPT FourStroke | 39-41 mph |
$26525 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
- Limited lifetime hull warranty
- NMMA® certified
- Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
- Easy-fill EPA-compliant fuel tank
- Bow & stern eyes
- 6 flip-up cleats including 2 midship cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
- Paddle

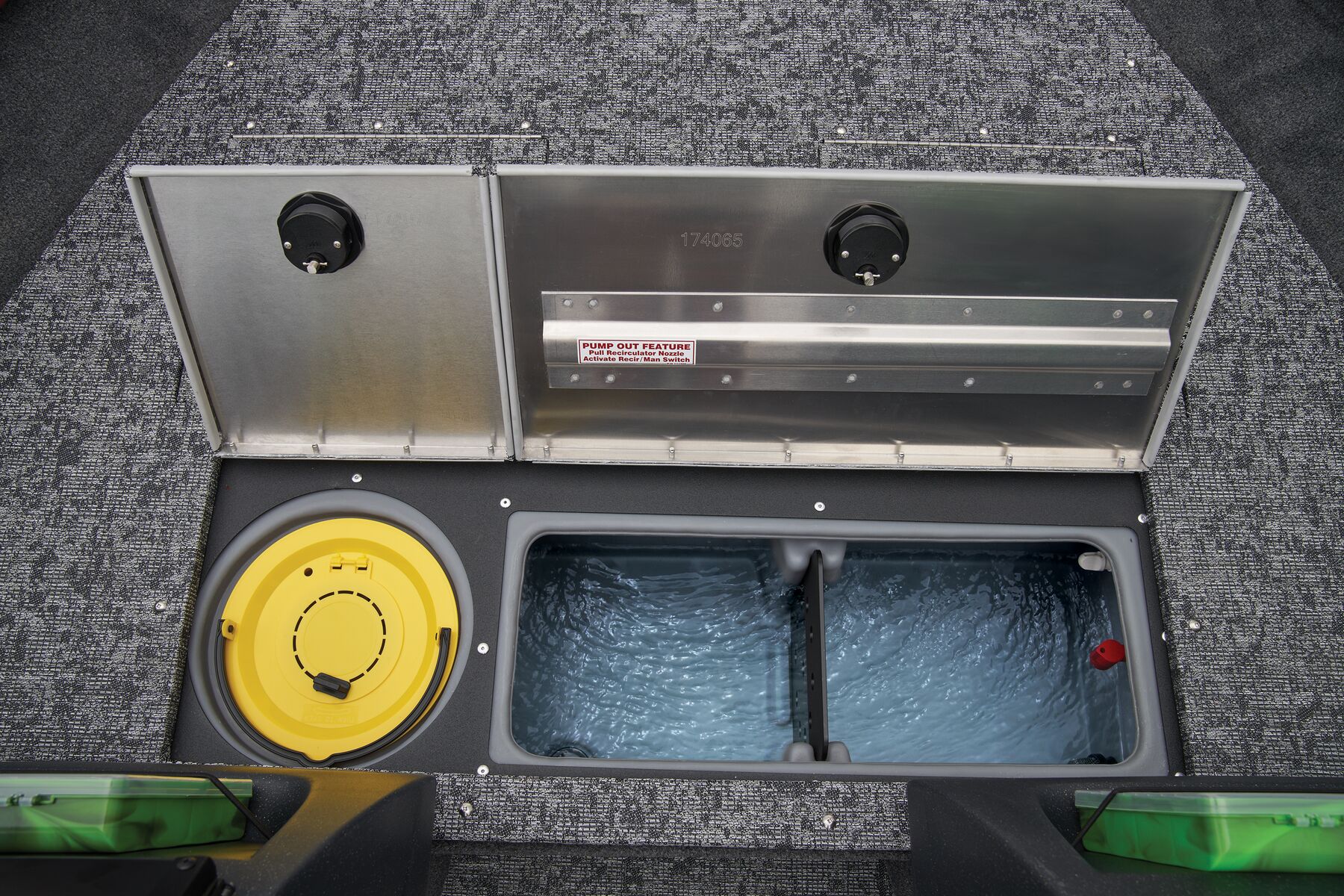

Livewell System

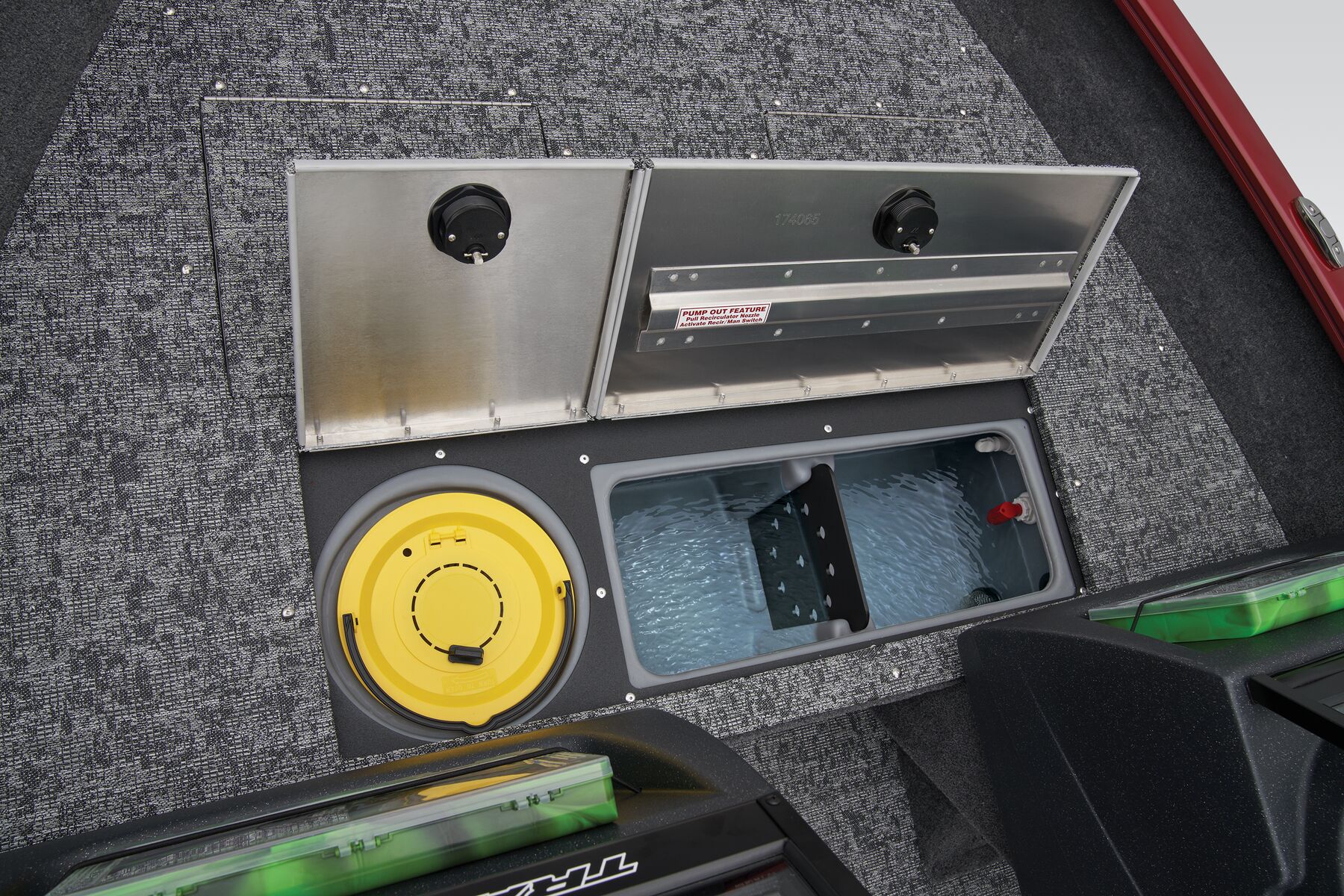

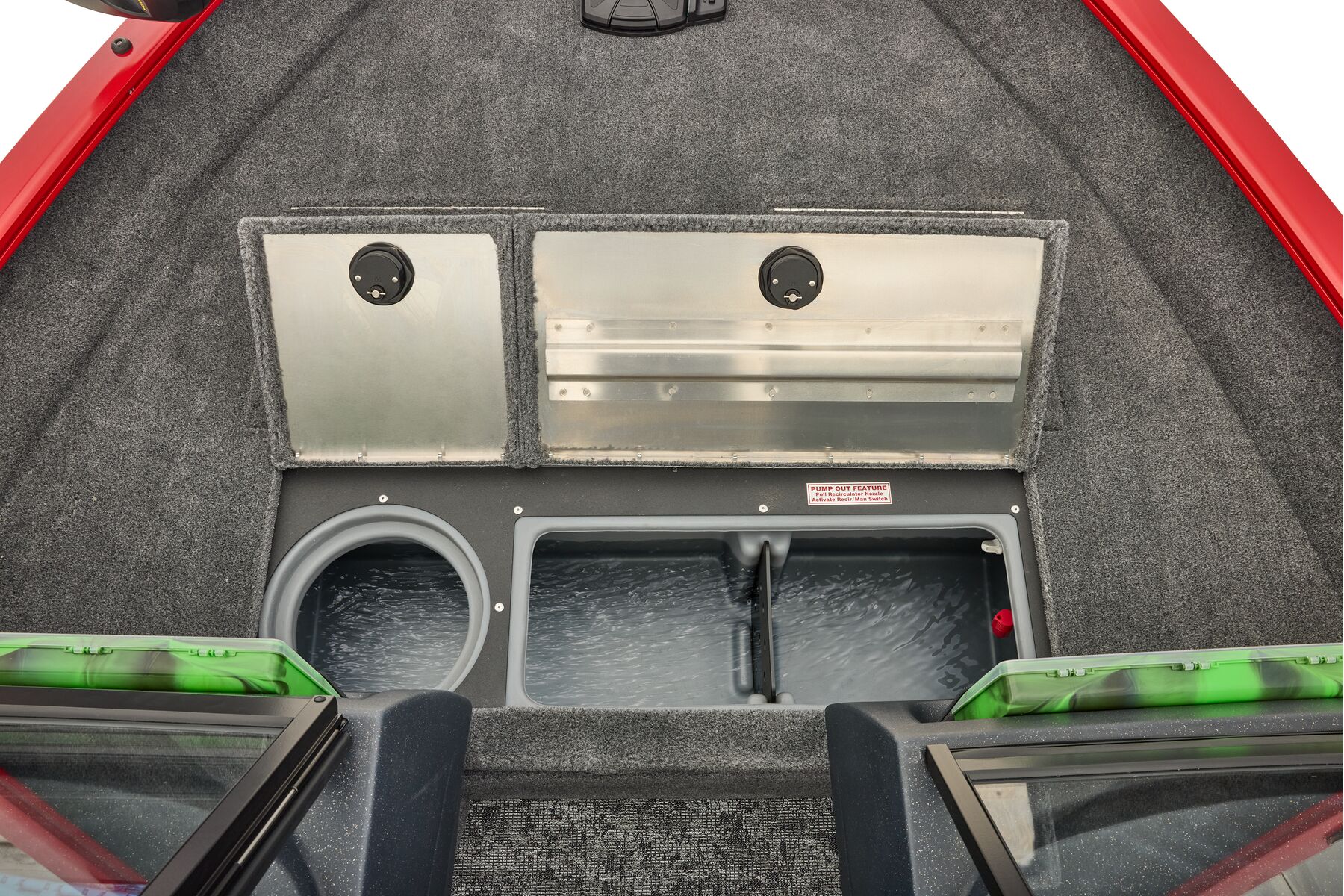

- Bow 23-gal. (87.06 L), 40" (1.02 m) aerated livewell w/divider, removable bait bucket, timer, recirculator & pump-out system
- 500 GPH (1,892.71 LPH) aerator/fill pump
- 500 GPH (1,892.71 LPH) recirculating pump
- Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
- Adjustable aerator heads for maximum water control
Trolling Motor

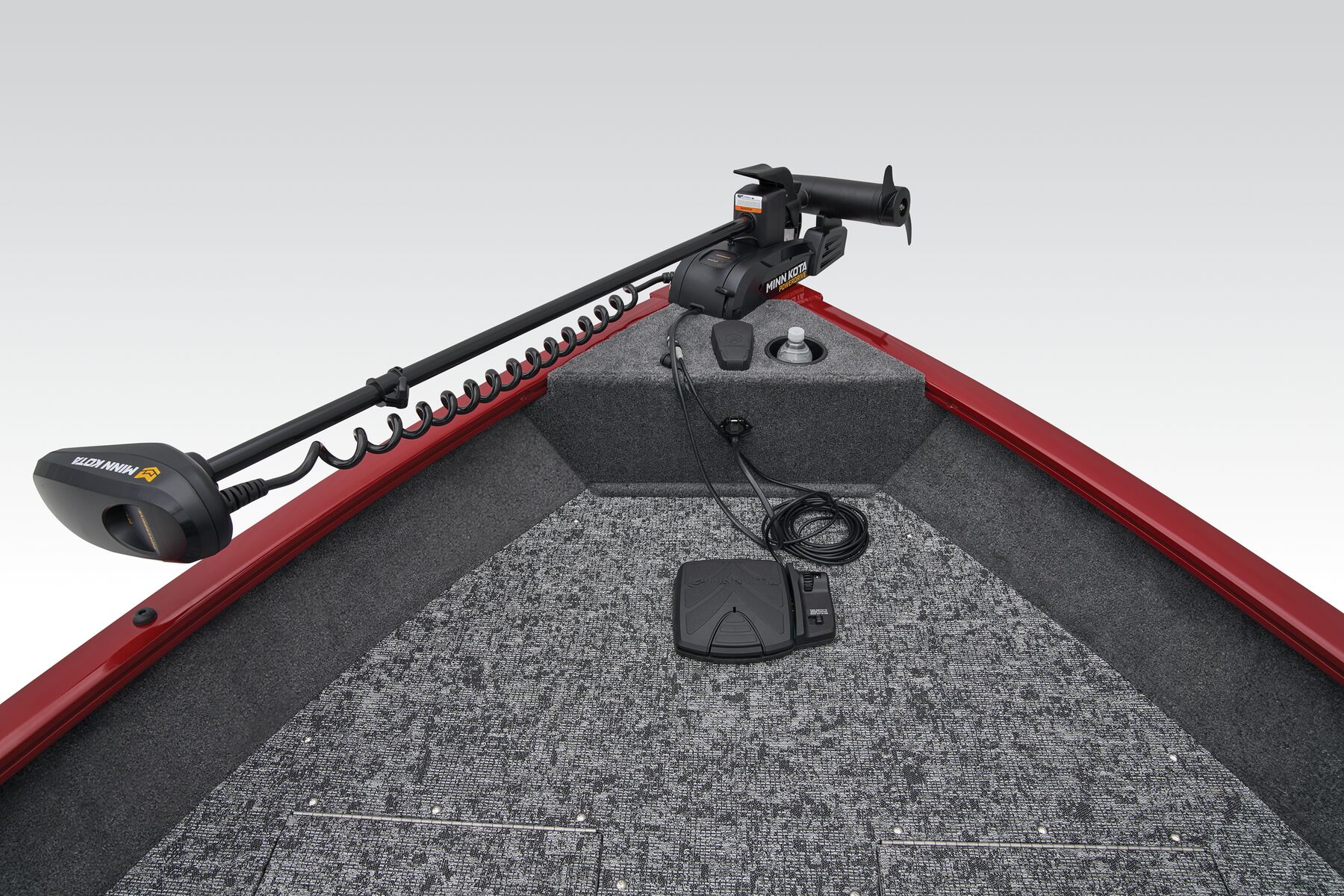

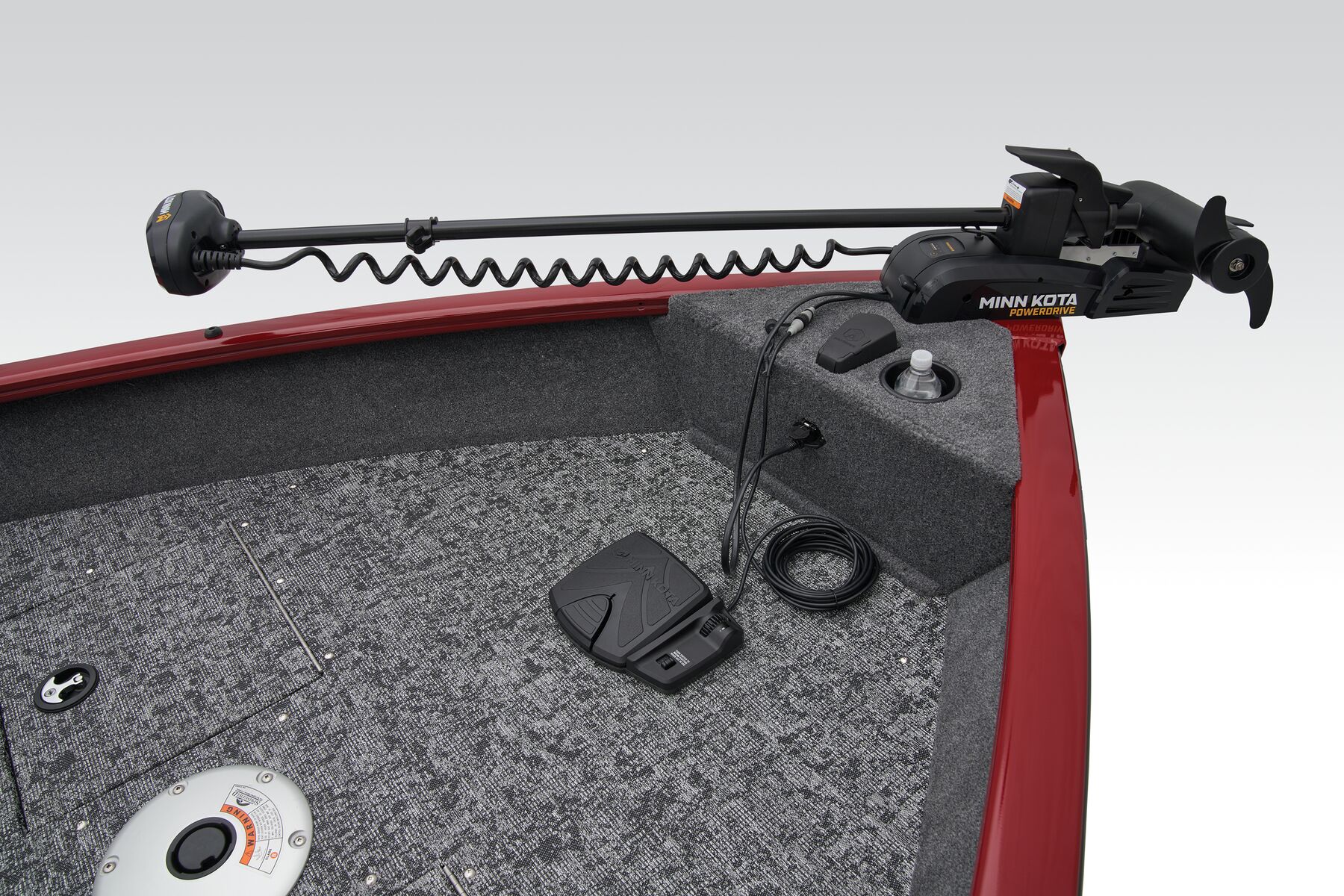

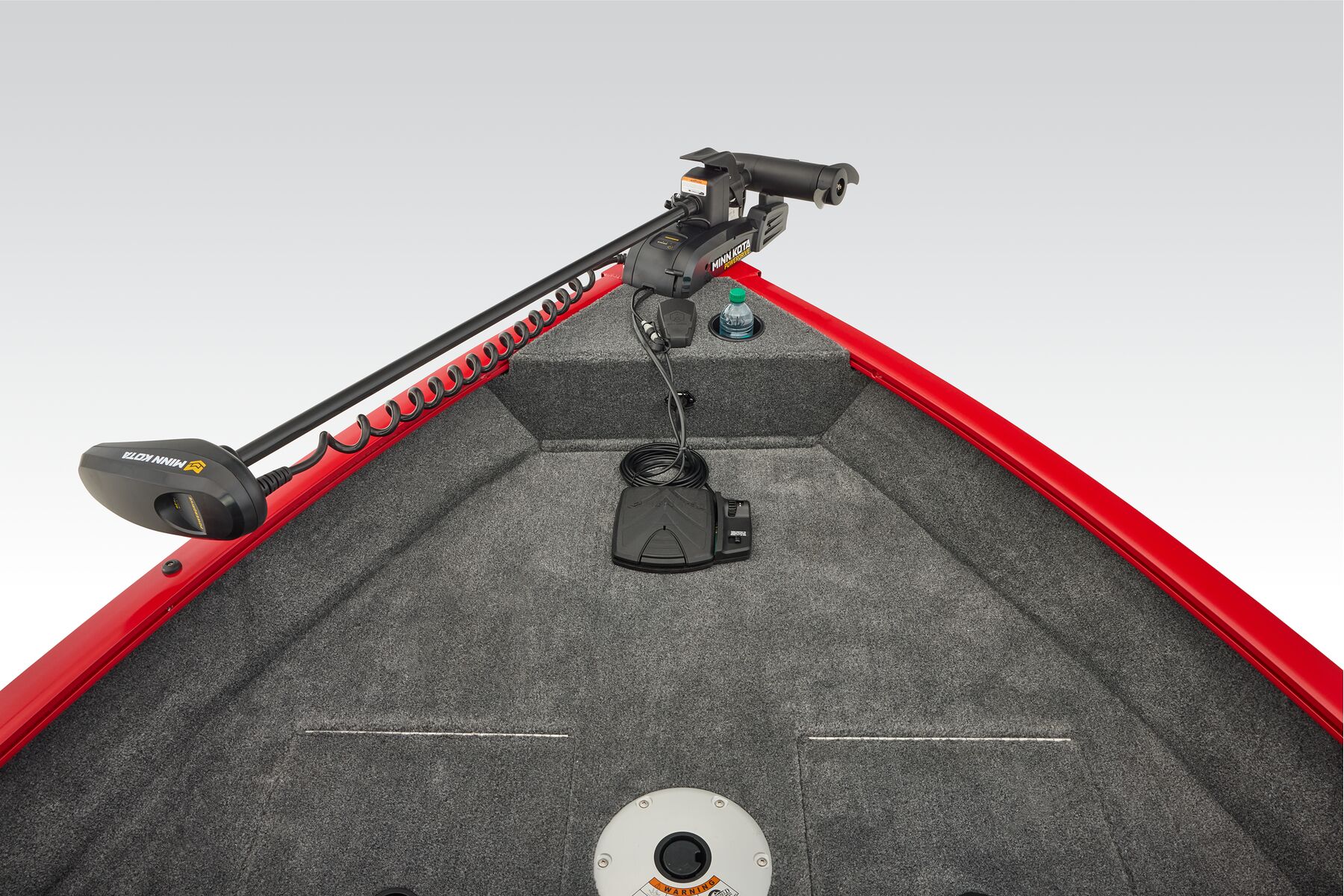

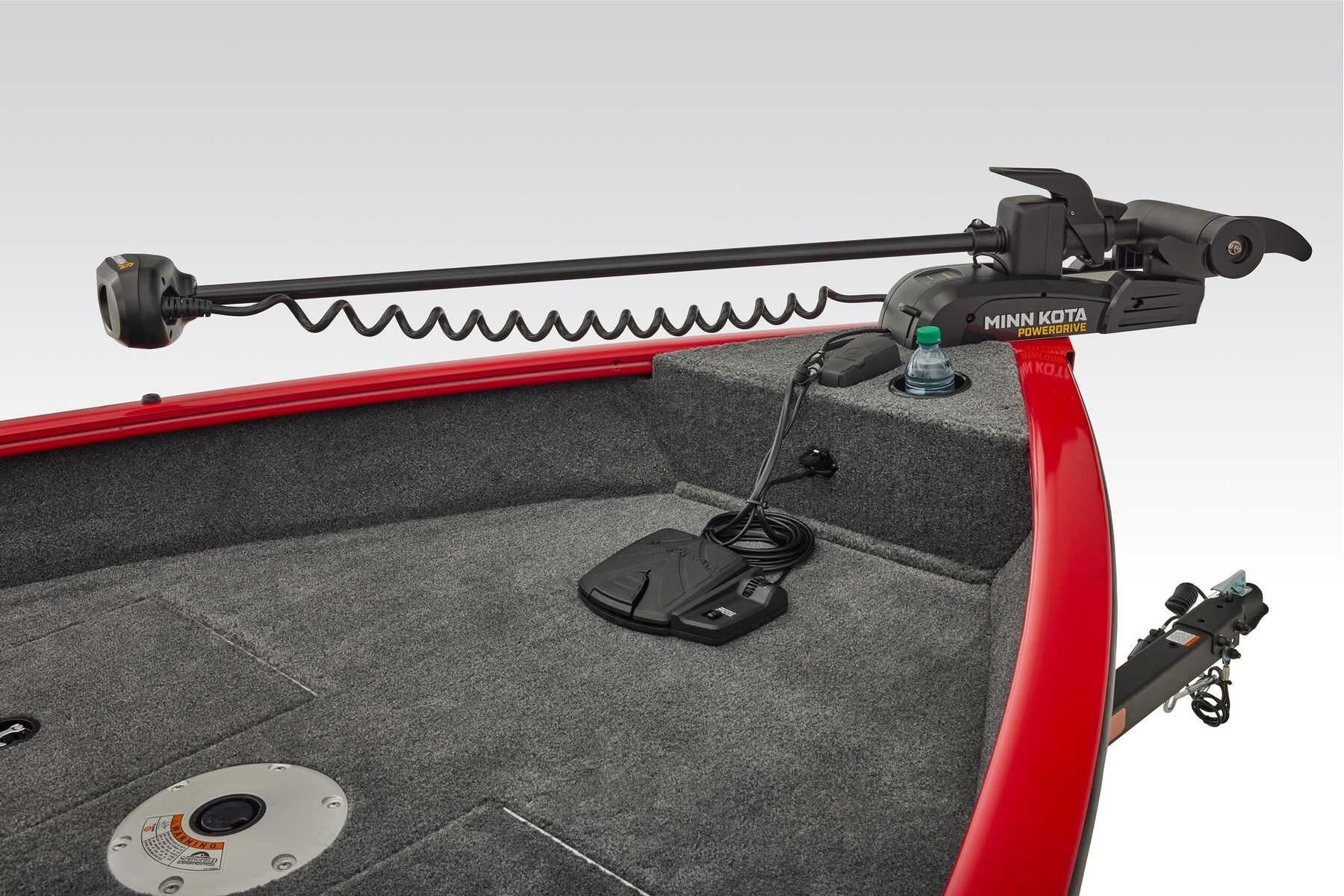

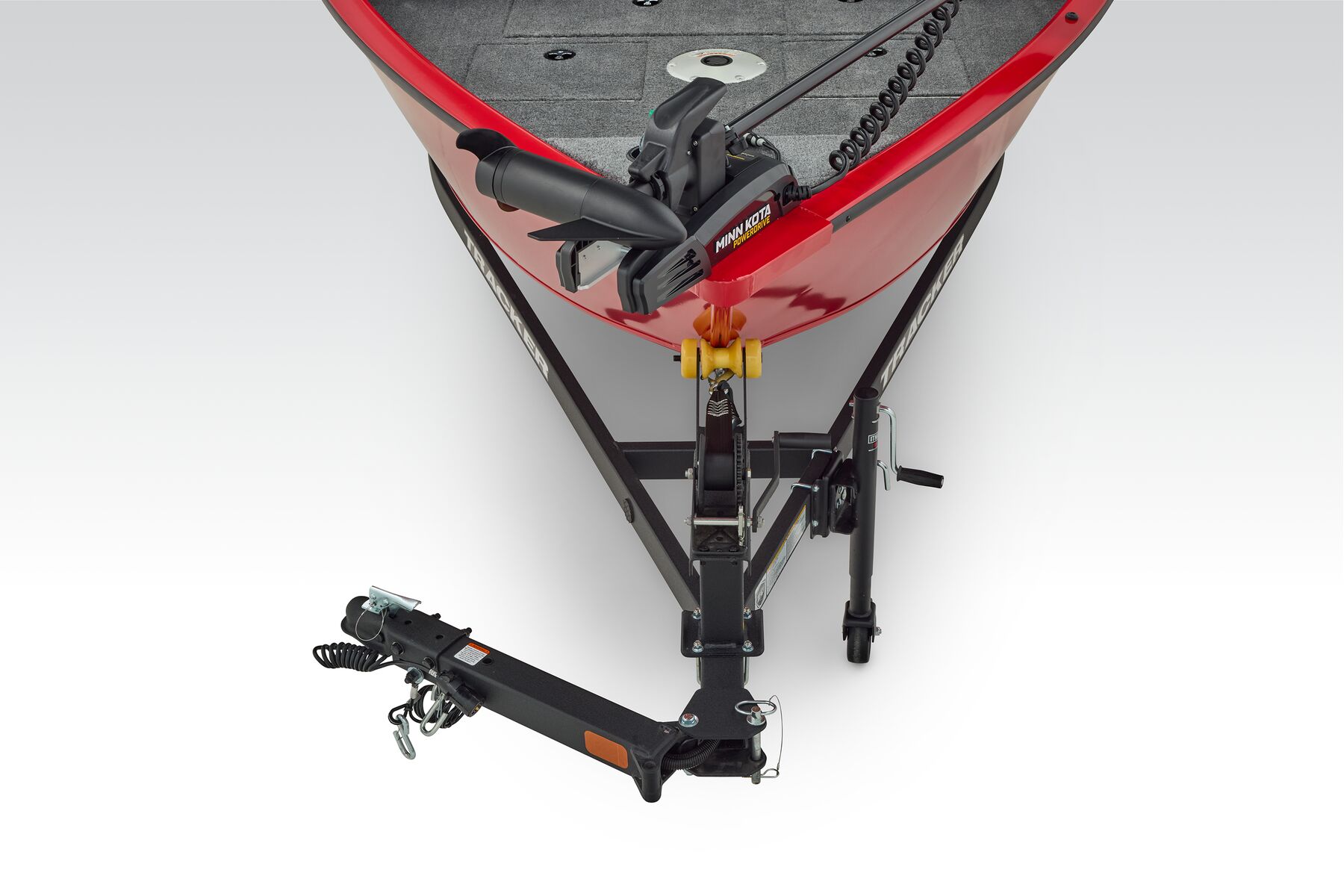

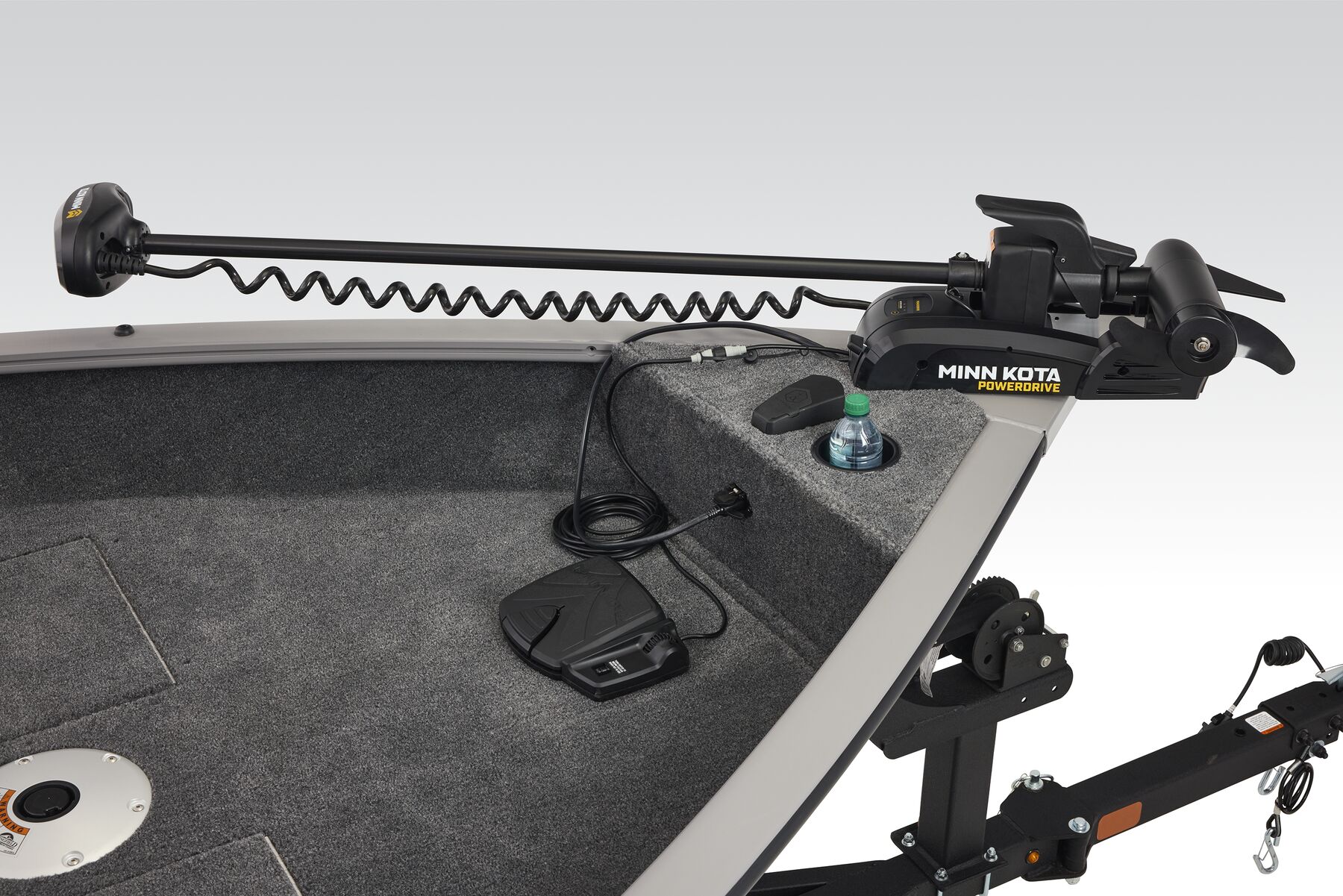

- Minn Kota® PowerDrive™ 12V, 42-lb. (19.05 kg) thrust, 54" (1.37 m) shaft, foot-control trolling motor
- Thru-bolted trolling motor mount for extra strength

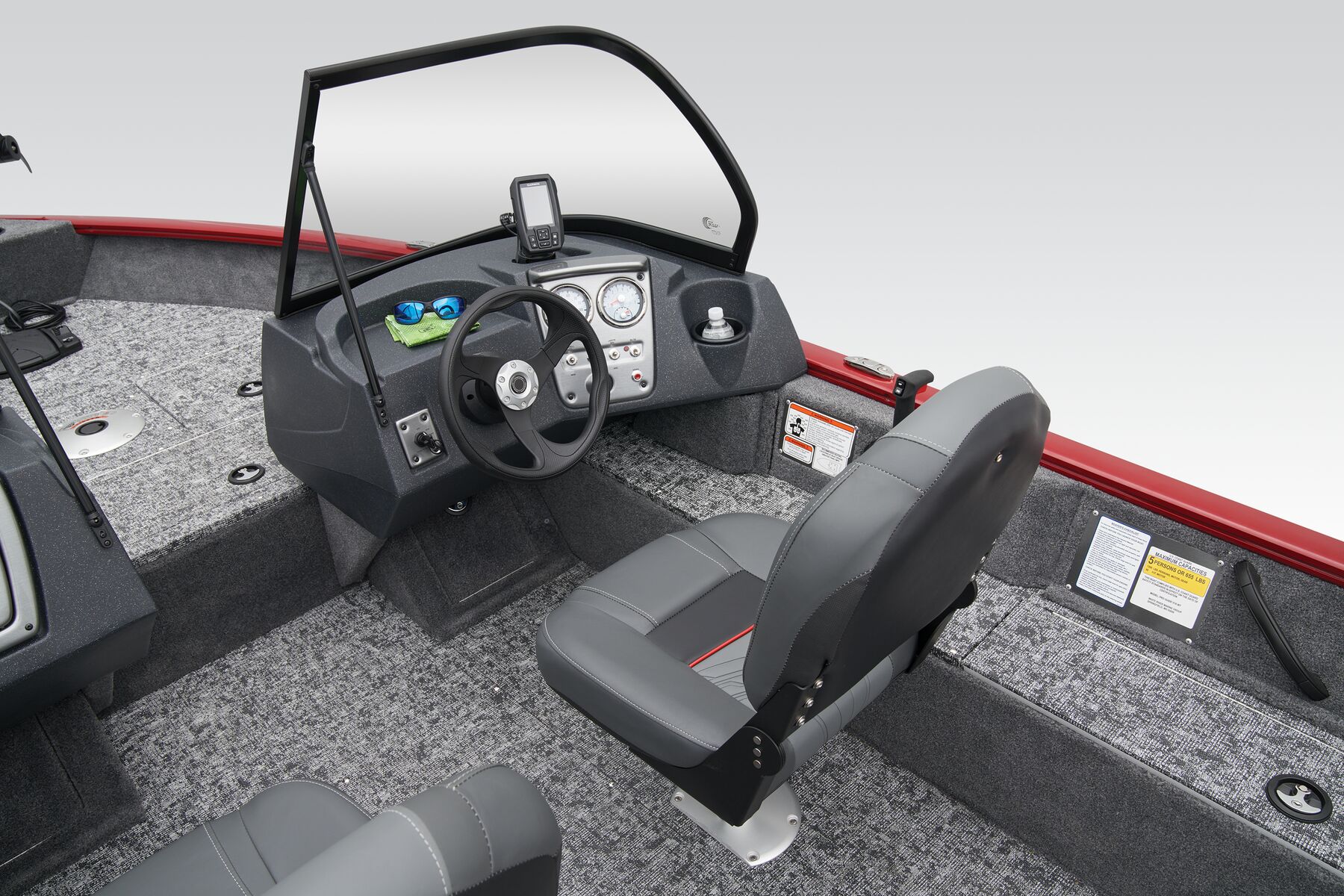

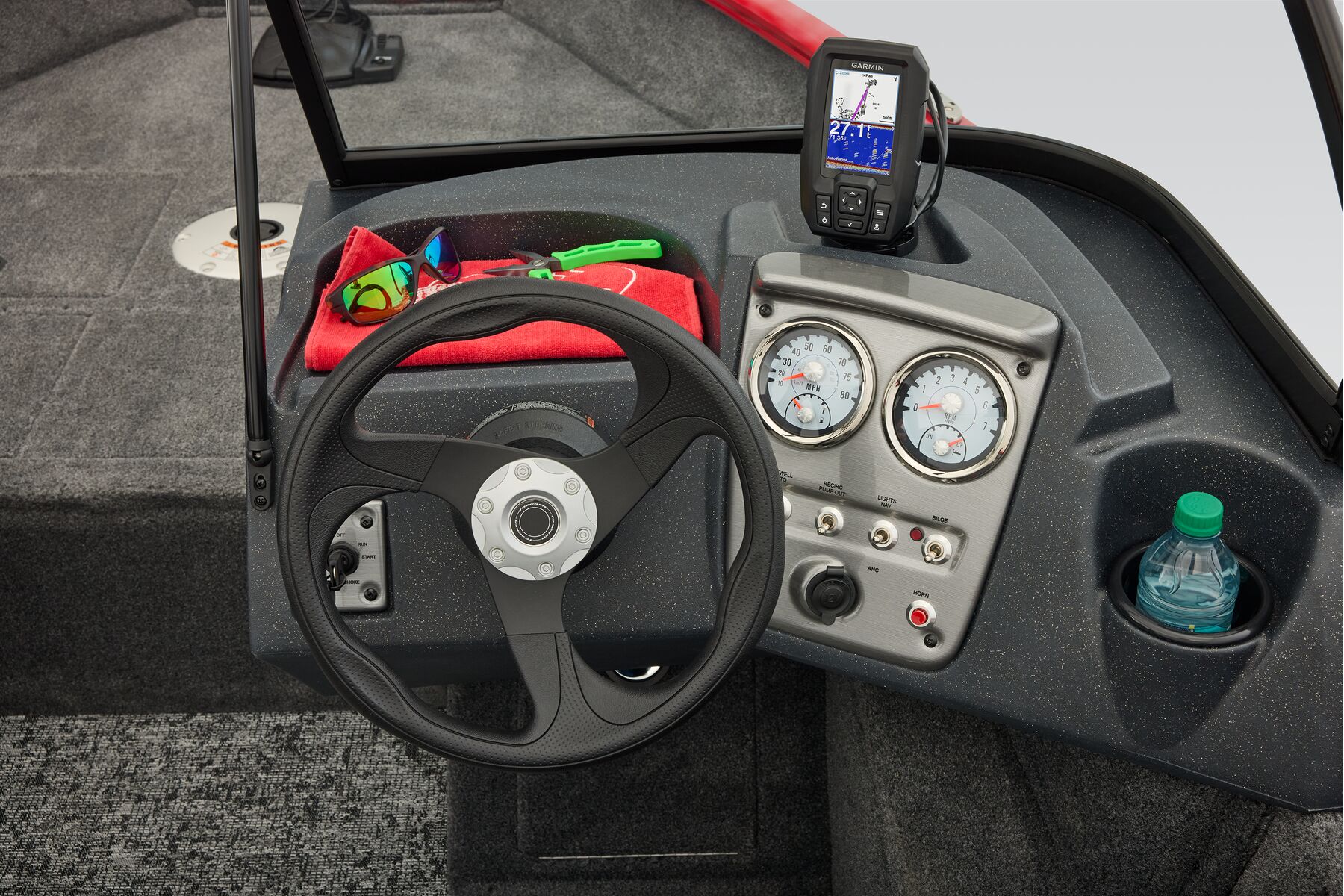

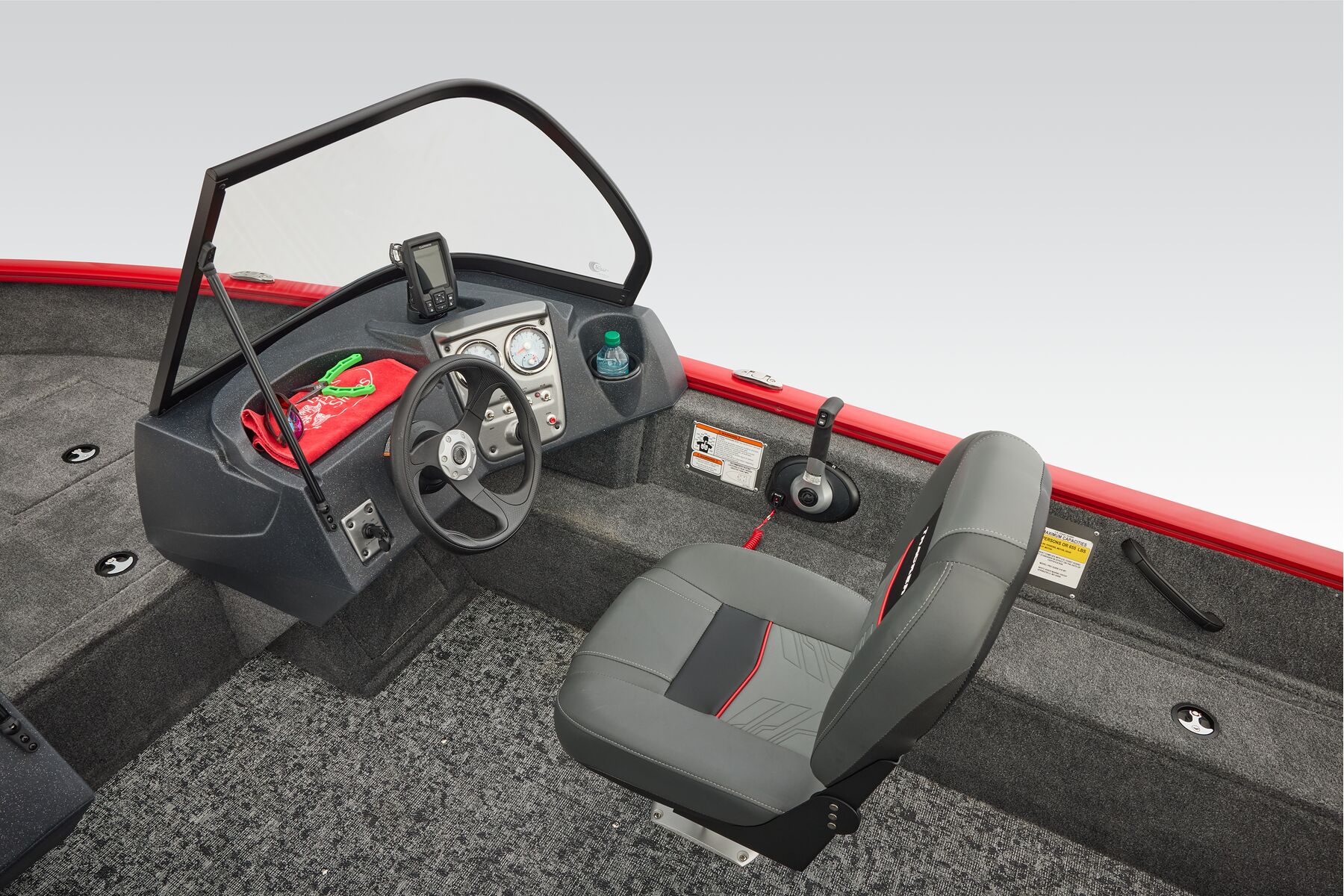

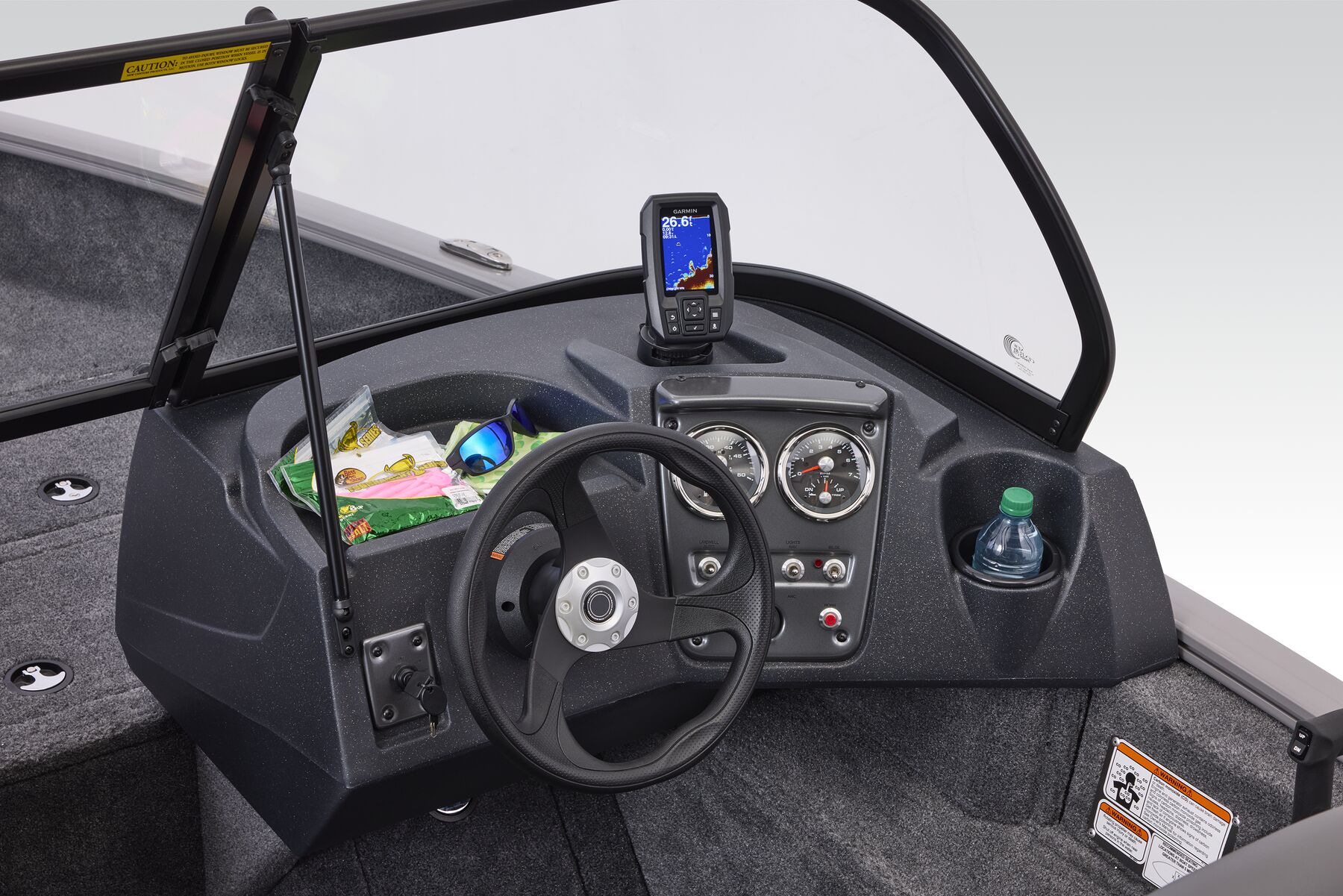

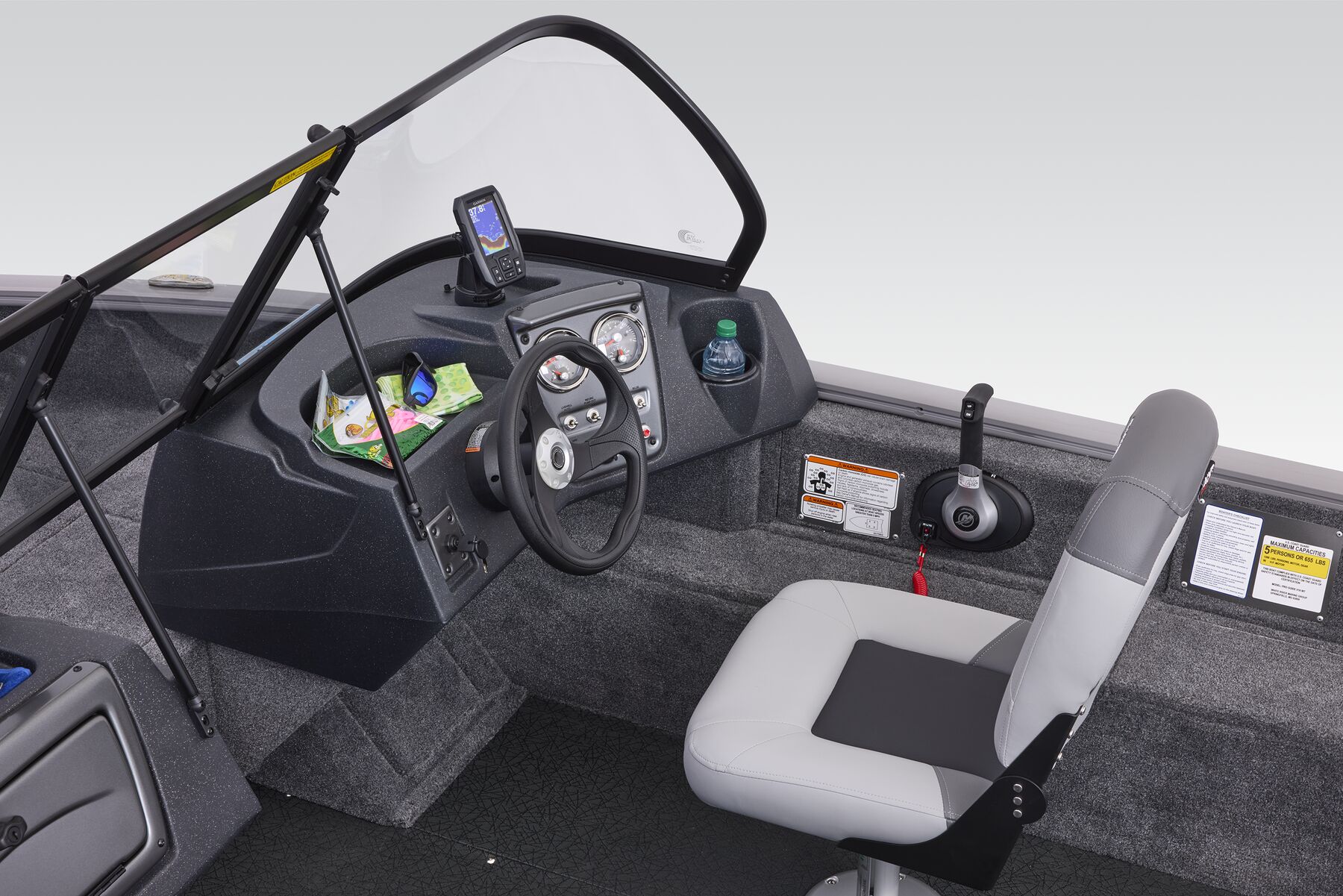

Console

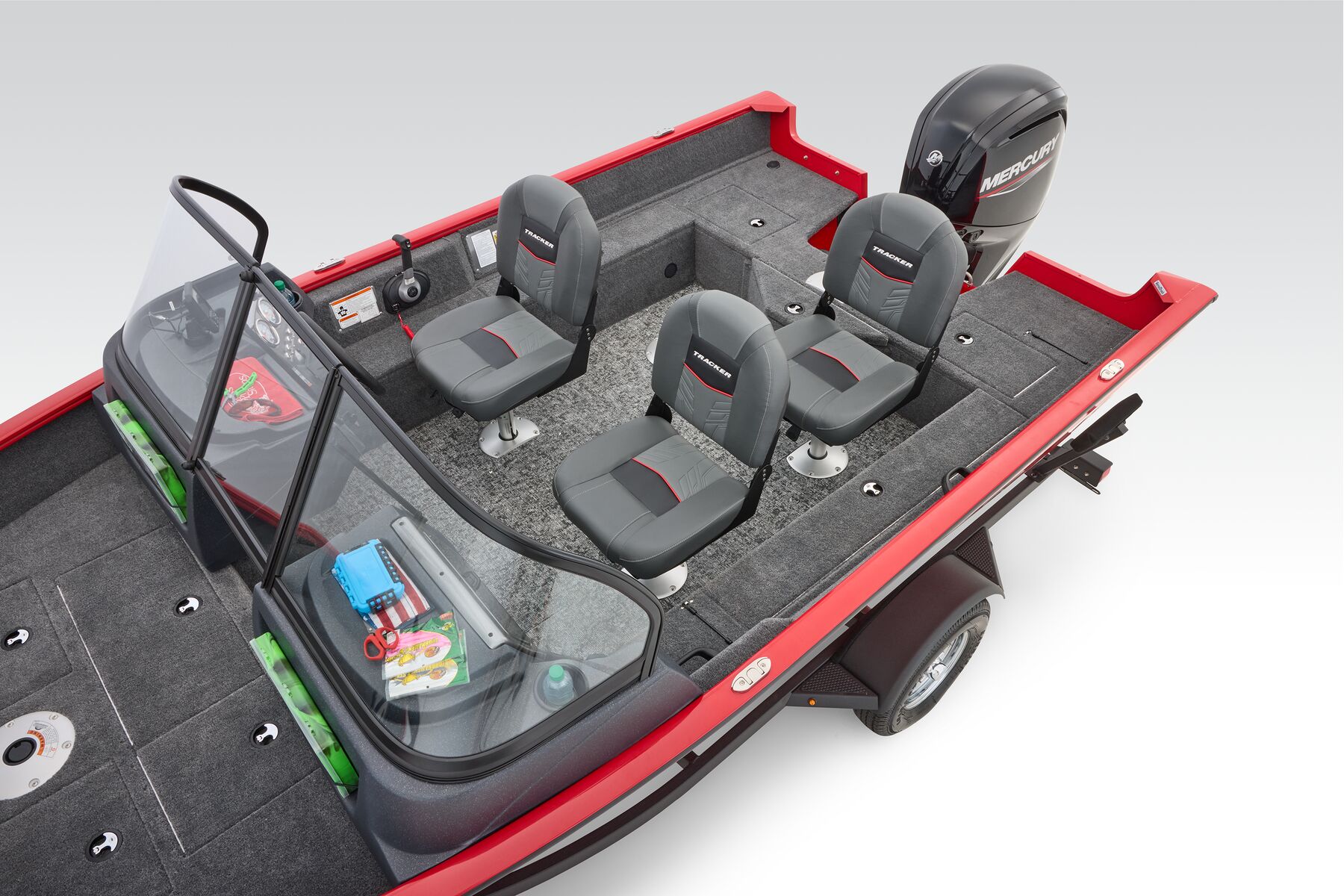

- NEW port & starboard rotomolded consoles w/tempered safety-glass walk-thru windshields & hatch

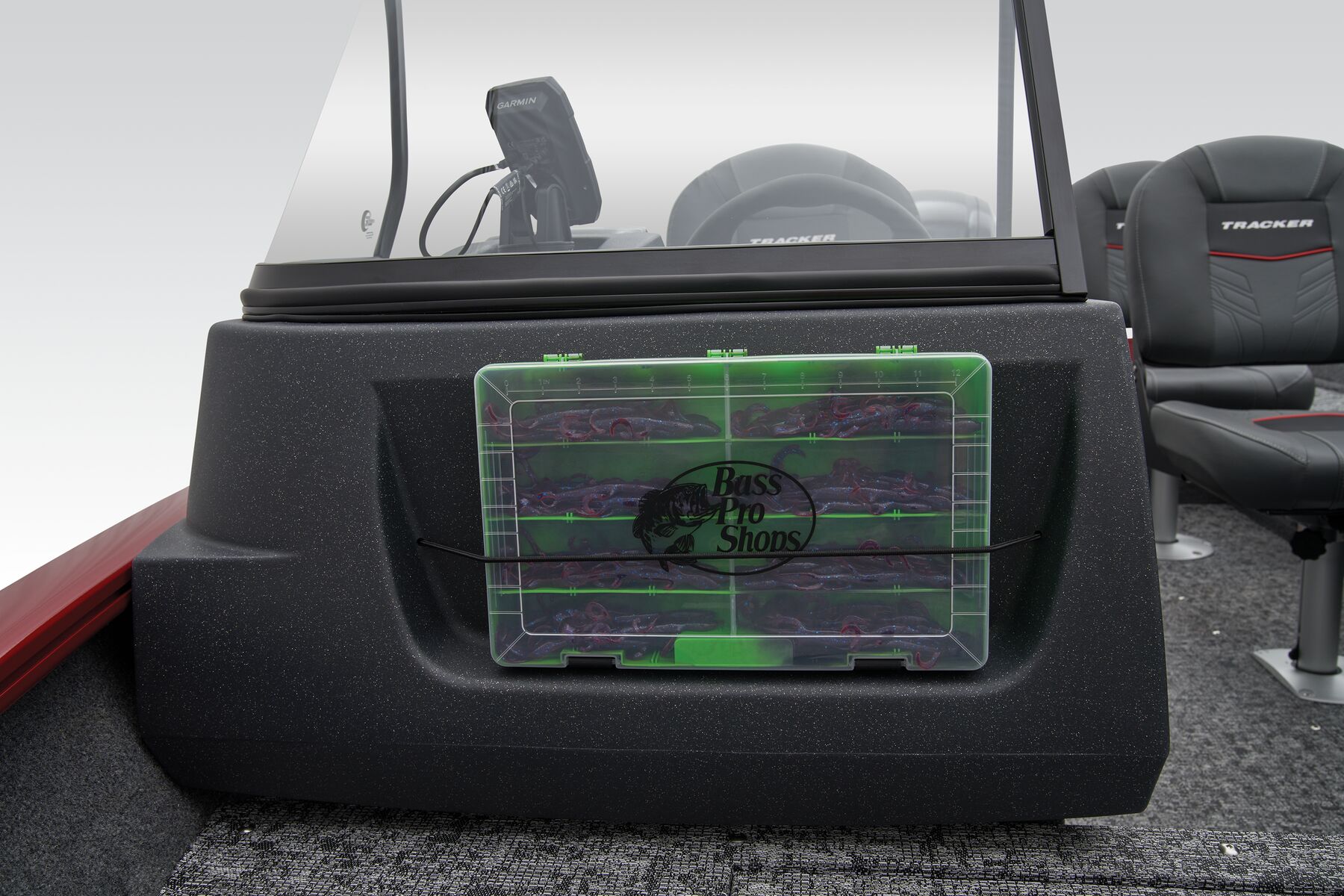

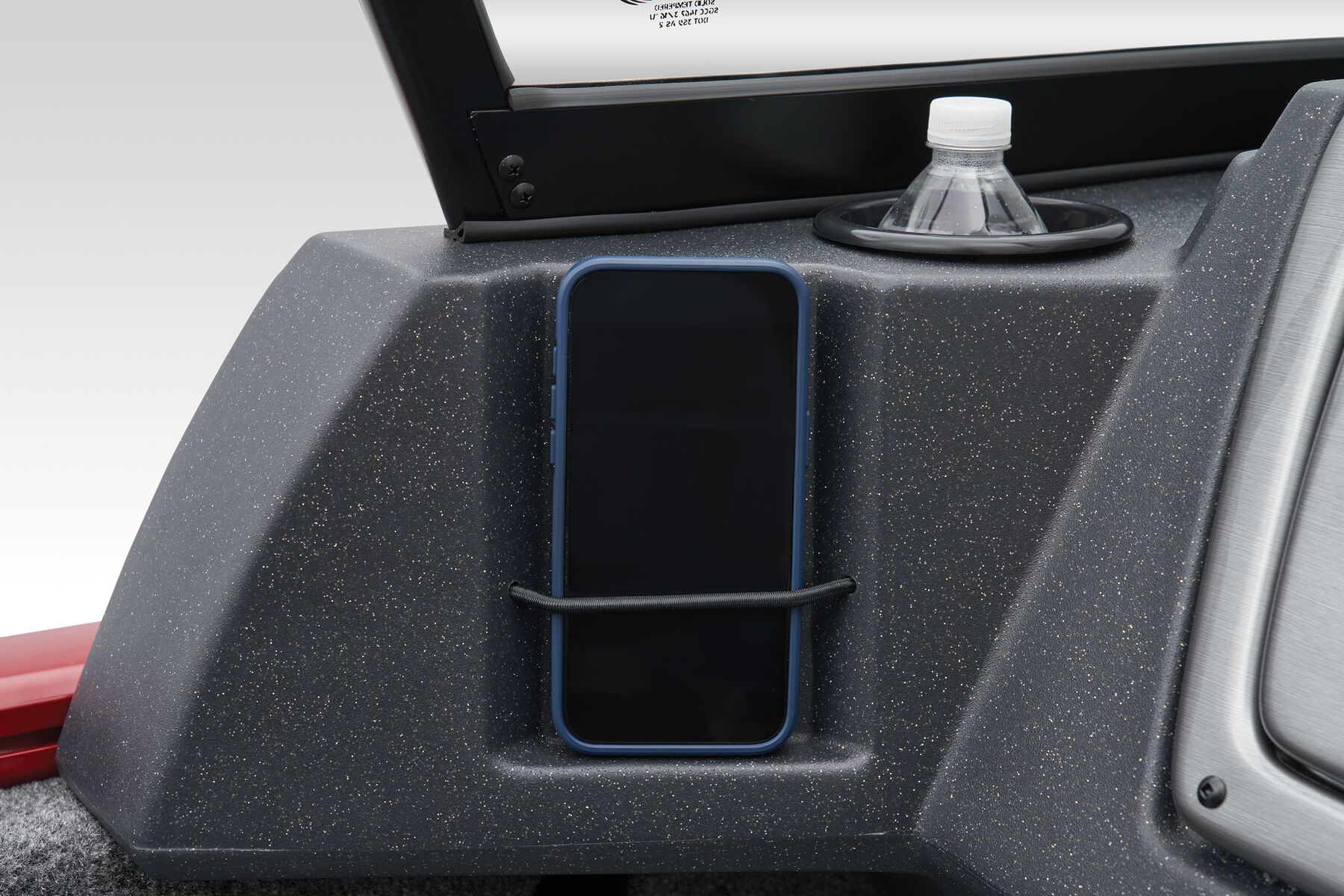

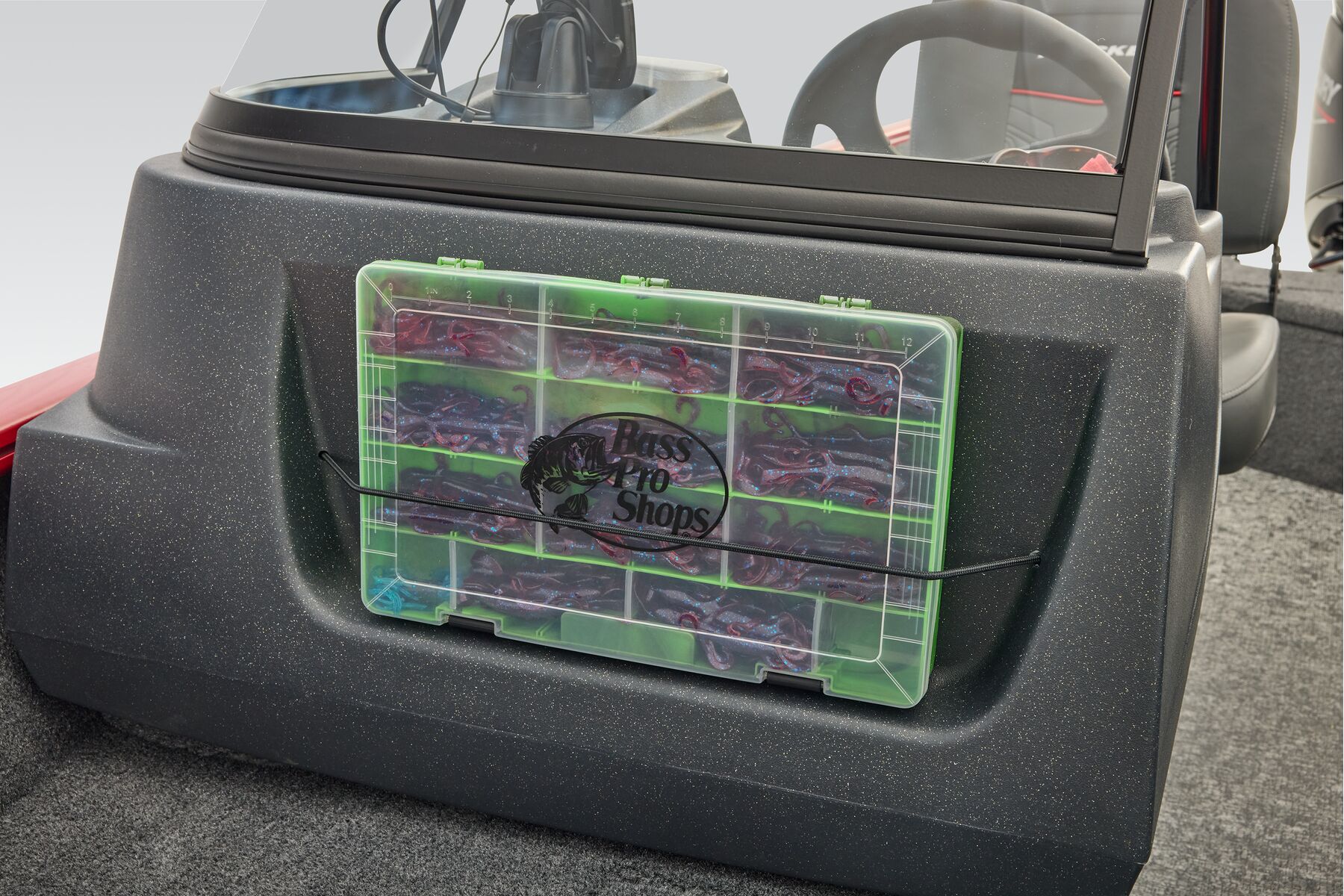

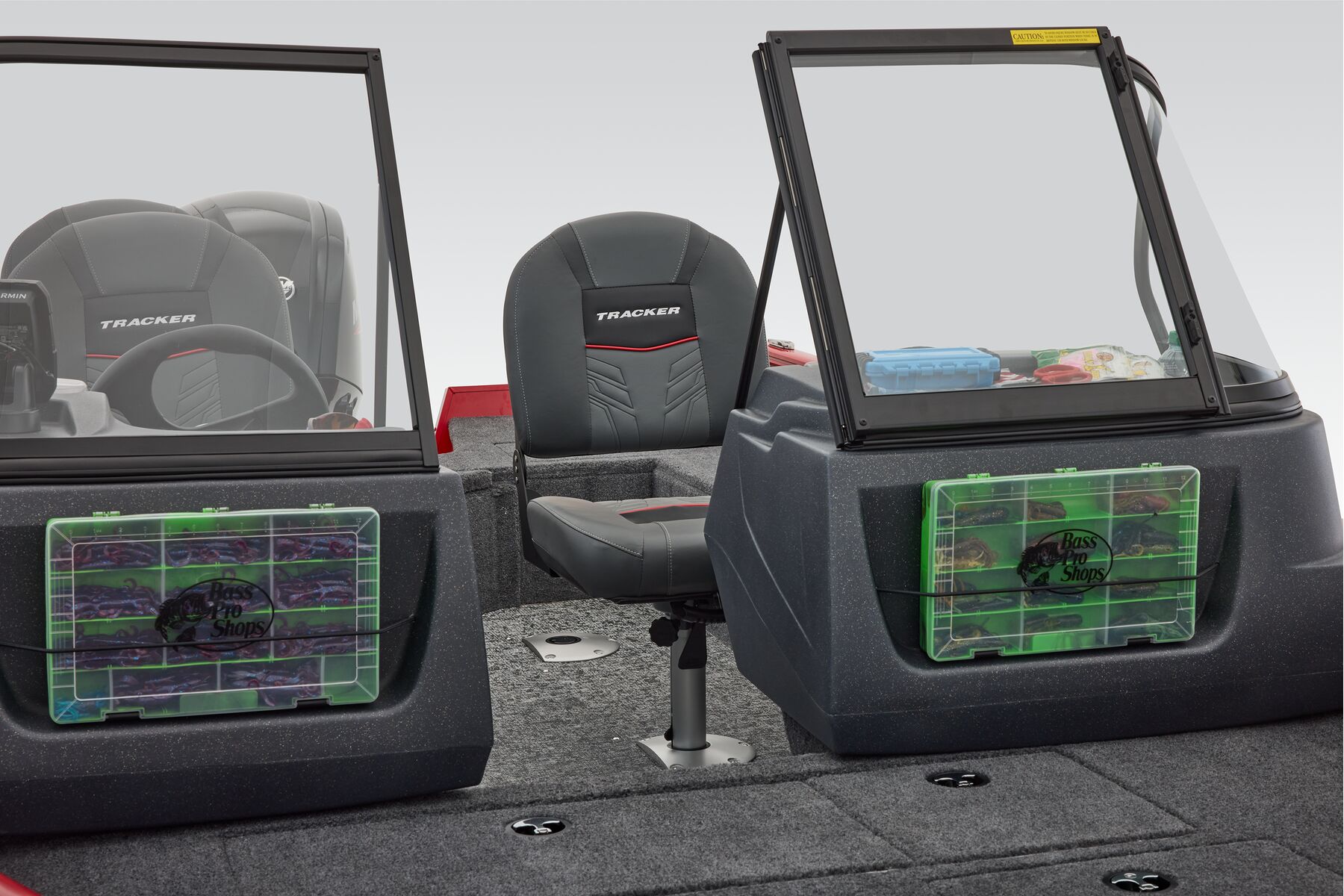

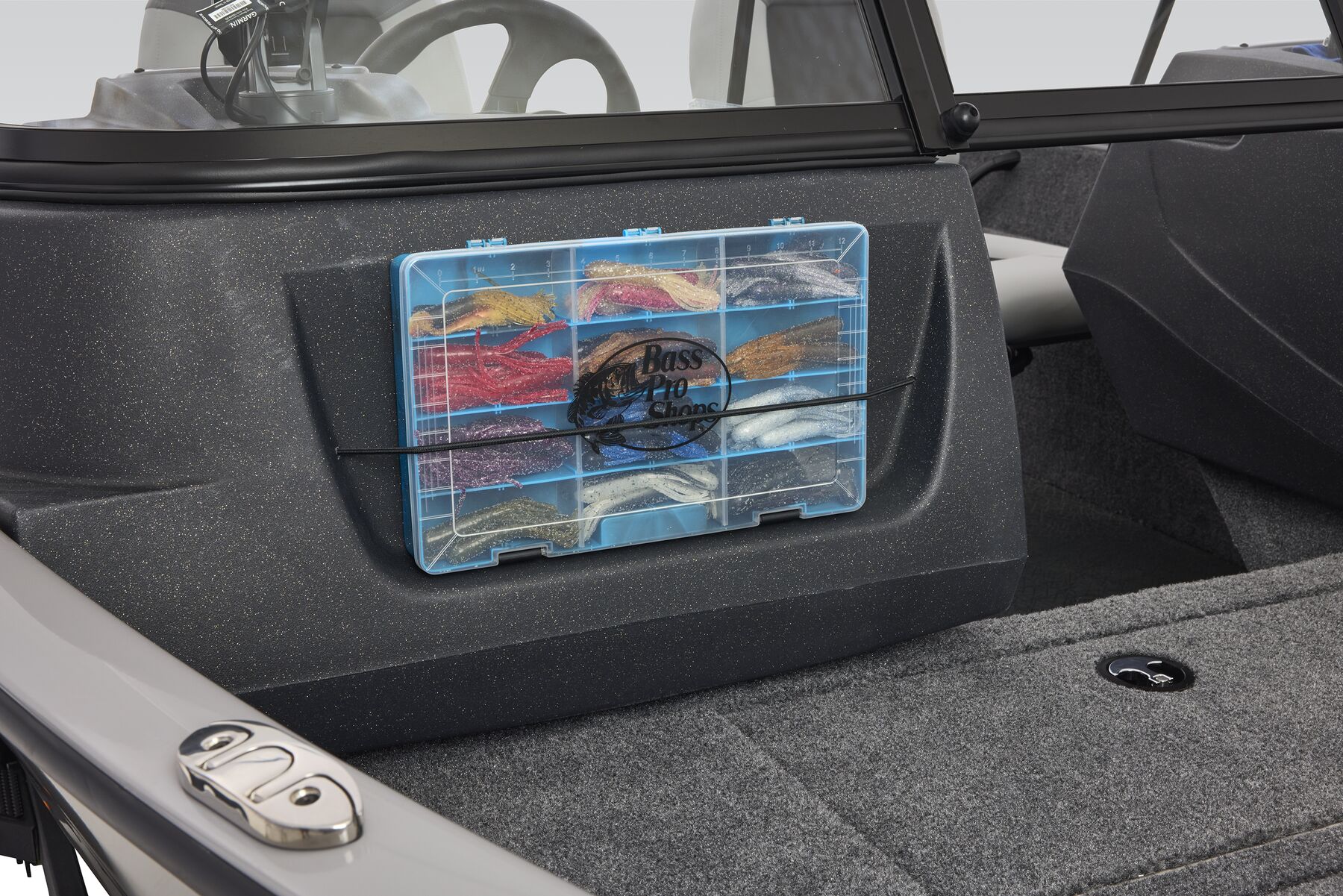

- Forward-console tackle box storage w/bungee cord

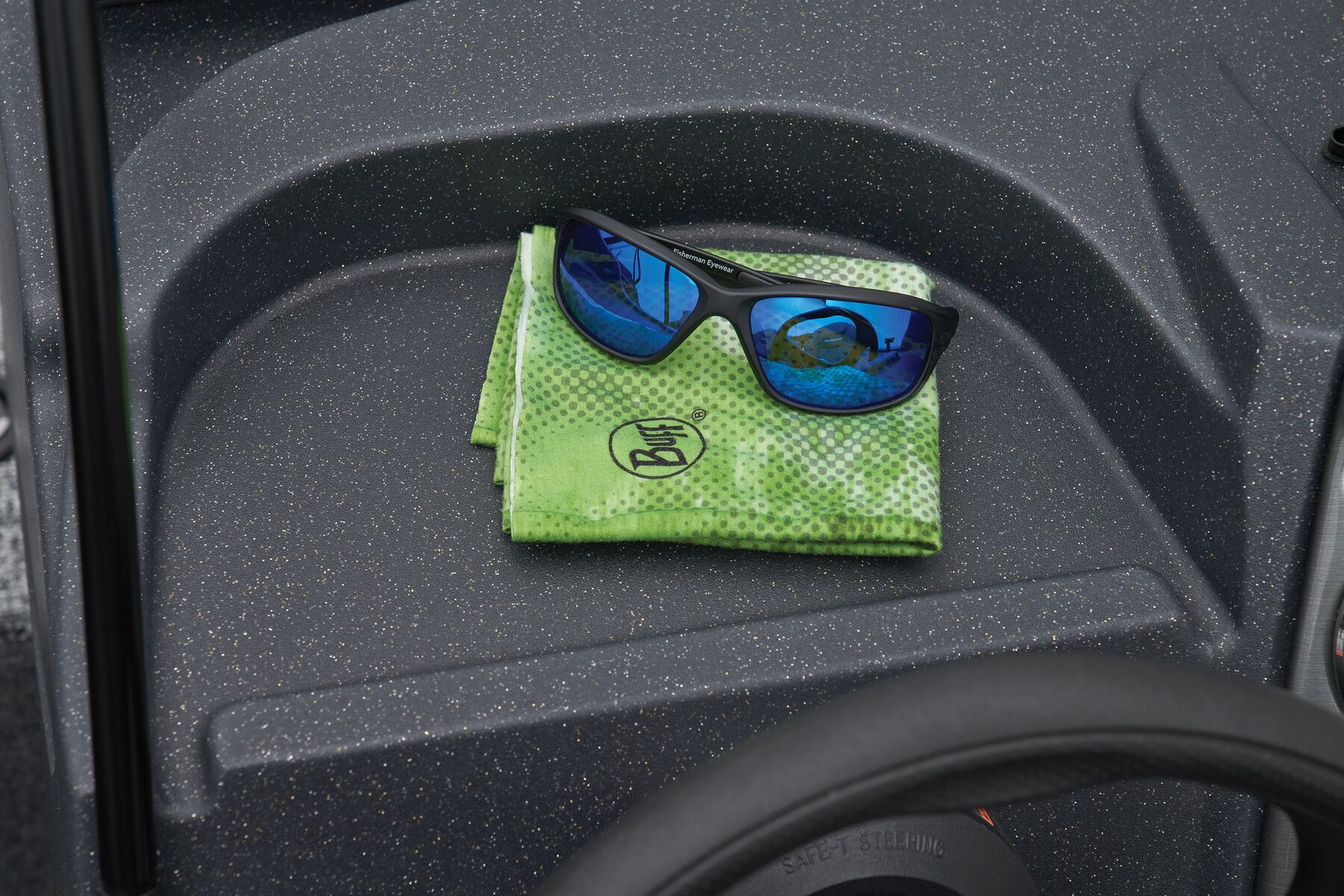

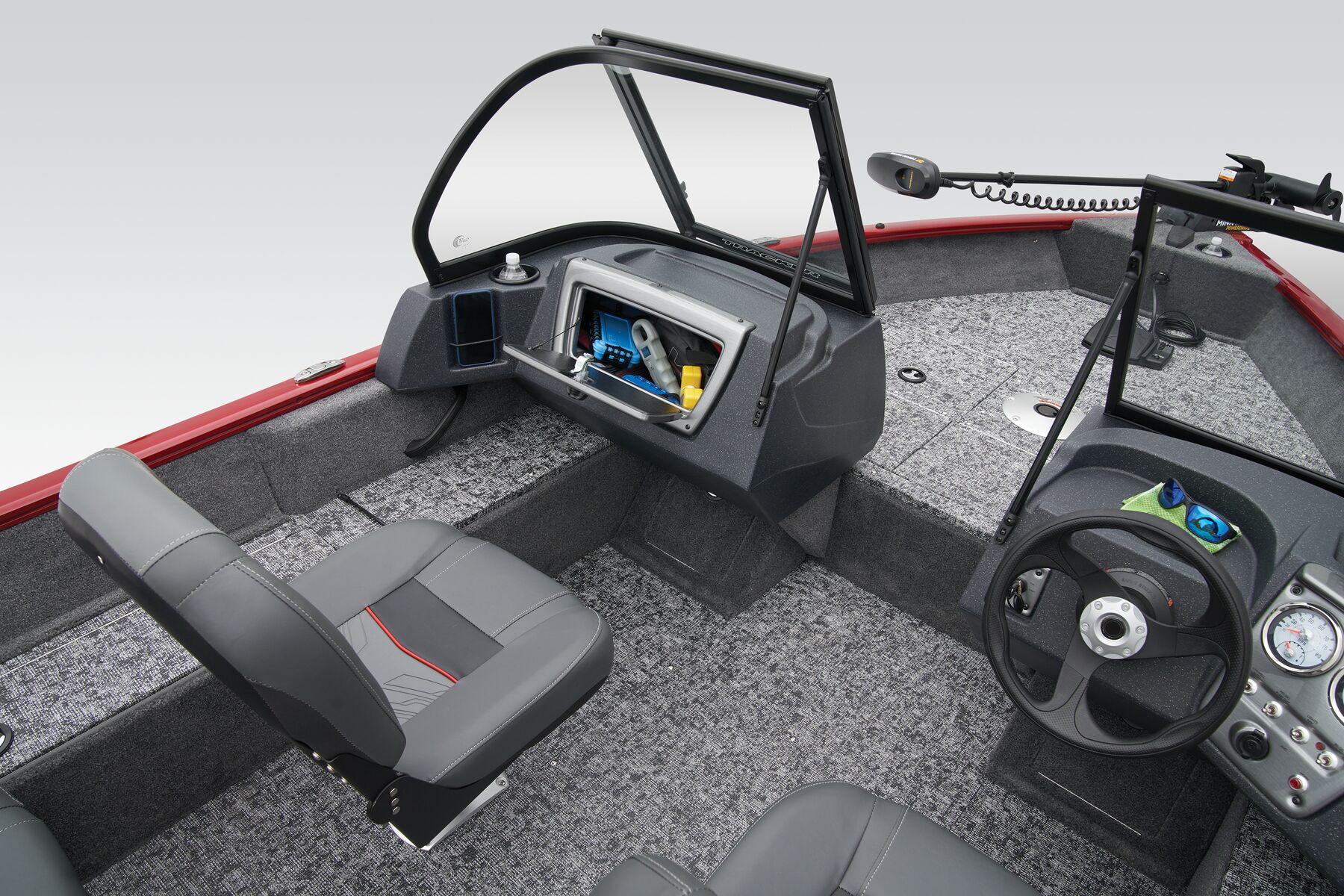

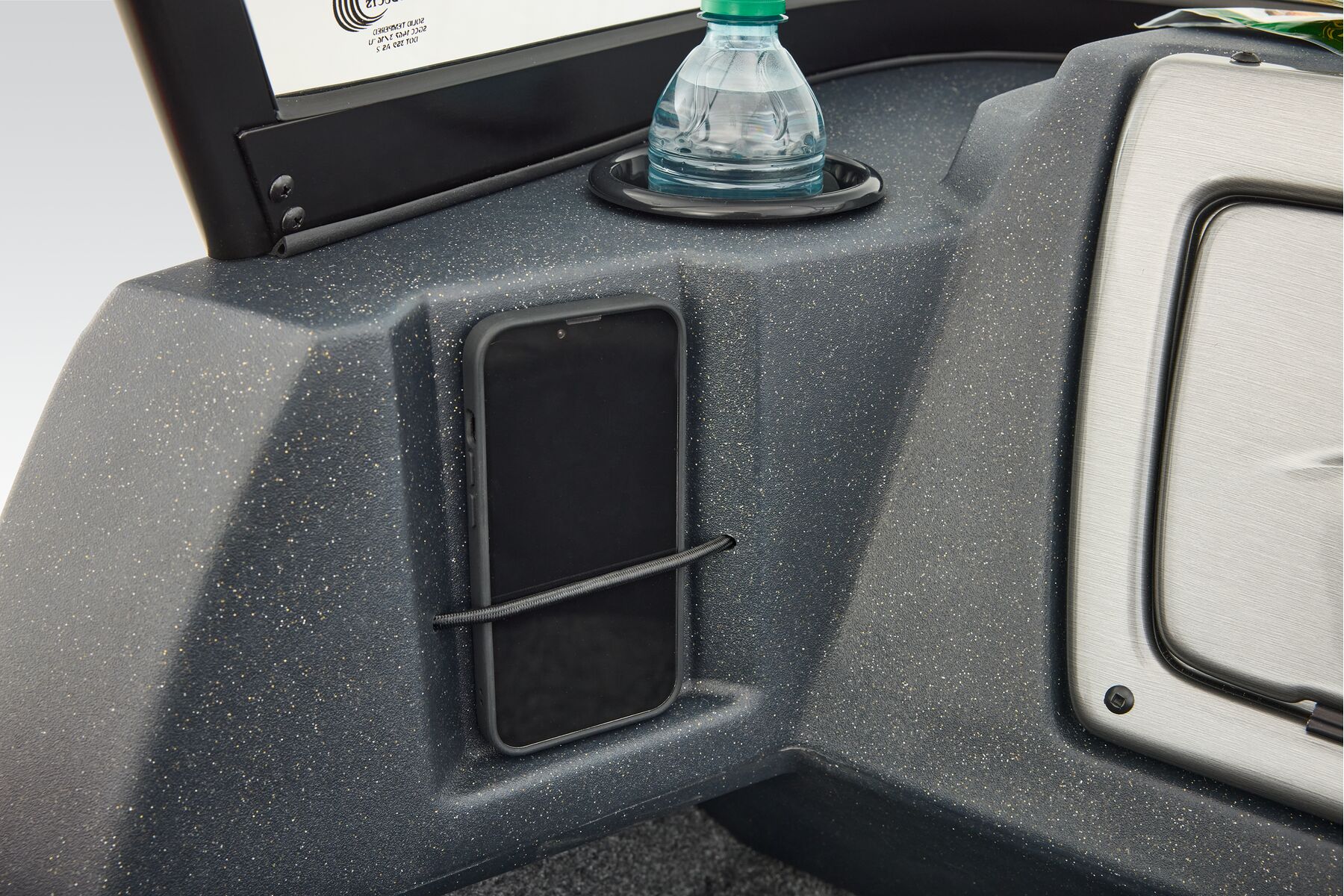

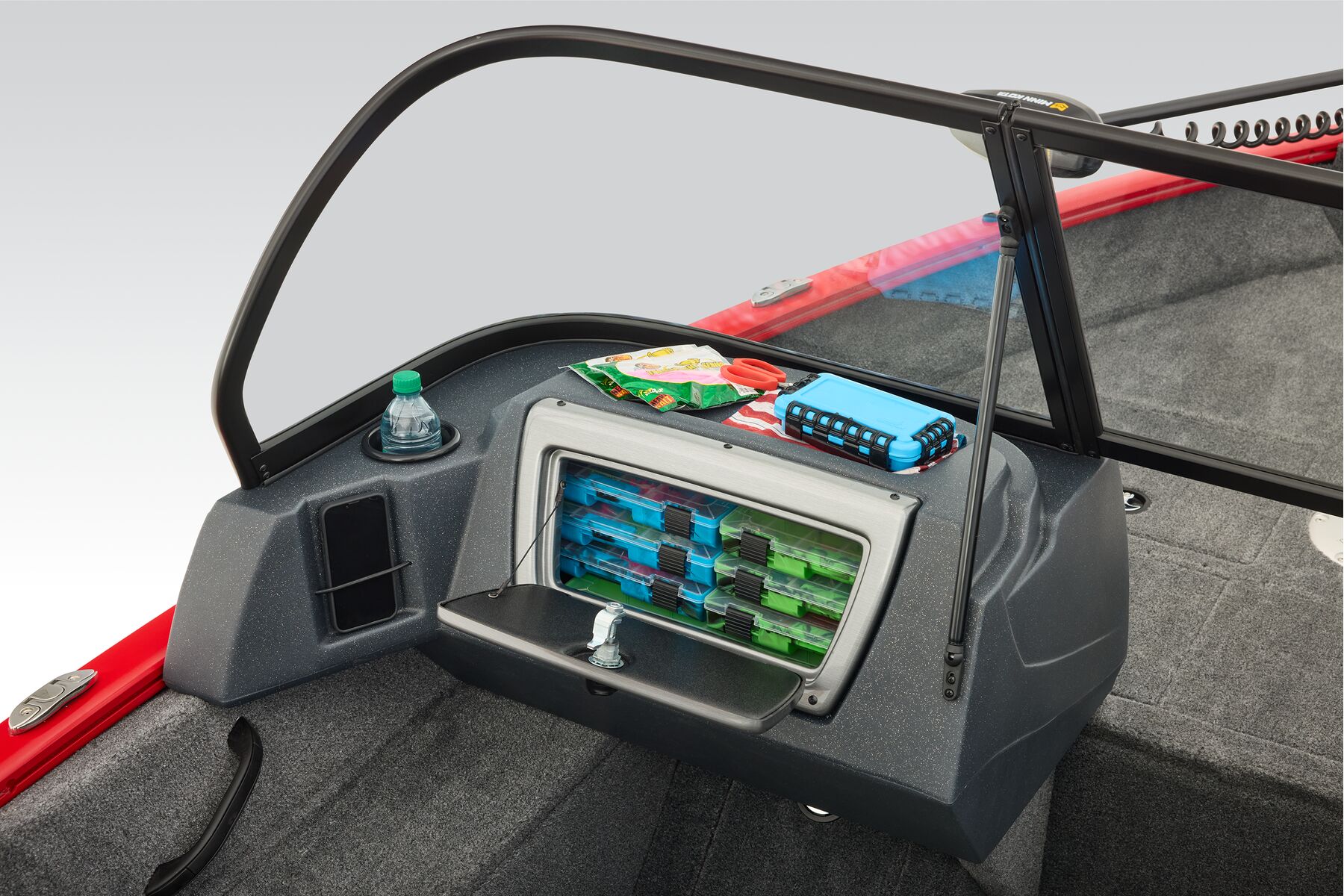

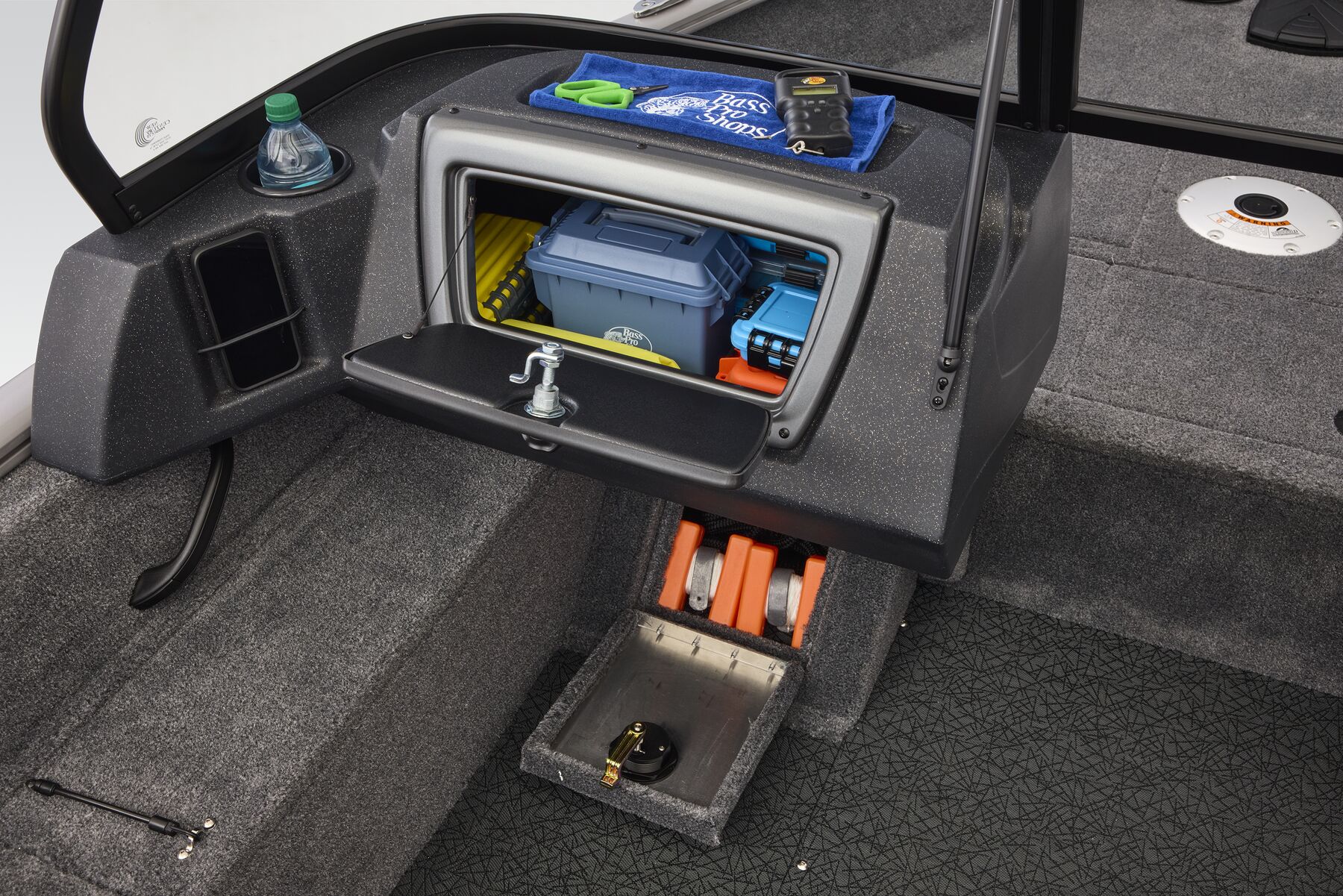

- Passenger console w/glovebox & built-in drink holder

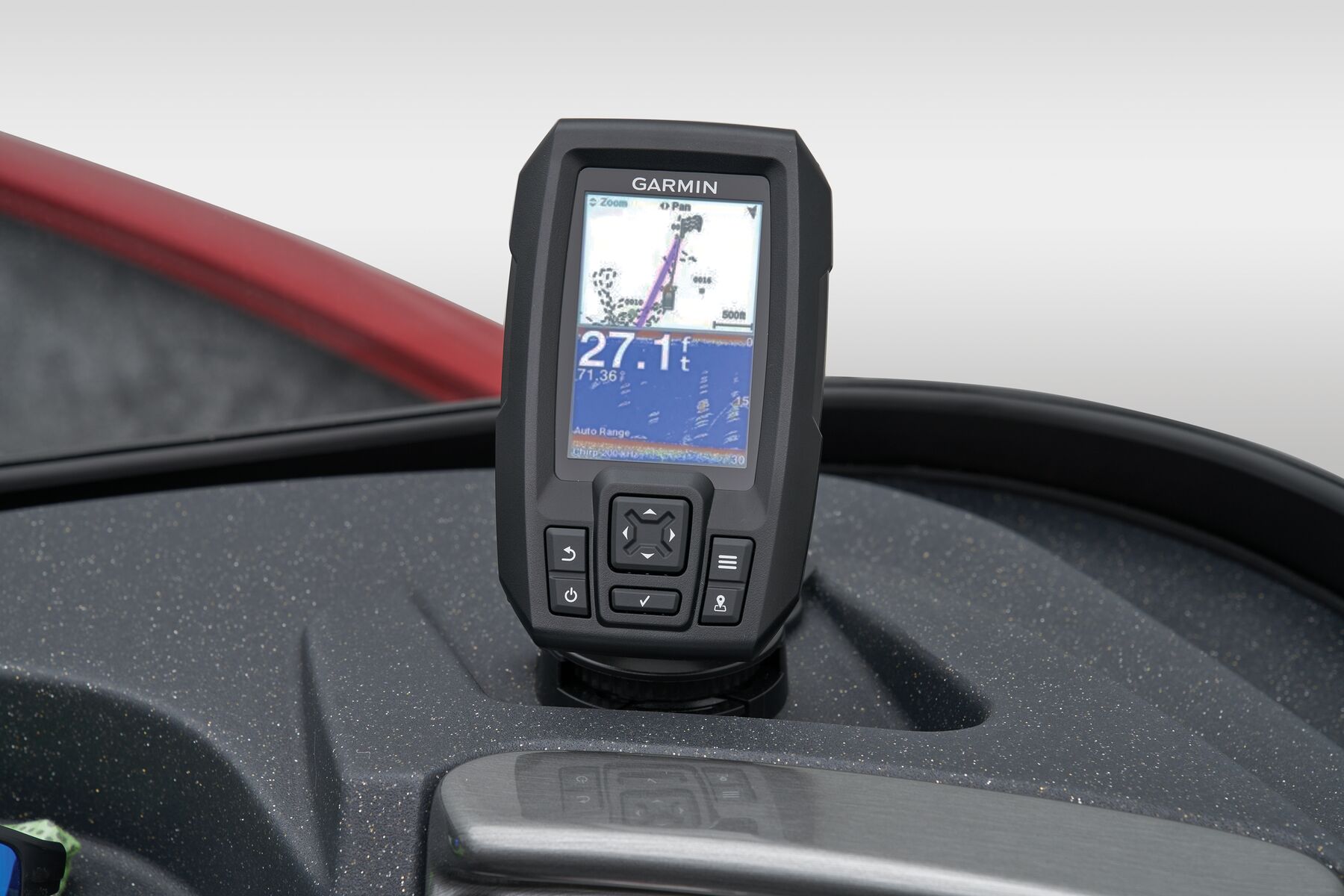

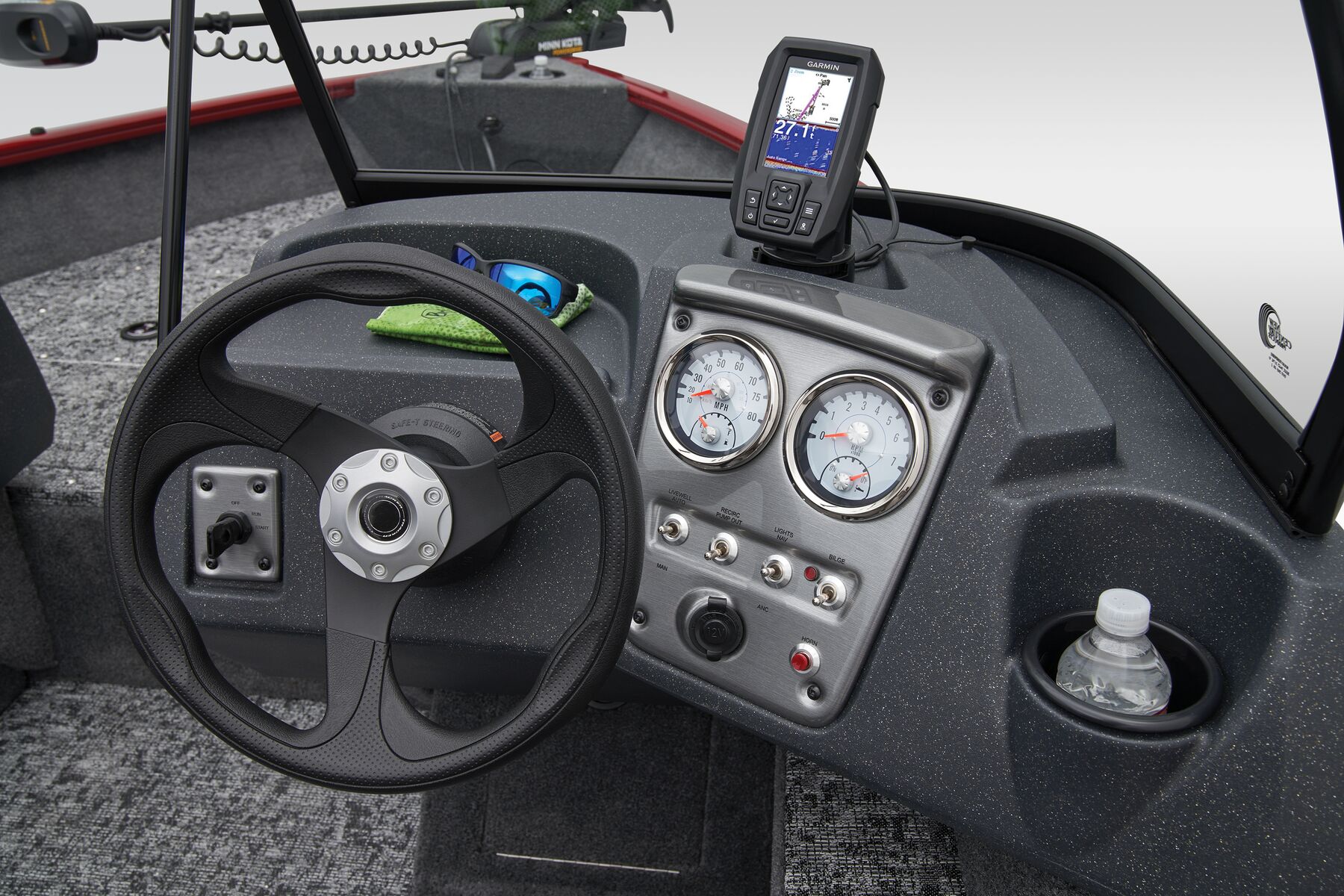

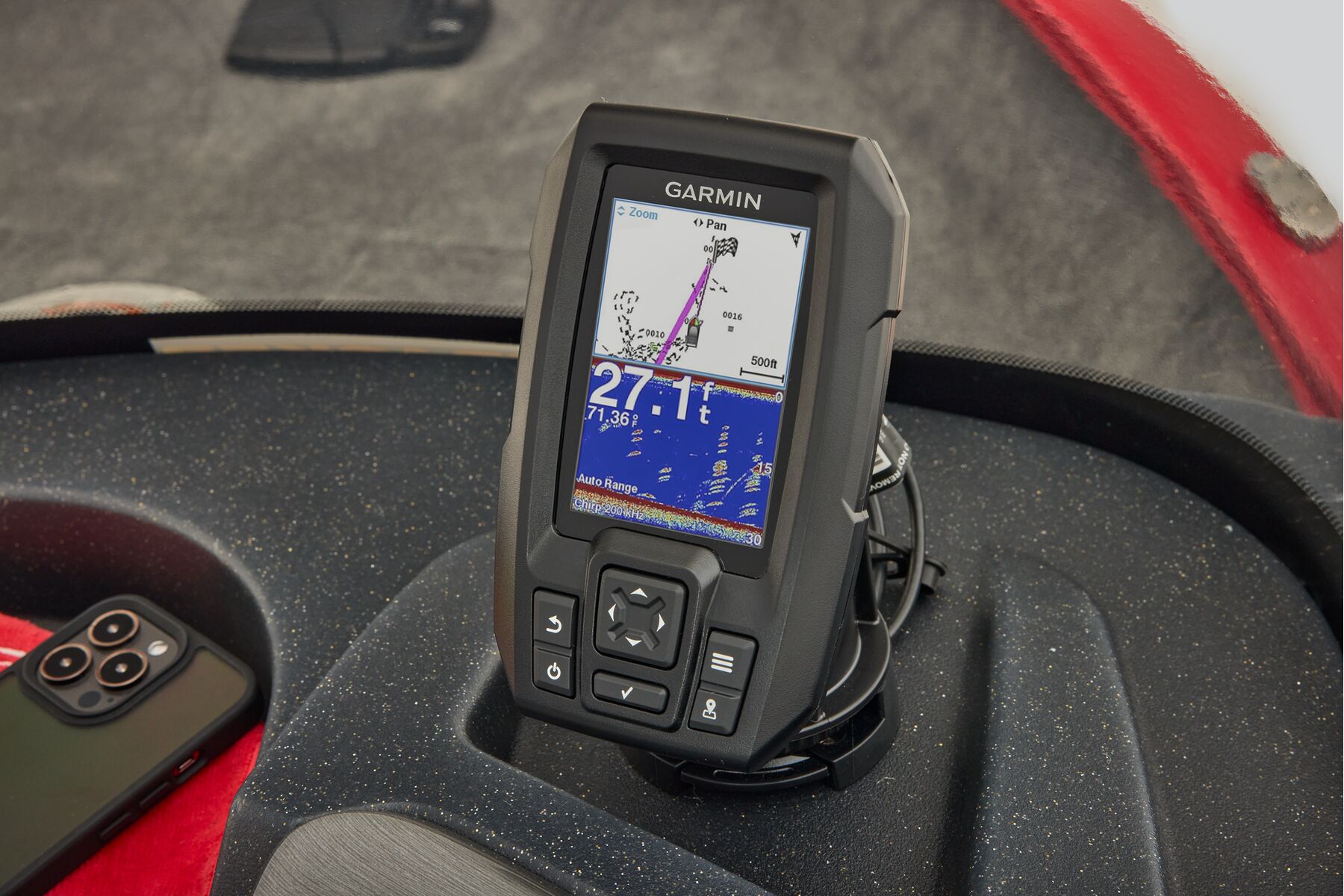

- Garmin® STRIKER™ 4 color fishfinder + GPS w/CHIRP transducer
- Single-cable, no-feedback rotary steering
- Driver side drink holder

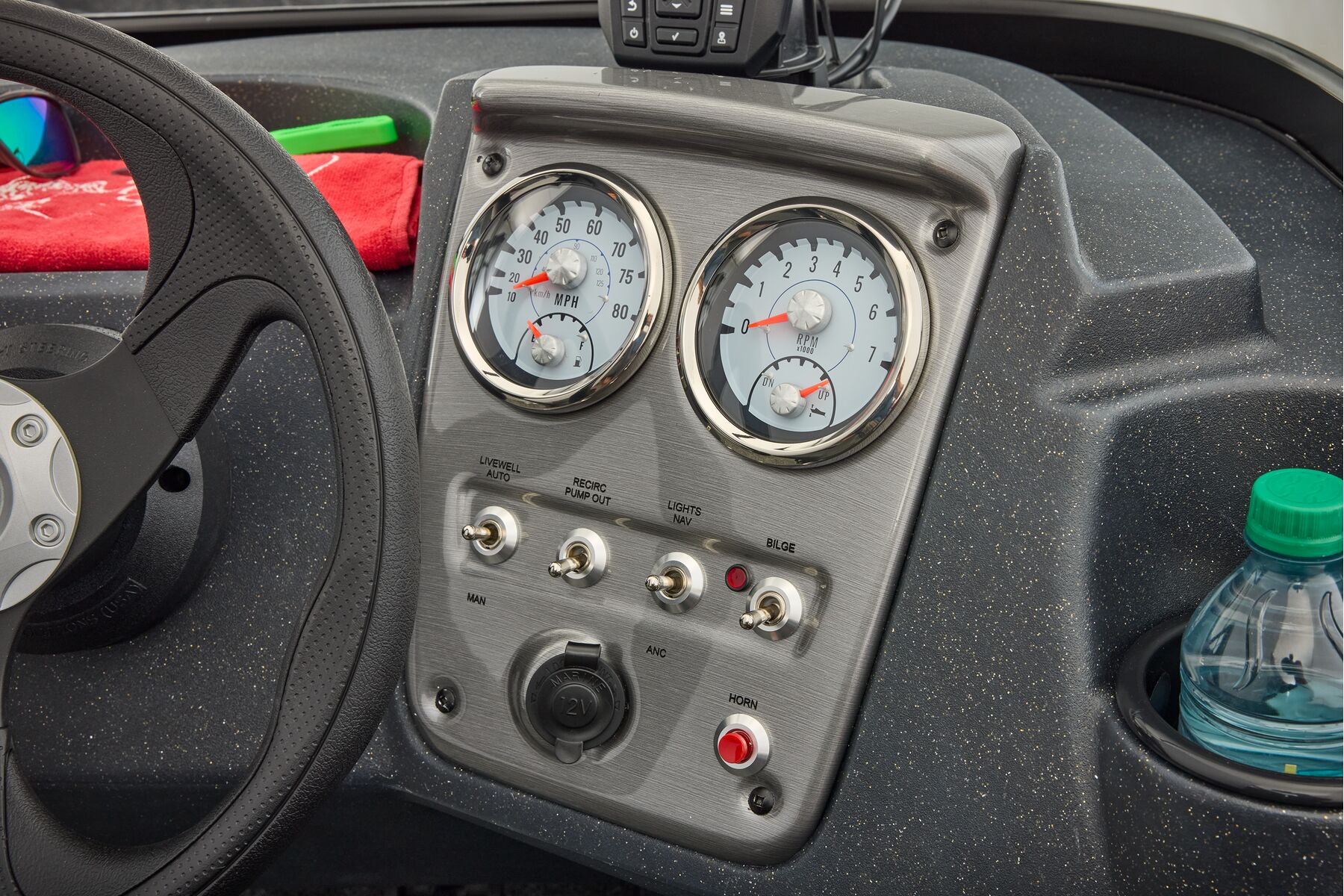

- Illuminated multifunction tachometer/trim gauge & speedometer/fuel gauge

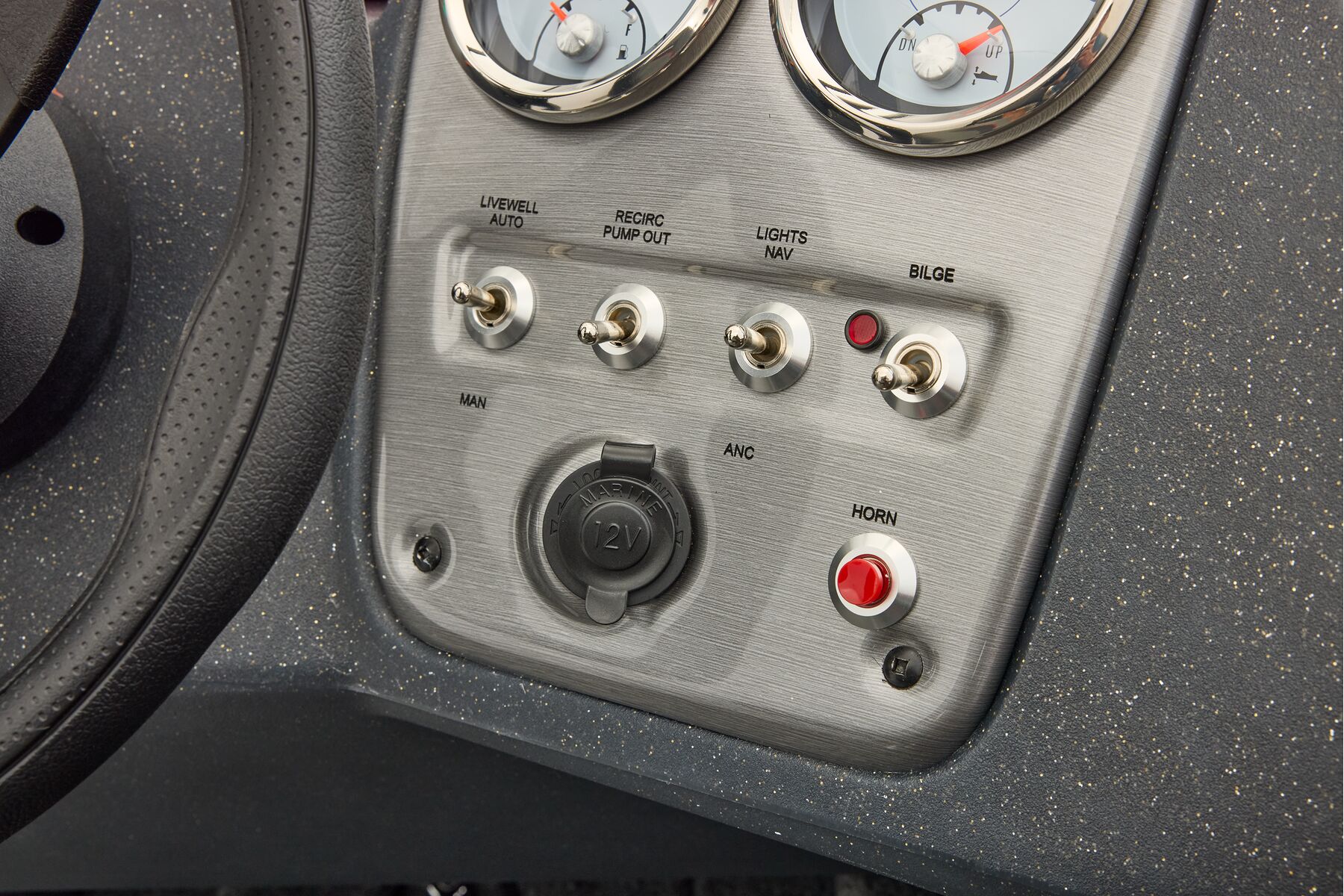

- Toggle switches
- Black Metallic instrument & switch panel
- Mercury® throttle control mount
- Stardust console color

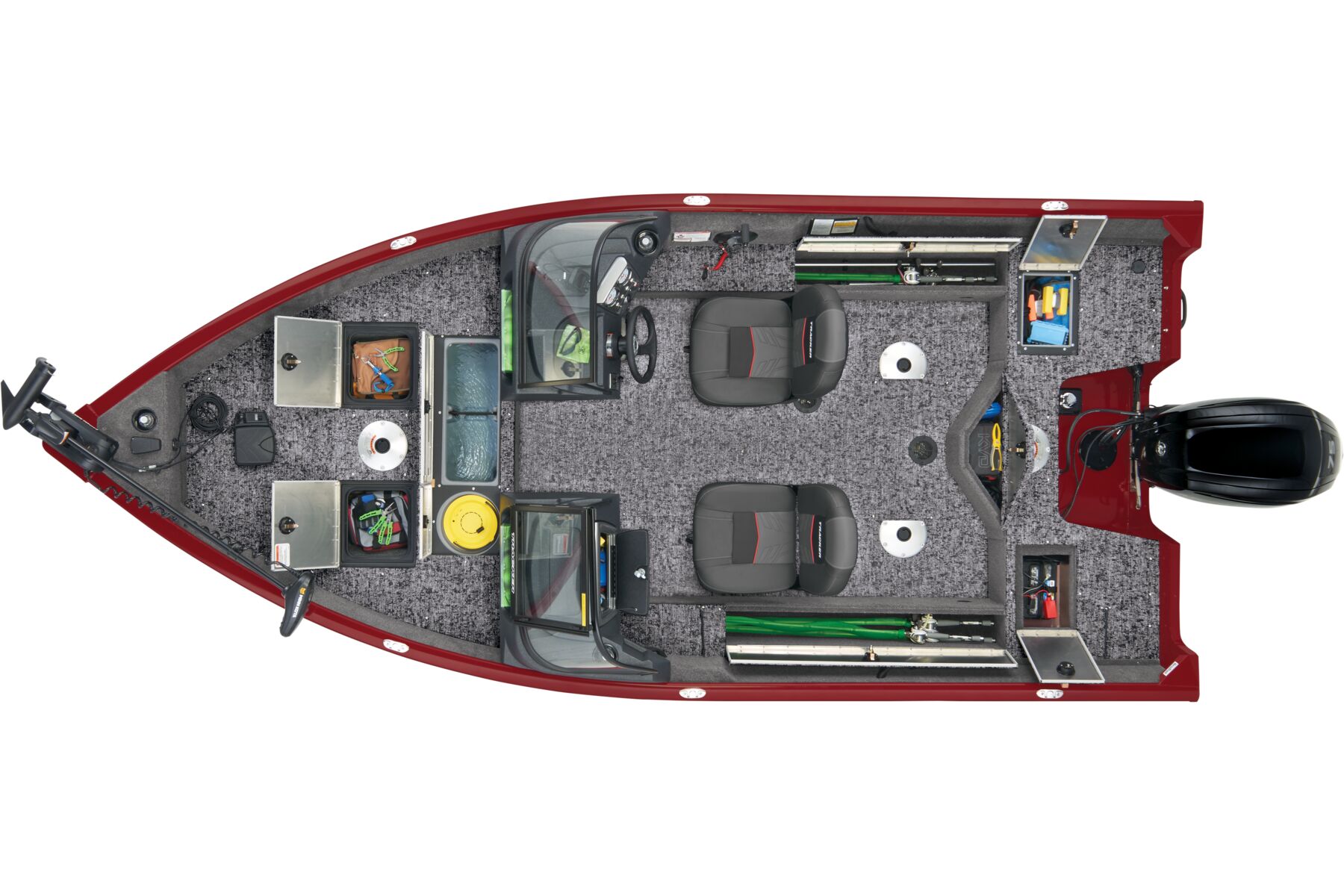

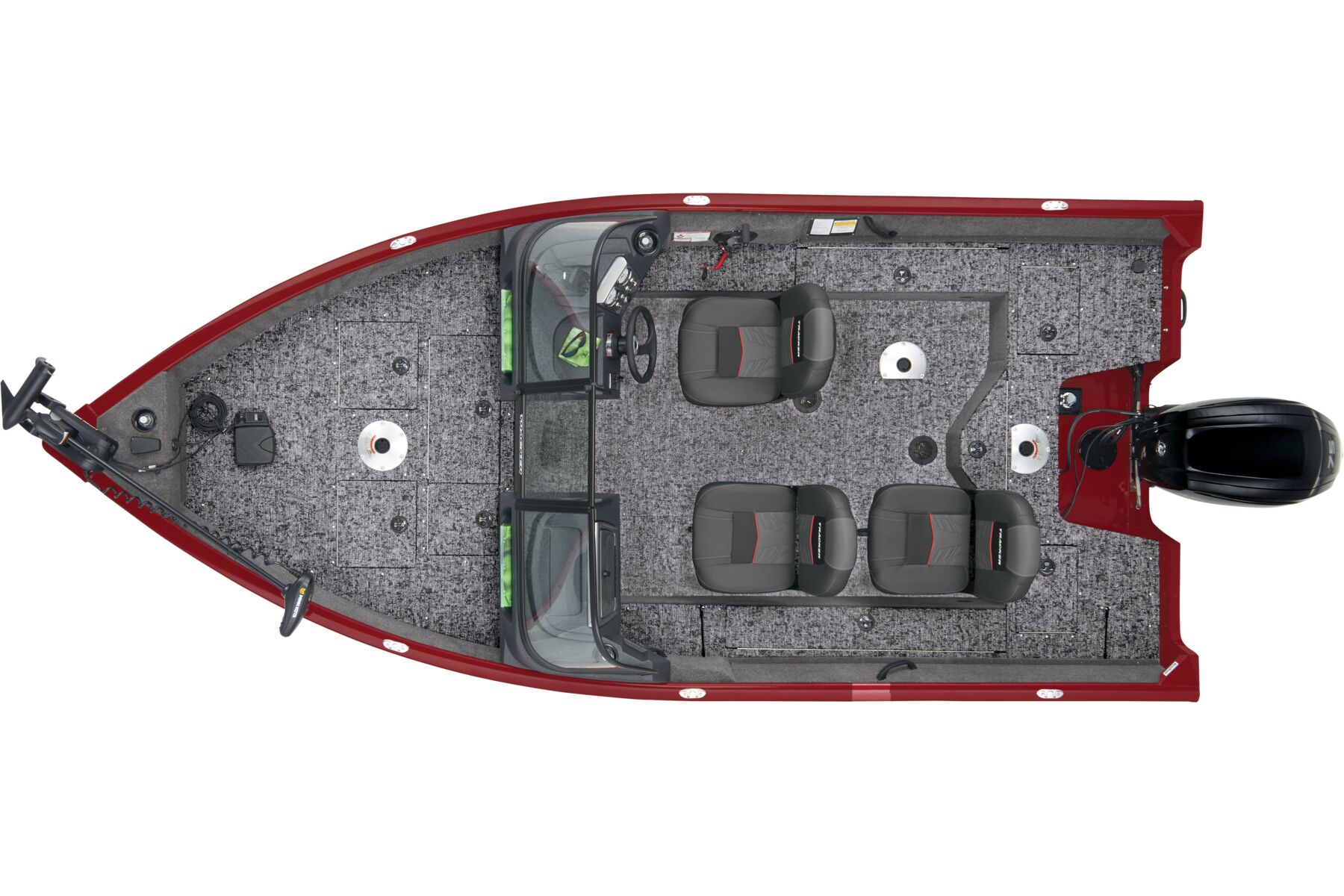

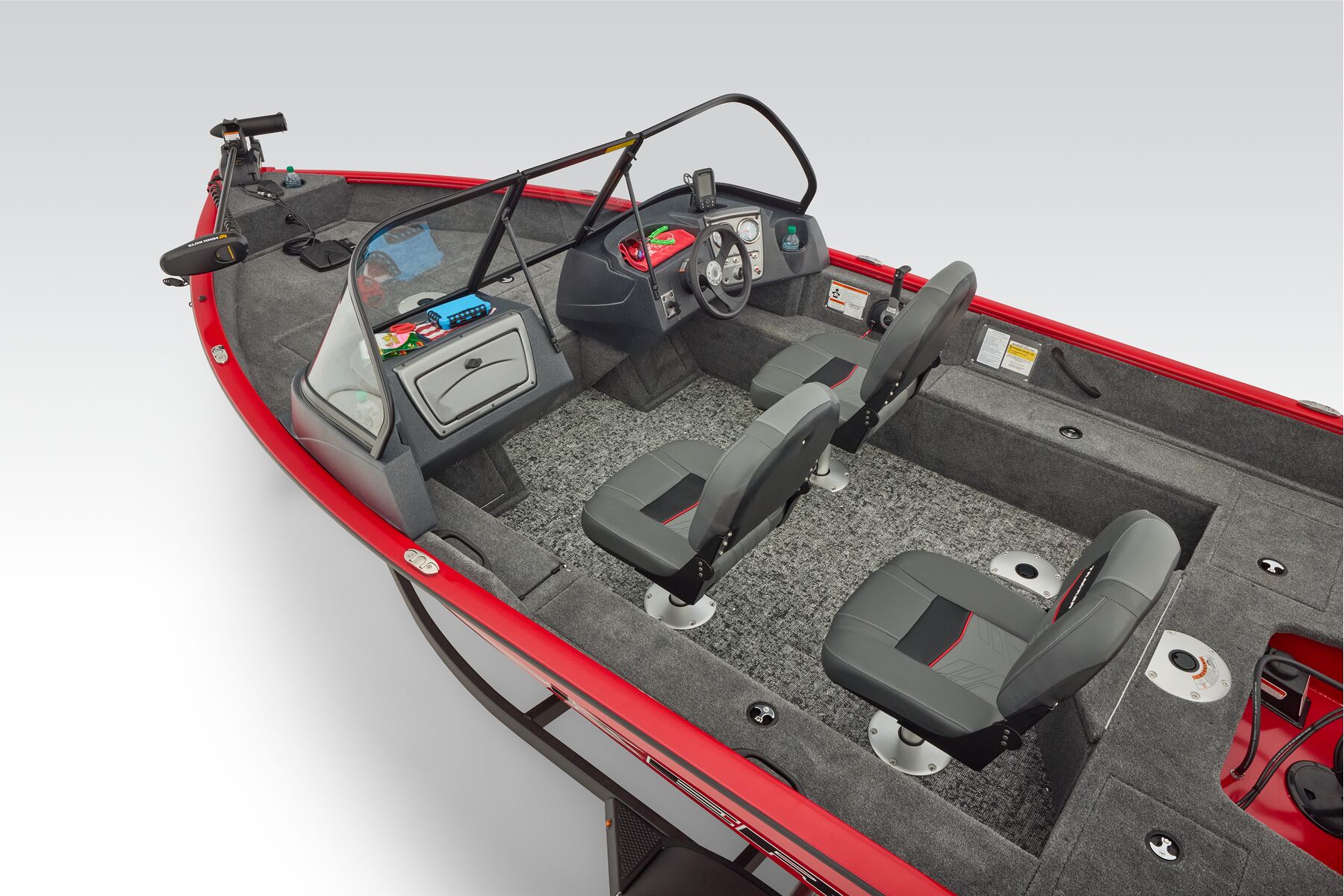

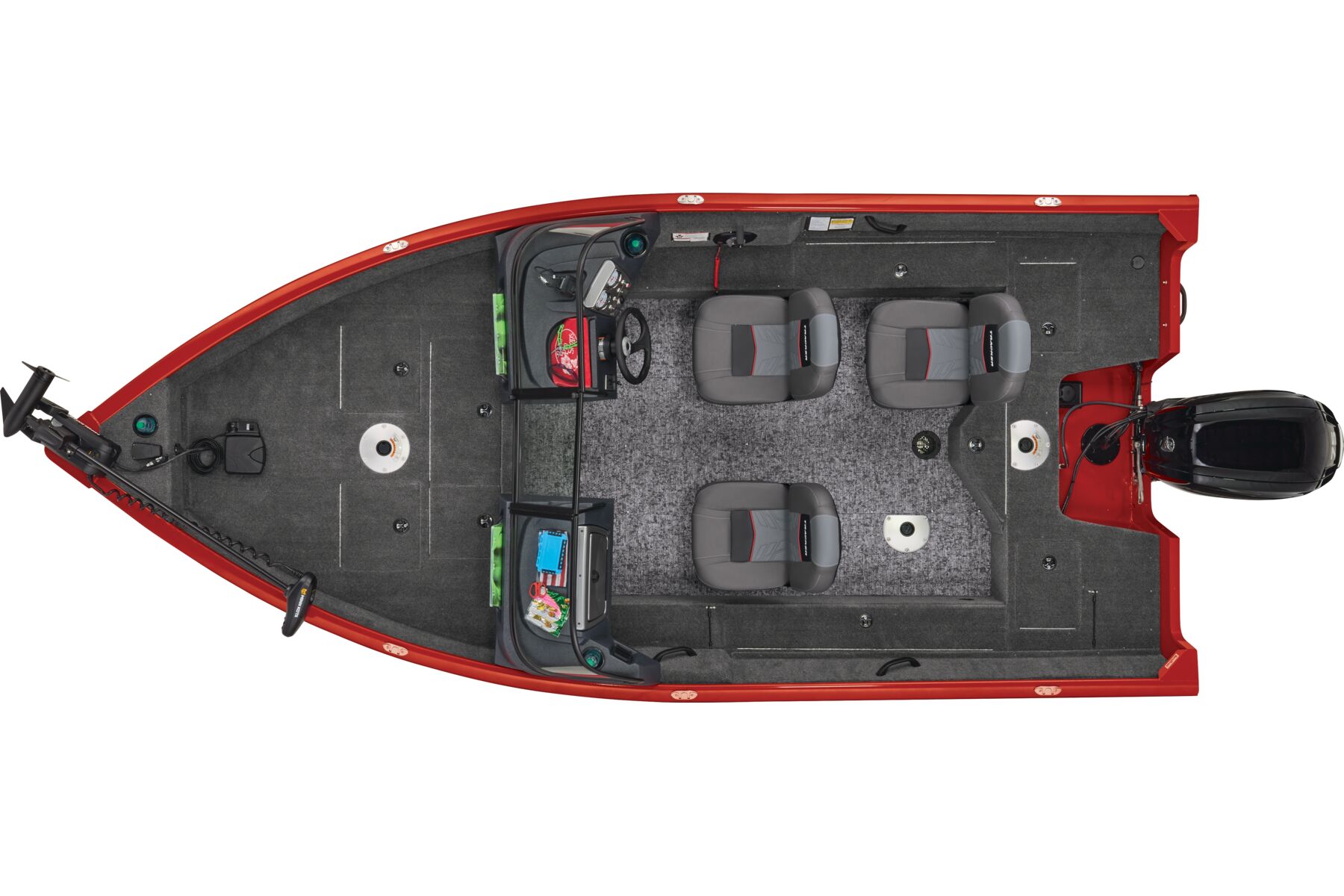

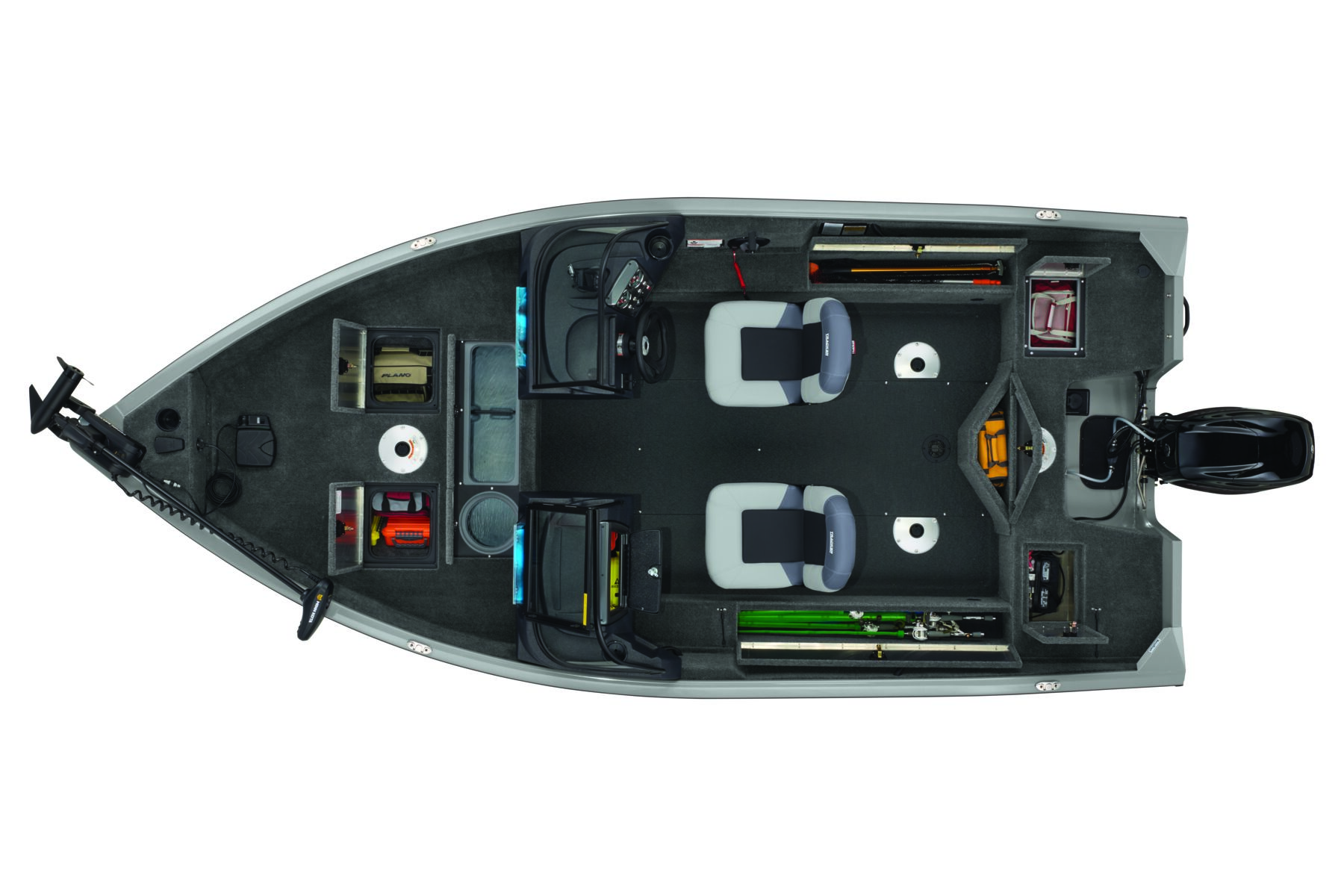

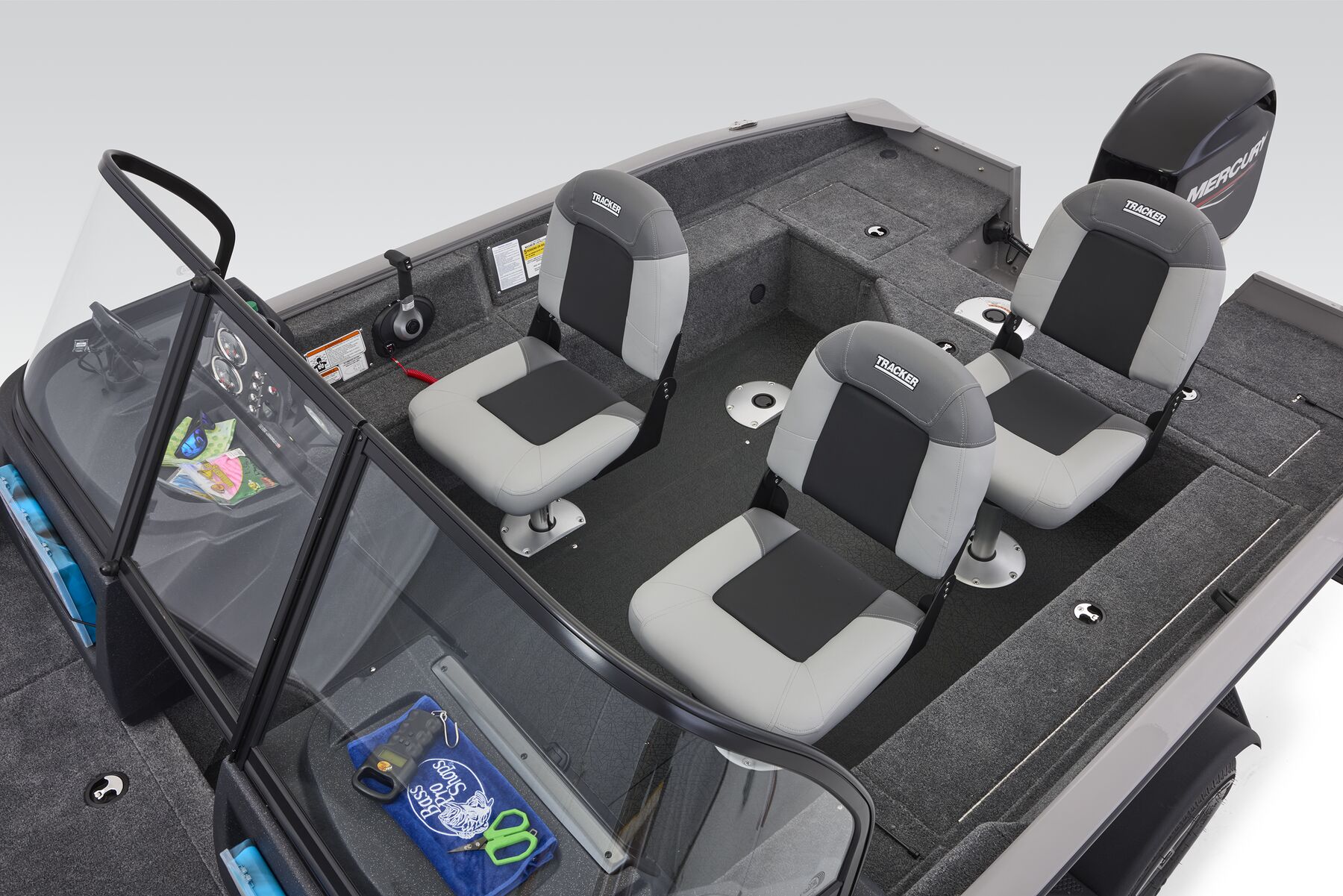

Interior

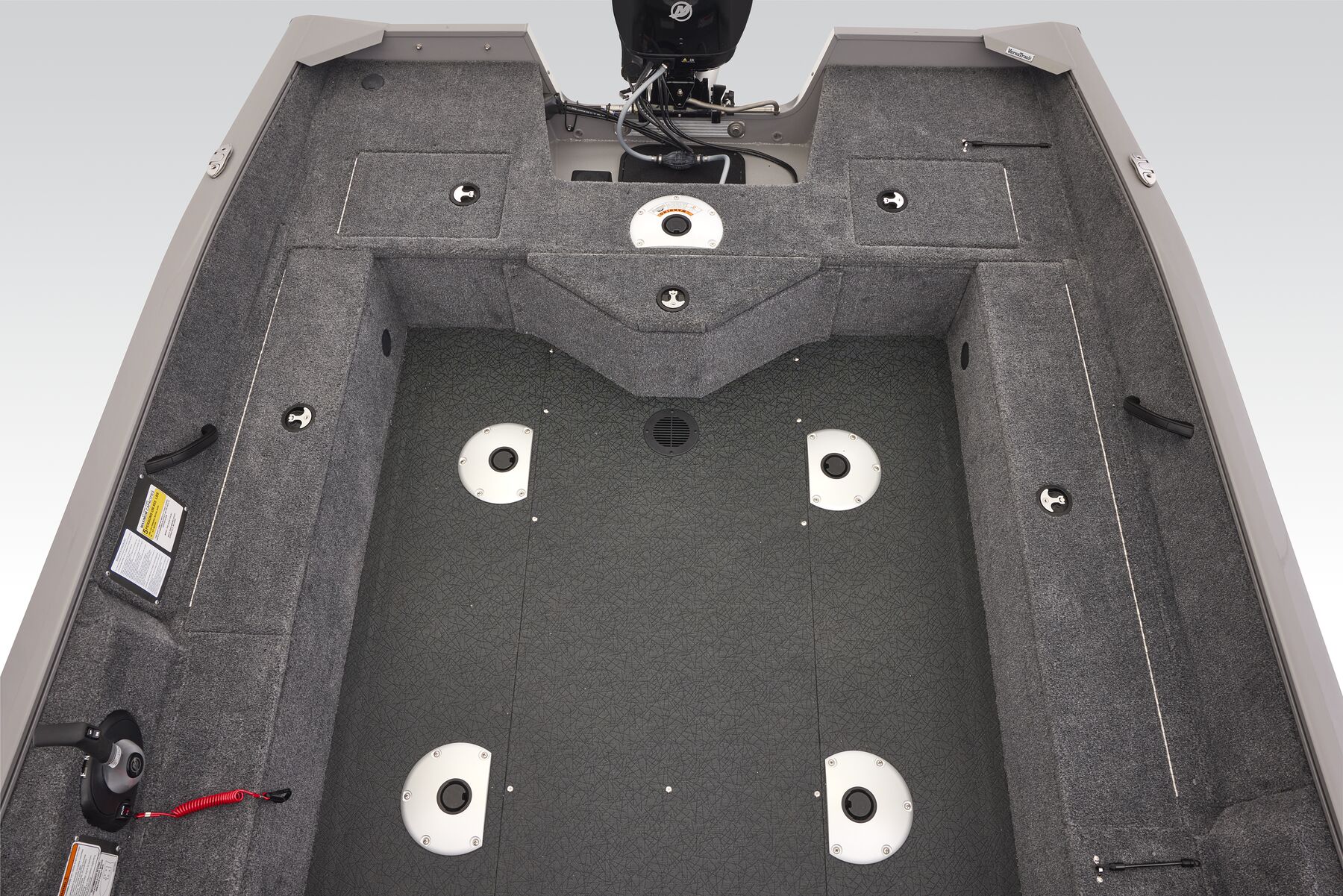

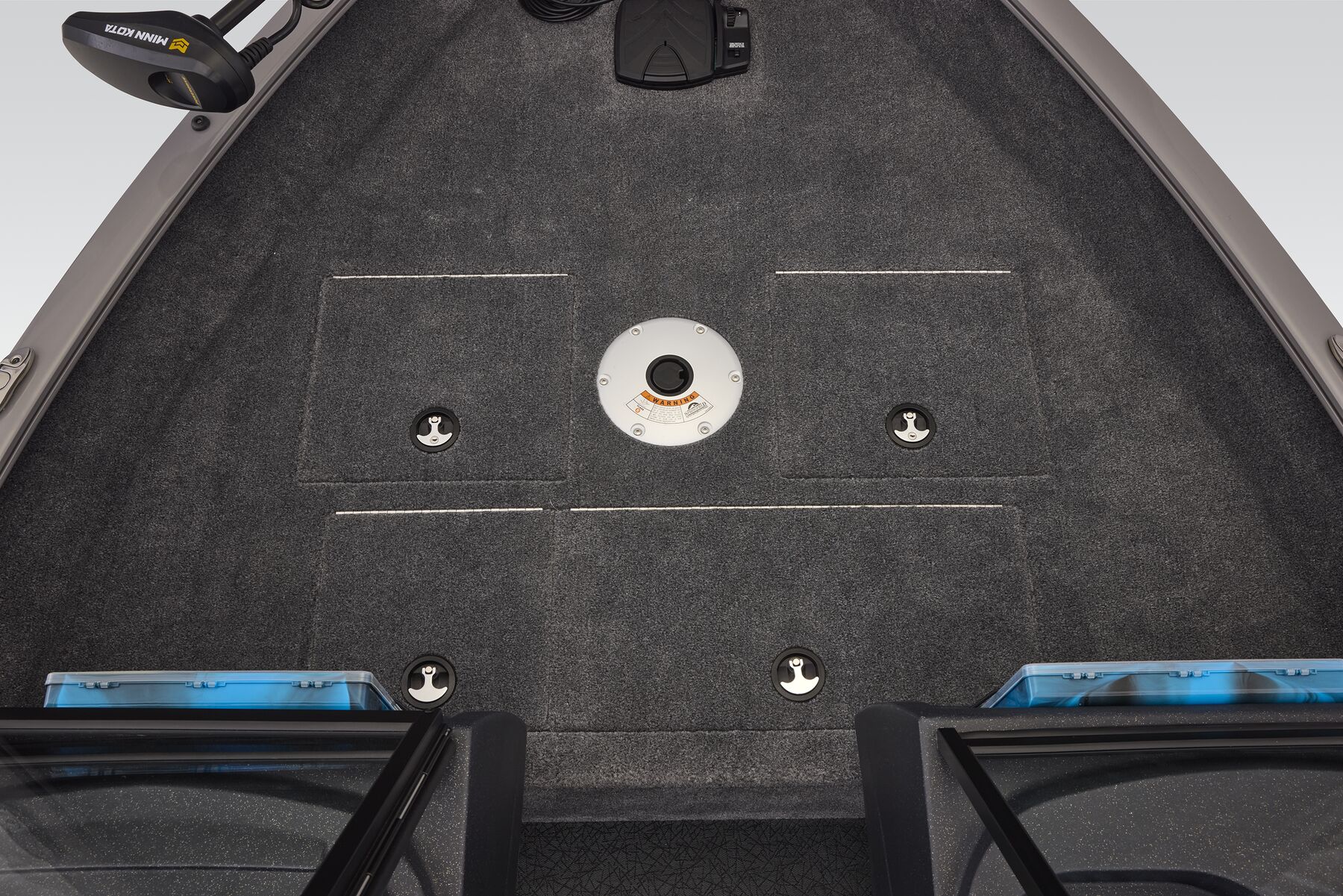

- 6 pedestal seat base locations

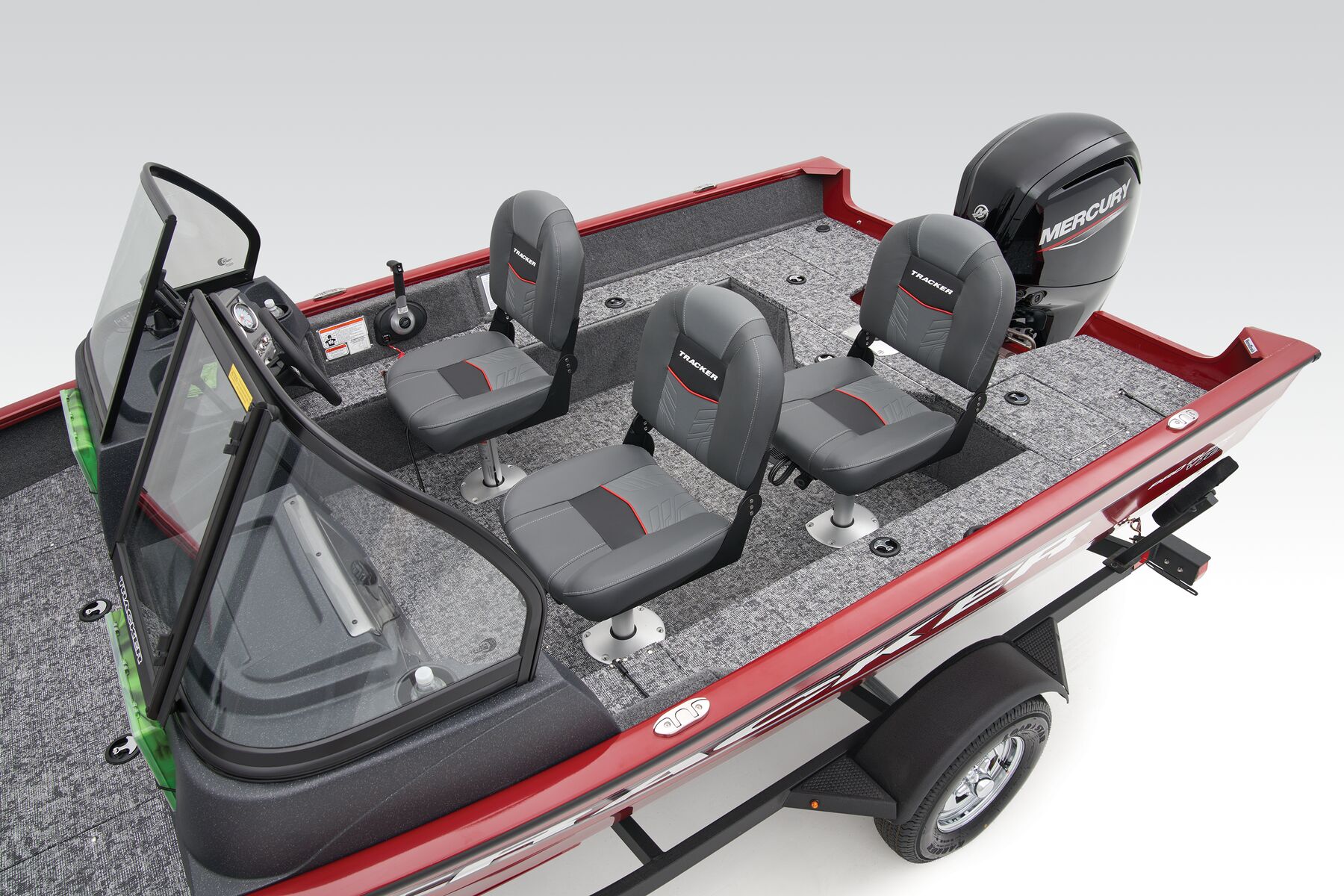

- 2 movable & folding fishing seats w/360°-swivel & lock, & sturdy 2-3/8" (6.03 cm) seat pedestals
- Carpeted trolling motor deck w/drink holder

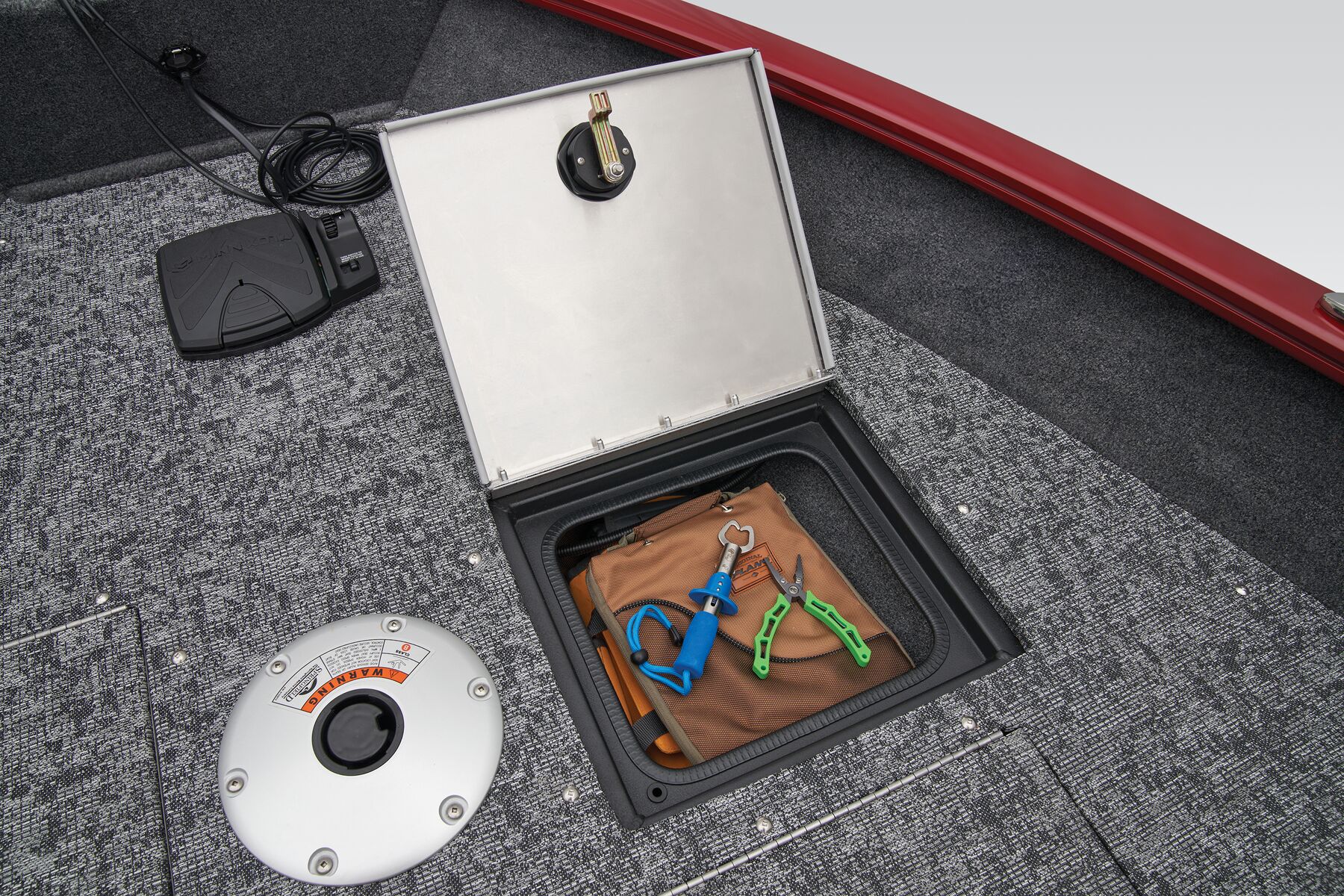

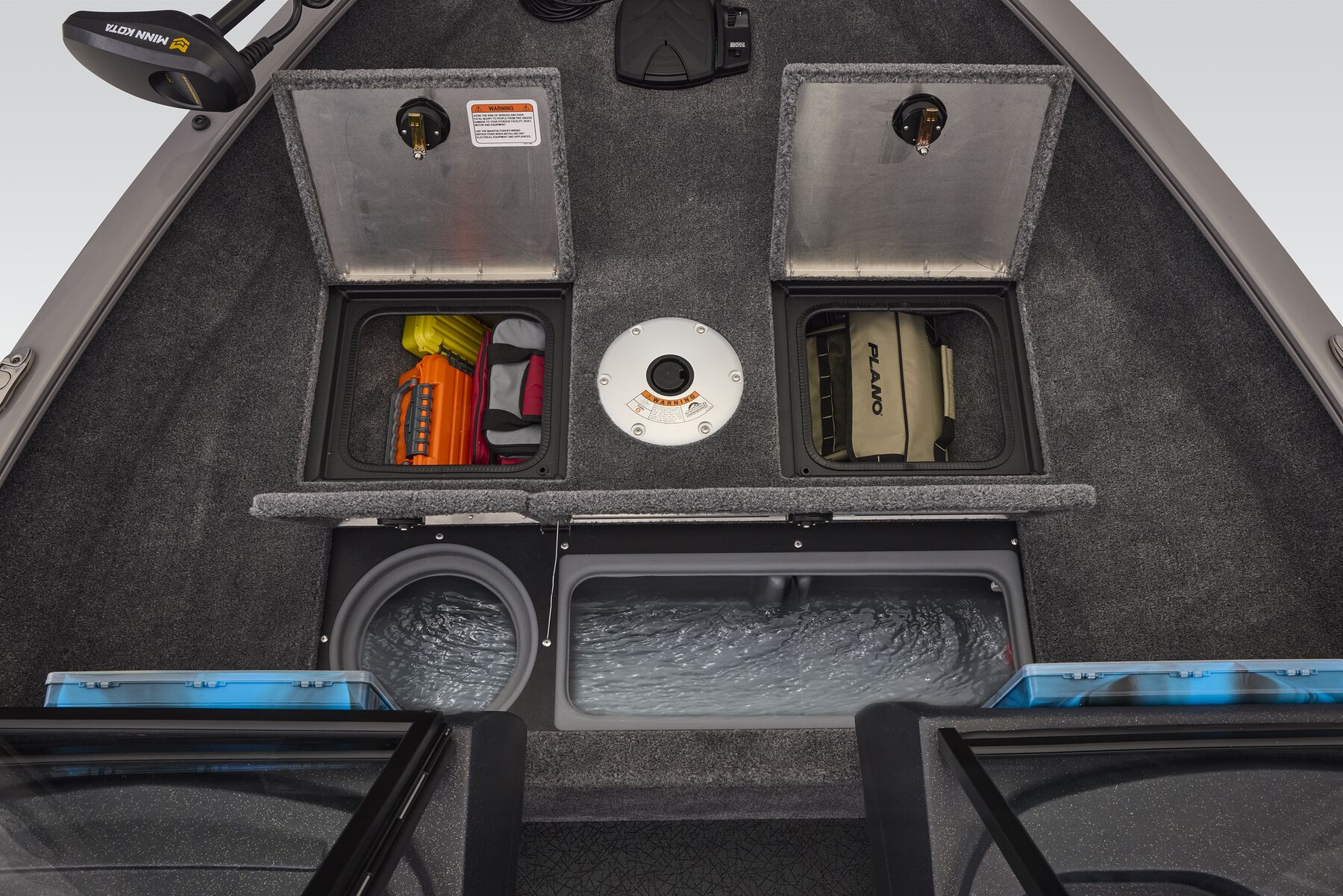

- Elevated bow & aft fishing decks w/large bow storage lids for easier access

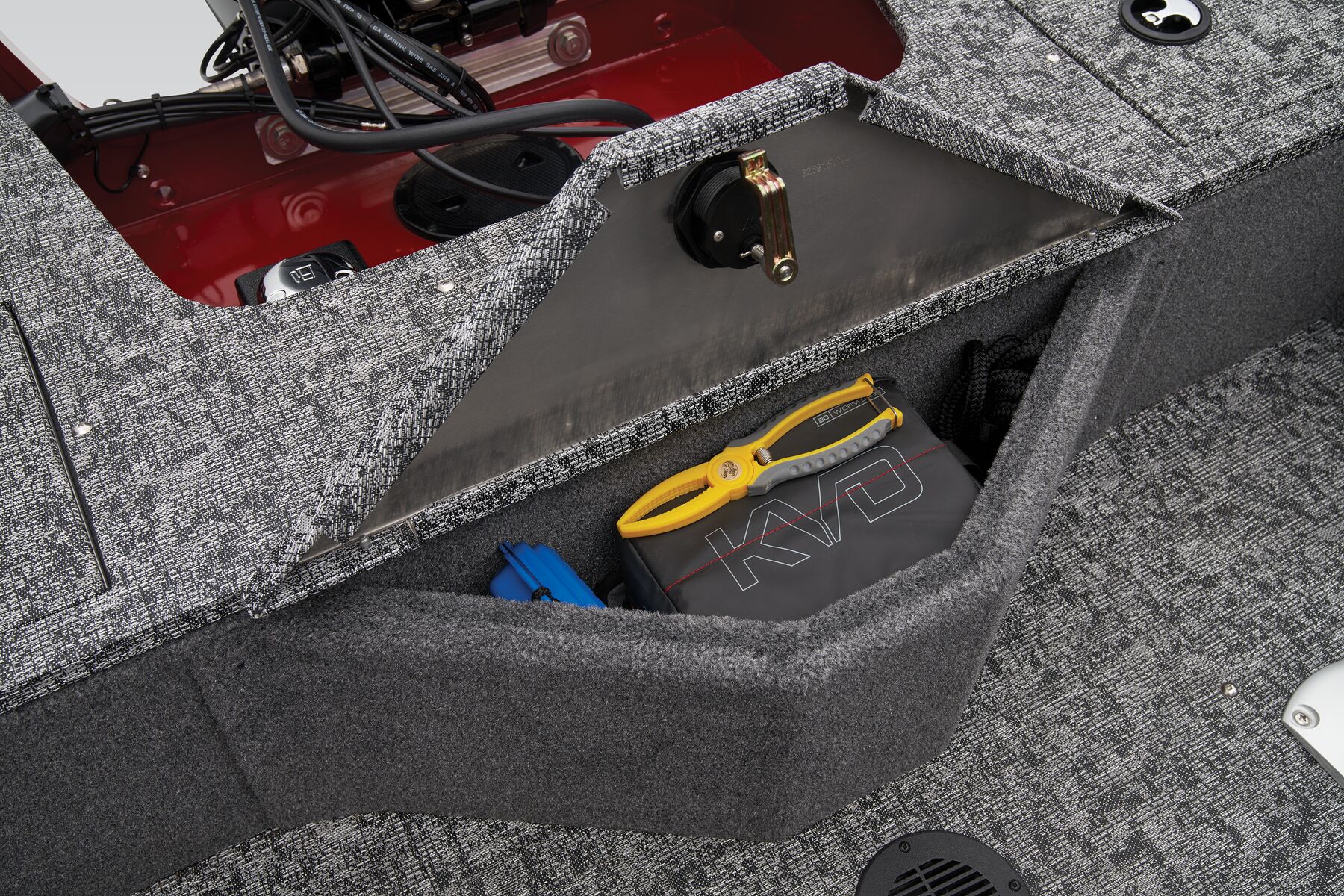

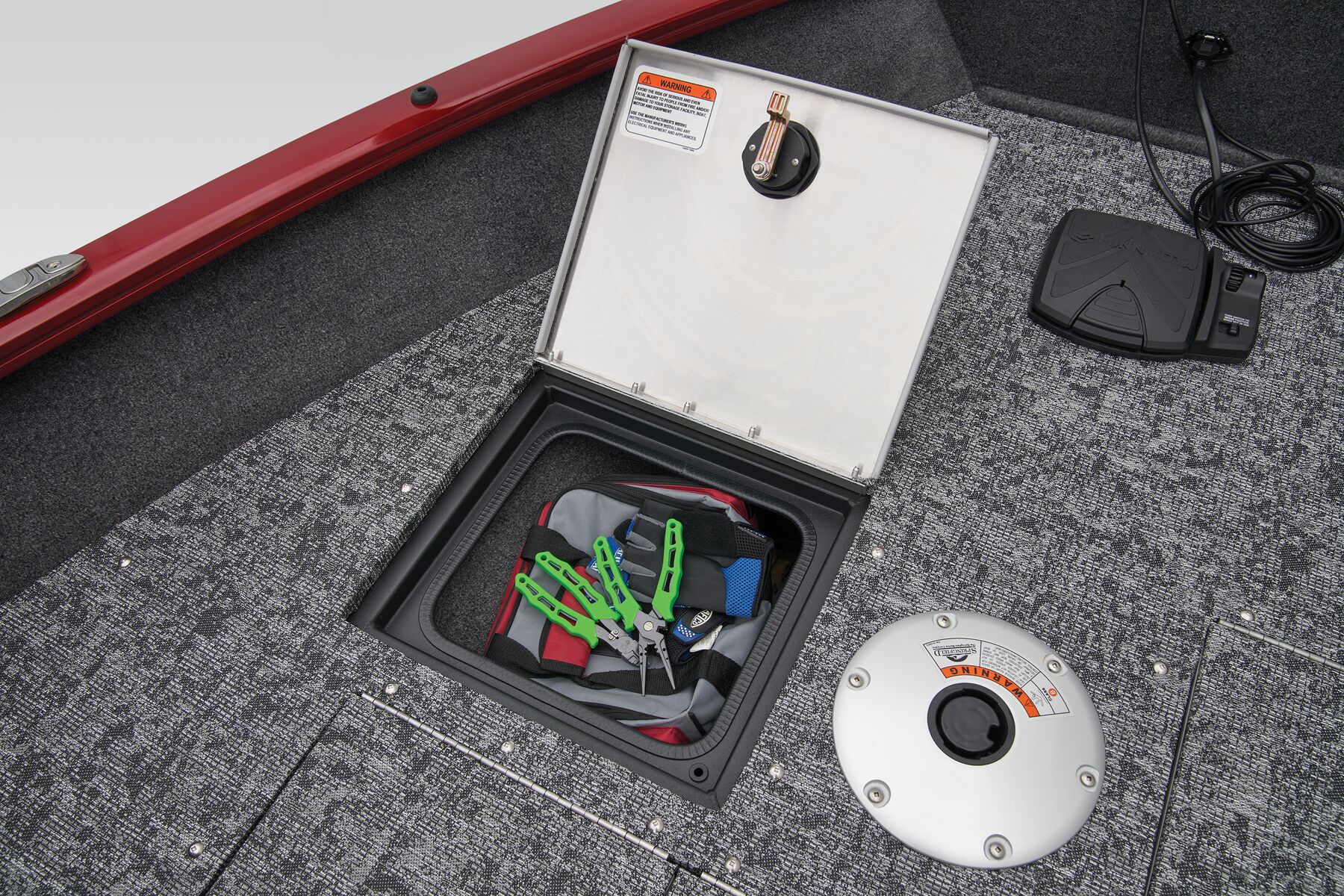

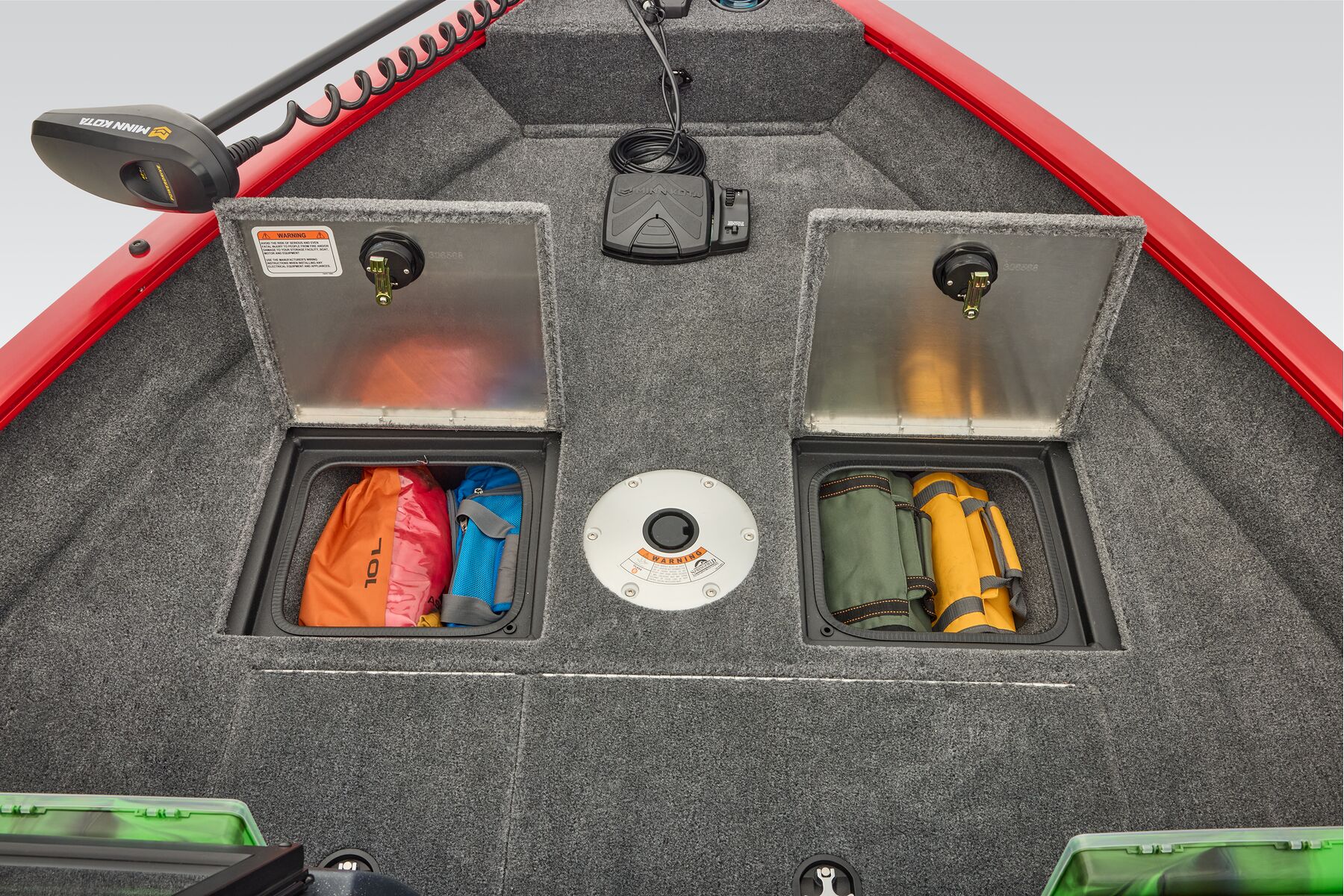

- 2 bow storage compartments

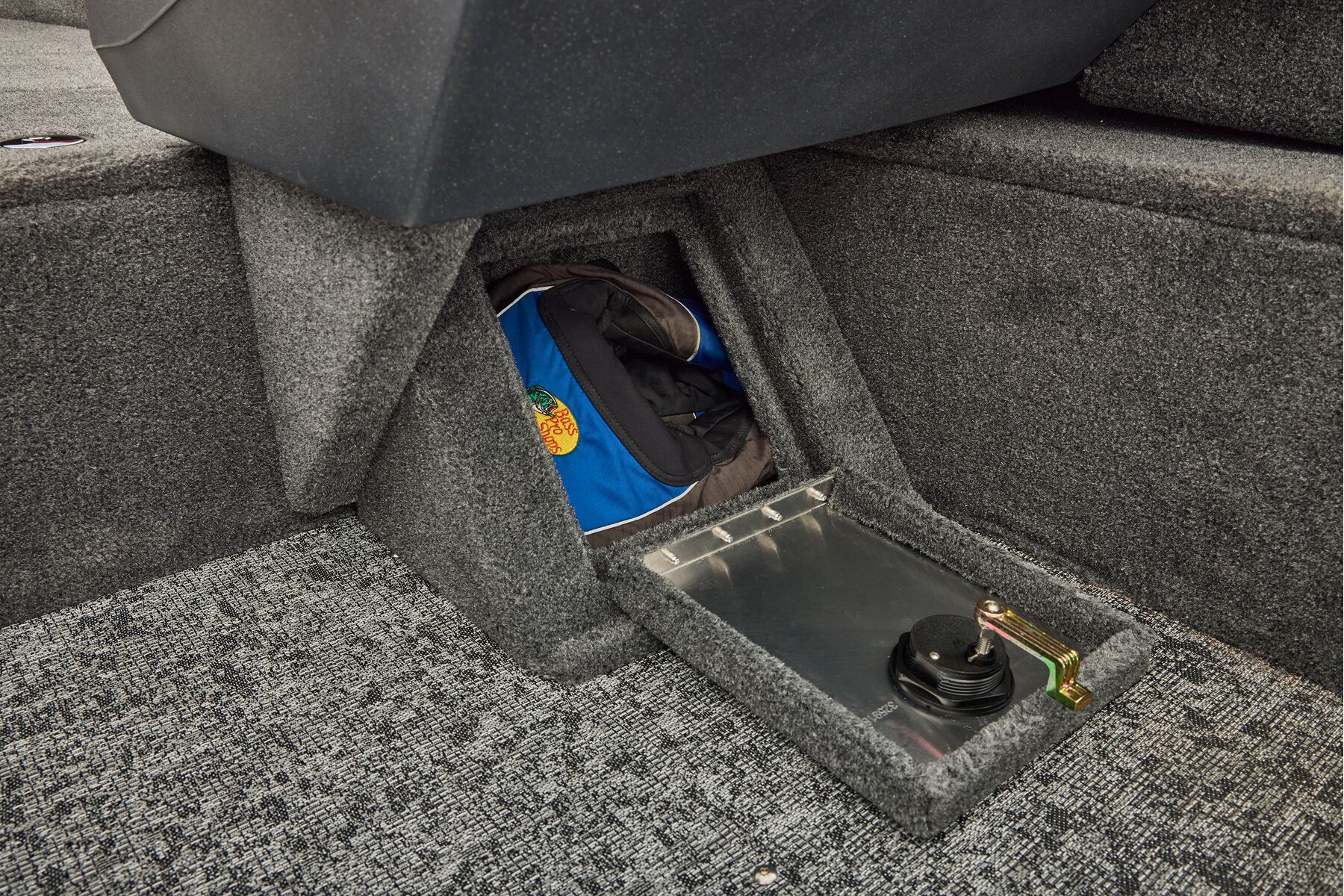

- Port & starboard below-console storage w/lockable angled footrests

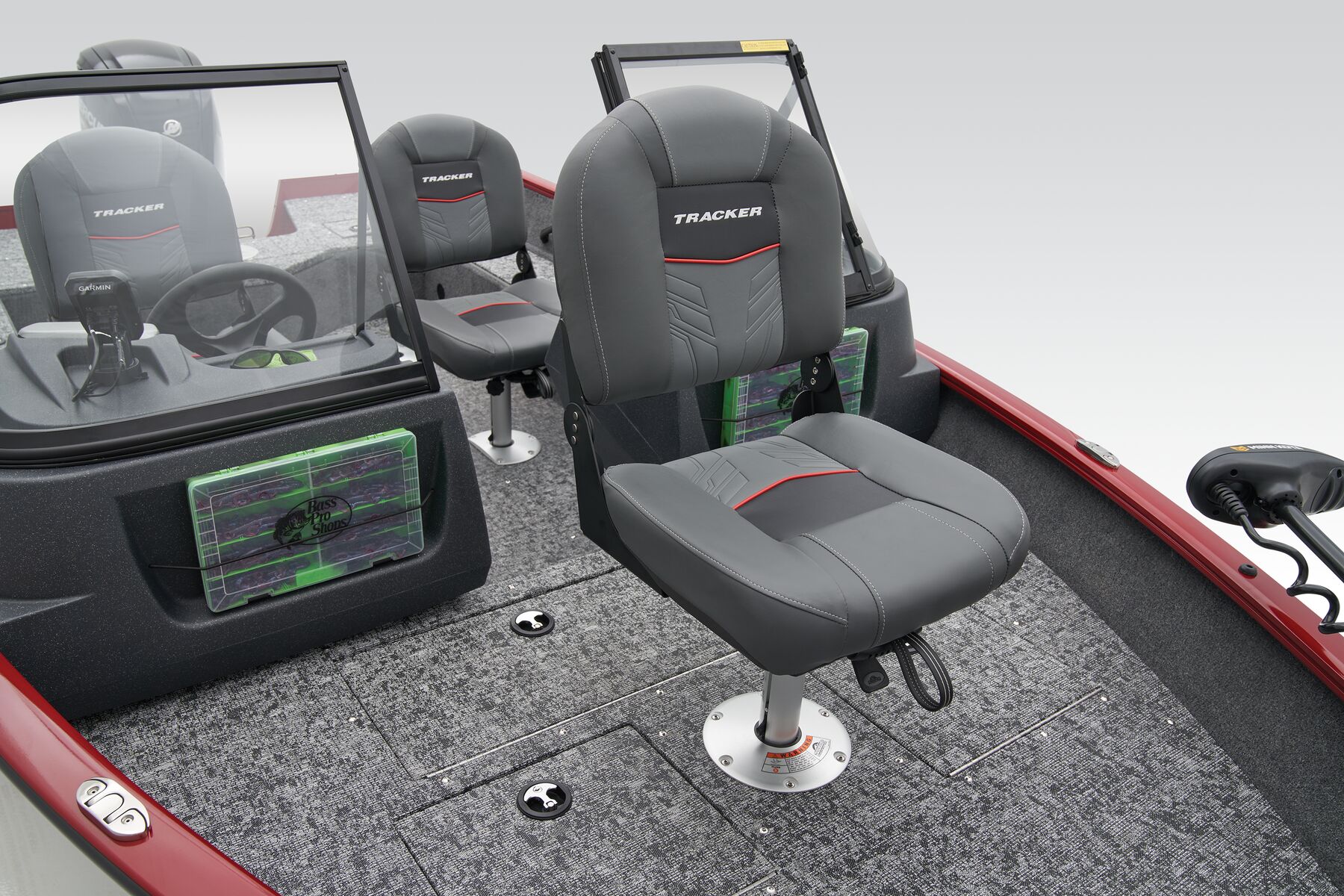

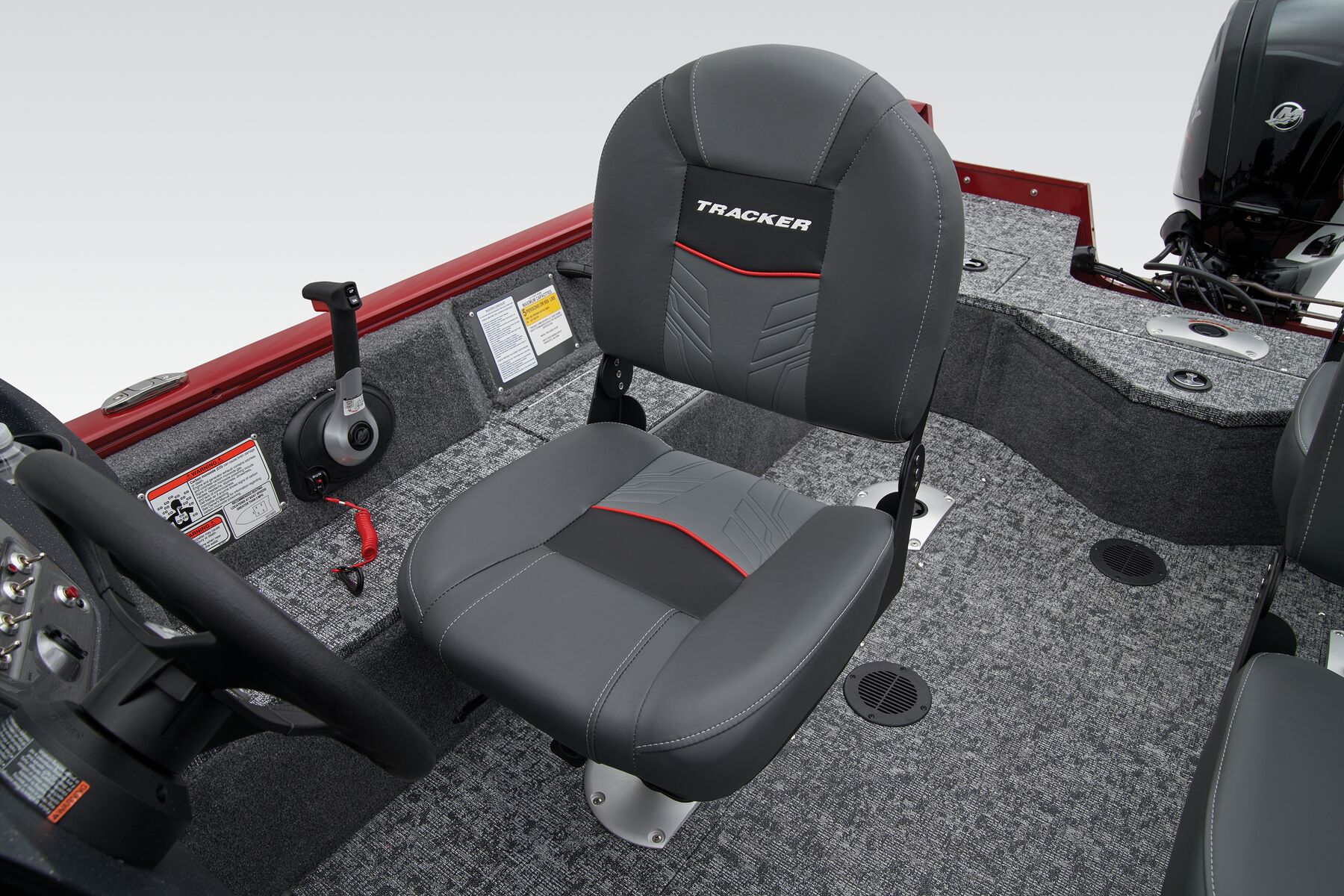

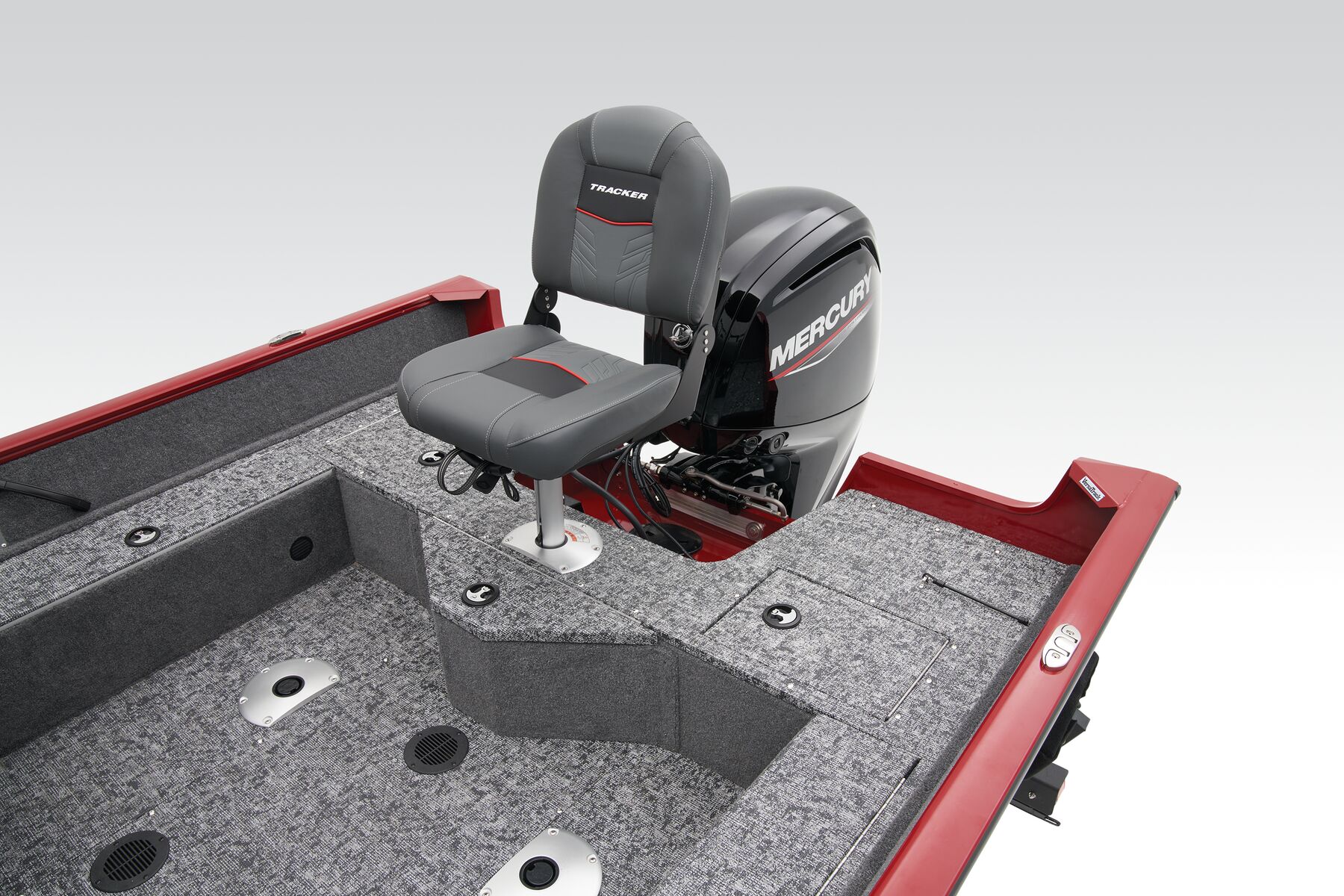

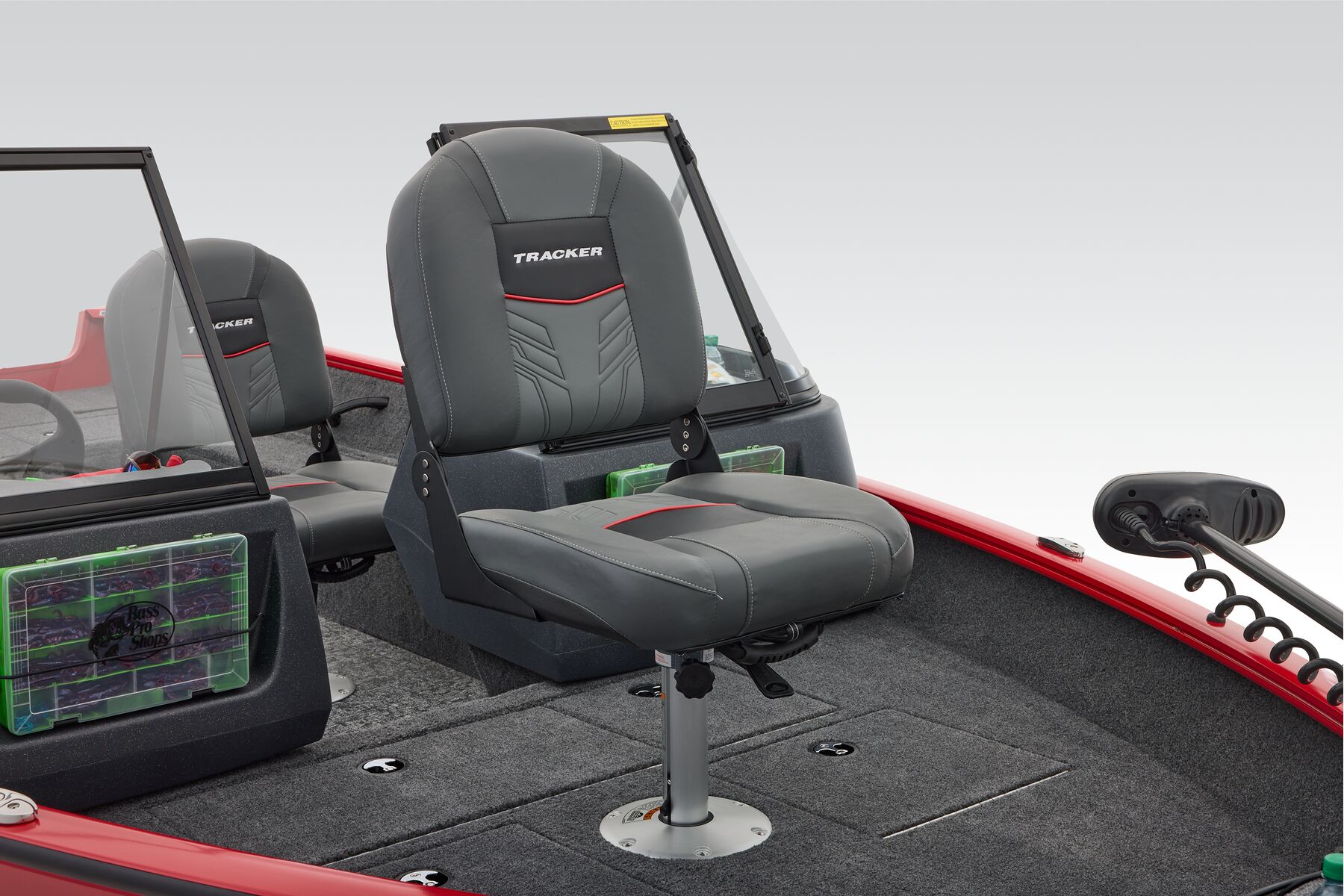

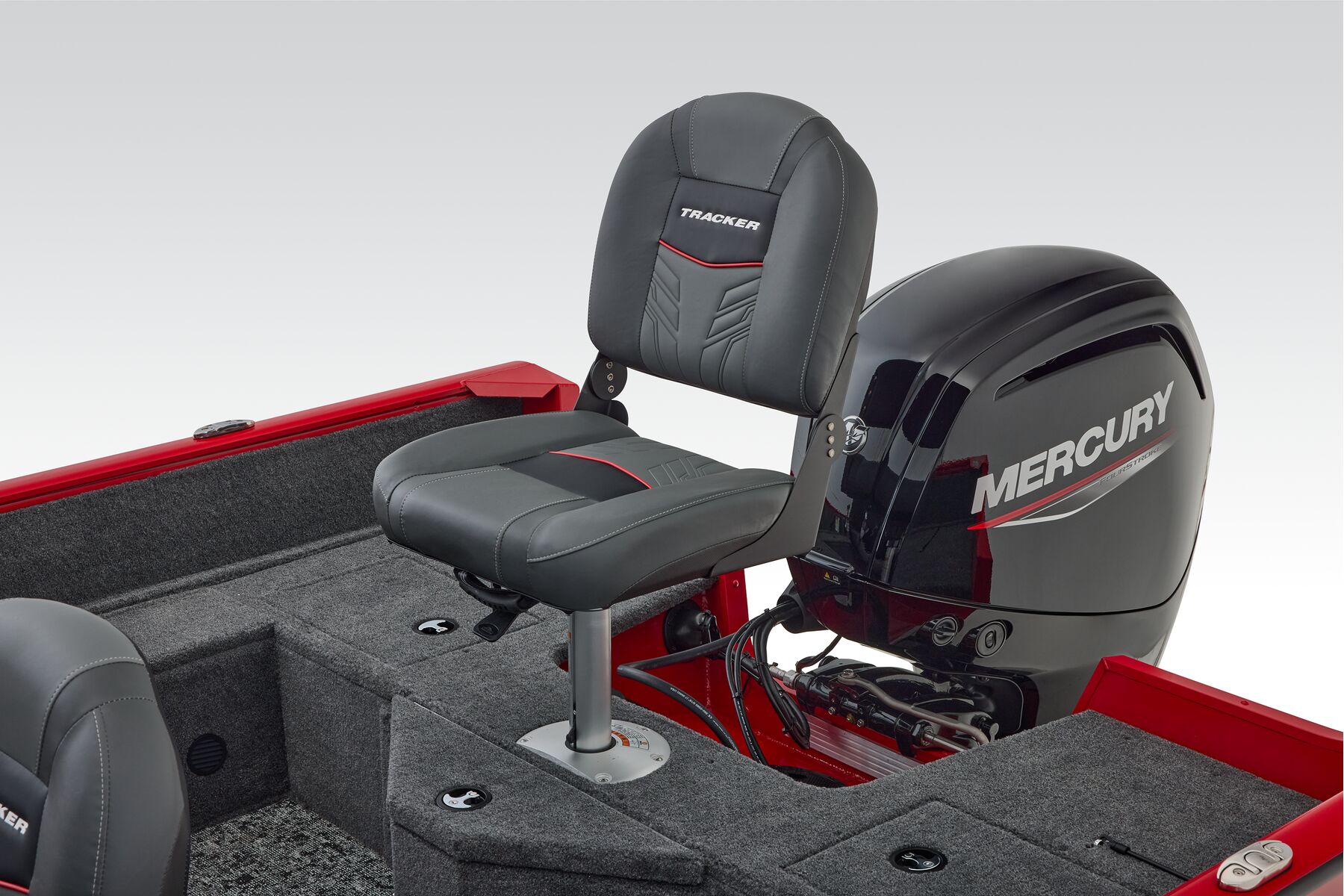

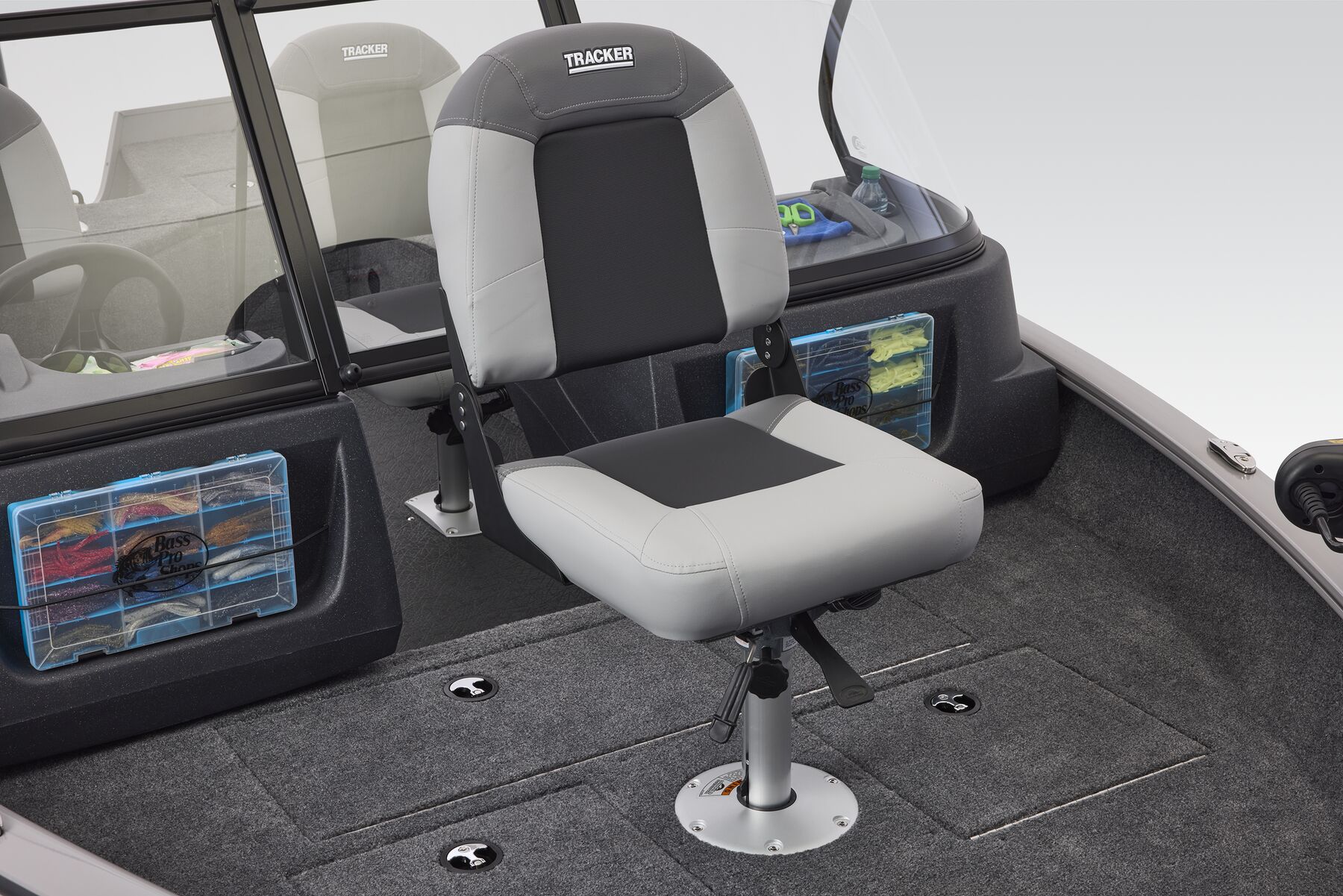

- 1 movable & folding driver/fishing seat w/sliding base adjustment, 360°-swivel & lock, & sturdy 2-3/8" (6.03 cm) seat pedestal

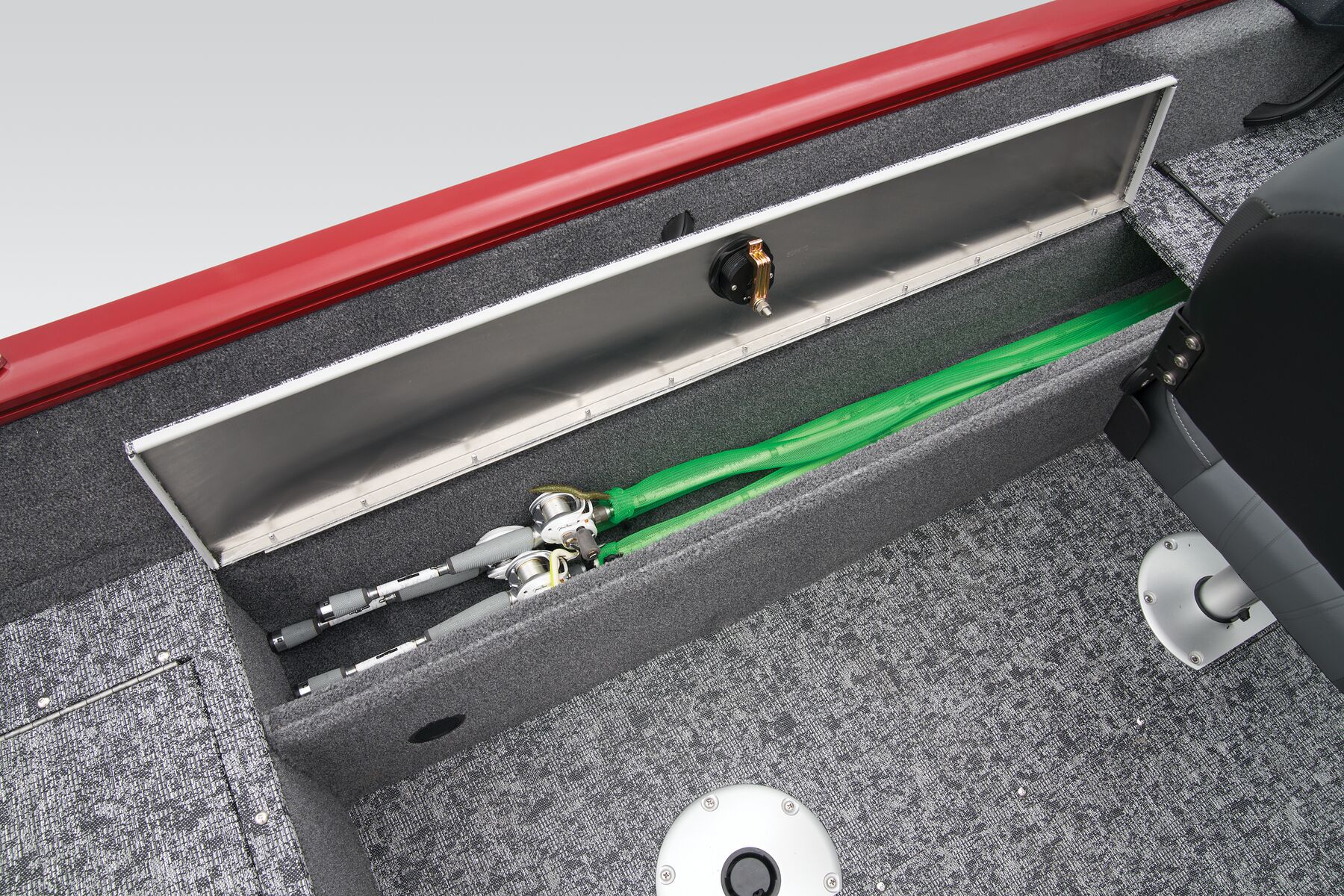

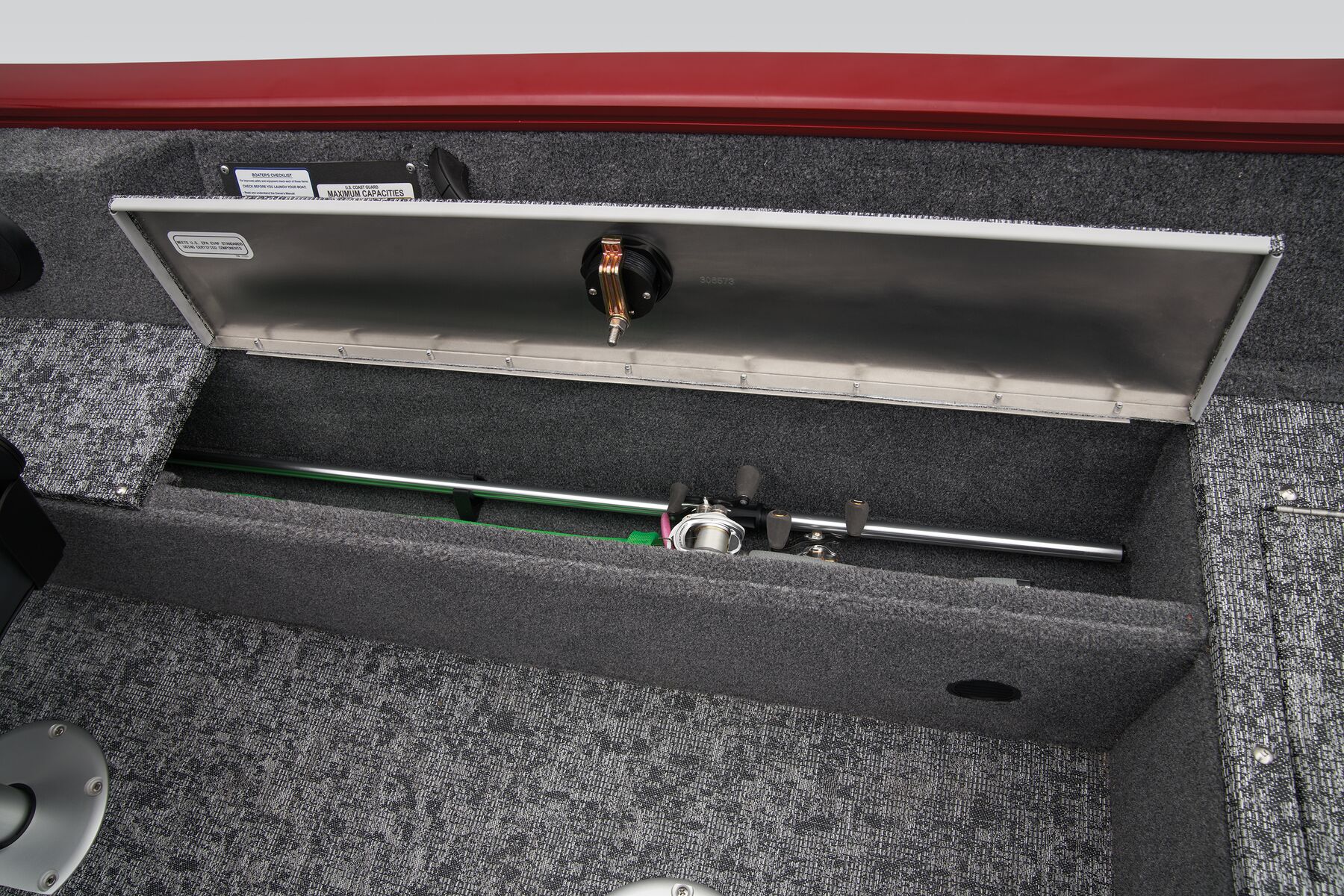

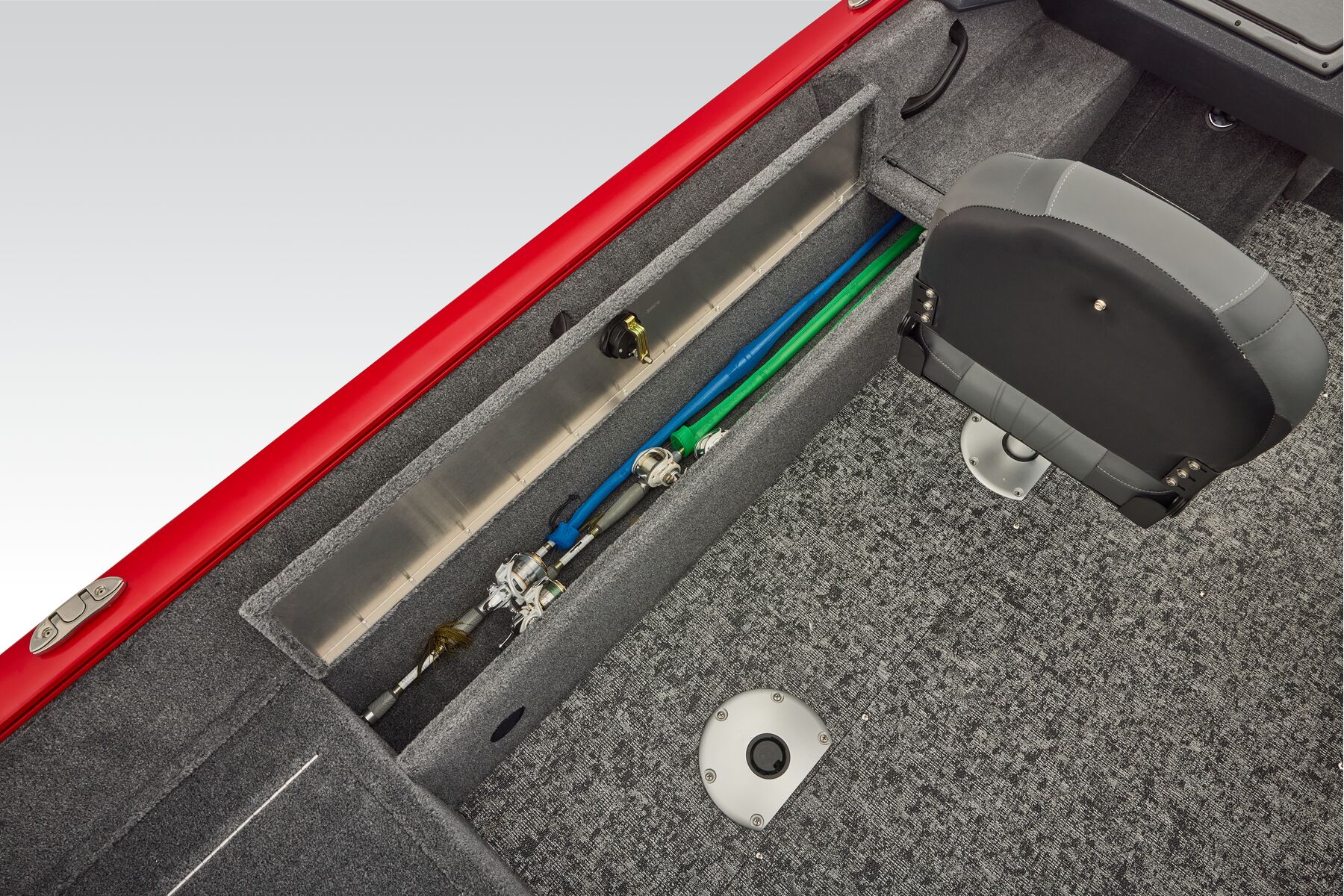

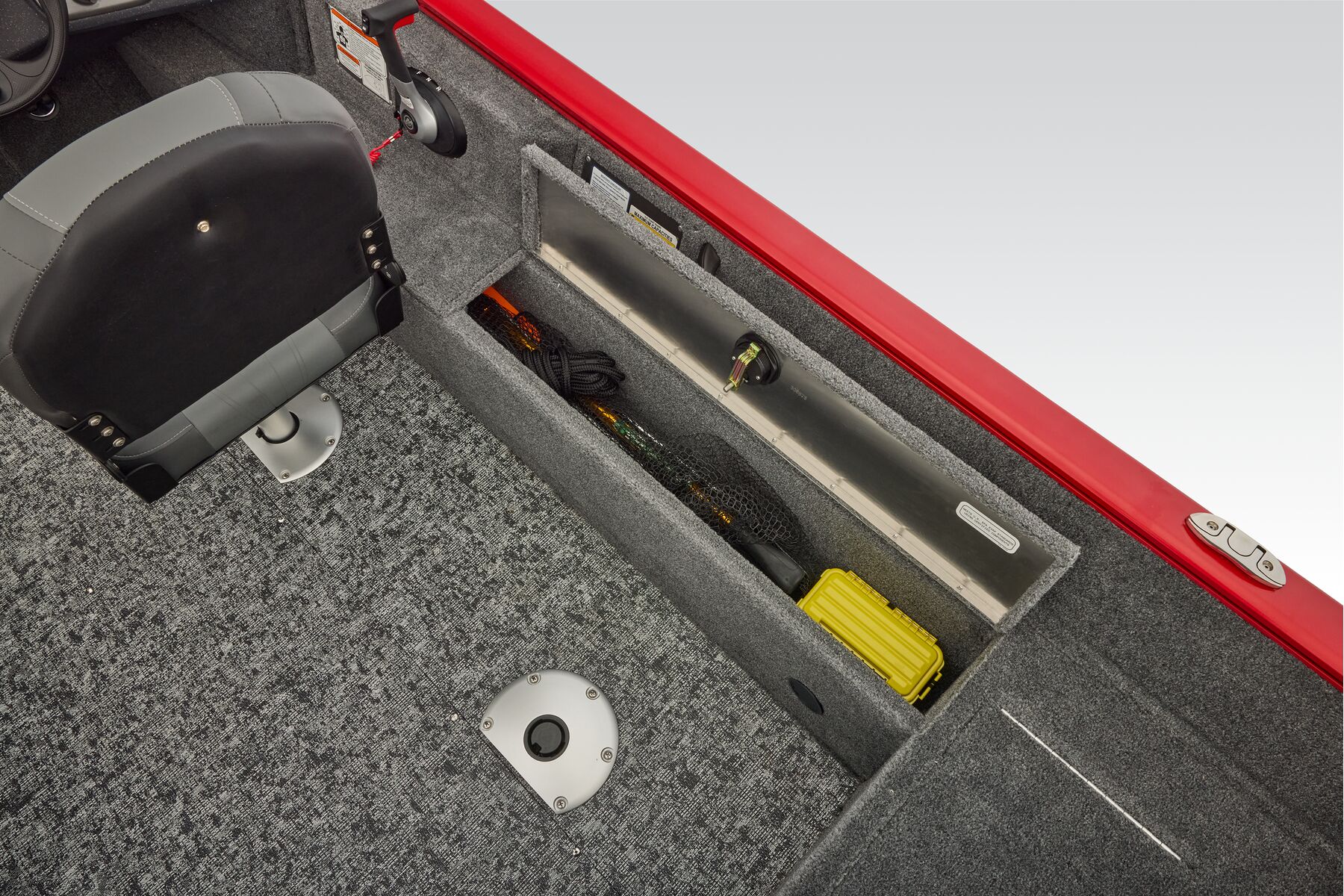

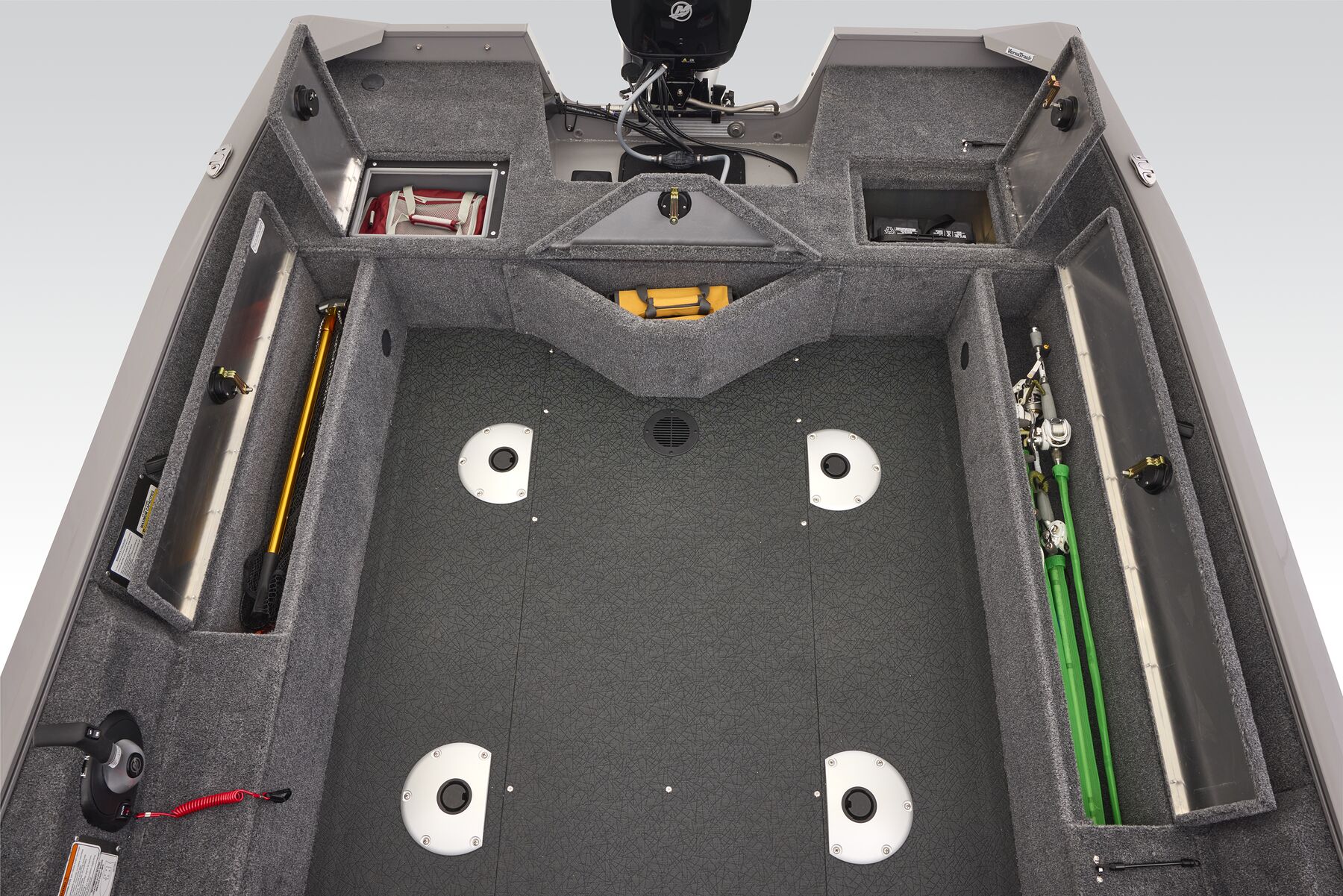

- 2 deep top-loading lockable boxes in the cockpit sides for rods/gear to 8' (2.44 m)

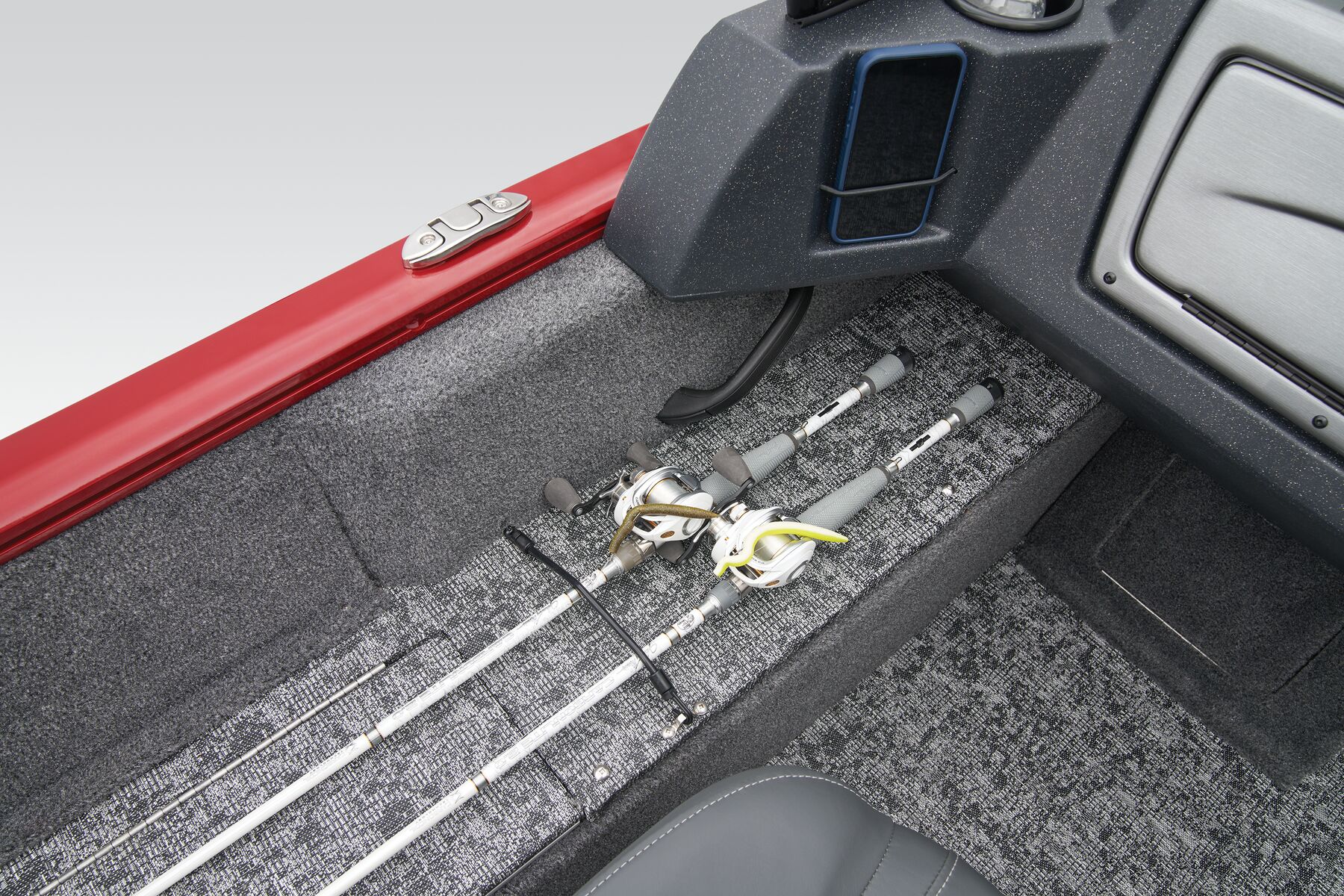

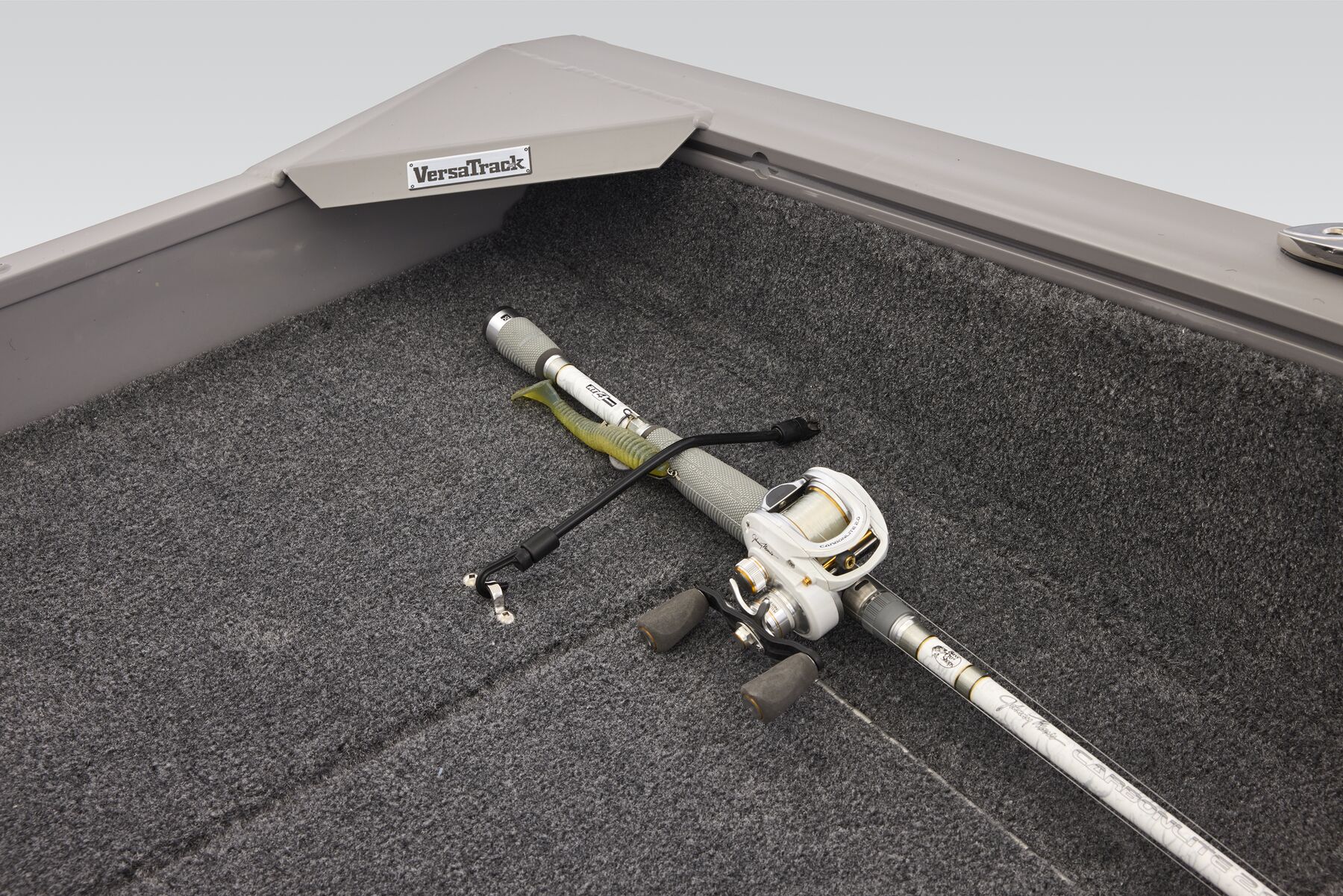

- Port deck rod hold-down straps

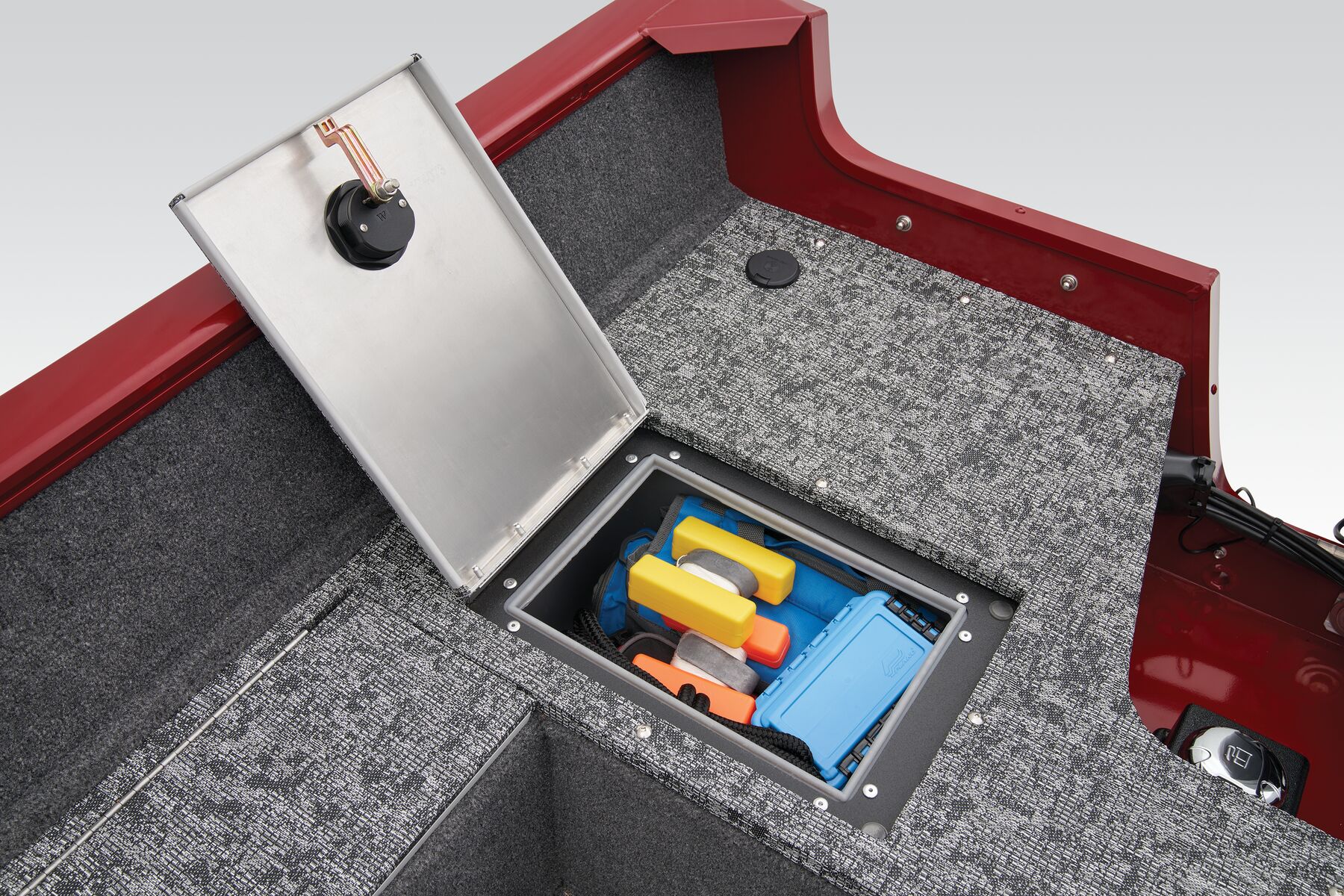

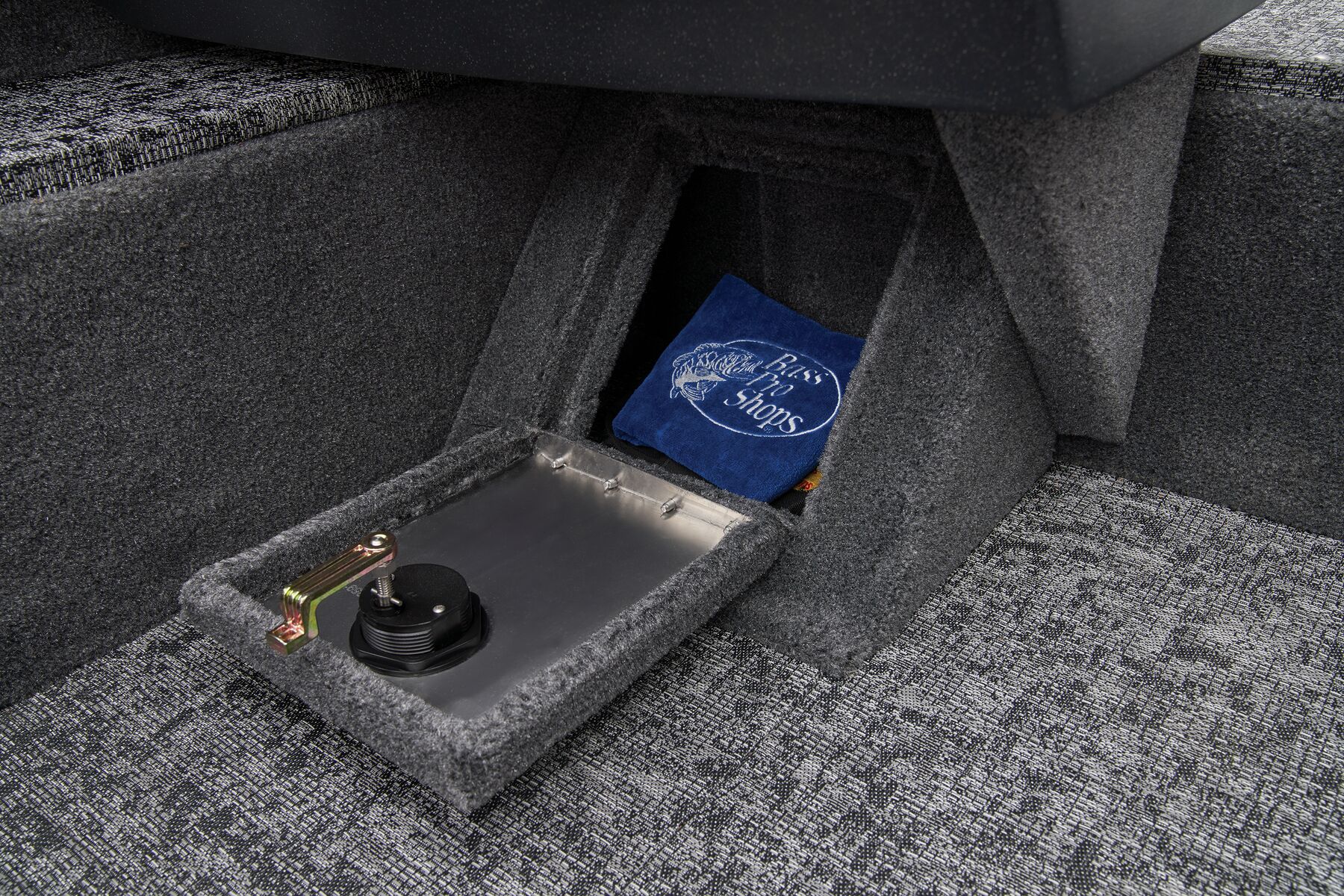

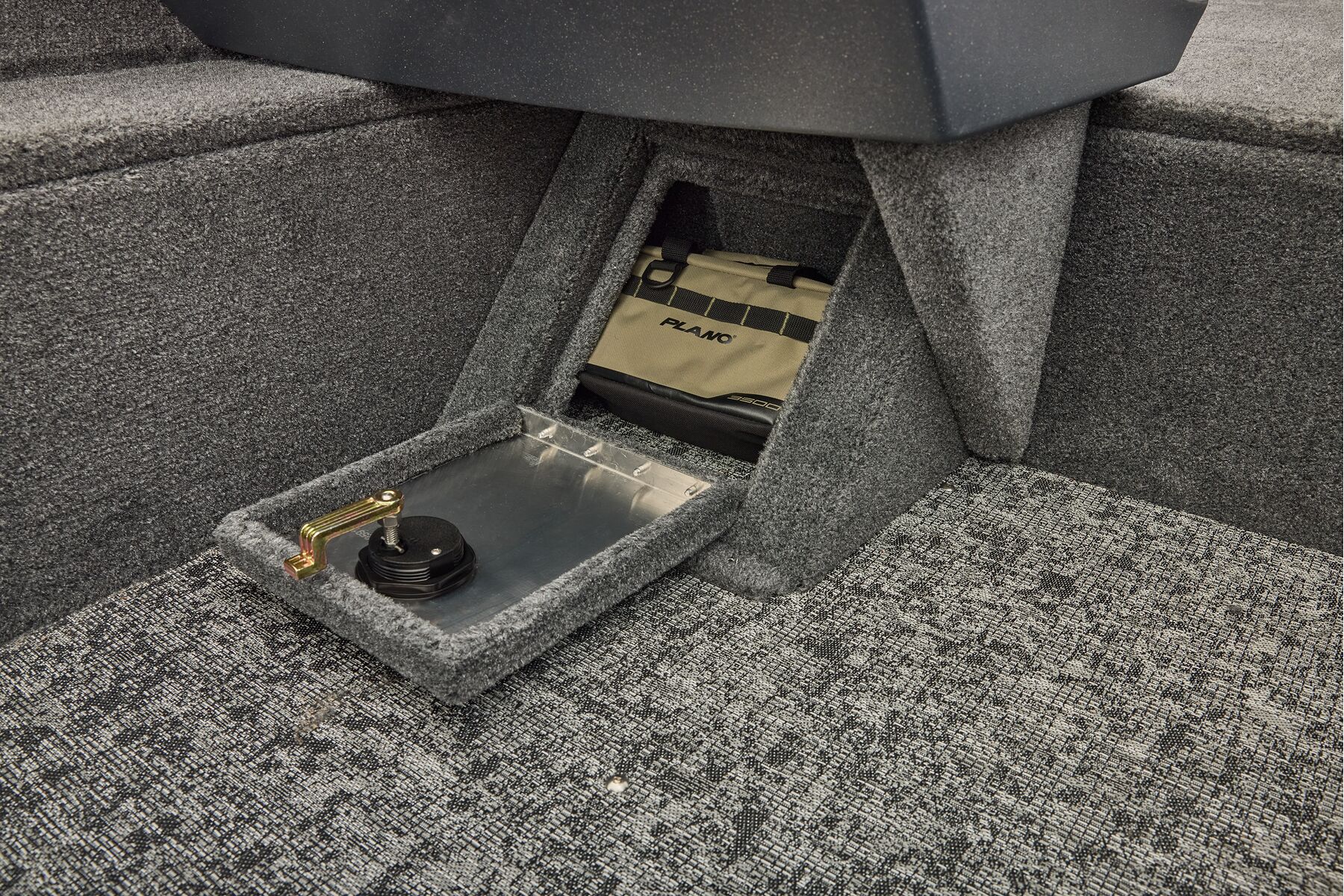

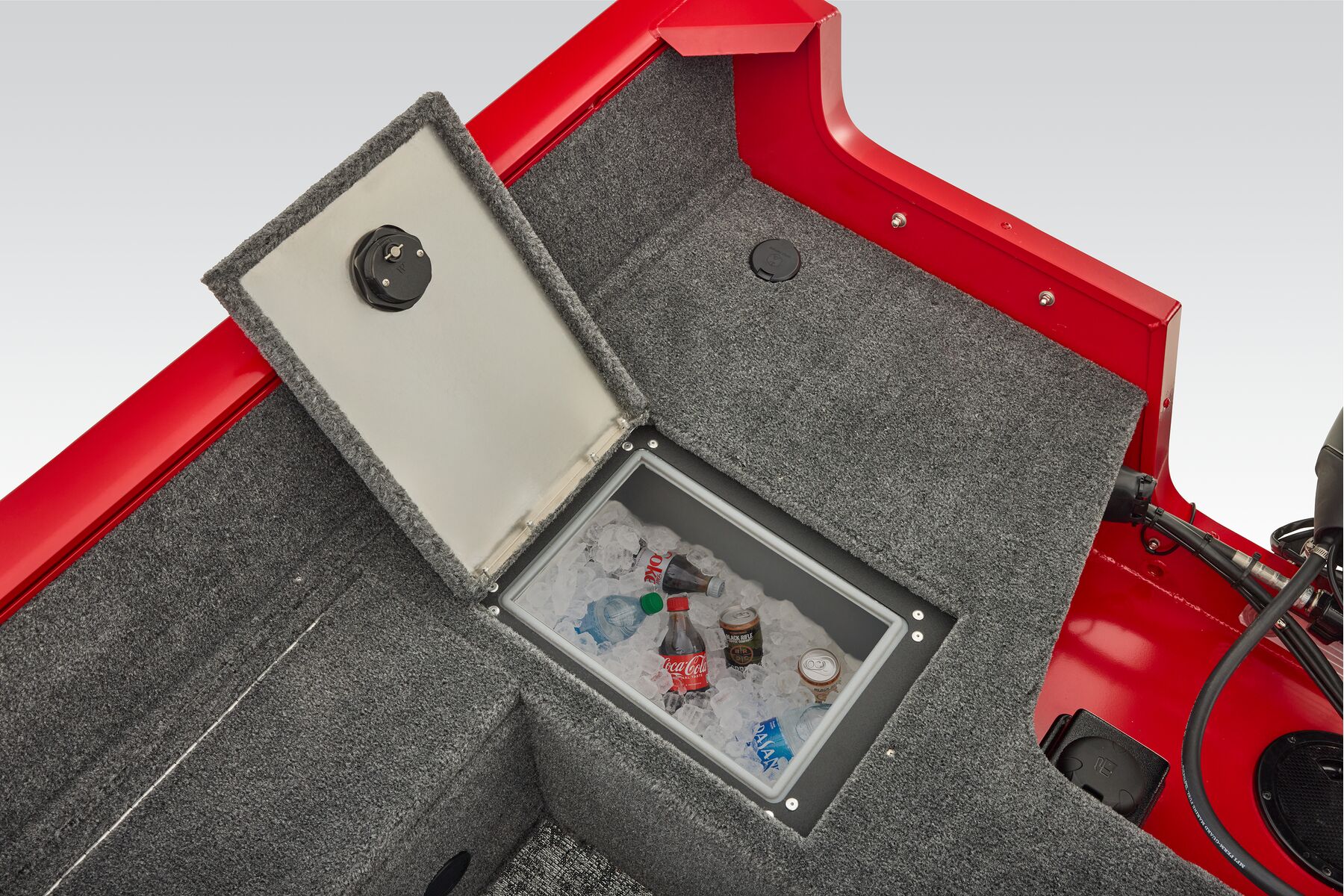

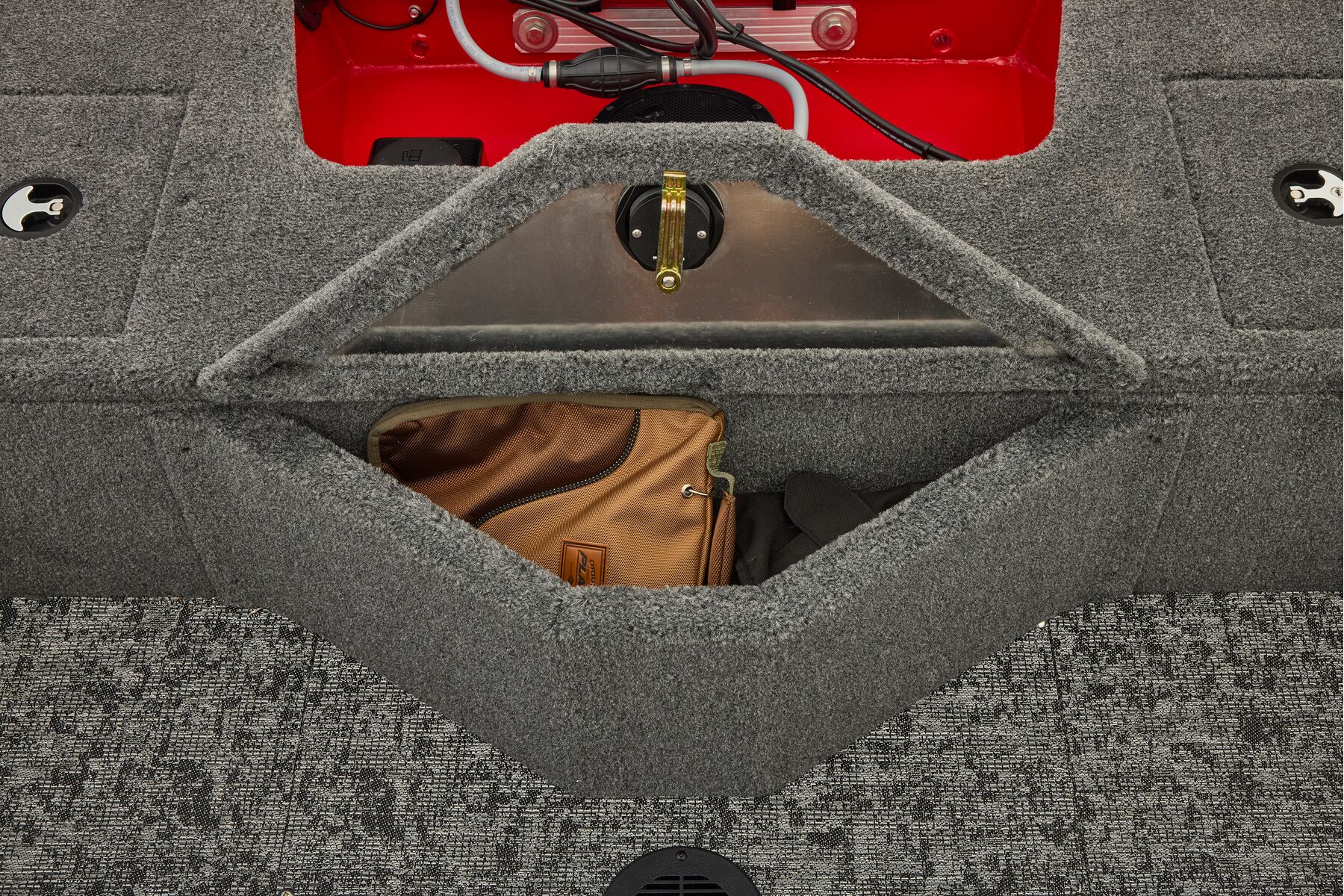

- Aft center deck step w/lockable storage

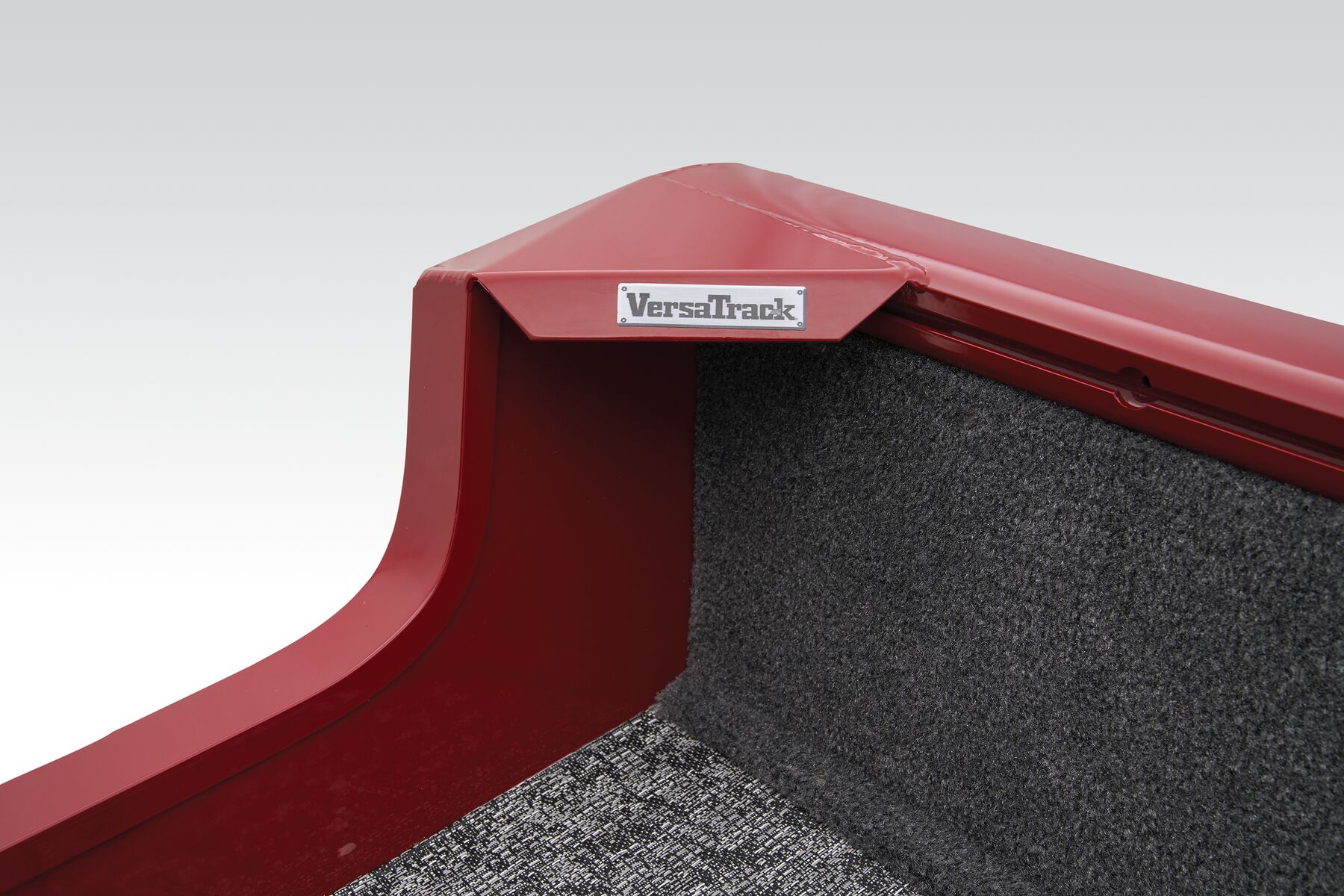

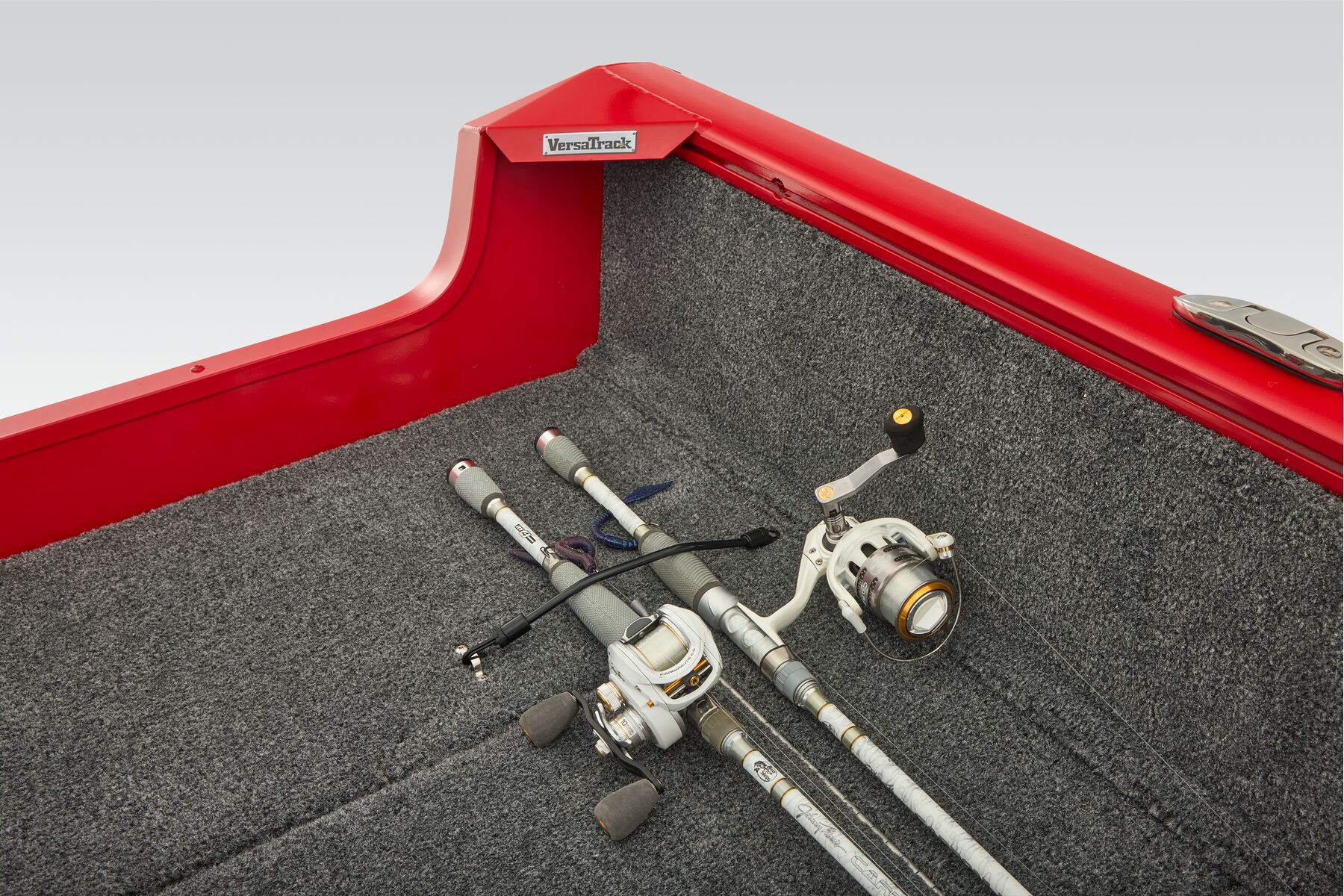

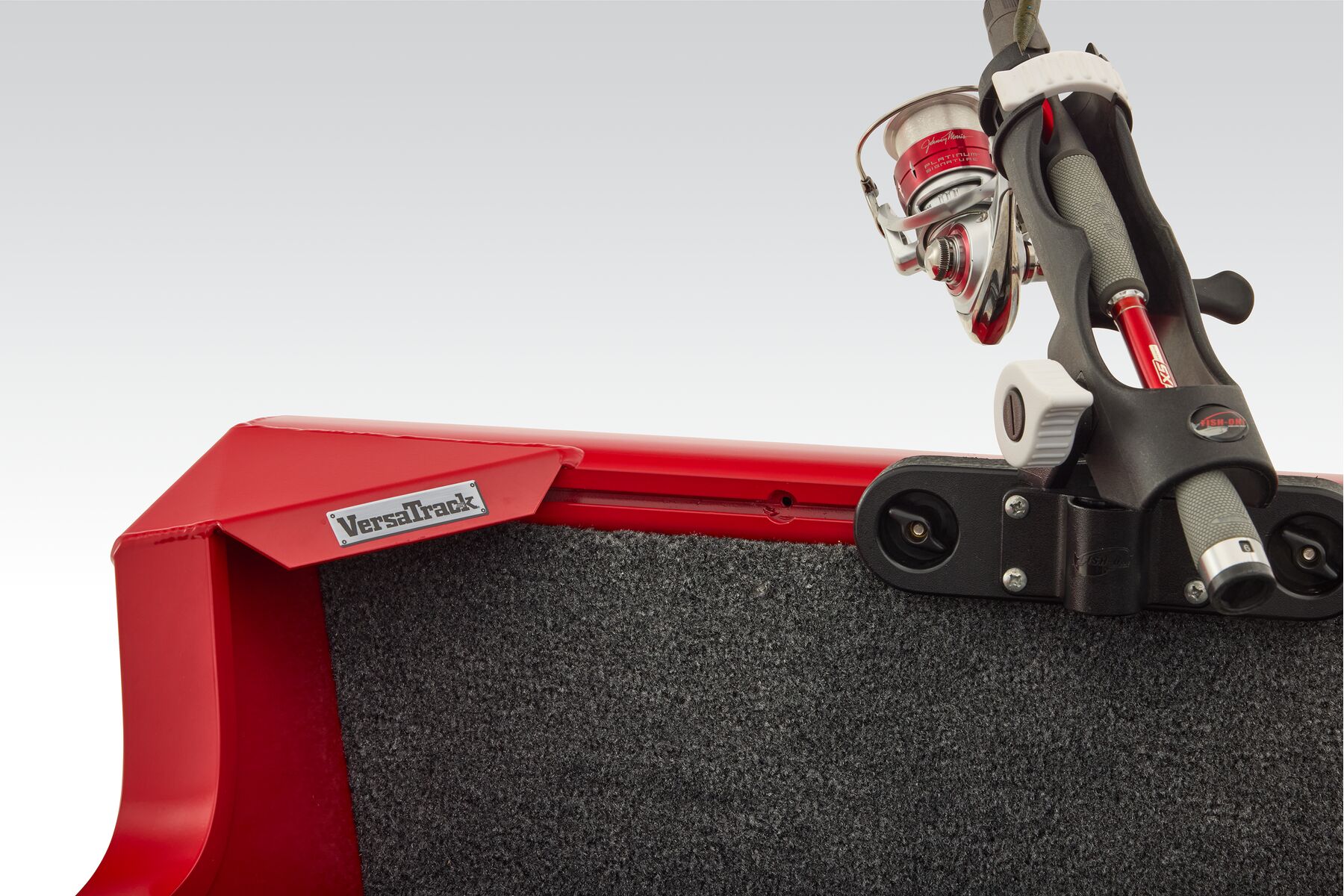

- Exclusive VERSATRACK® accessory-mounting channel in gunnels
- 16-oz. (.45 kg) marine-grade, fishing-friendly carpet on decks & trim
- Low-maintenance commercial-grade, chemical-resistant vinyl cockpit floor
Performance

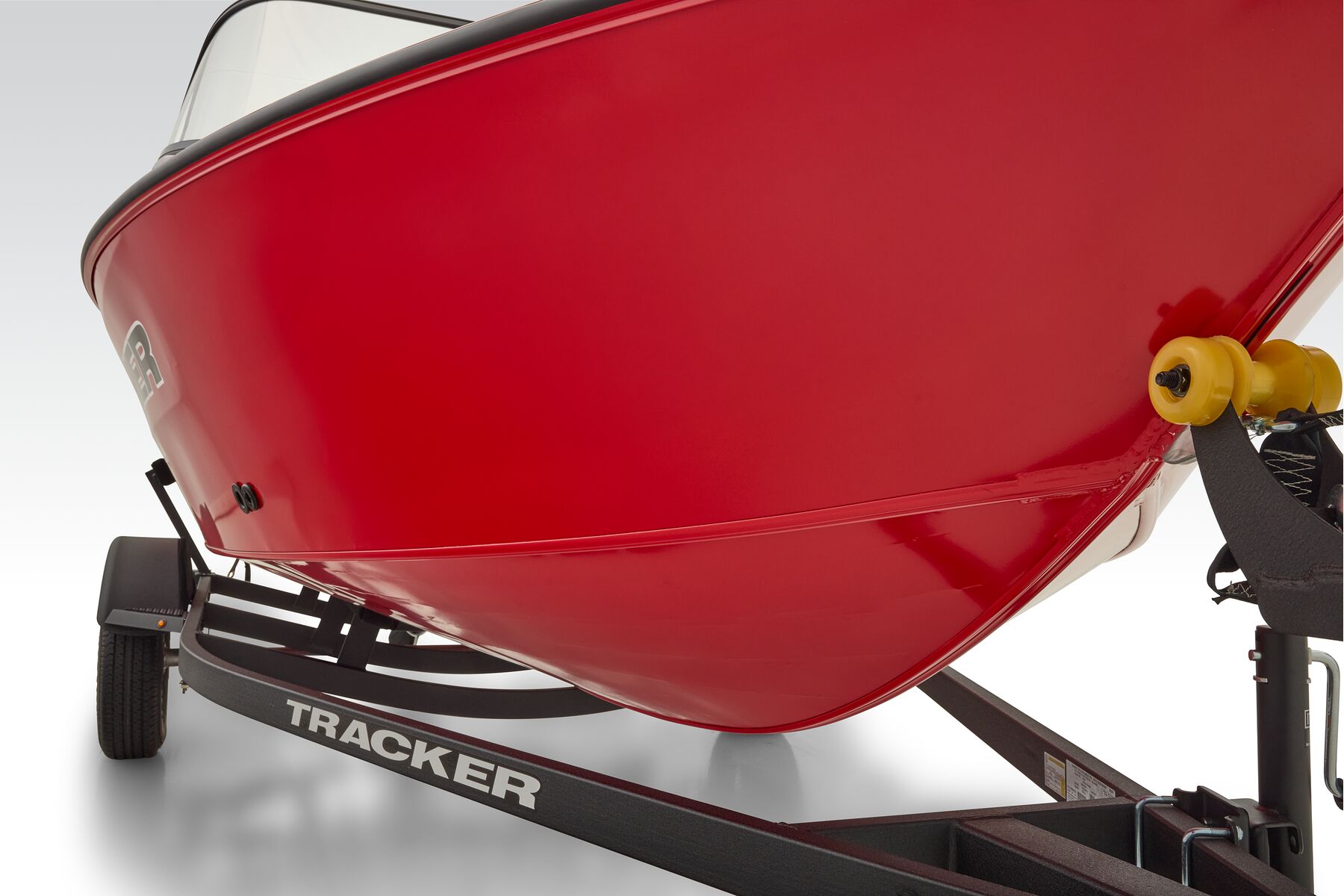

- Deep deadrise & reversed chines for a smoother, drier ride & better overall performance
- Pressed-in strakes for optimal performance
- Factory-matched, performance-tested propeller
Construction & Exterior

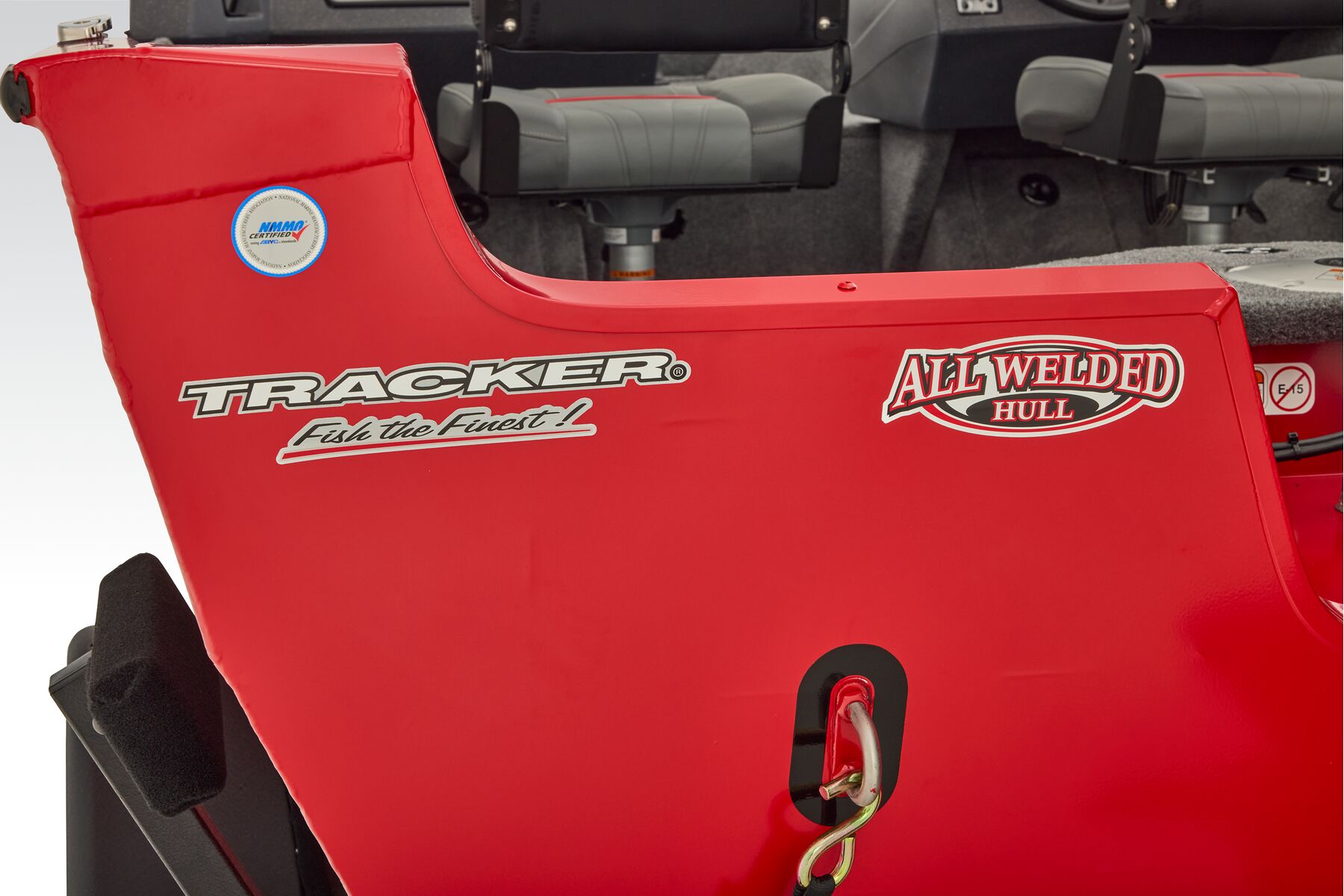

- NEW TRACKER® hullside graphics

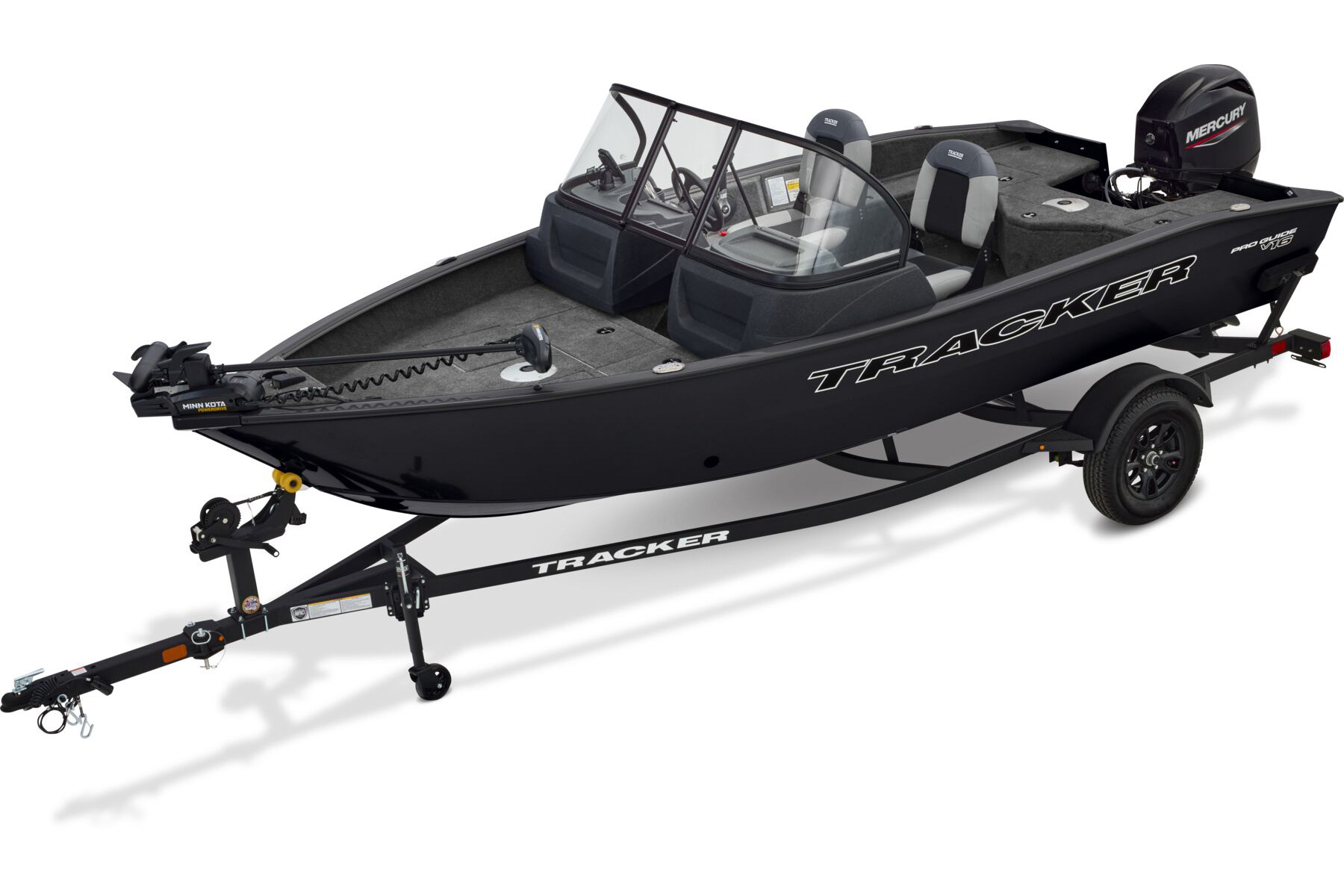

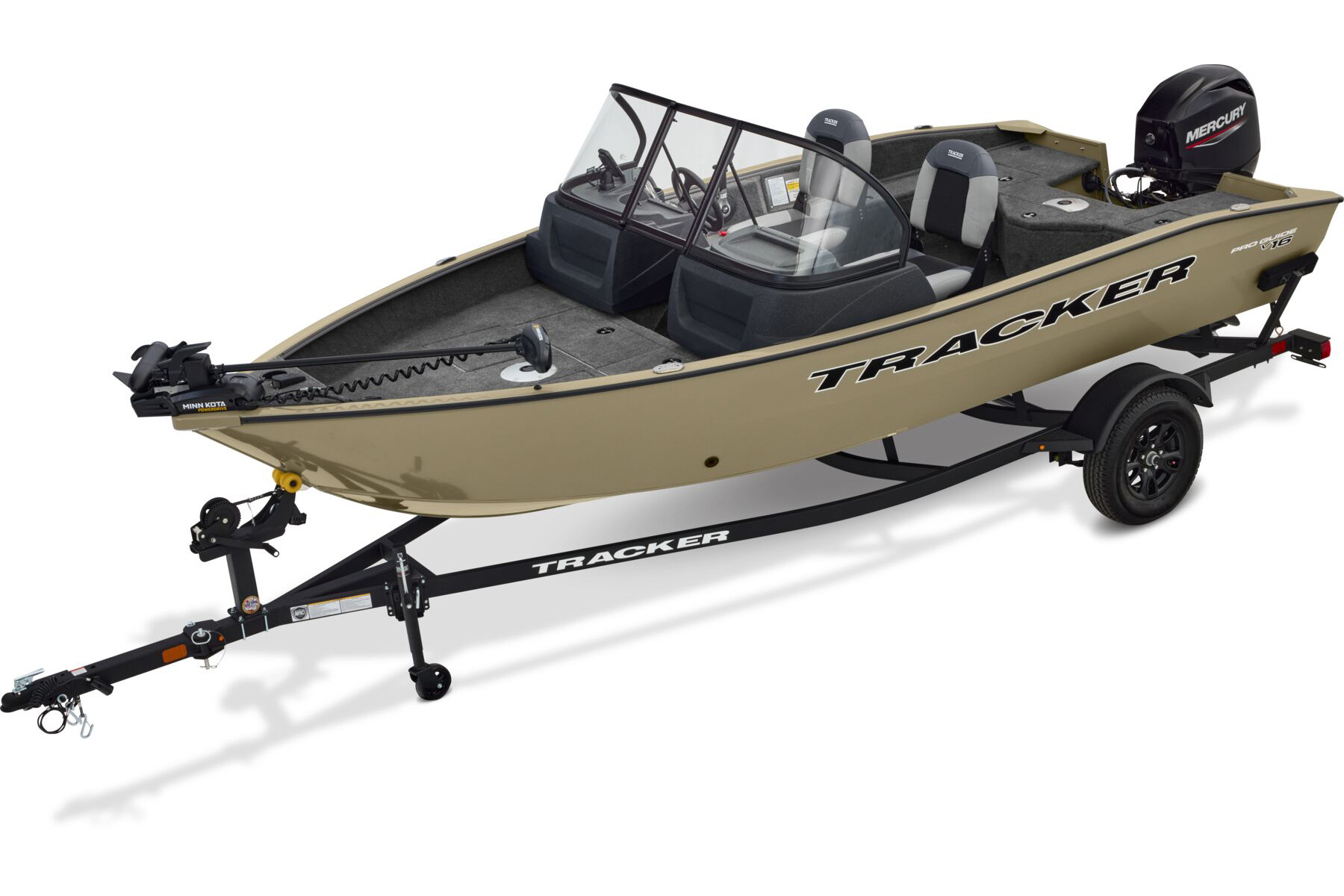

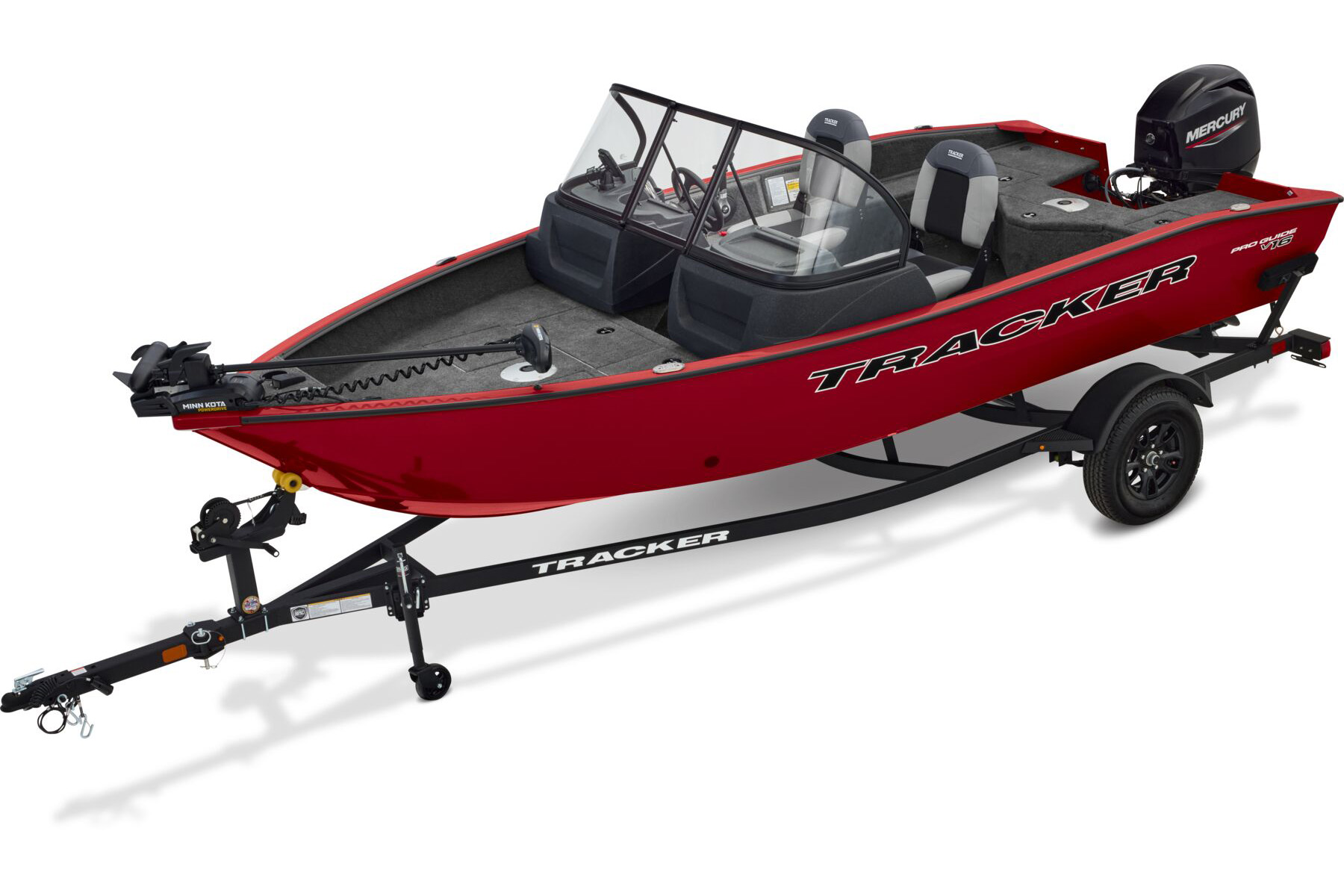

- Color: DIAMOND COAT™ Starlite Black, Starlite Blue or Starlite Red gunnels & hull sides w/Starlite Gray bottom
- DIAMOND COAT™ 3.0 finish — an industry-exclusive powdercoat for brilliant durability

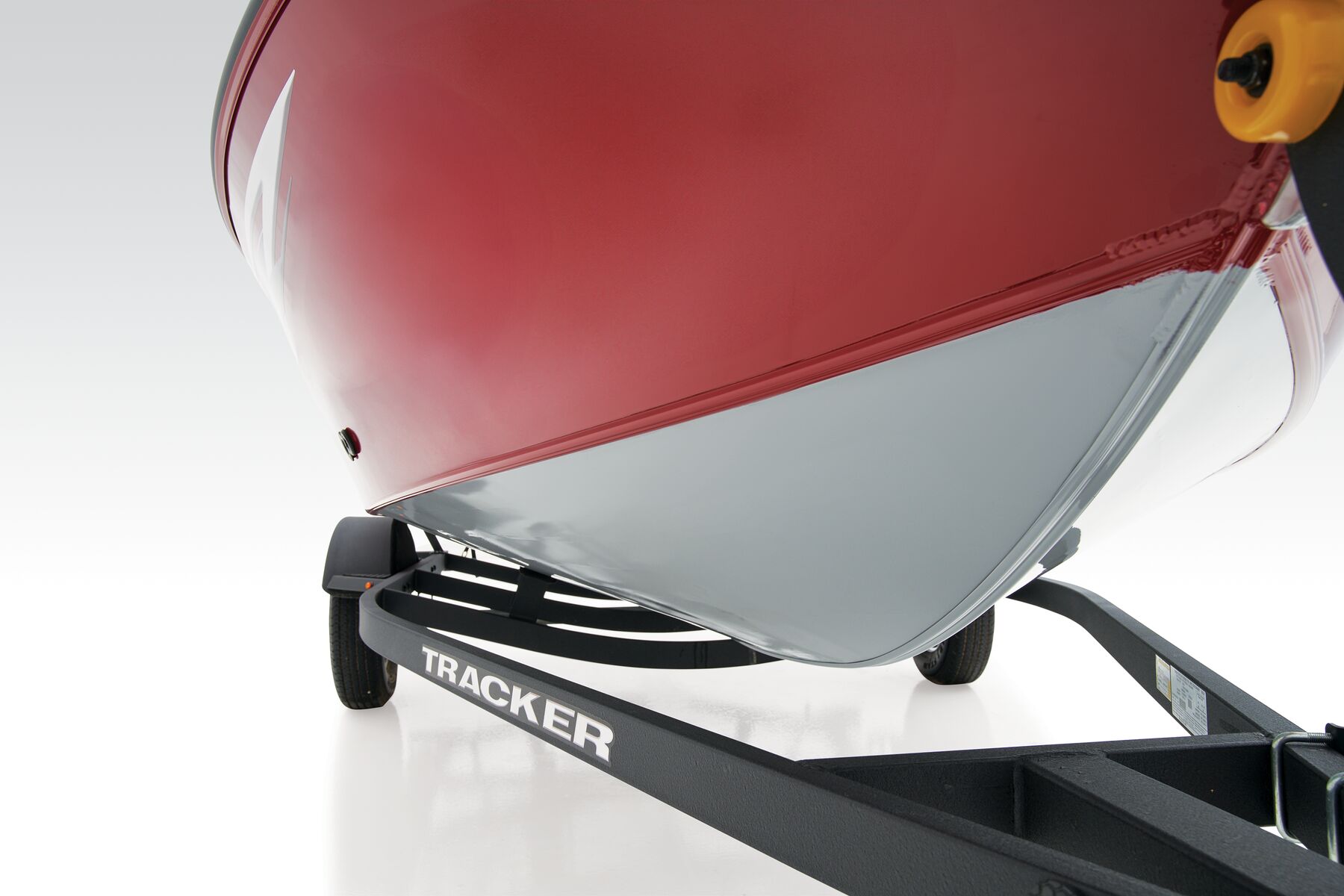

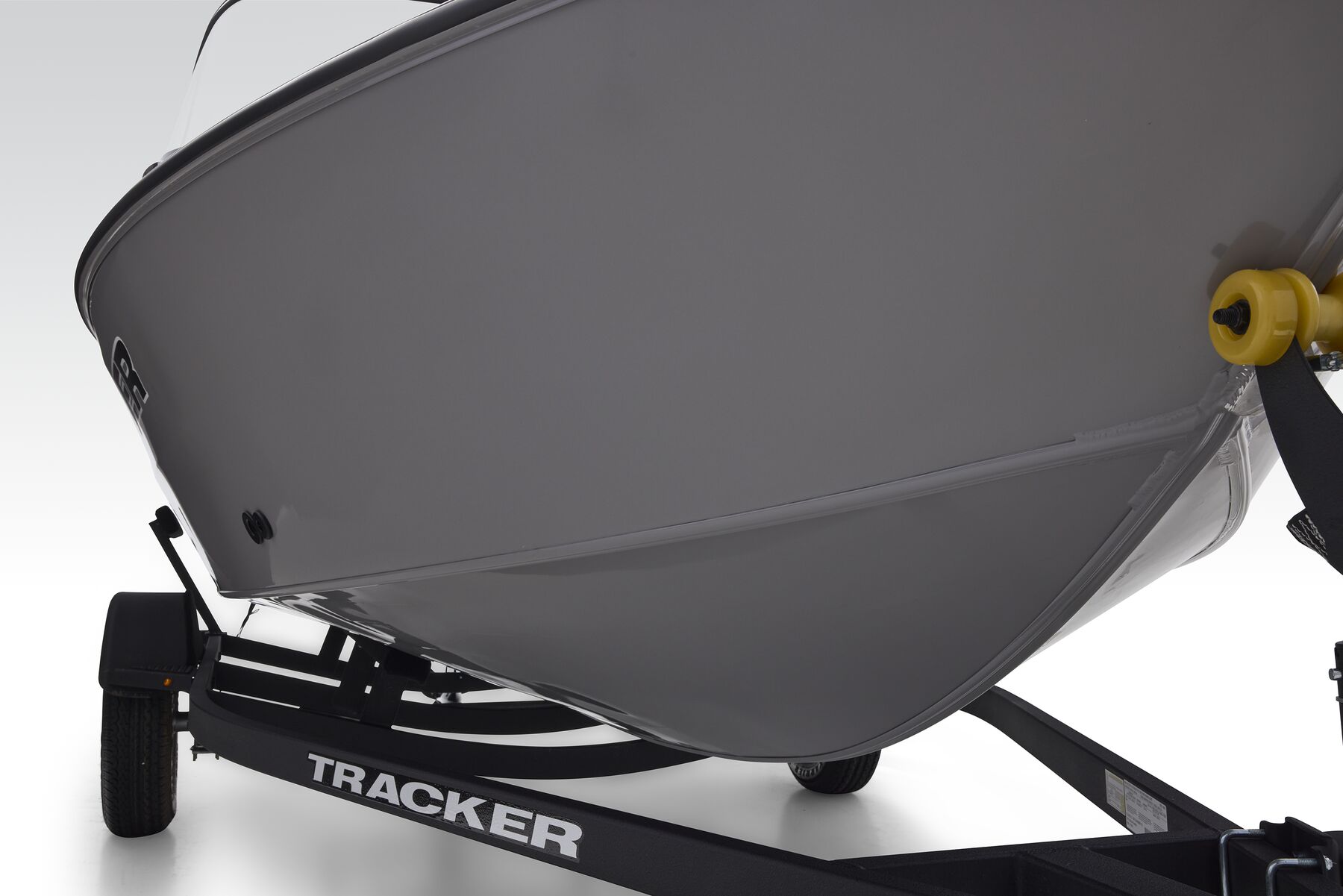

- All-welded, 2-piece .100 aluminum Deep V hull w/wide beam & stable bottom for a smoother, drier ride in rough waters
- Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride
- Pressed-in hull strakes for enhanced performance
- Reverse chine hull design for drier ride & better handling

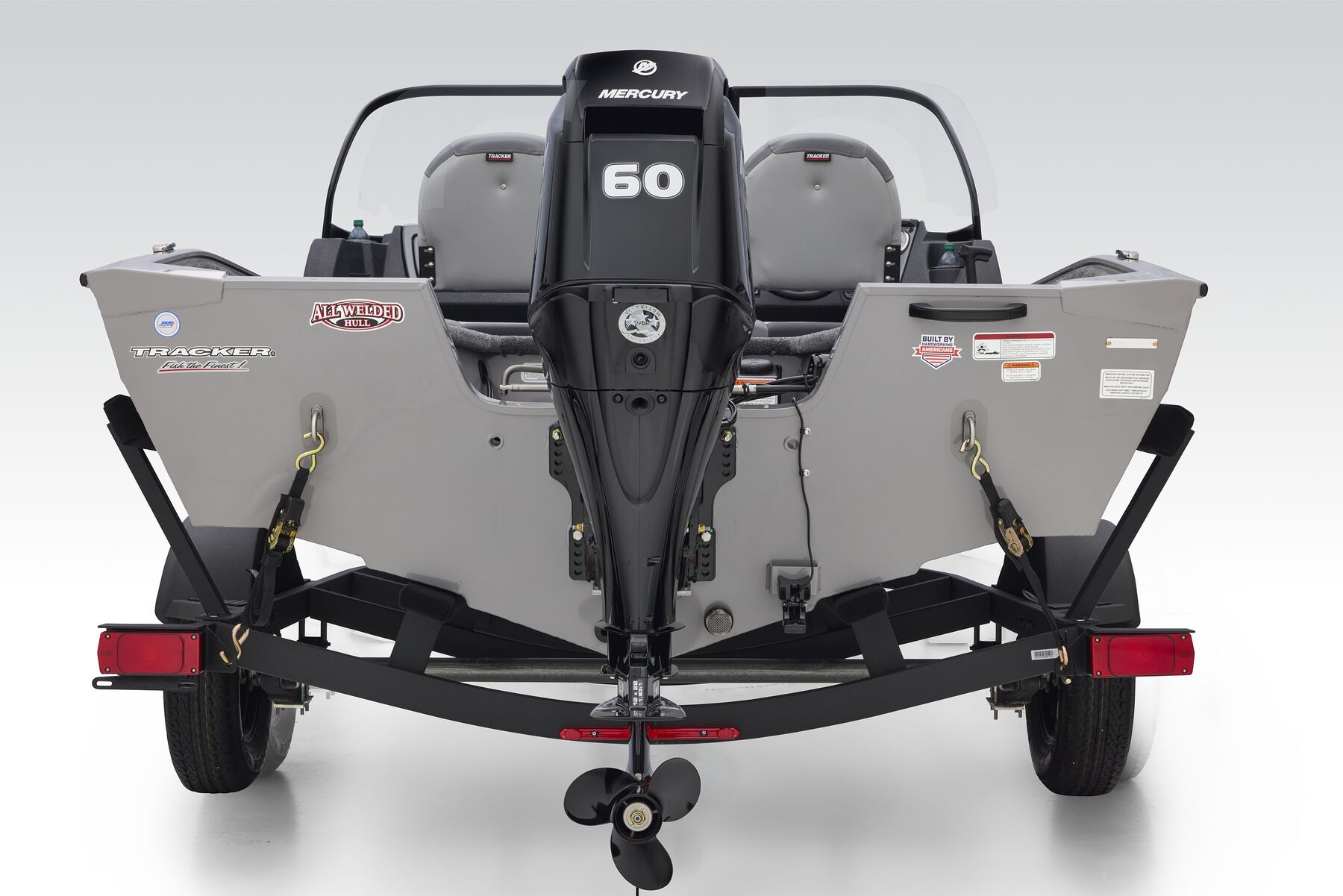

- Transom motor-mounting plate for increased strength & durability
- Welded-in longitudinal stringer system for full-length support along the running surface
- Pressure-treated floor & deck(s) w/limited lifetime warranty
Electrical
- 800 GPH (3,028.33 LPH) bilge pump

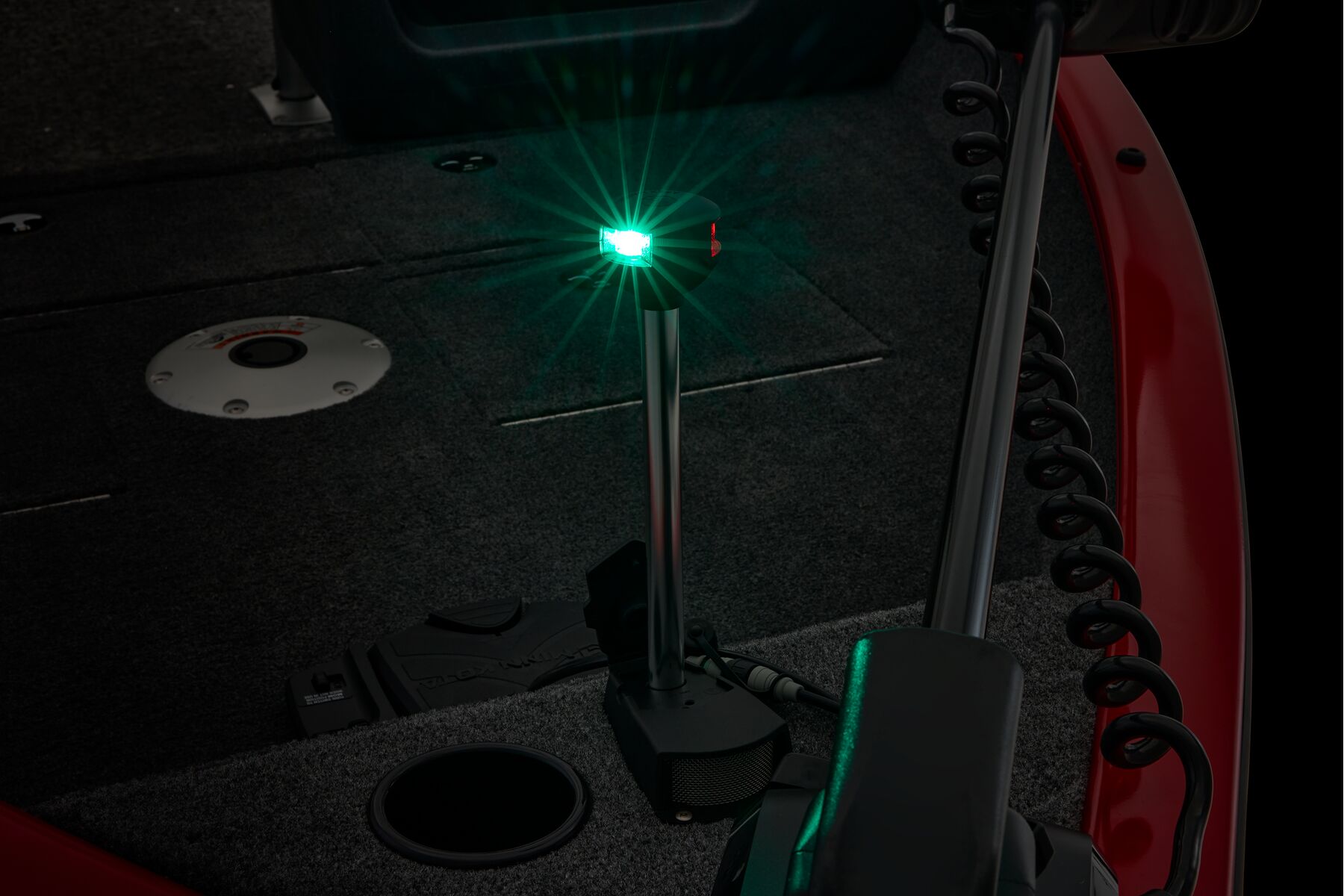

- Stowable navigation lights w/LED courtesy light at bow
- Bow courtesy light

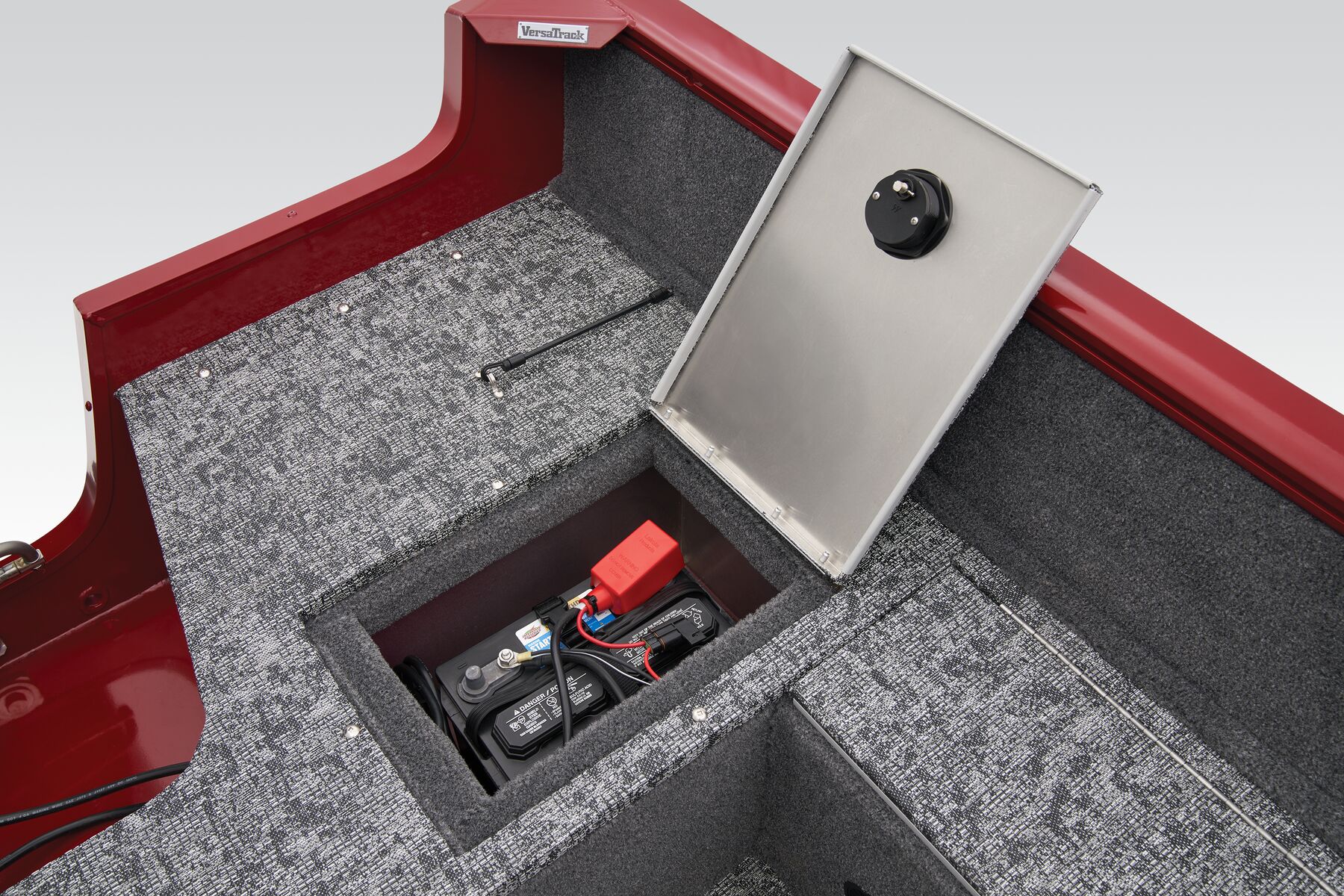

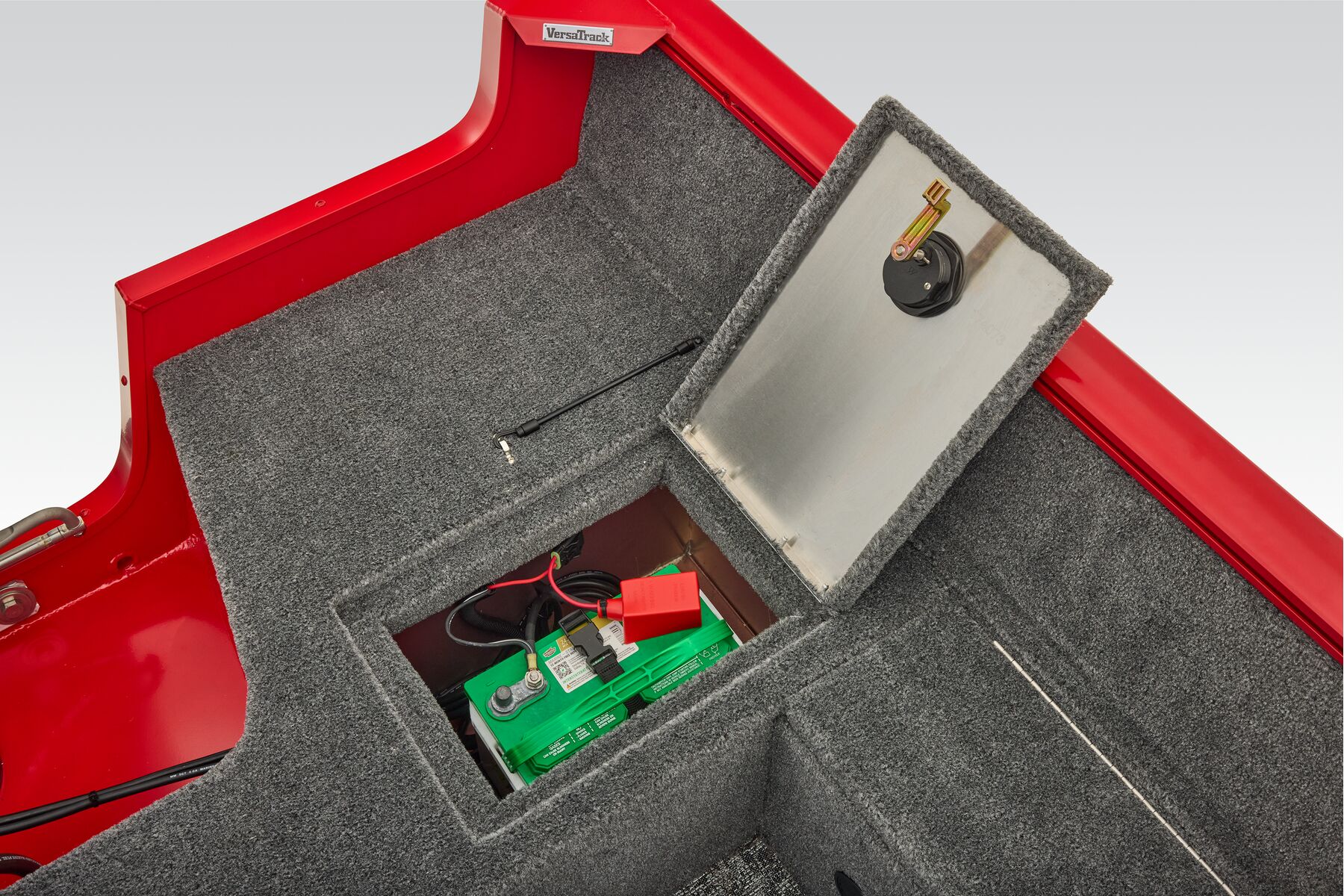

- 2 battery trays
- Interstate® batteries: 1 cranking & 1 trolling
- Console-mounted 12V outlet
- Wiring system wrapped in abrasion-resistant protective conduit

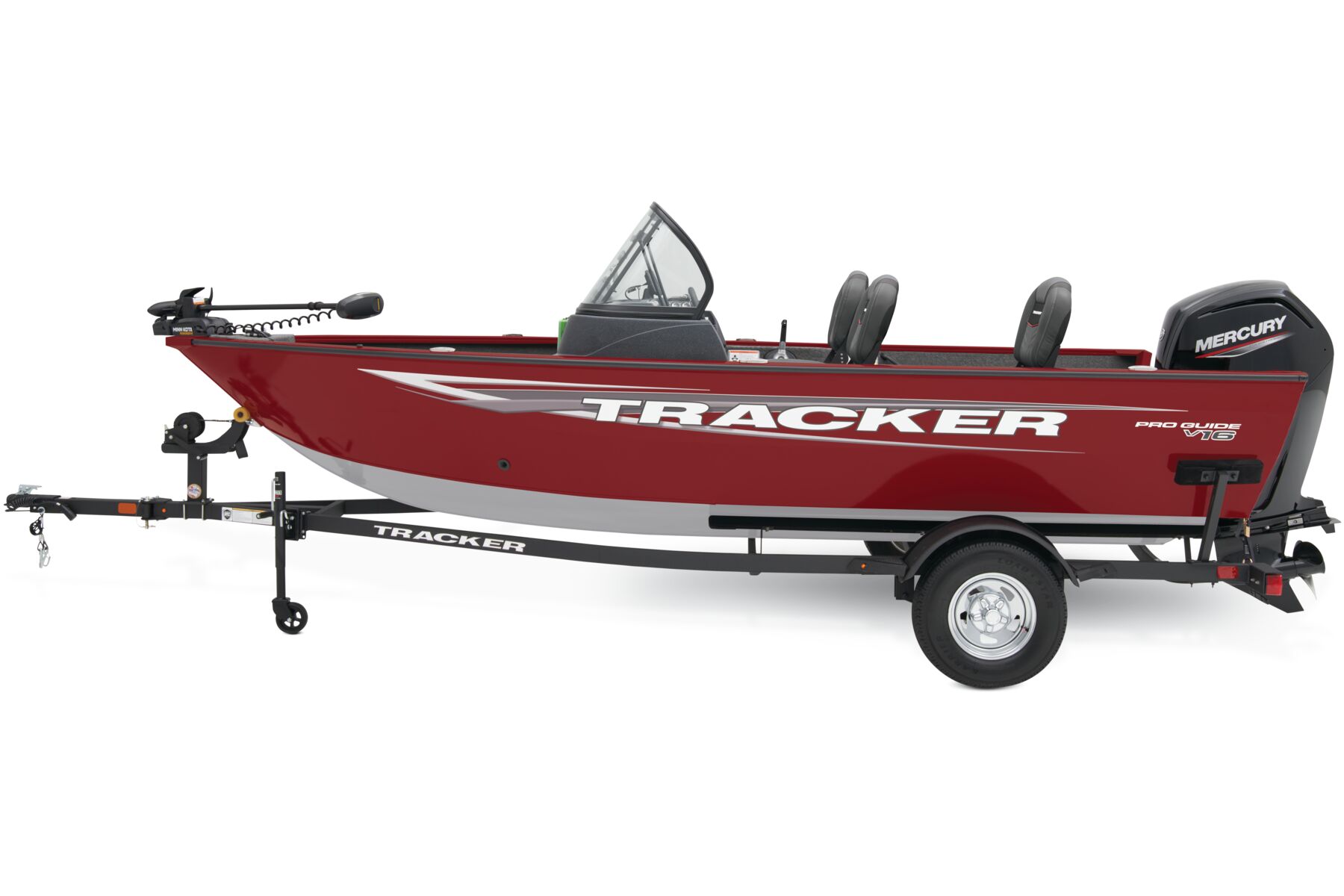

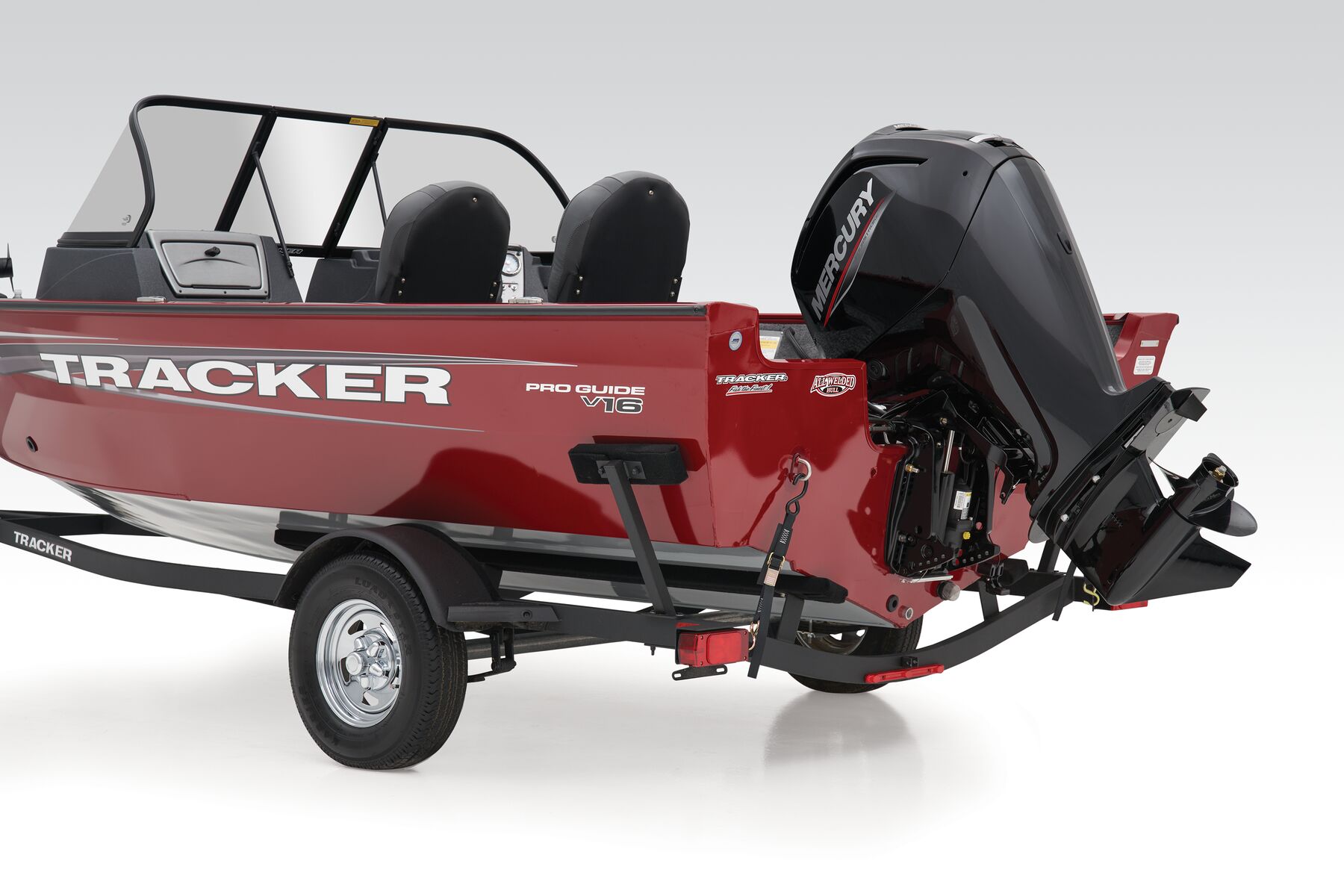

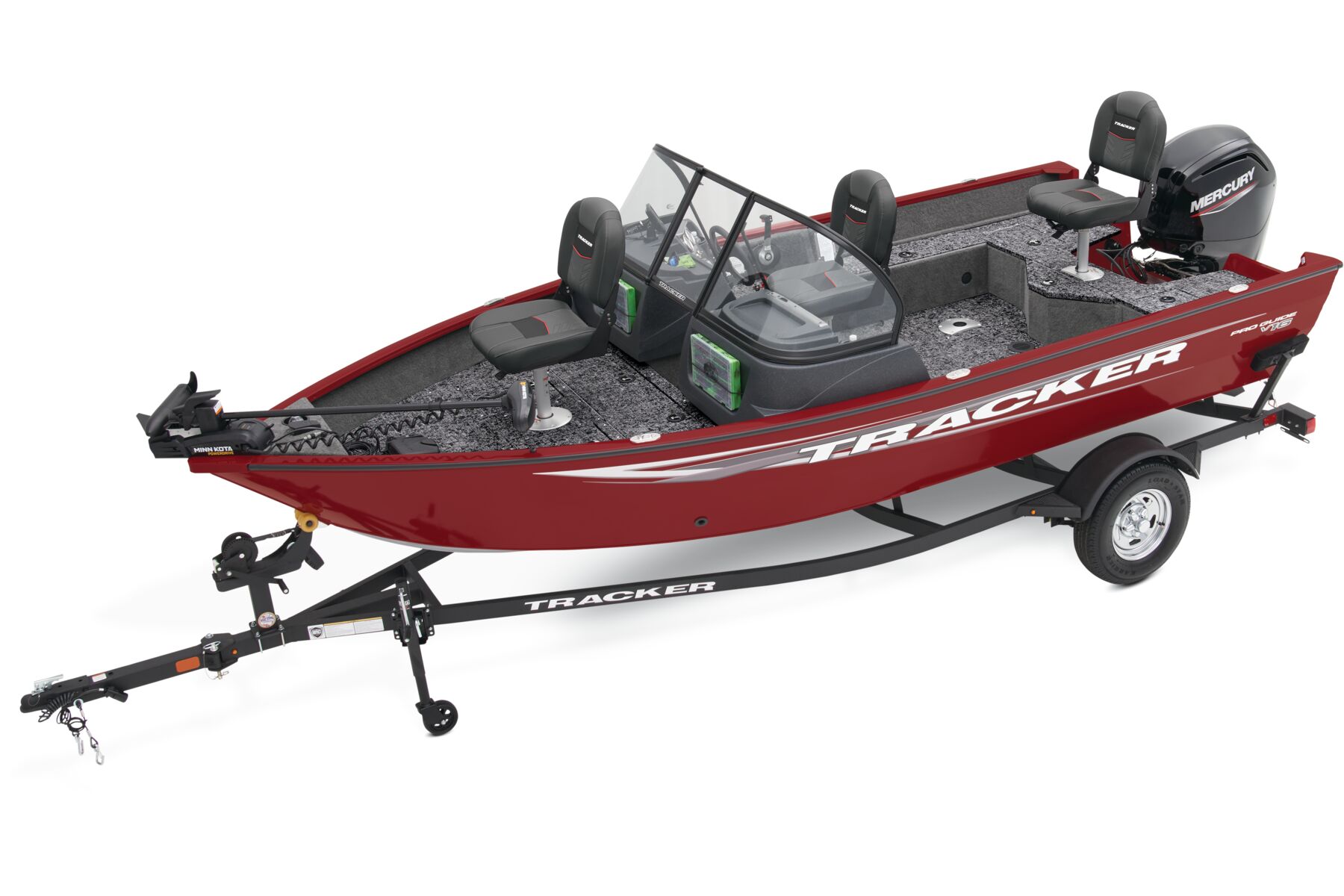

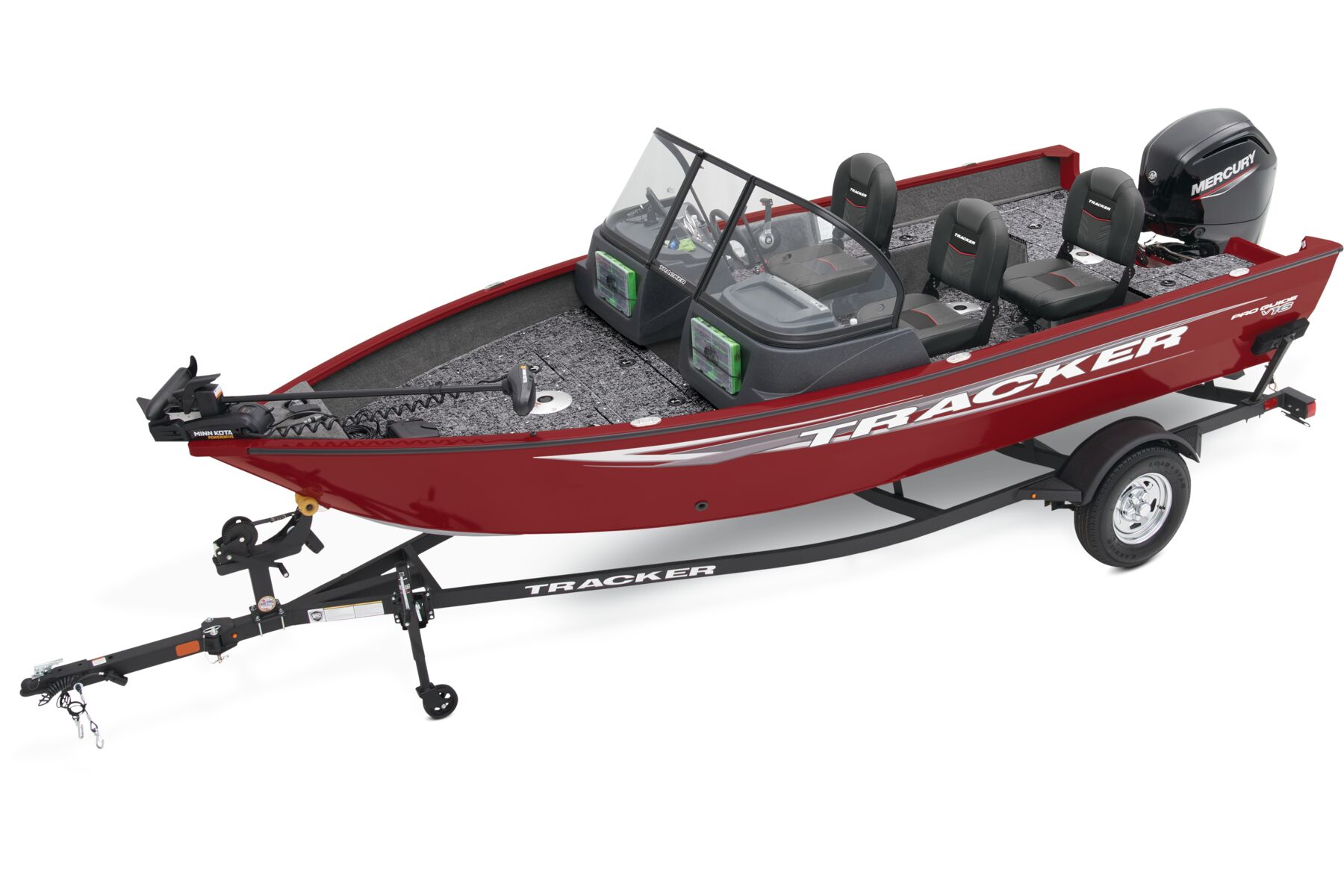

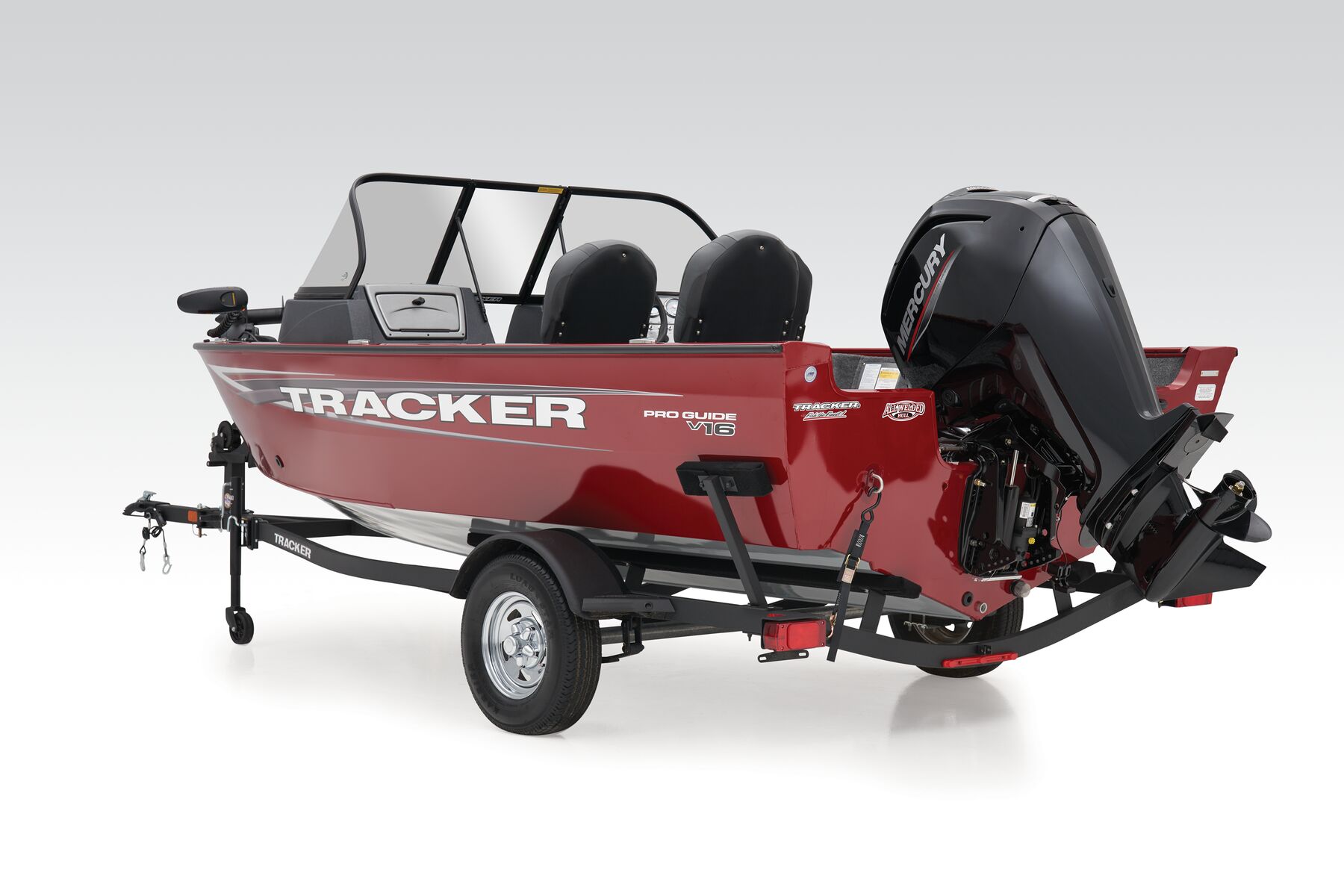

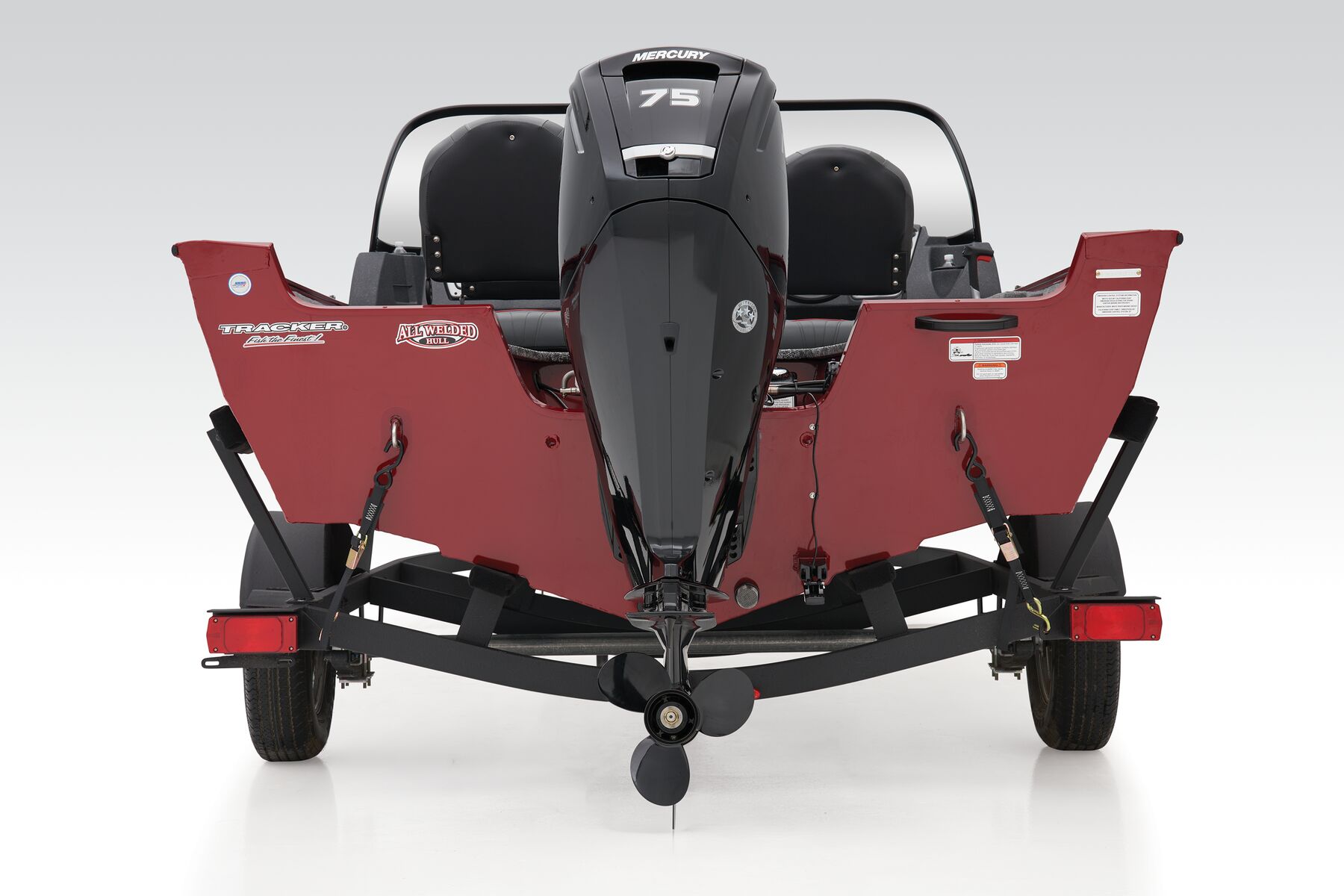

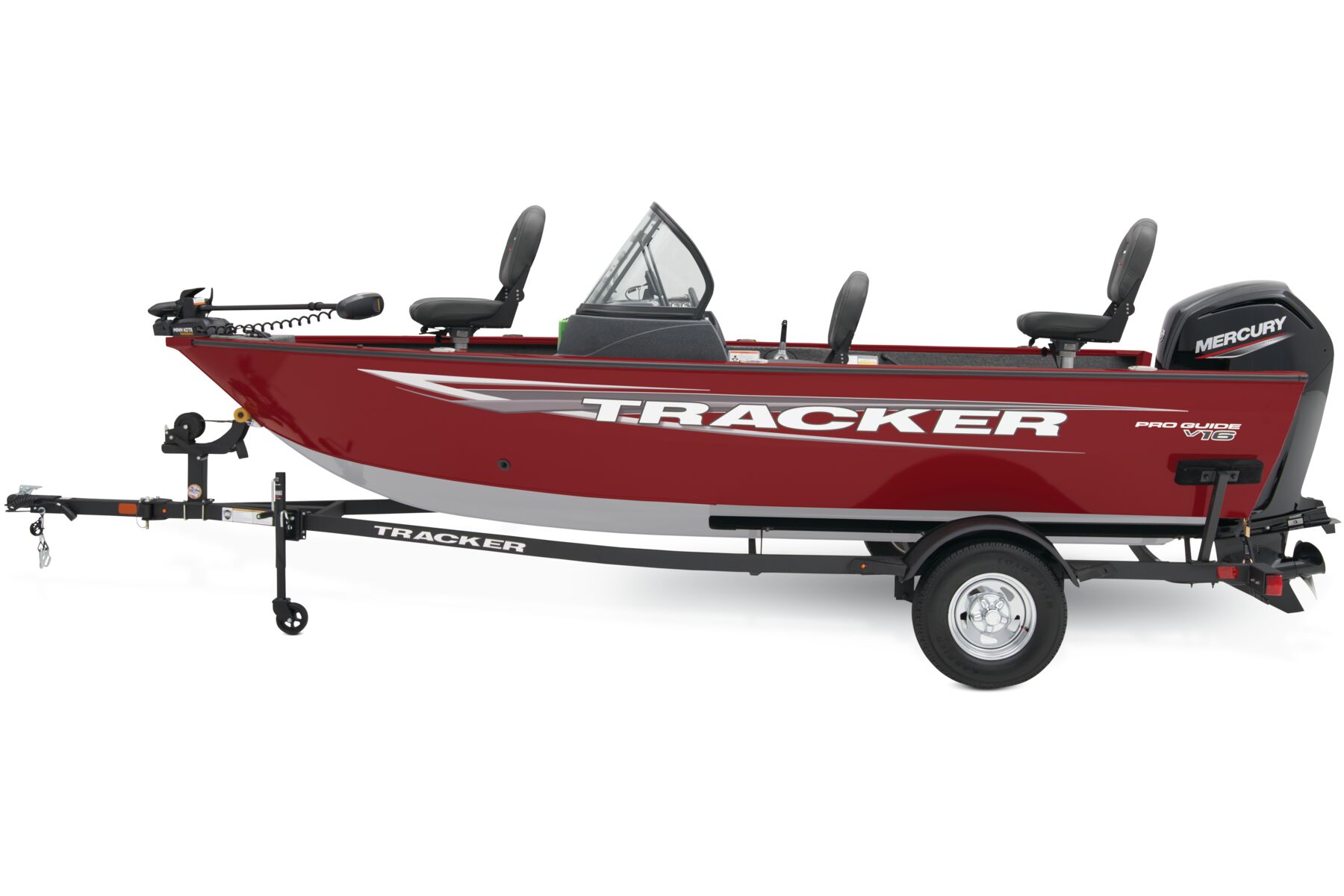

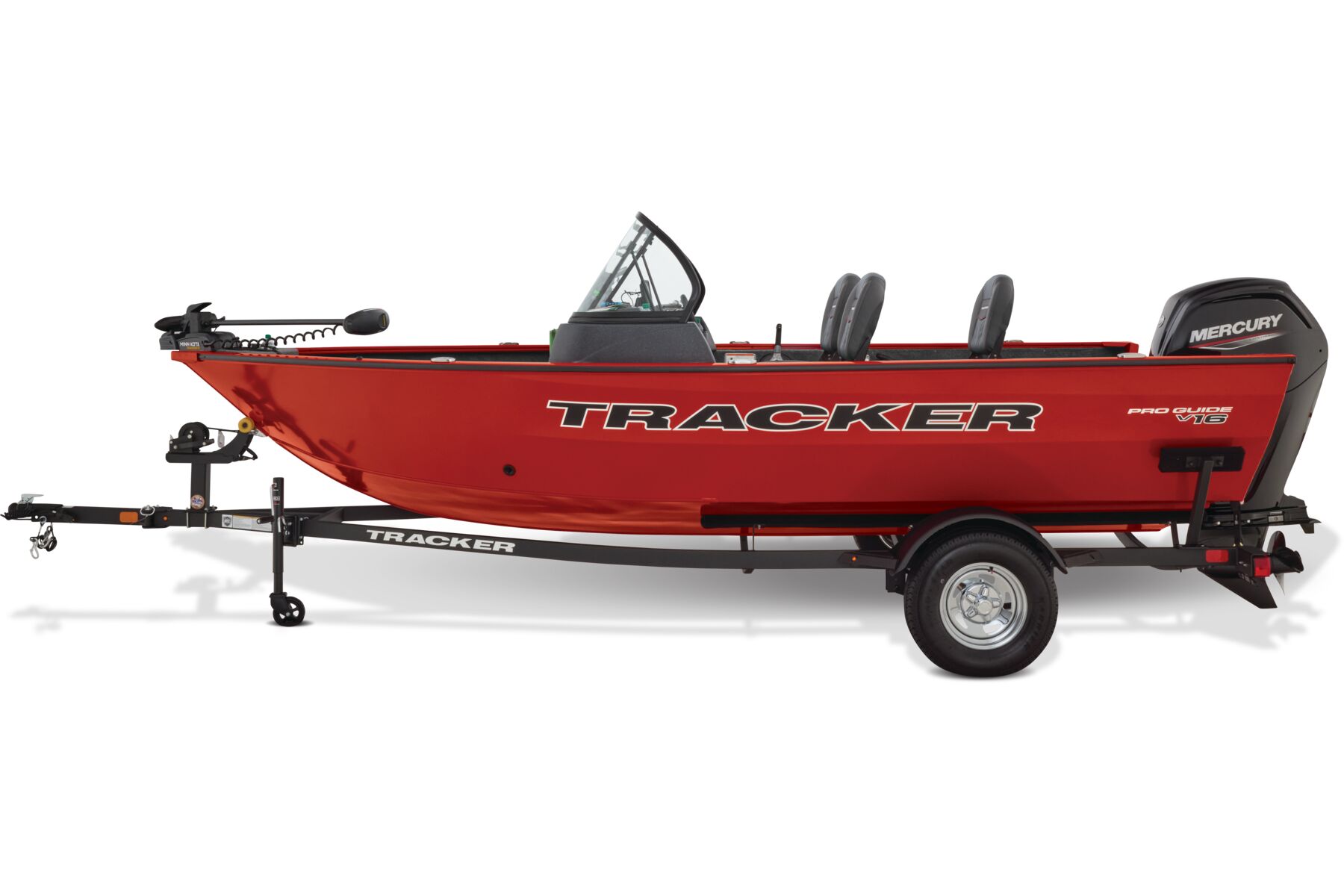

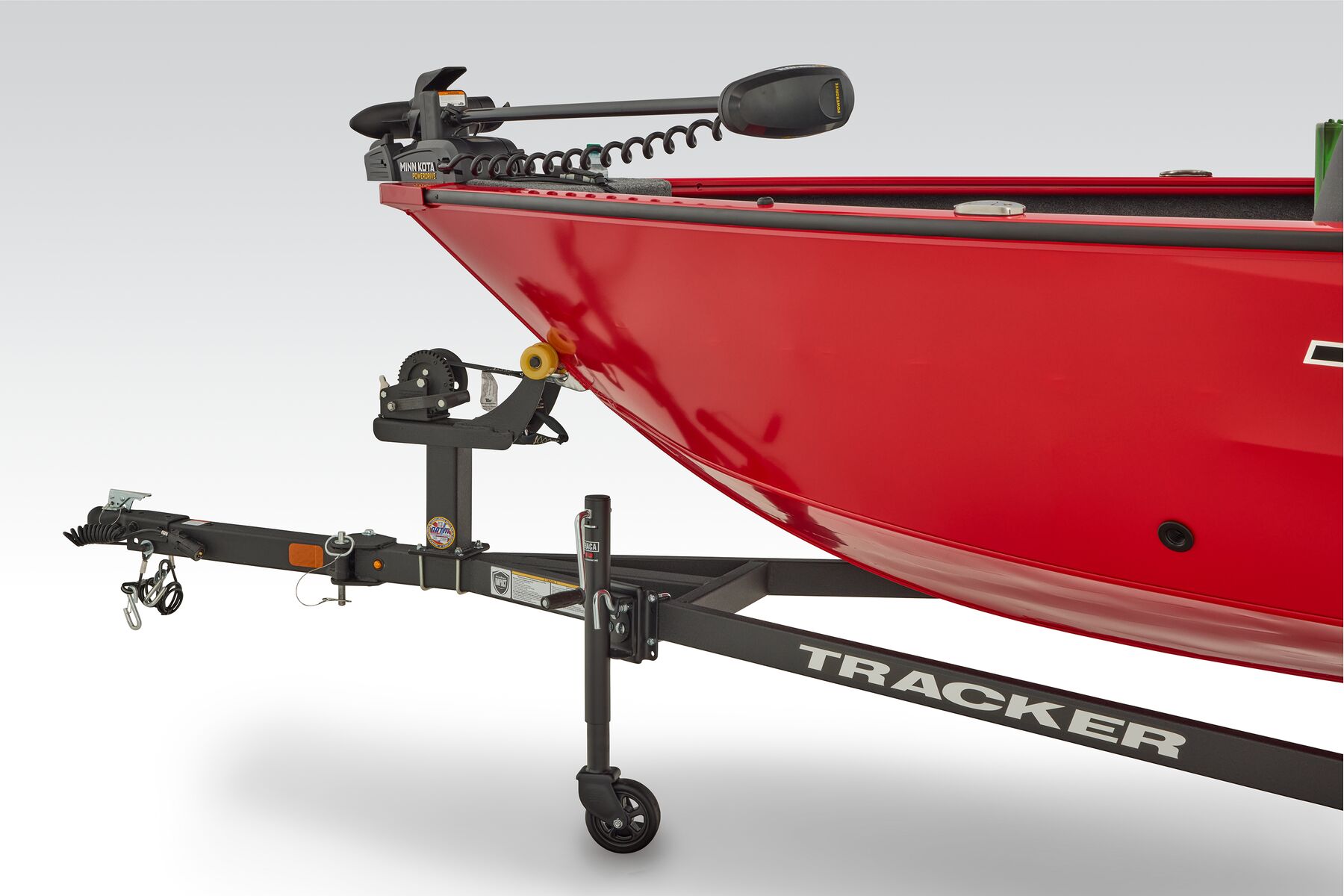

Trailer
- Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
- 13" (33.02 cm) Chrome wheels & matching hub covers w/radial tires
- Hubs designed for quick & easy hub lubrication

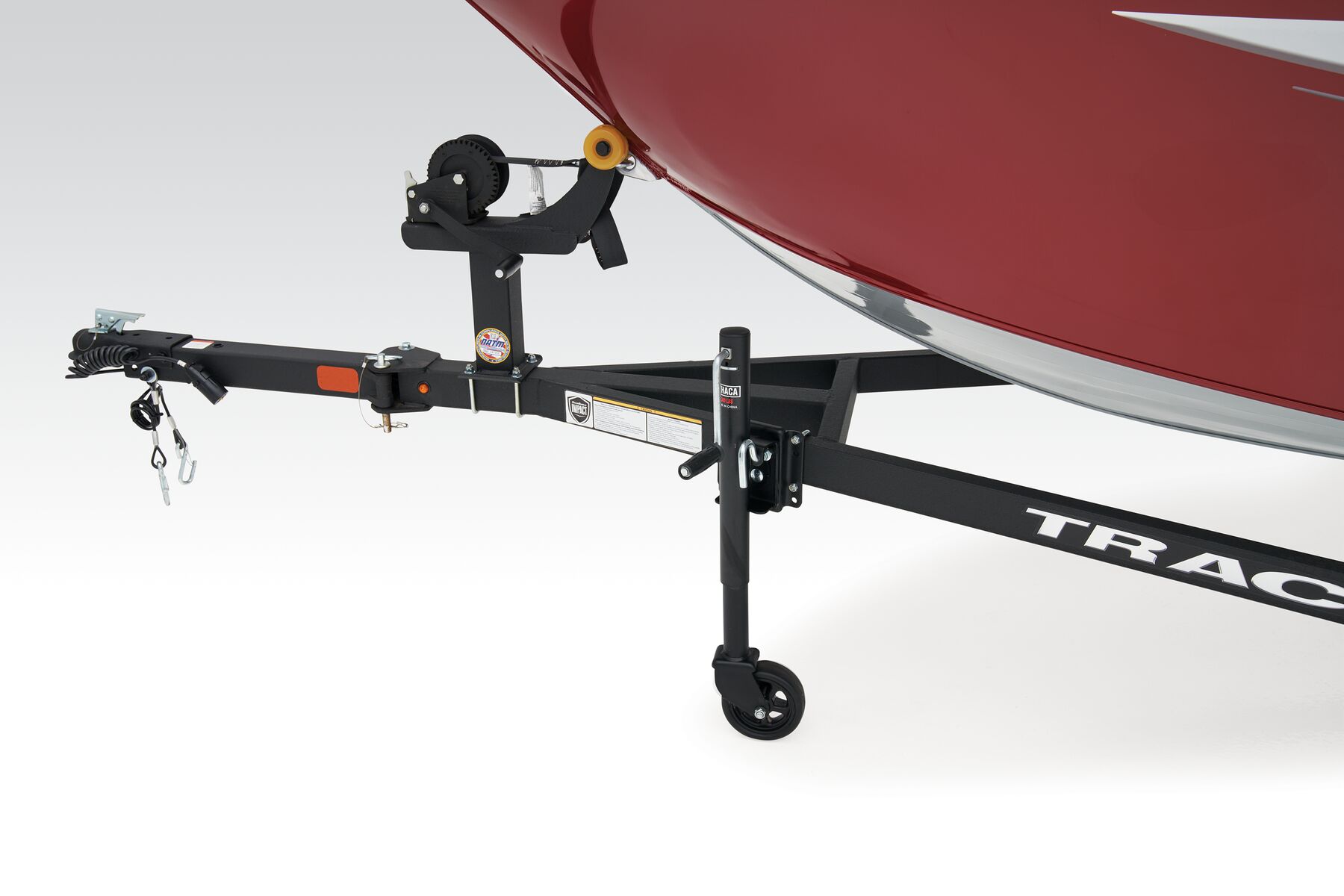

- Space-saving swing-away tongue to reduce storage length
- Pivot-up locking jack w/swivel wheel
- Heavy-duty winch w/nylon strap & bow safety strap
- Outboard motor support to reduce hull & transom stress while towing
- Heavy-duty upright load guides for easy, centered loading
- Carpeted bunks & fender boards to protect hull
- Submersible LED lighting
- Nylon tie-down straps (supplied w/boat package)
- Safety cables
Options
