2025

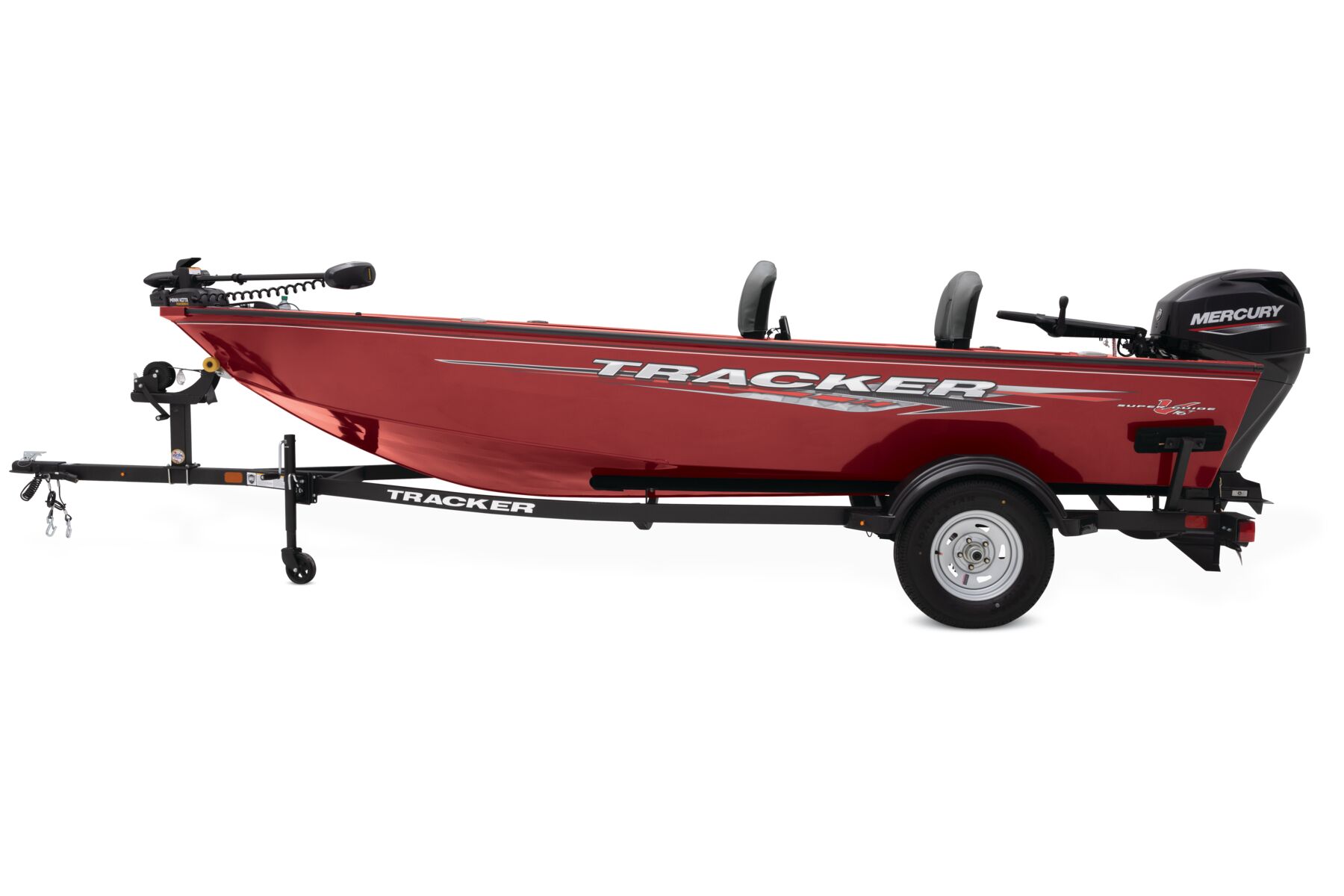

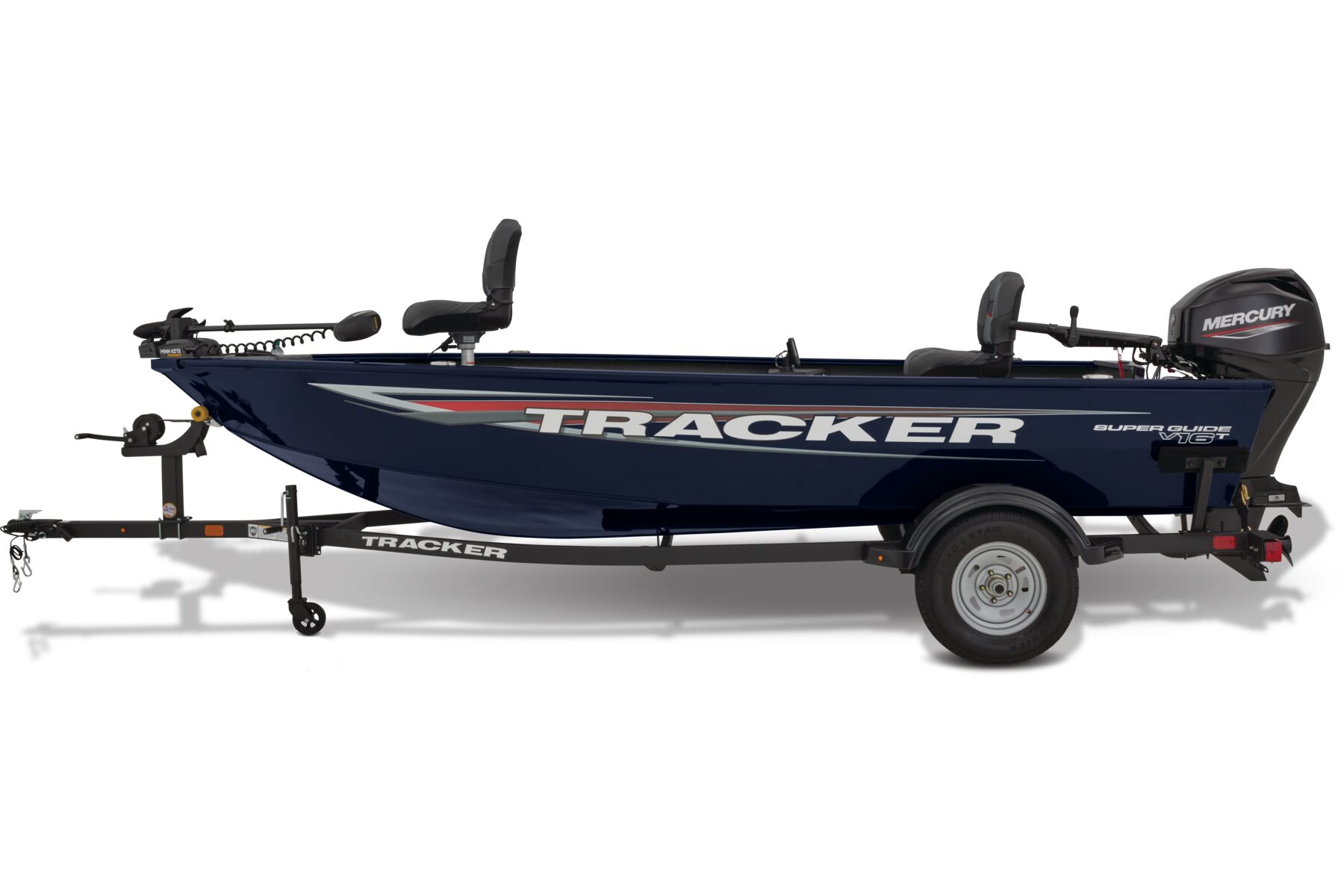

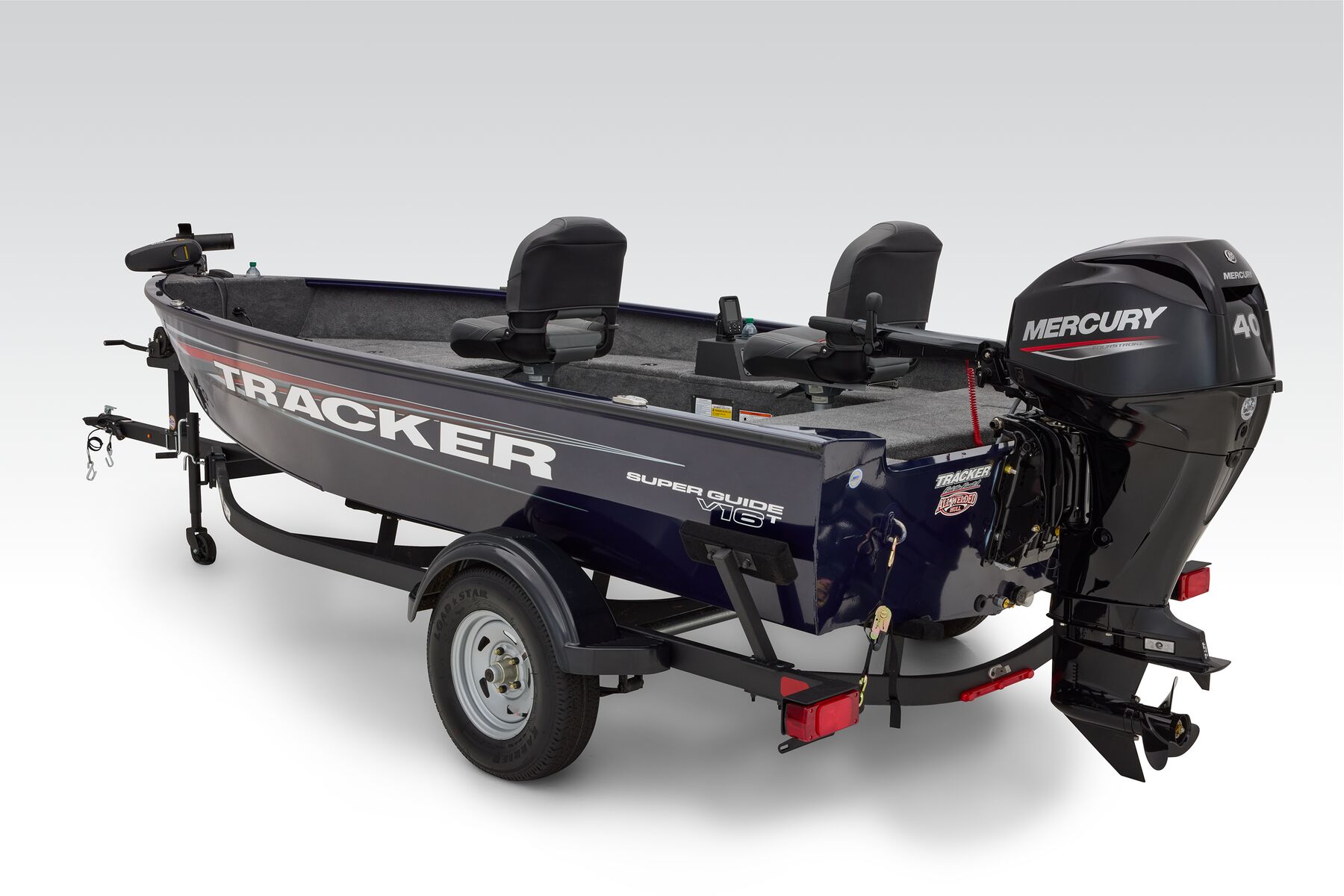

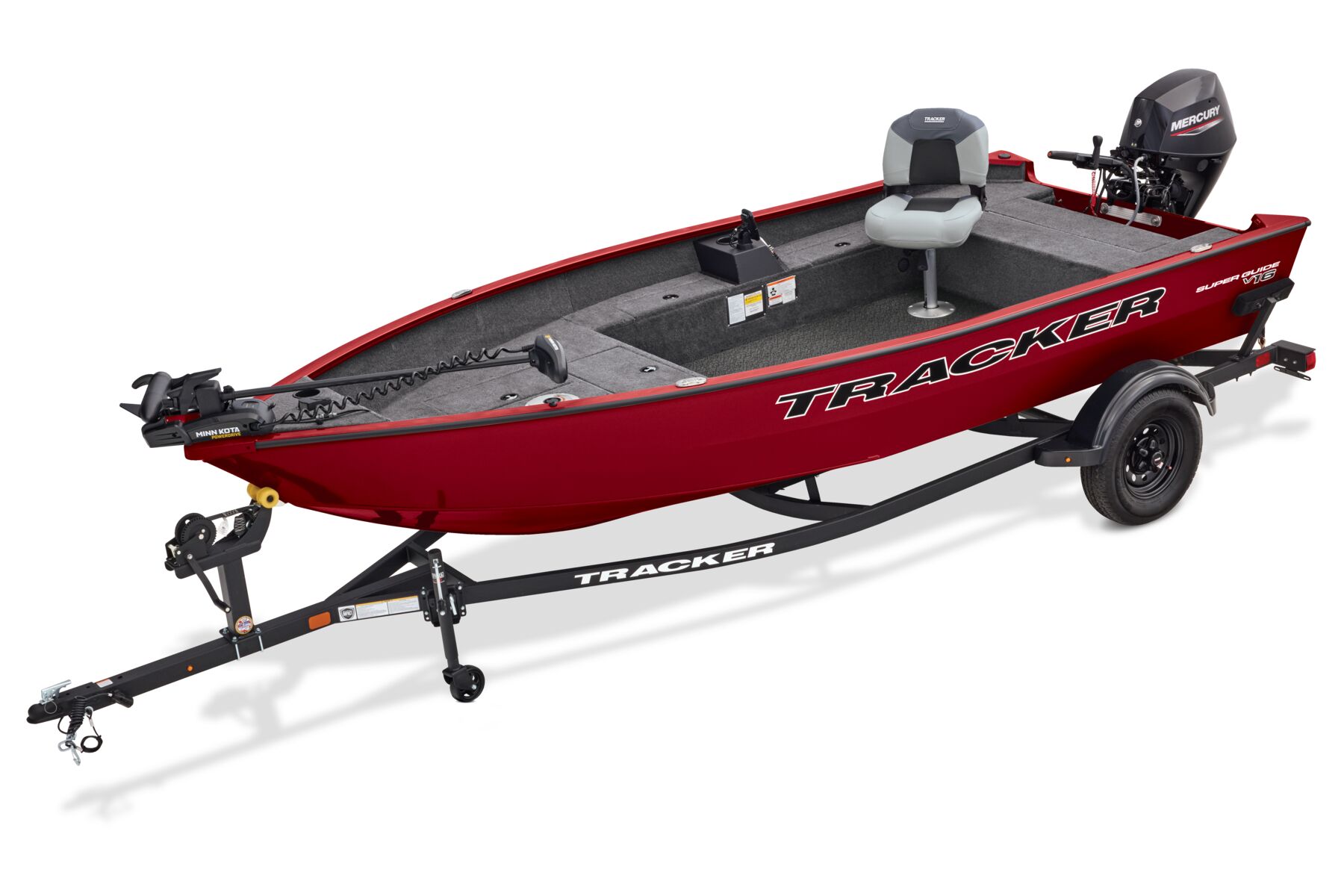

SUPER GUIDE™ V-16 T
w/ 40 ELHPT FourStroke Mercury® FourStroke
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$16595
USD
|
Overview

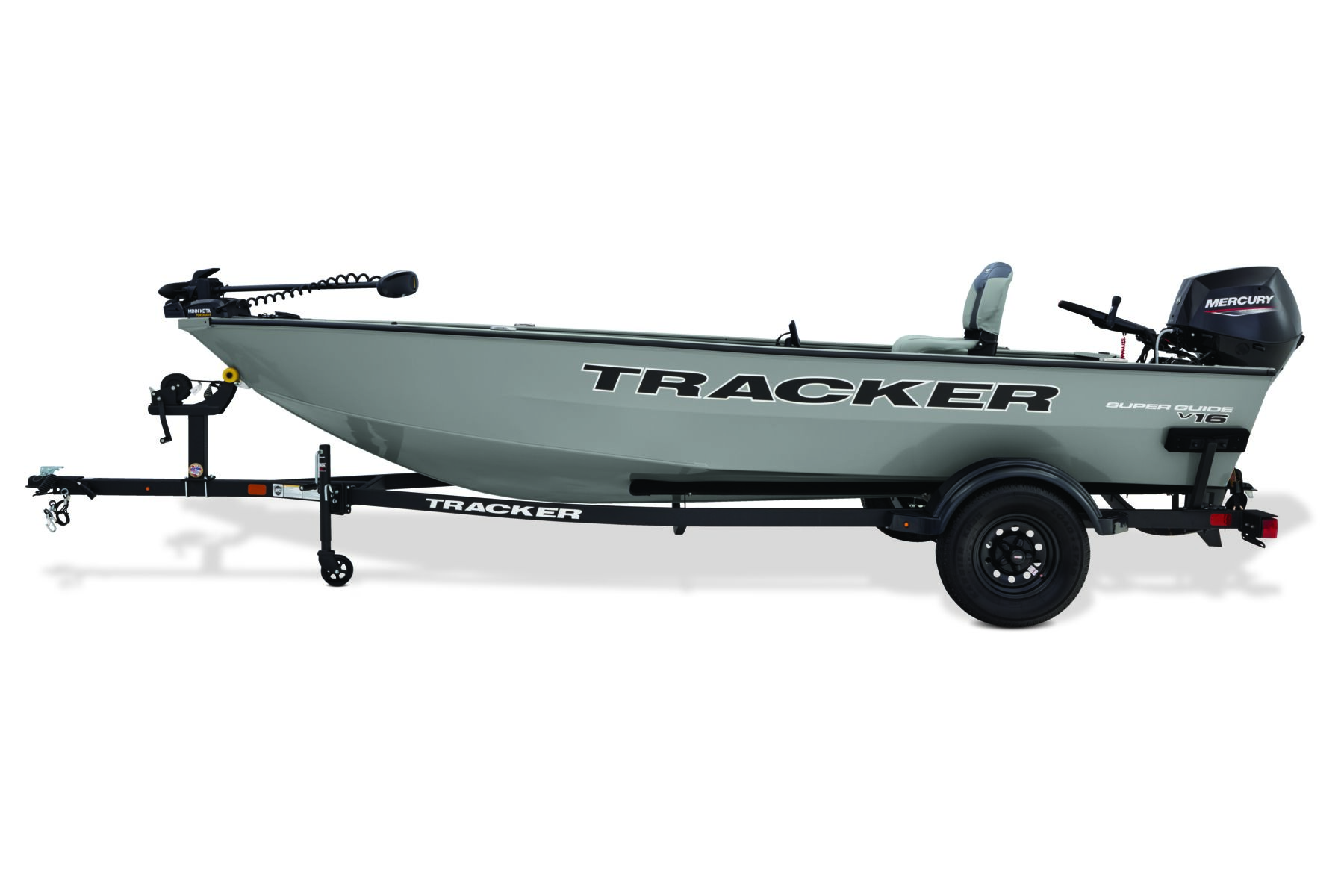

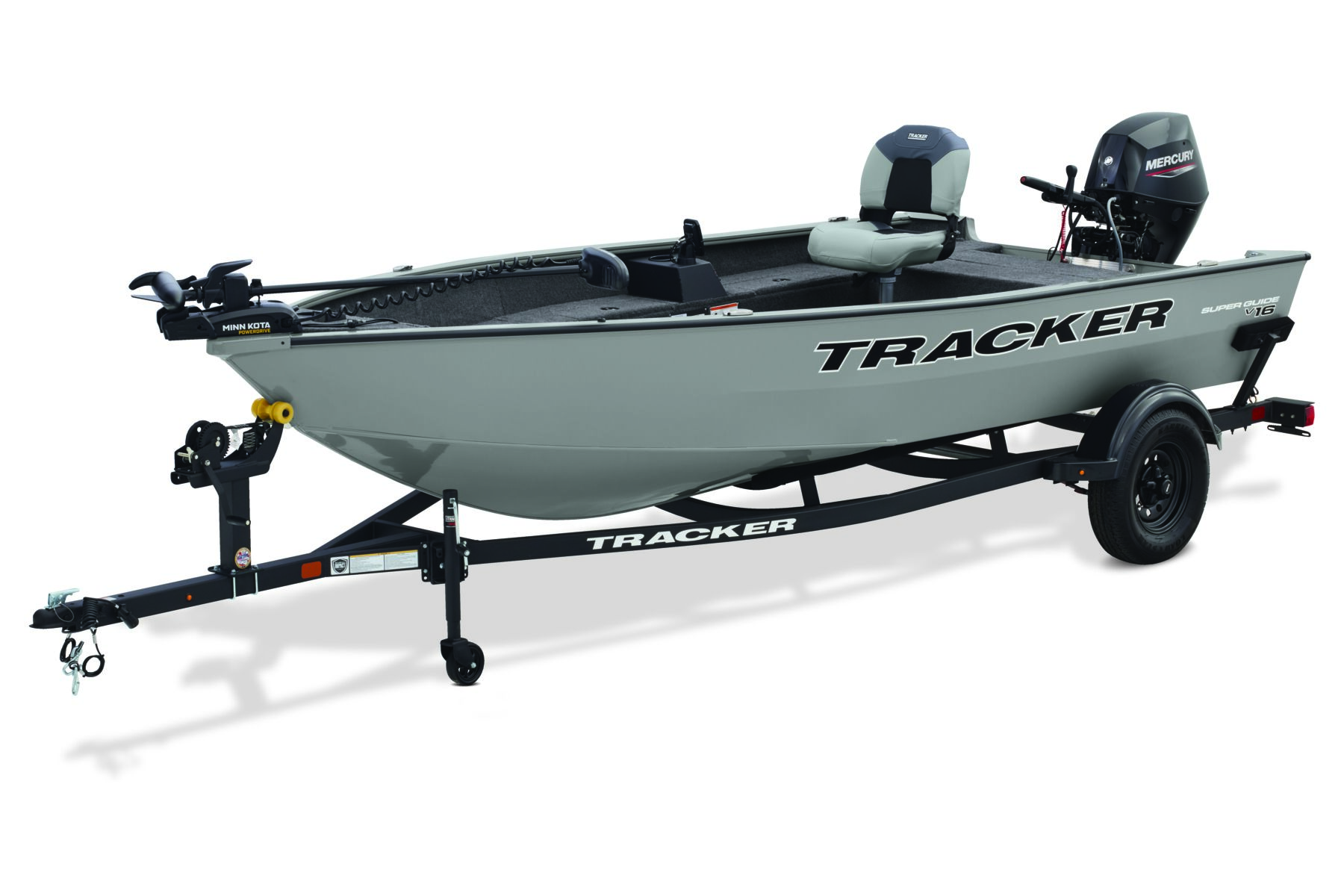

The newest TRACKER begins with a proven and highly acclaimed hull and adds tiller steering for more space, versatility, and simplicity. The Super Guide V-16 Tiller features the same sturdy, proven, and guaranteed build quality as our entire all-welded, rivet-free lineup. With increased cockpit space and a non-skid flooring, the new Super Guide V-16 Tiller is as wide open for possibilities as your day. It's equipped with spacious storages, multiple seating locations, an intuitive and well-equipped gauge pod, and of course, the same peace of mind that runs throughout our lineup. With the tiller in hand, you command smooth, reliable Mercury® power and a boat that's the result of decades of passionately pursuing excellence.
Gallery
Specifications
| Length | 4.9 m | 16' 1'' |
| Beam | 2.03 m | 6' 8'' |
| Bottom Width | 1.65 m | 5' 5'' |
| Max. Recommended HP | 40 HP | |
| Fuel Capacity (Portable) | 22.71 L | 6 gal. |
| Max. Person Capacity | 4 persons | |
| Max. Person Weight | 294.84 kg | 650 lbs. |
| Max. Person, Motor & Gear Weight | 523.9 kg | 1155 lbs. |
| Interior Depth | 48.26 cm | 19'' |
| Transom Height | 53.34 cm | 21'' |
| Deadrise | 8 degrees | |
| Draft | 33.02 cm | 13'' |
| Hull Material | 0.100 5052 marine alloy | |
| Average Dry Weight | 371.95 kg | 820 lbs. |
| Average Package Weight | 748.43 kg | 1650 lbs. |
| Package Height | 1.78 m | 5' 10'' |
| Package Width | 2.13 m | 7' |
| Towing Length | 6.63 m | 21' 9'' |
| Storage Length (w/Outboard Trimmed Down) | 6.63 m | 21' 9'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 25 ELHPT FourStroke | - |
$14925 USD
|
Select Dealer | ||
| 40 ELHPT FourStroke | - |
$16595 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
- Limited lifetime hull warranty
- NMMA® certified
- Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
- EPA-compliant fuel system
- Bow & stern eyes

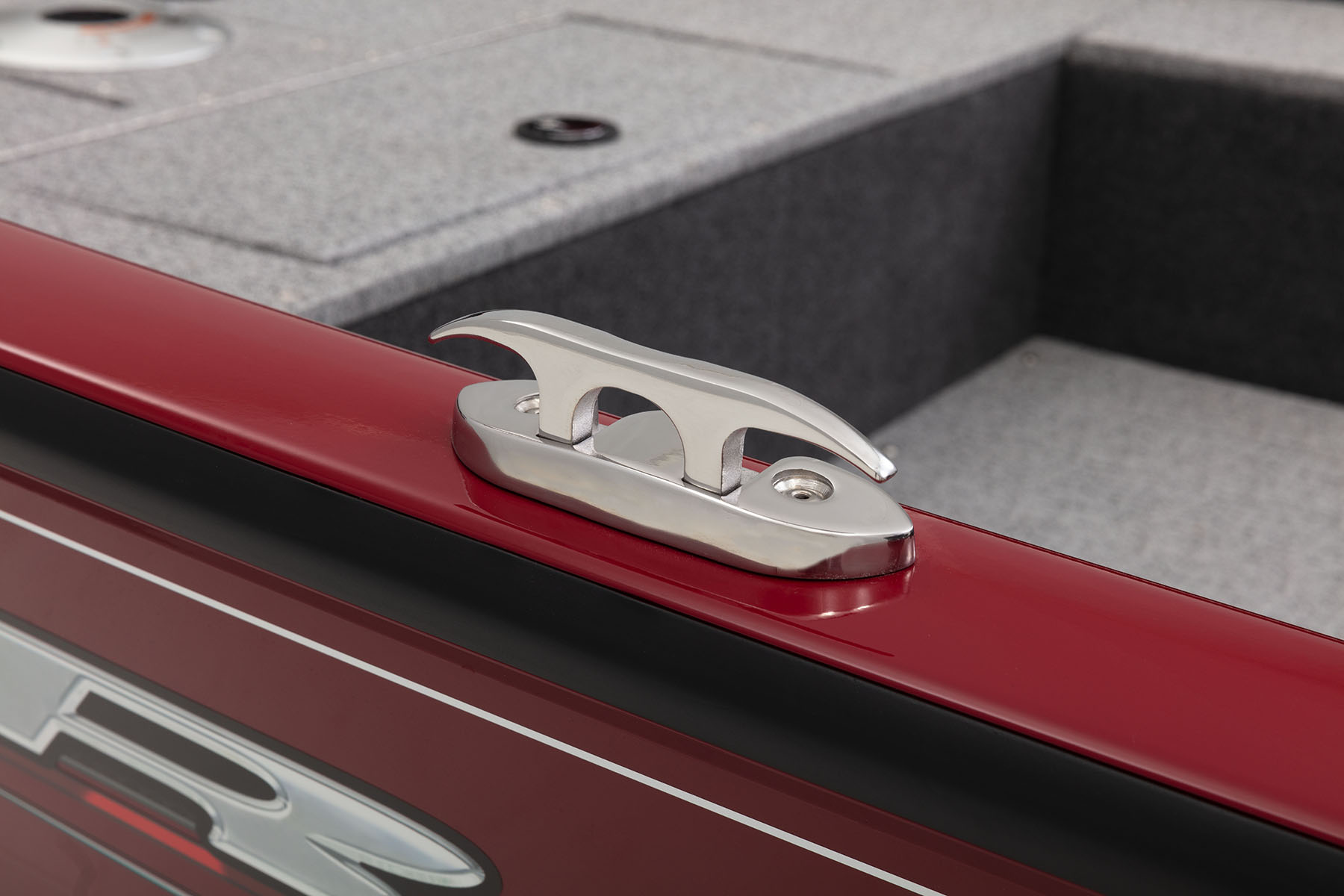

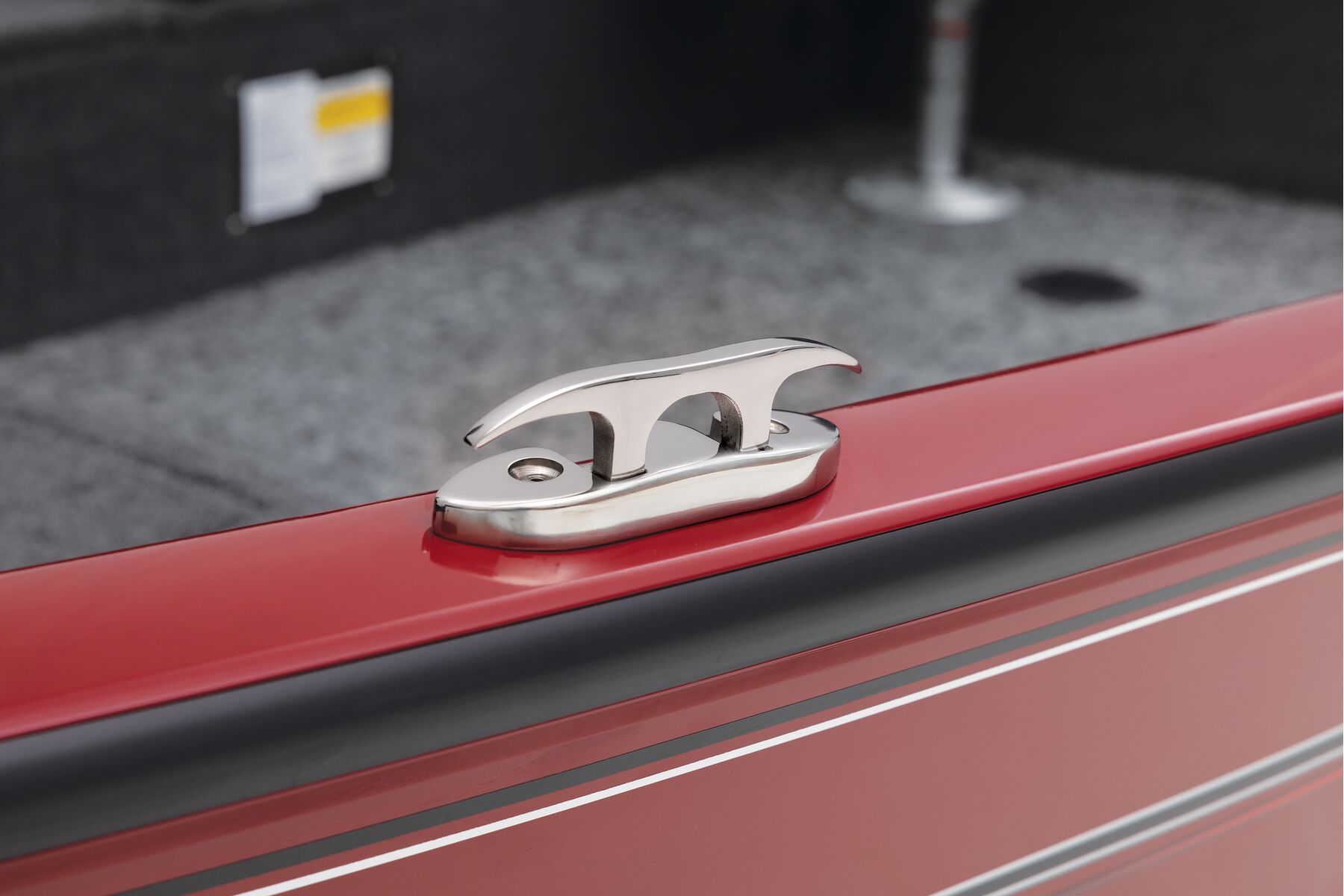

- 4 cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
- Paddle
Livewell System

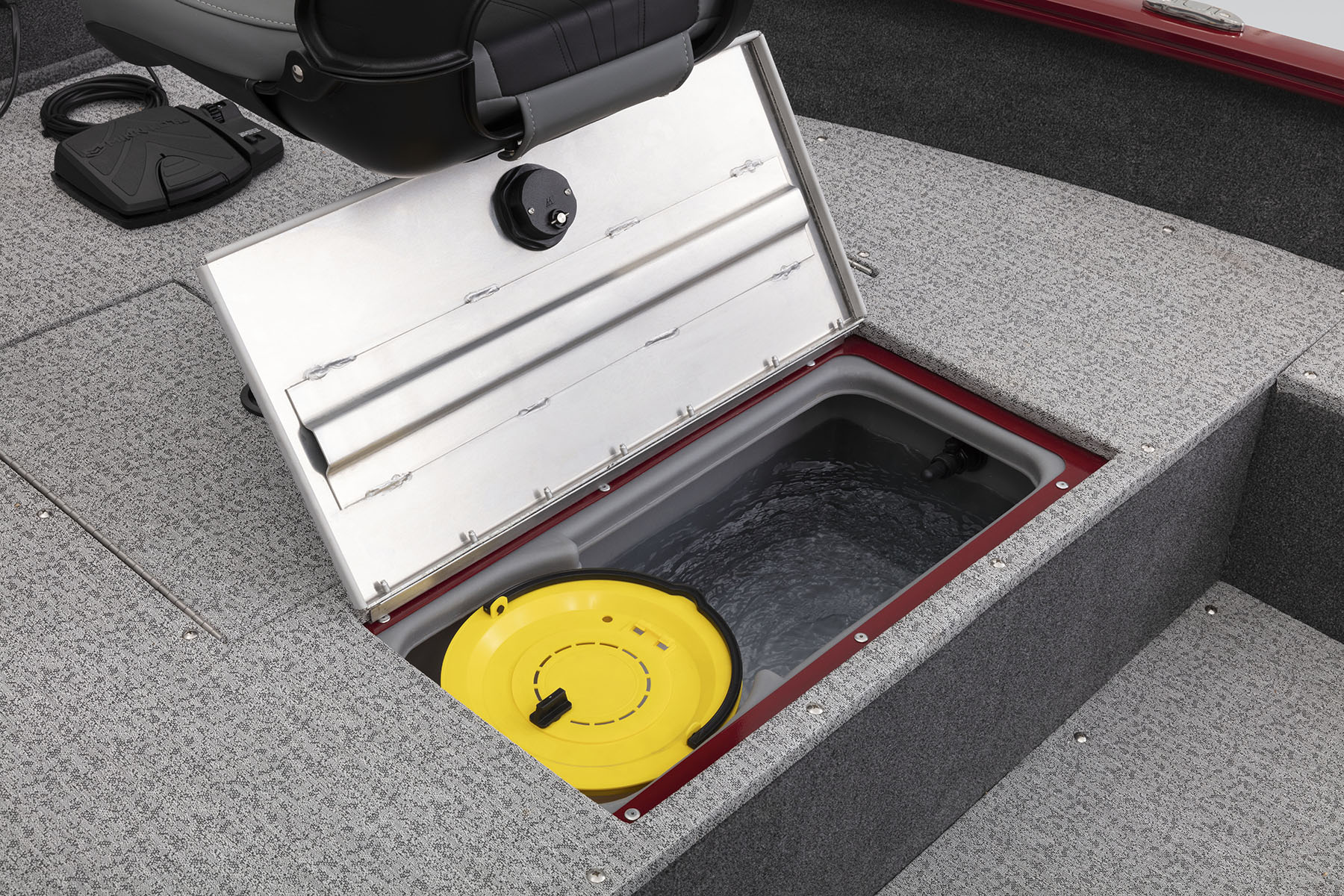

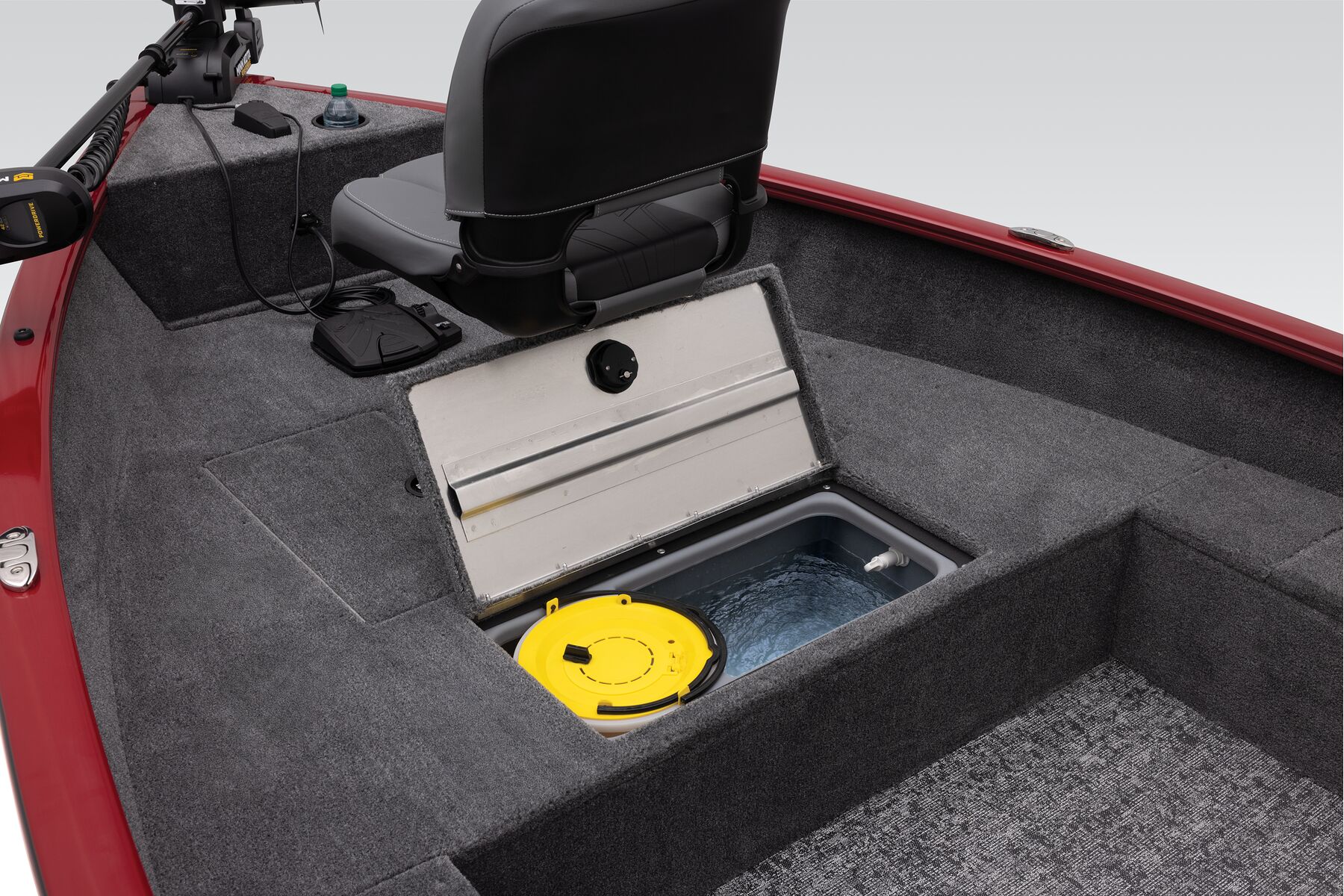

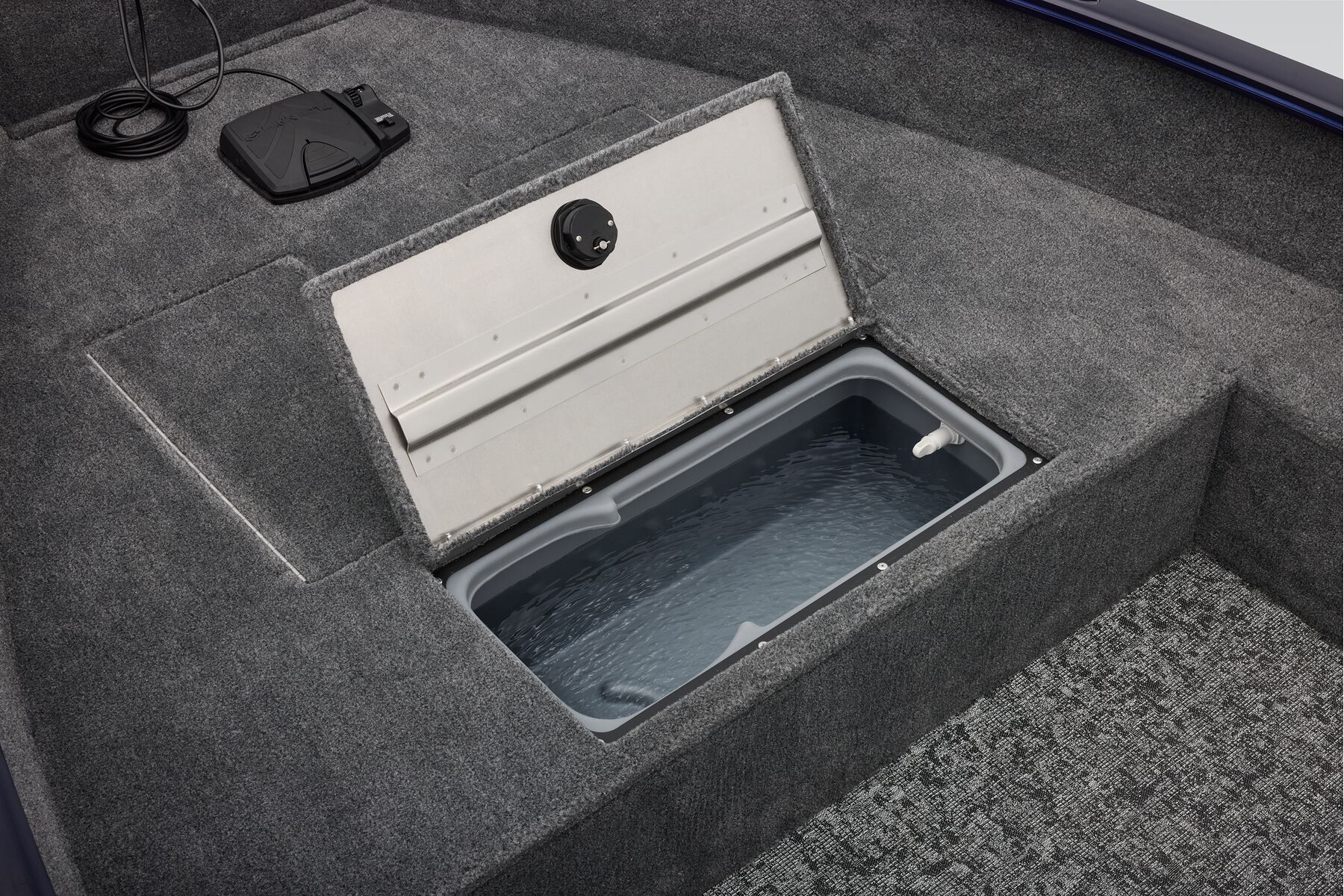

- Bow 15-gal. (56.78 L) aerated livewell w/removable bait bucket & standpipe overflow
- 800 GPH (3,028.33 LPH) aerator/fill pump
- Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
- Adjustable aerator heads for maximum water control
Trolling Motor

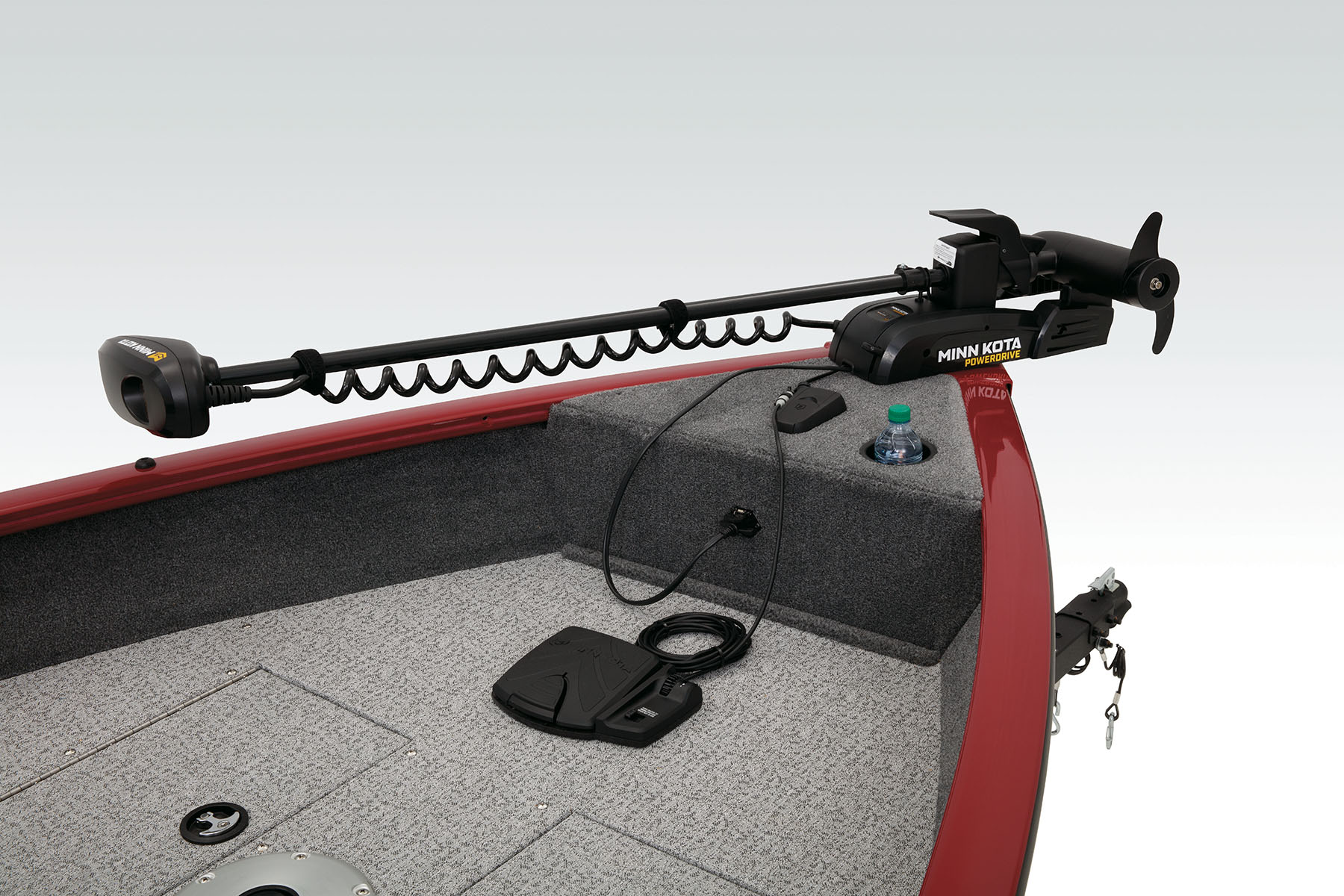

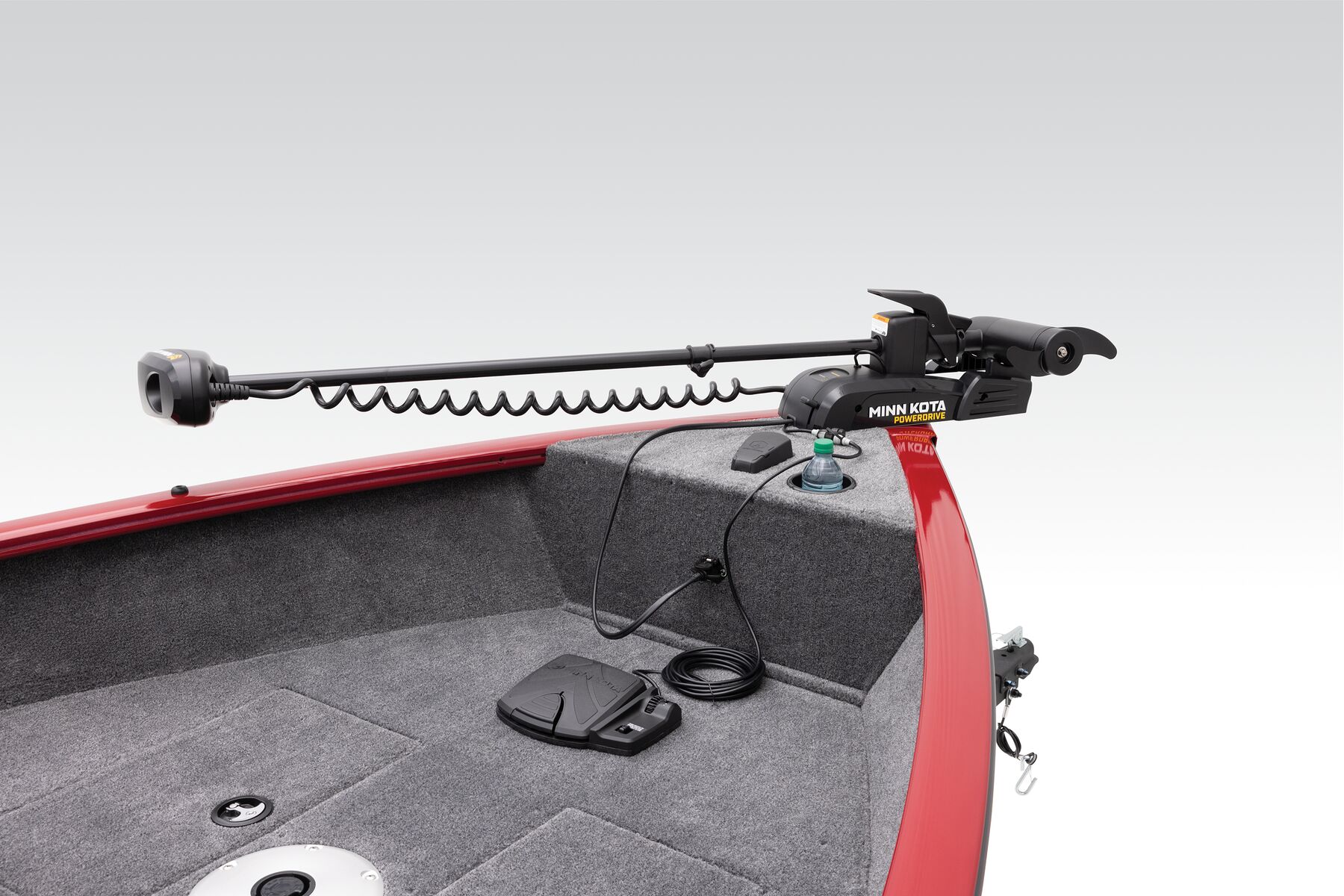

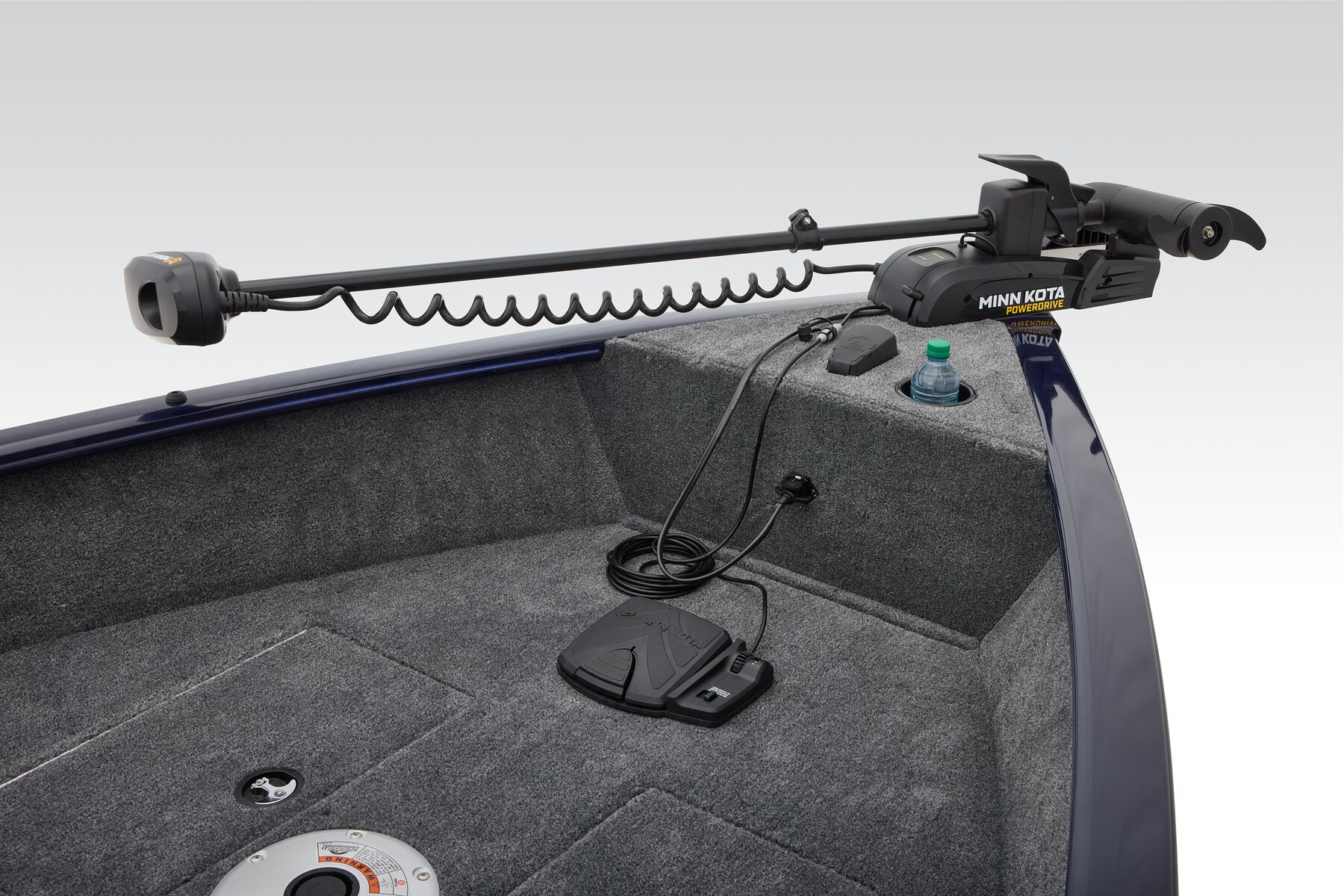

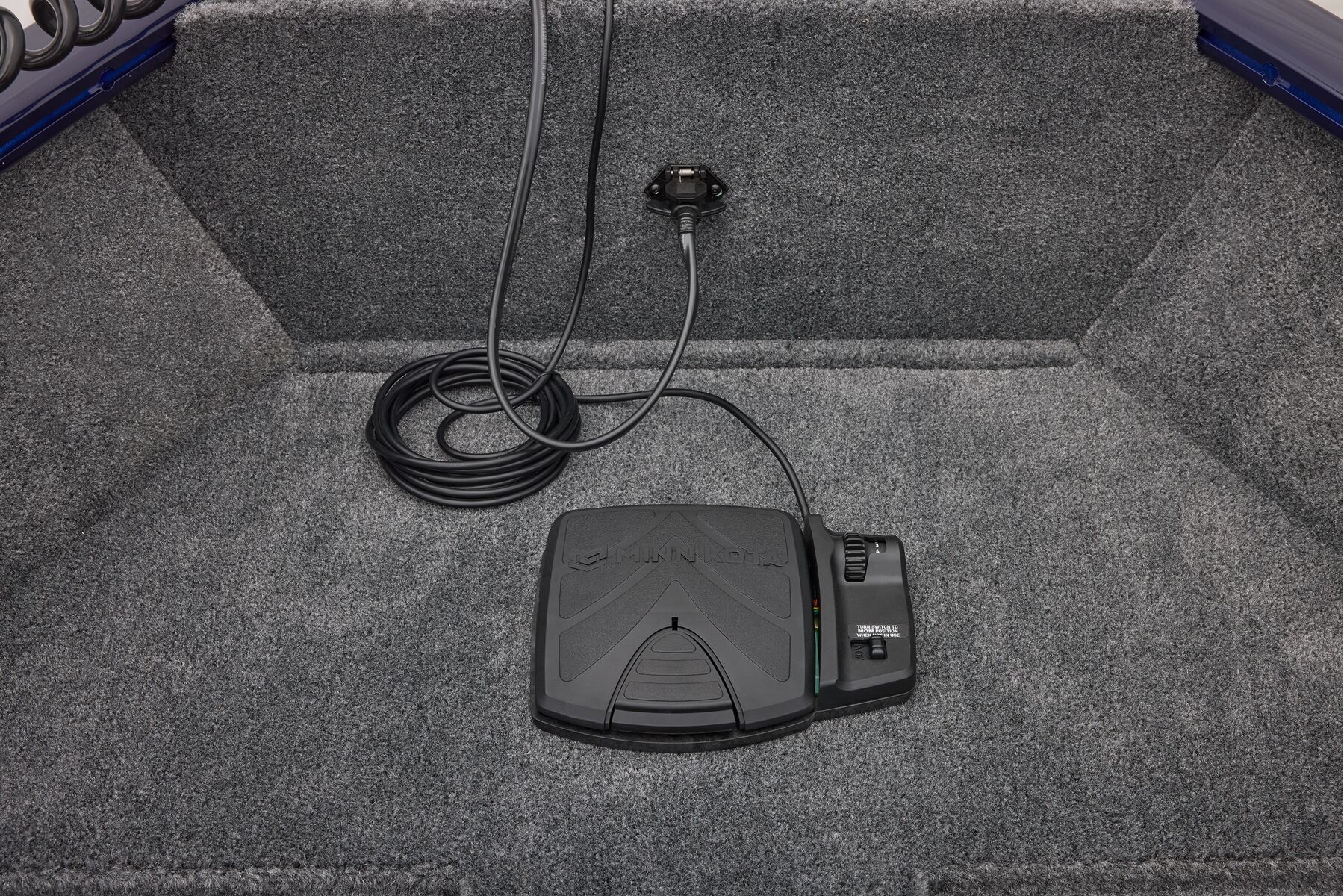

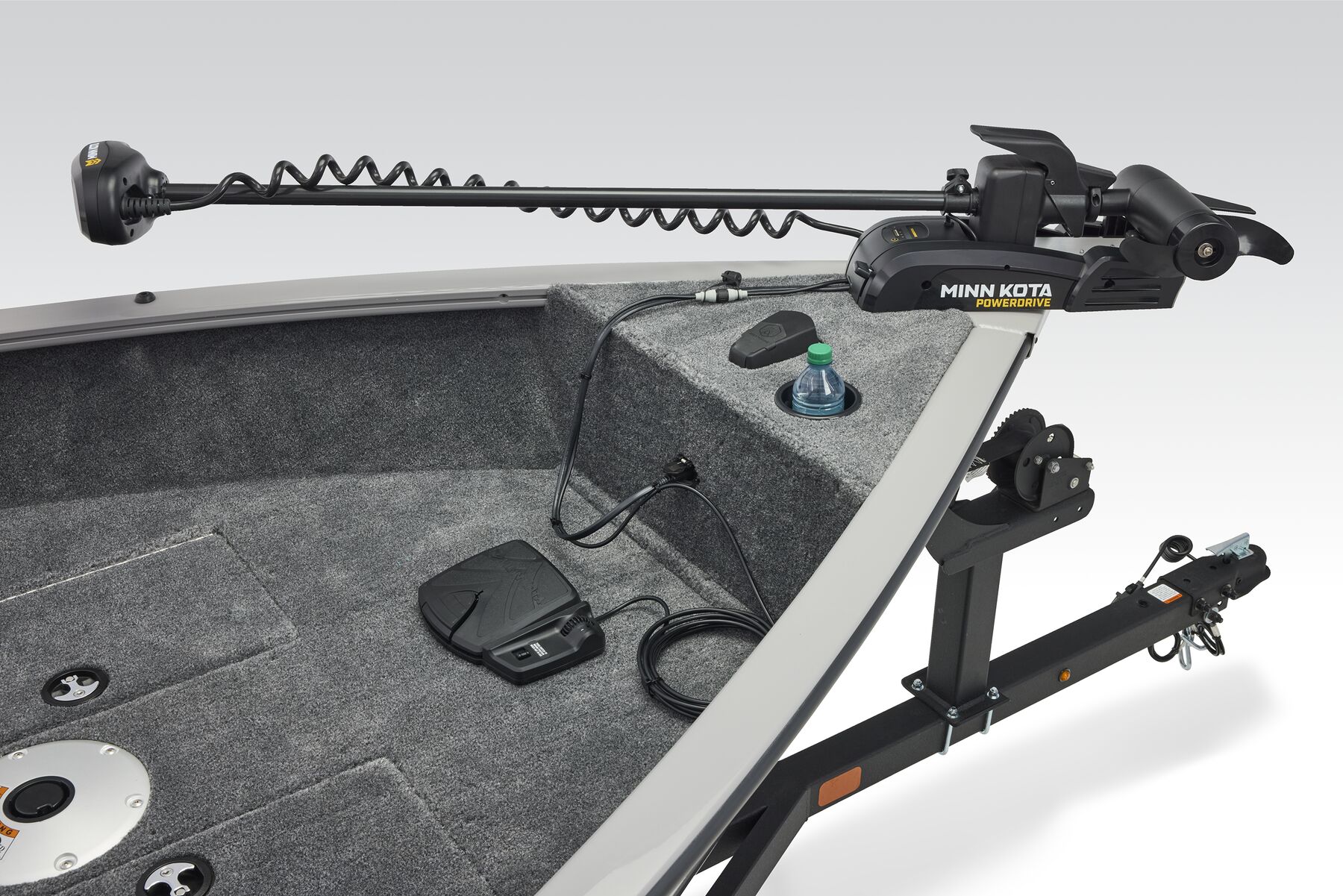

- Minn Kota® PowerDrive™ 12V, 42-lb. (19.05 kg) thrust, 54" (1.37 m) shaft, foot-control trolling motor
- Thru-bolted trolling motor mount for extra strength
Control Center

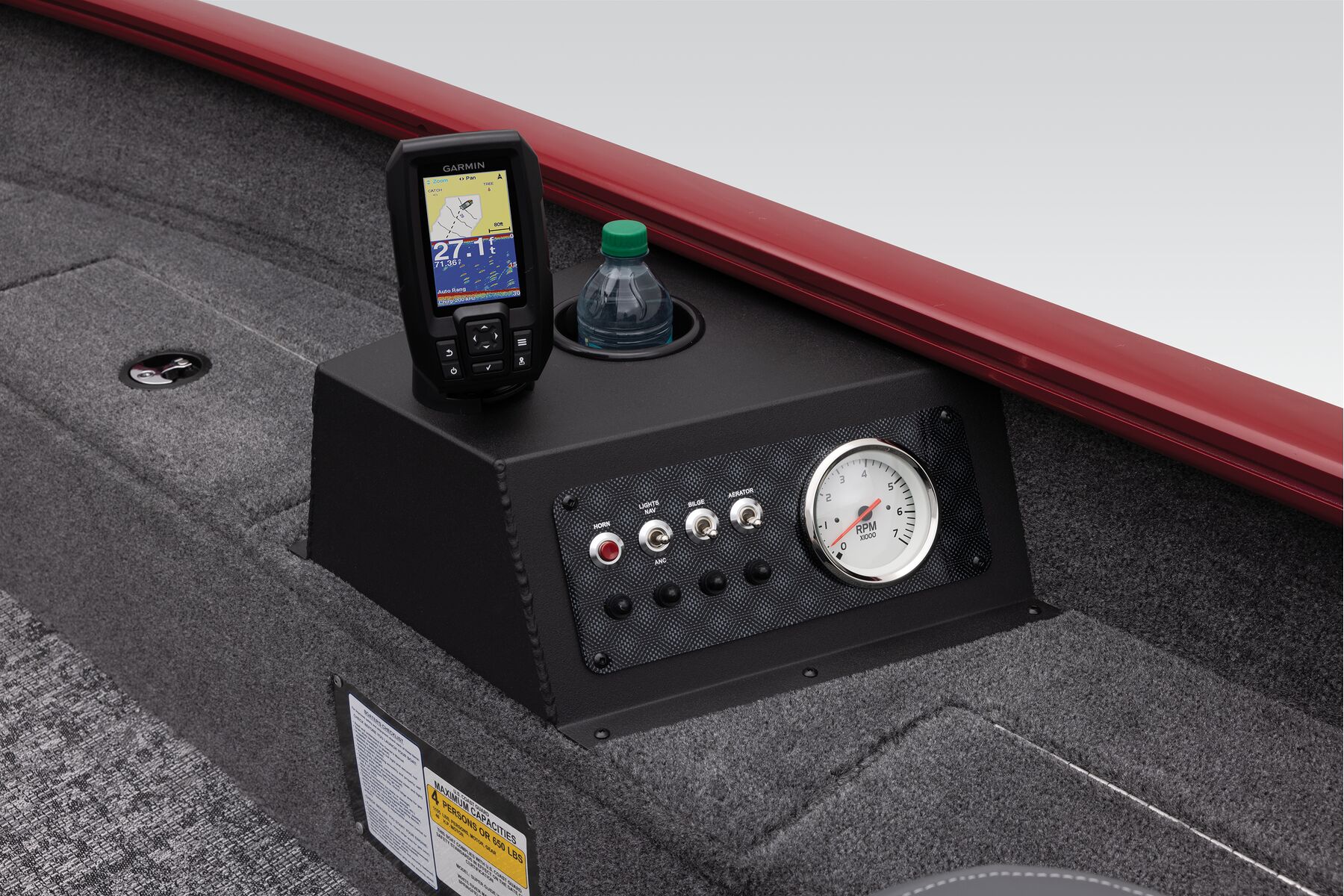

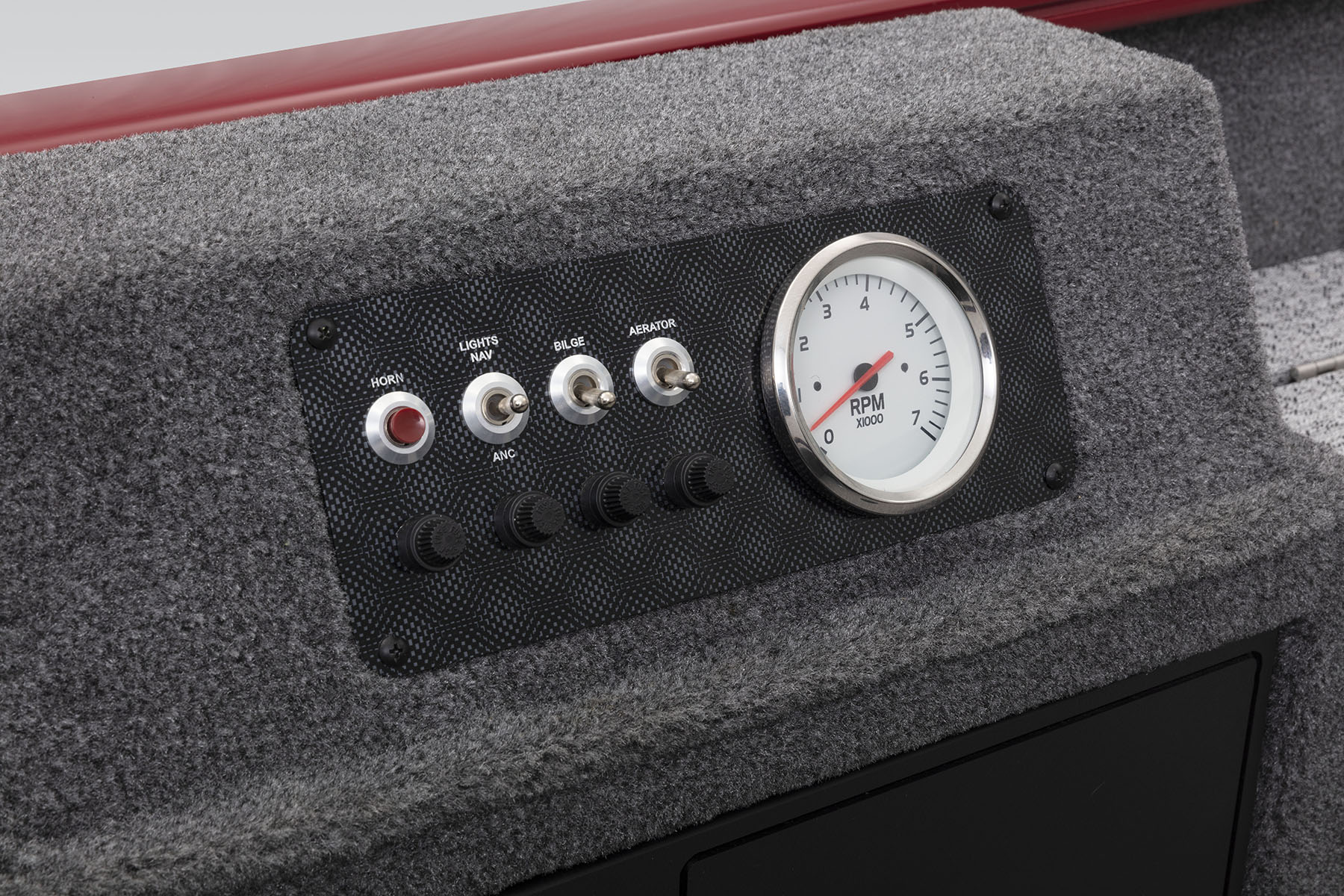

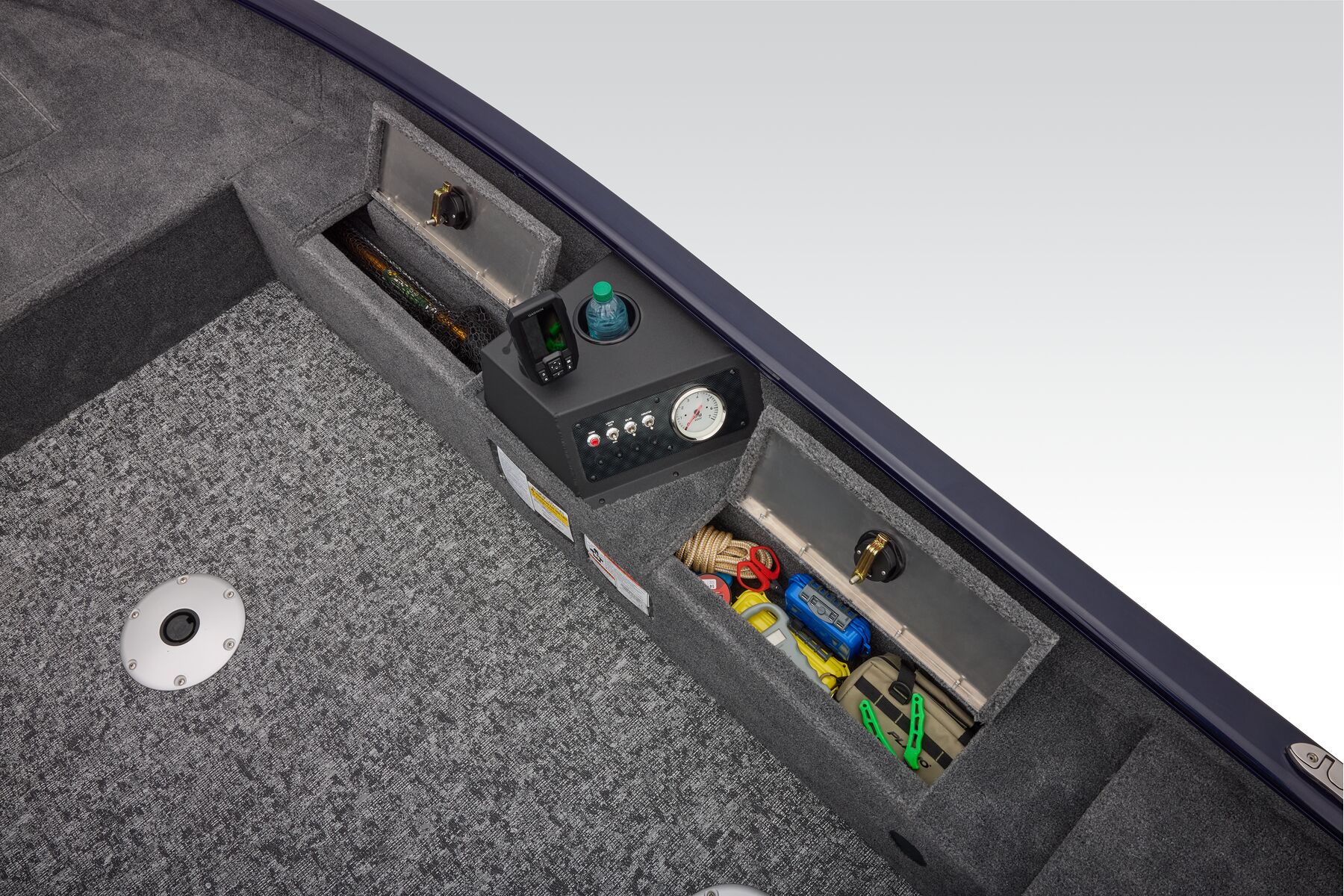

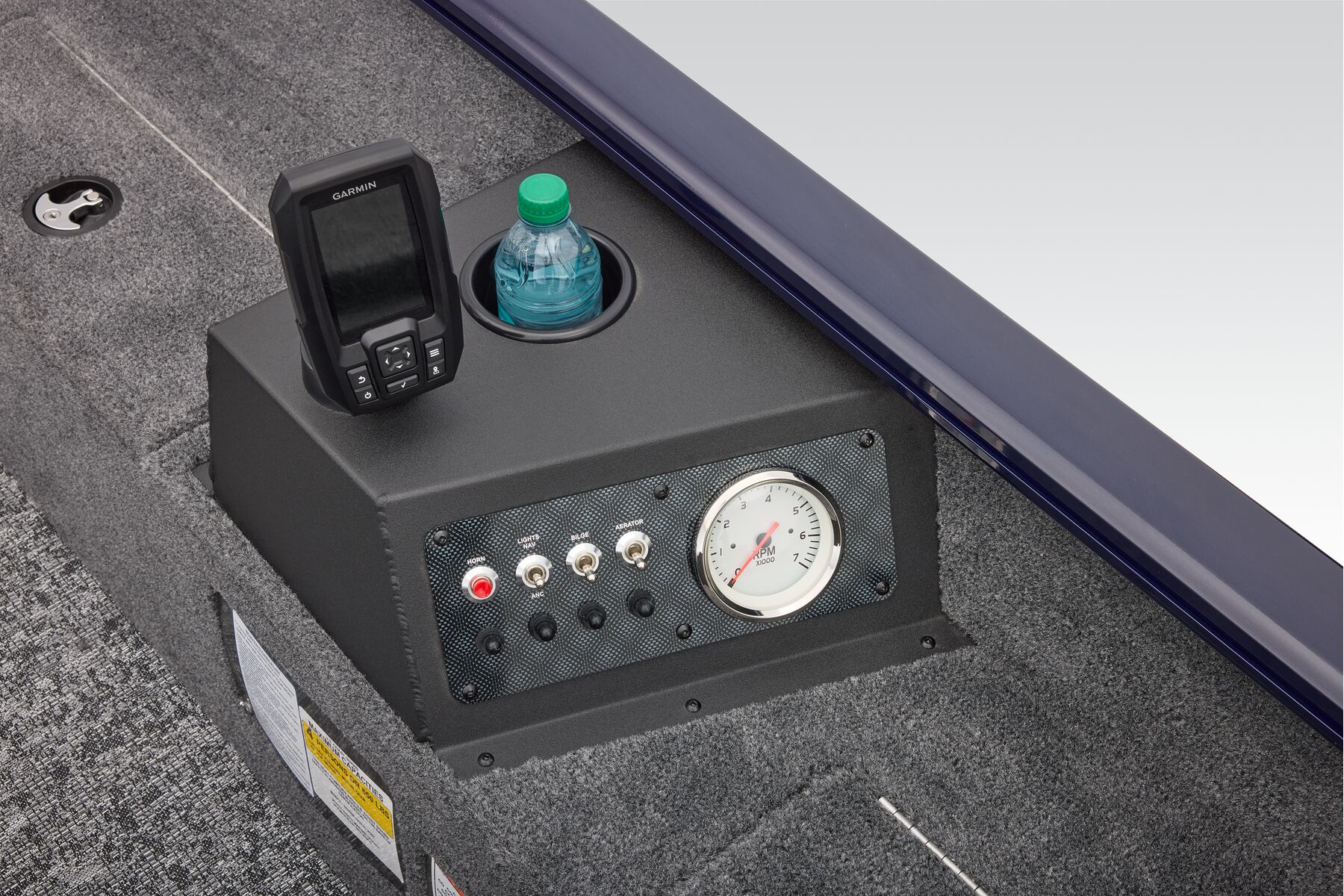

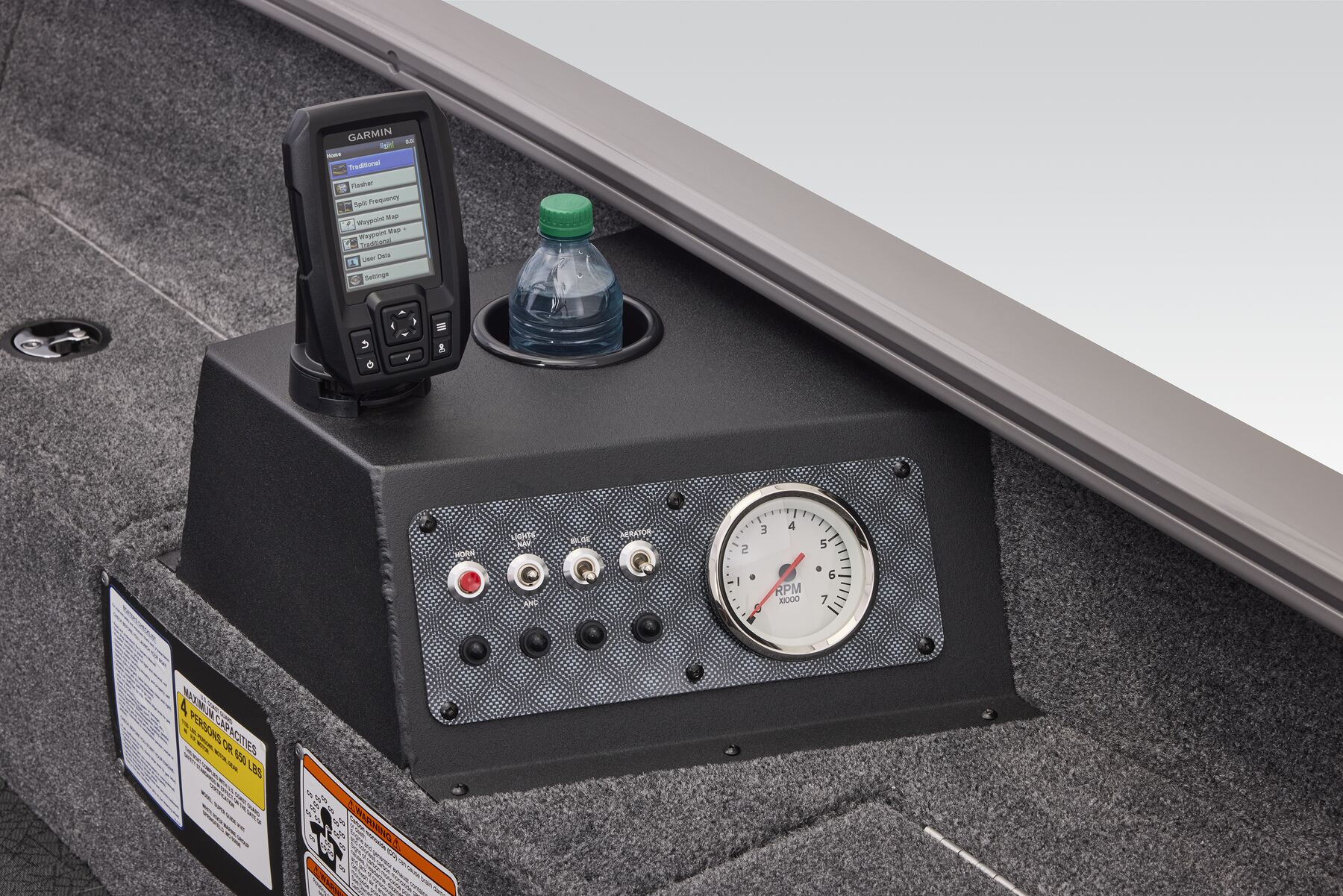

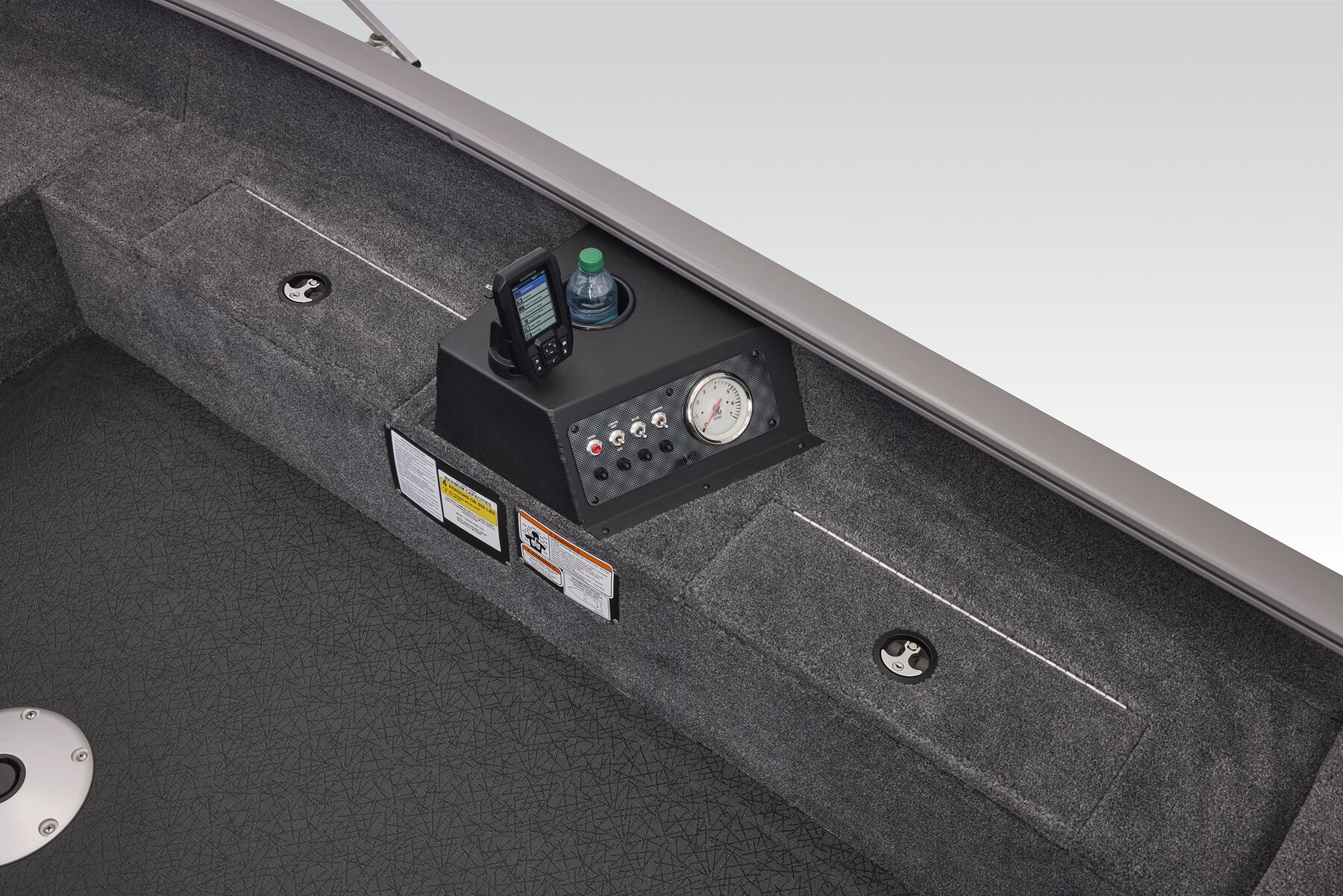

- Fuse-protected control center w/horn, navigation lights, bilge, aerator, 12V outlet & tachometer

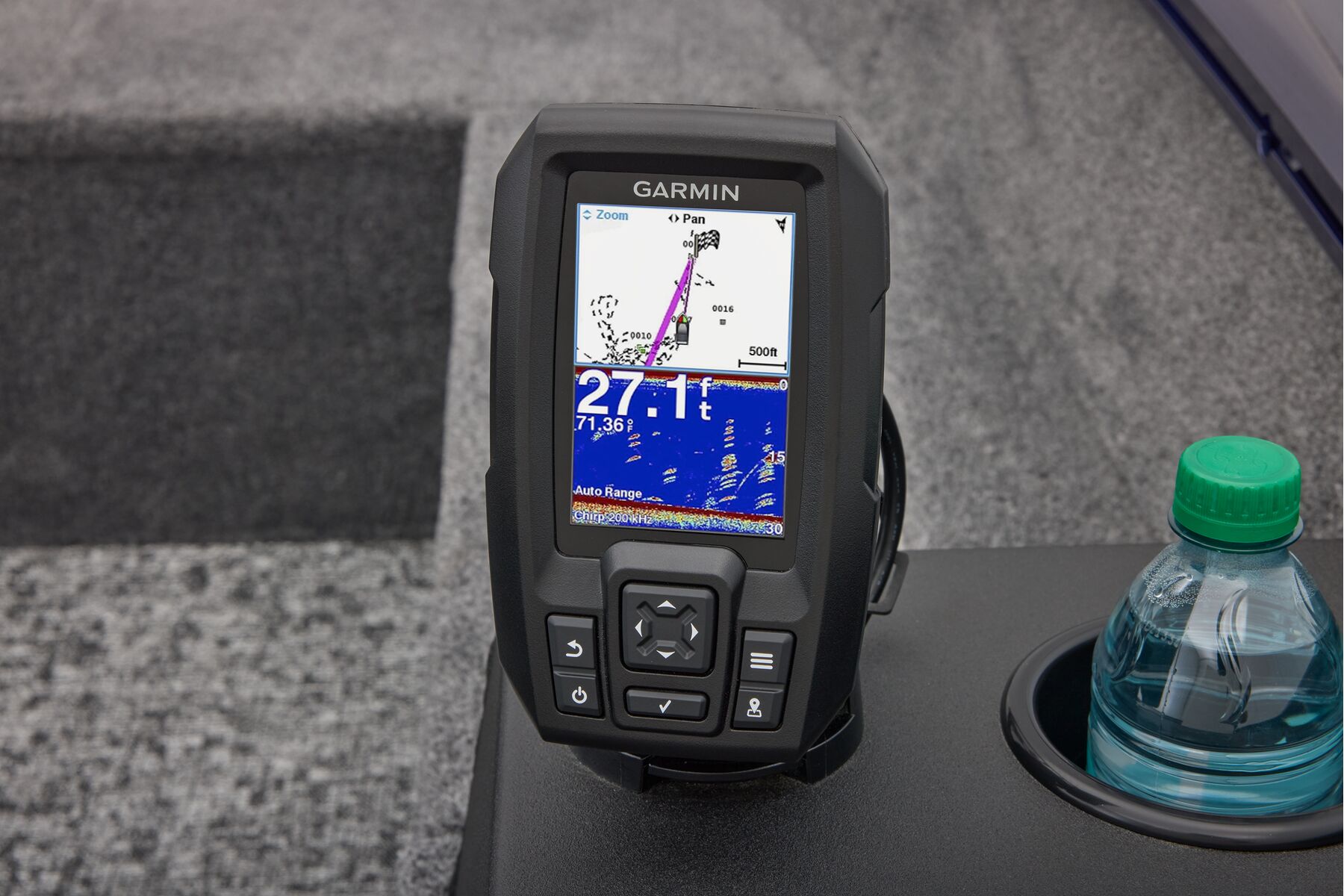

- Garmin® STRIKER™ 4 color fishfinder + GPS w/CHIRP transducer
- Toggle switches
Interior

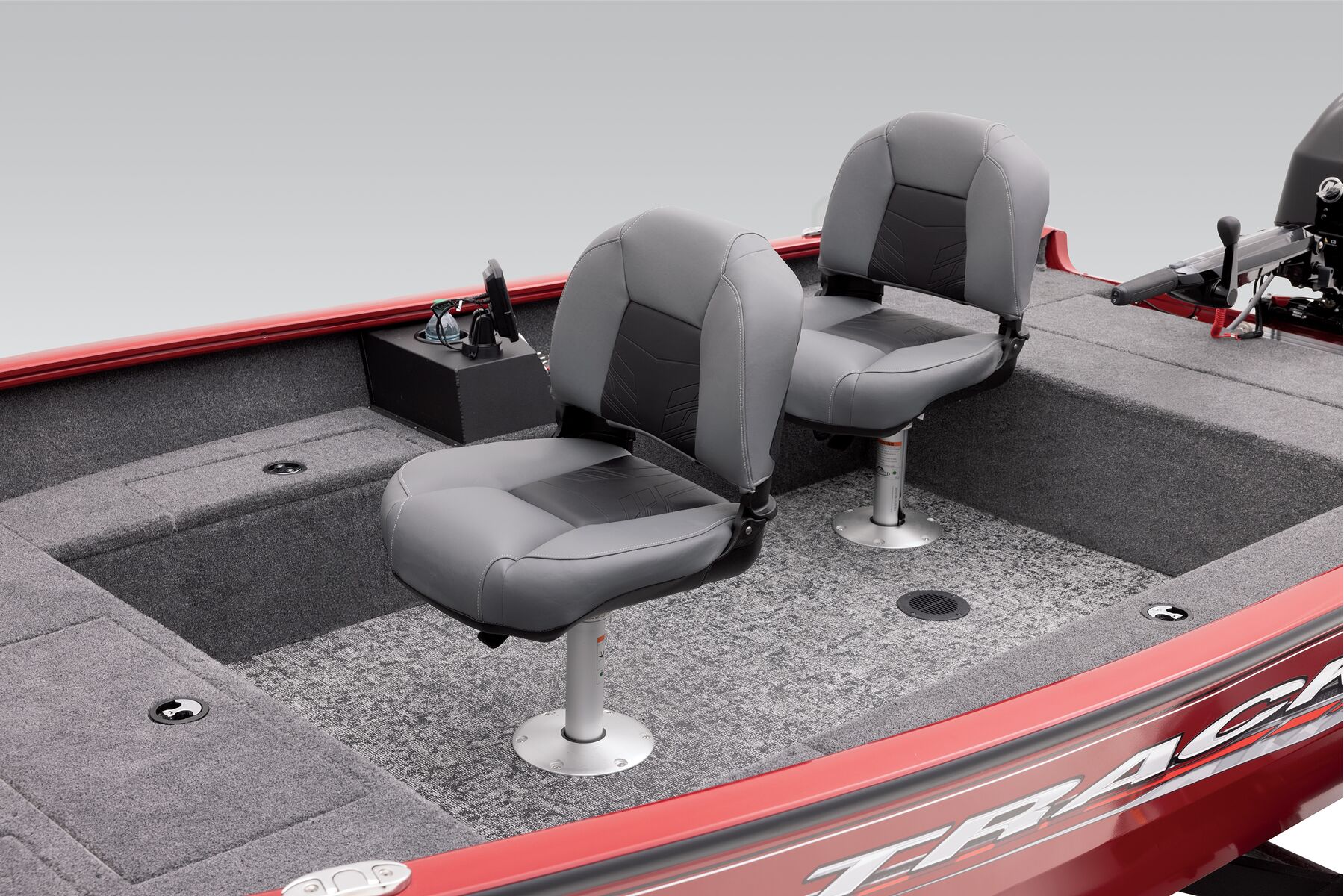

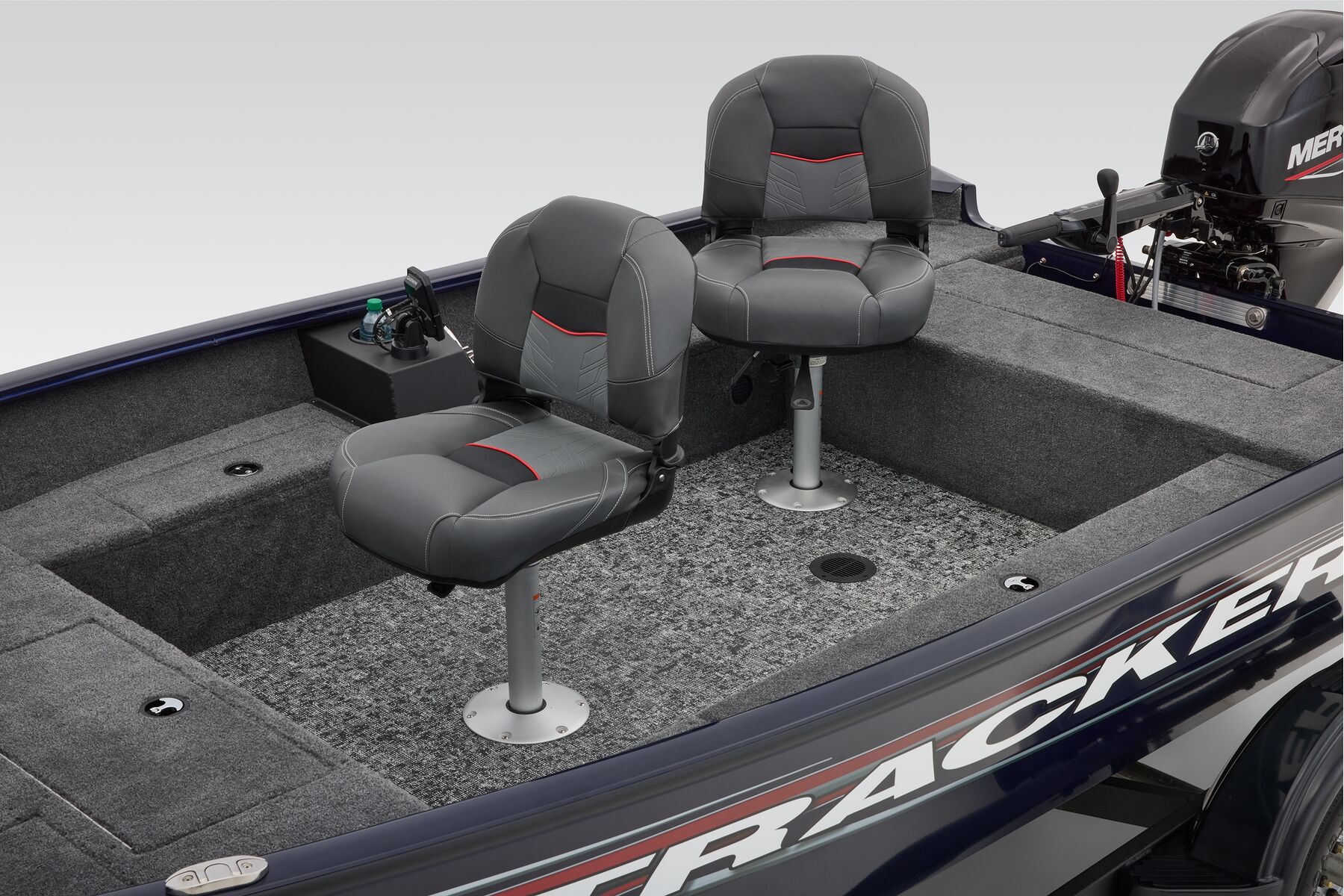

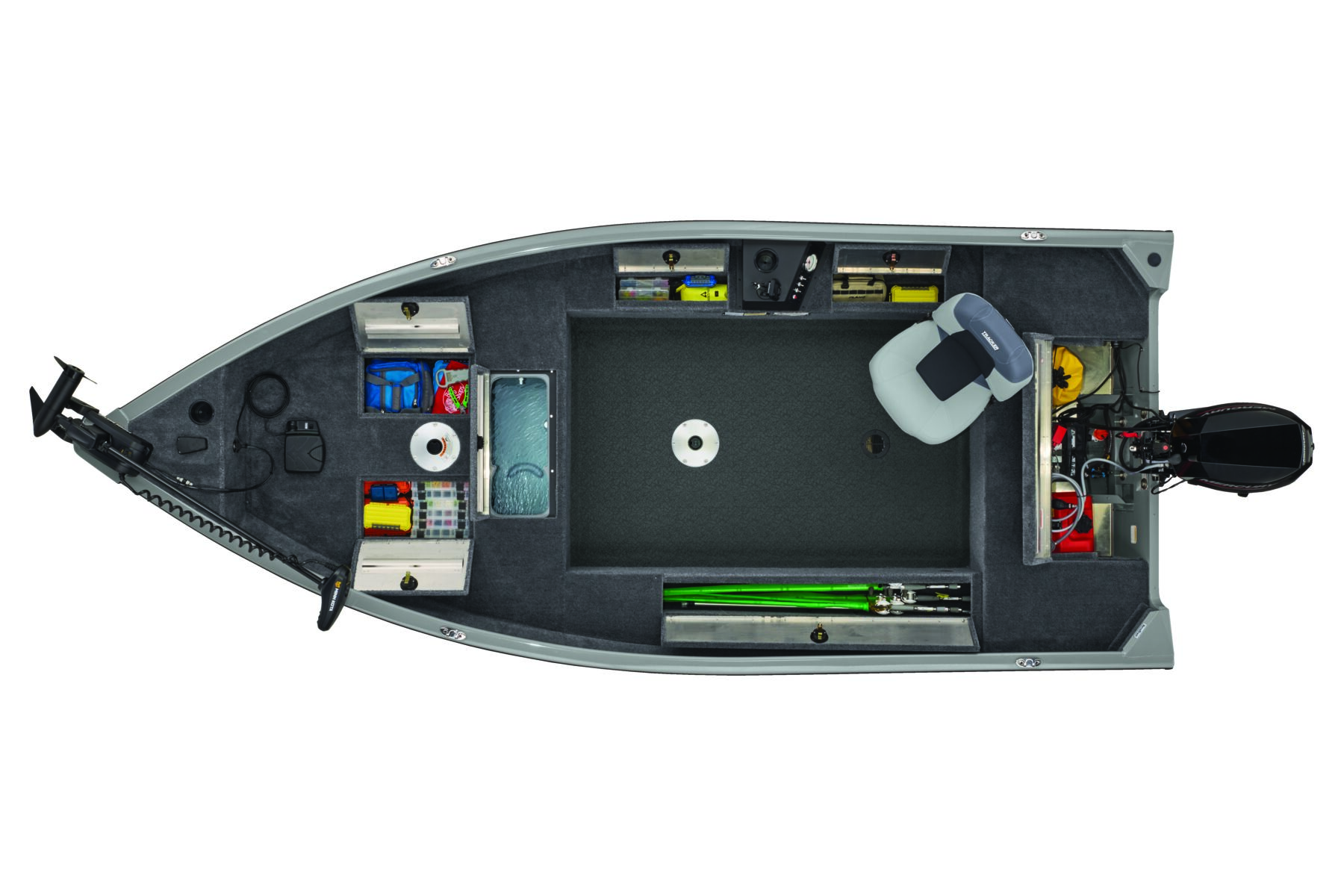

- 3 pedestal seat base locations

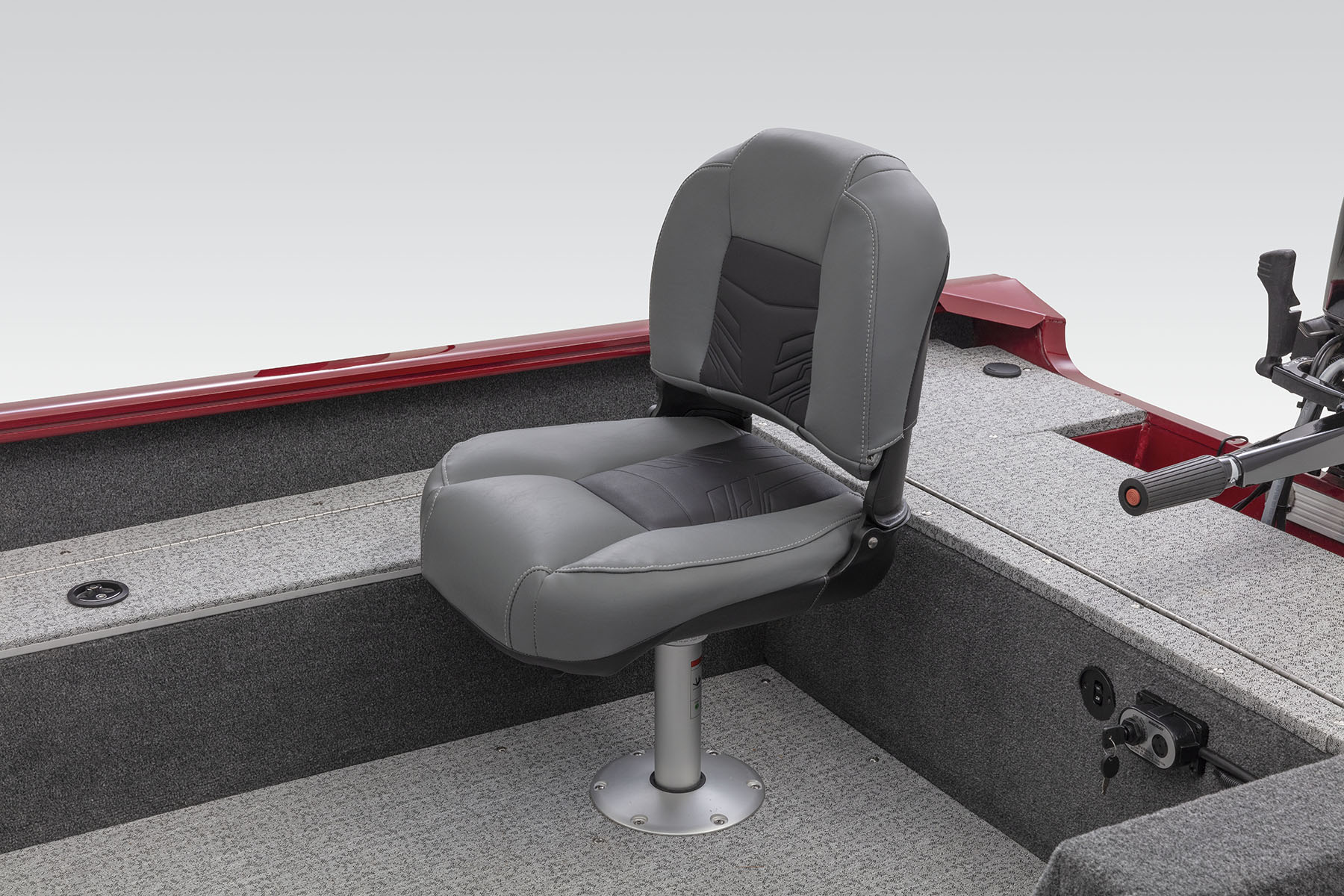

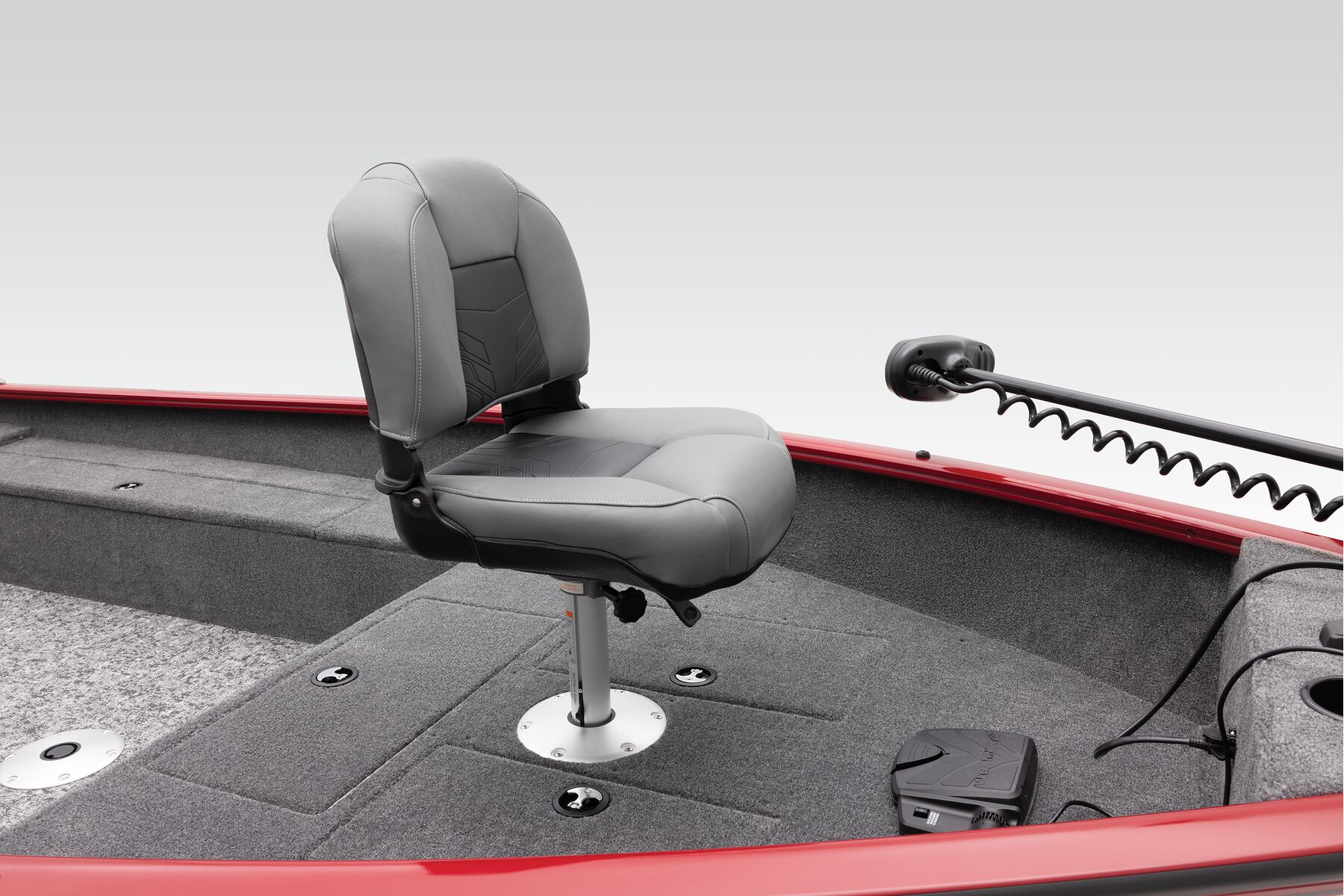

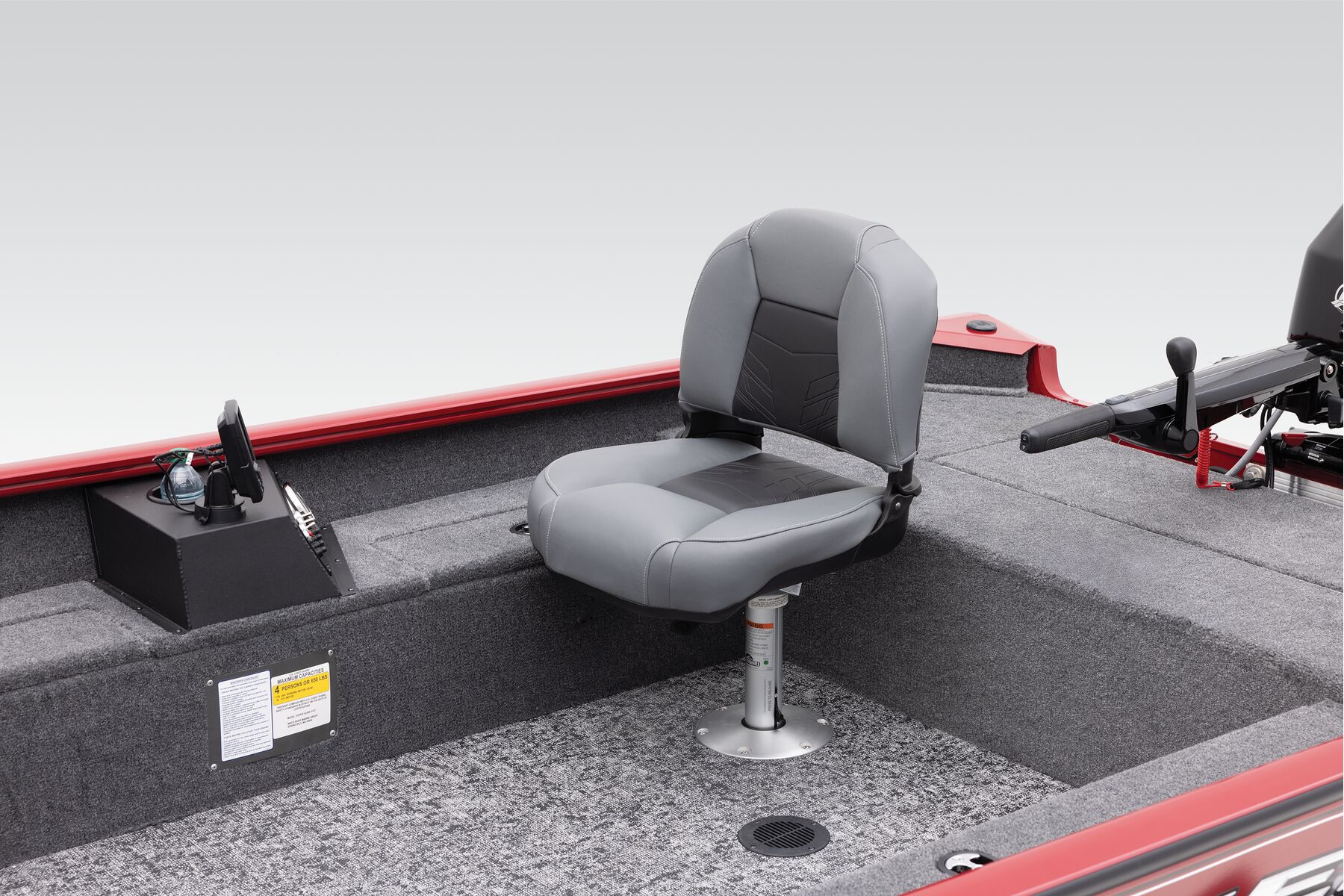

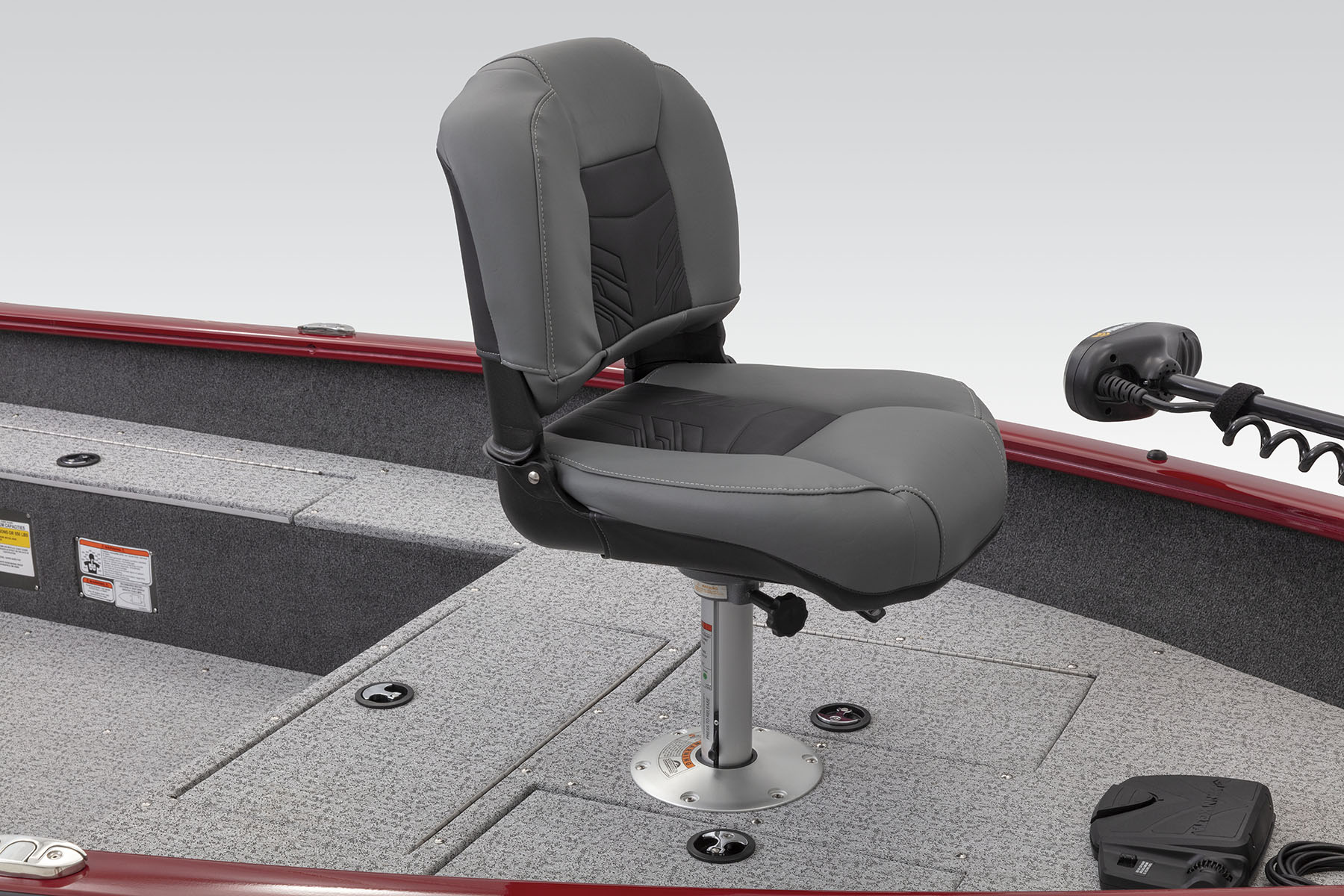

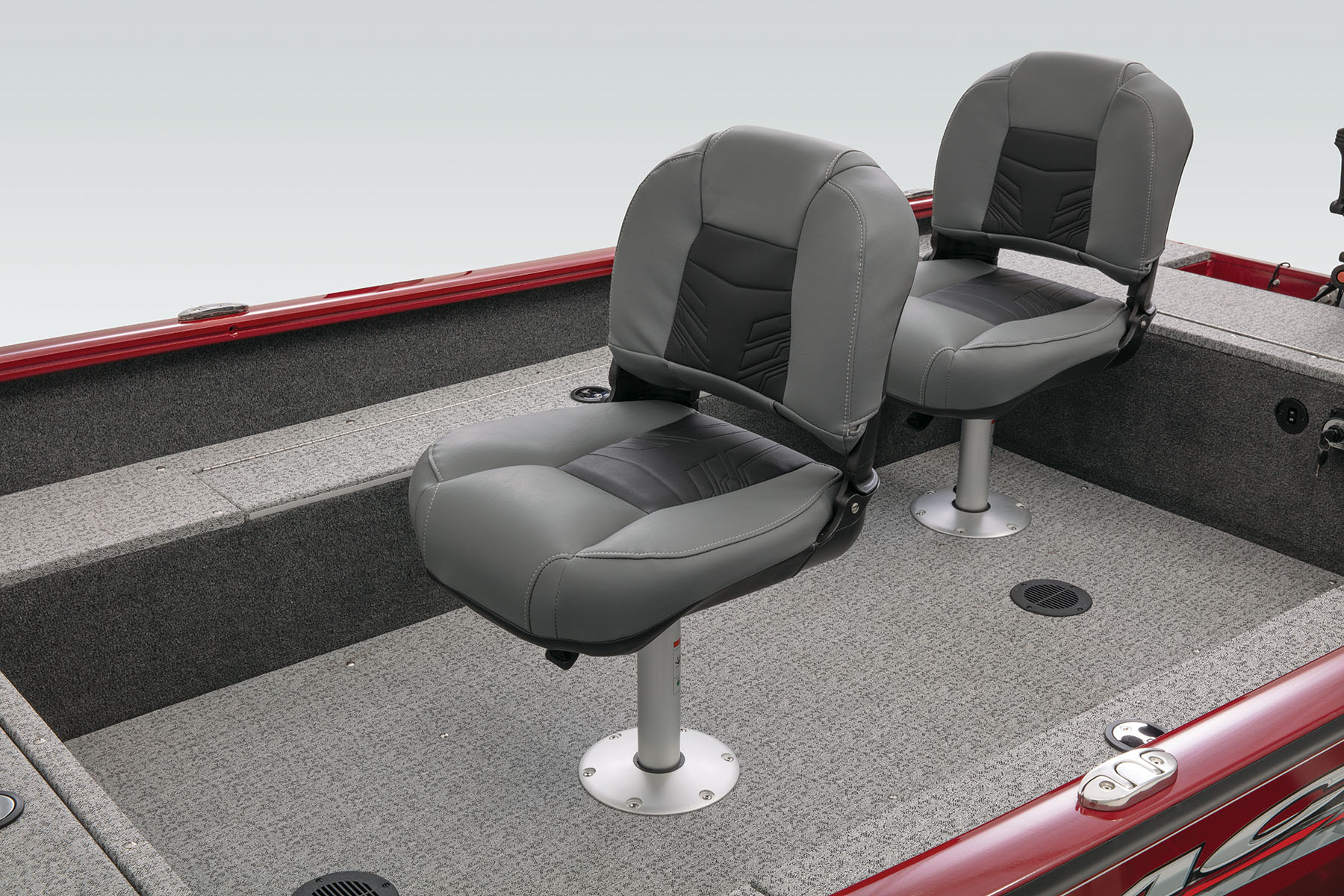

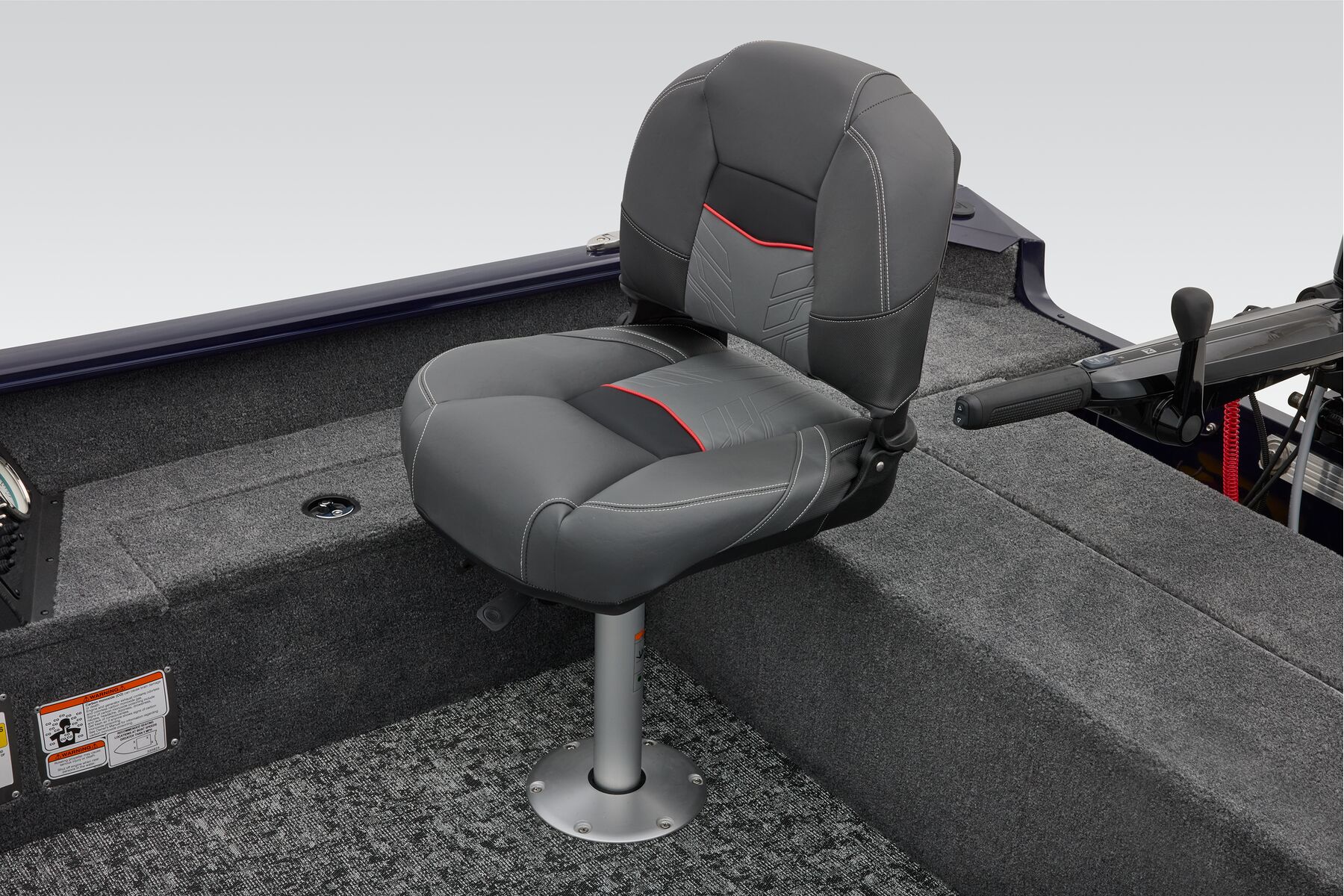

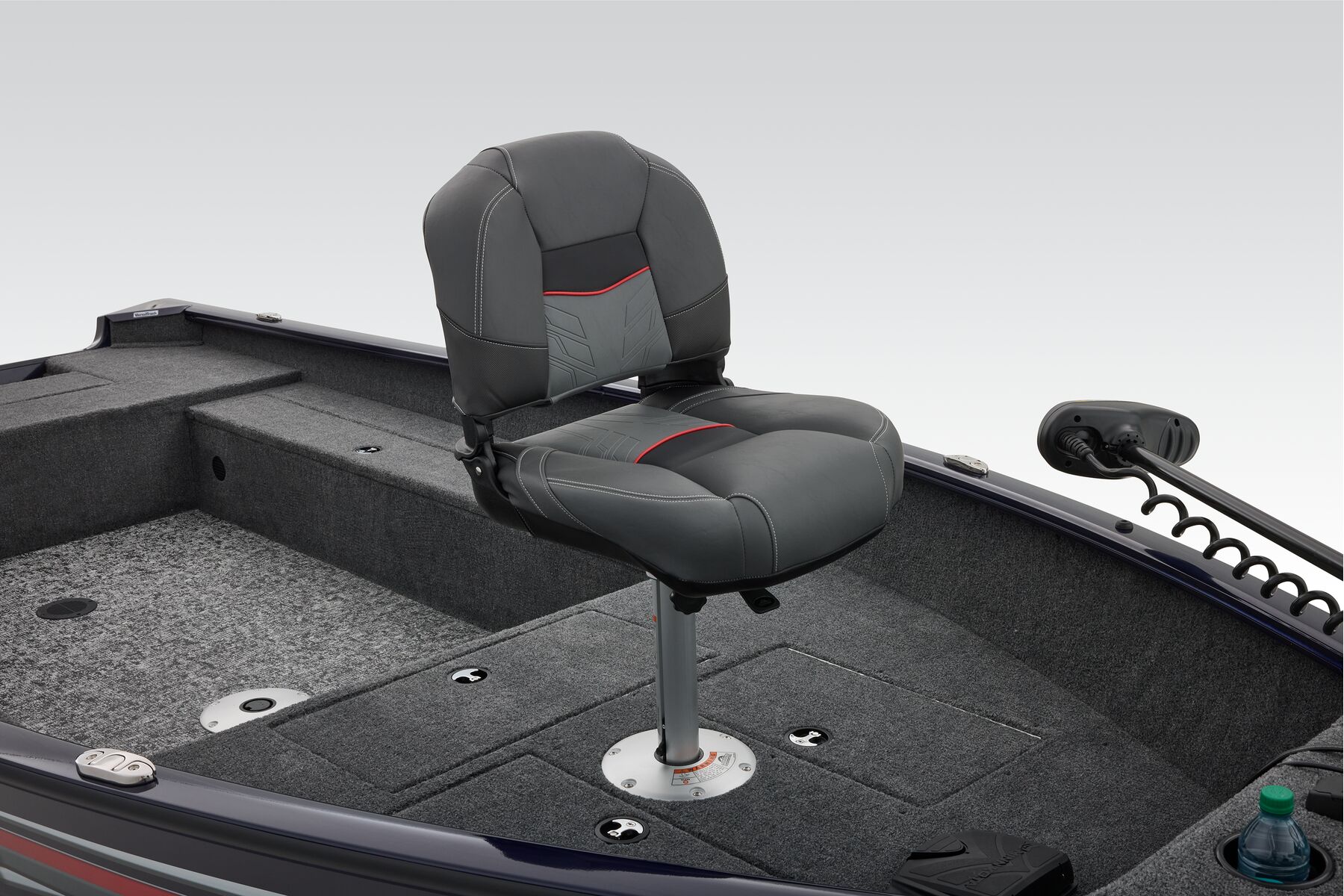

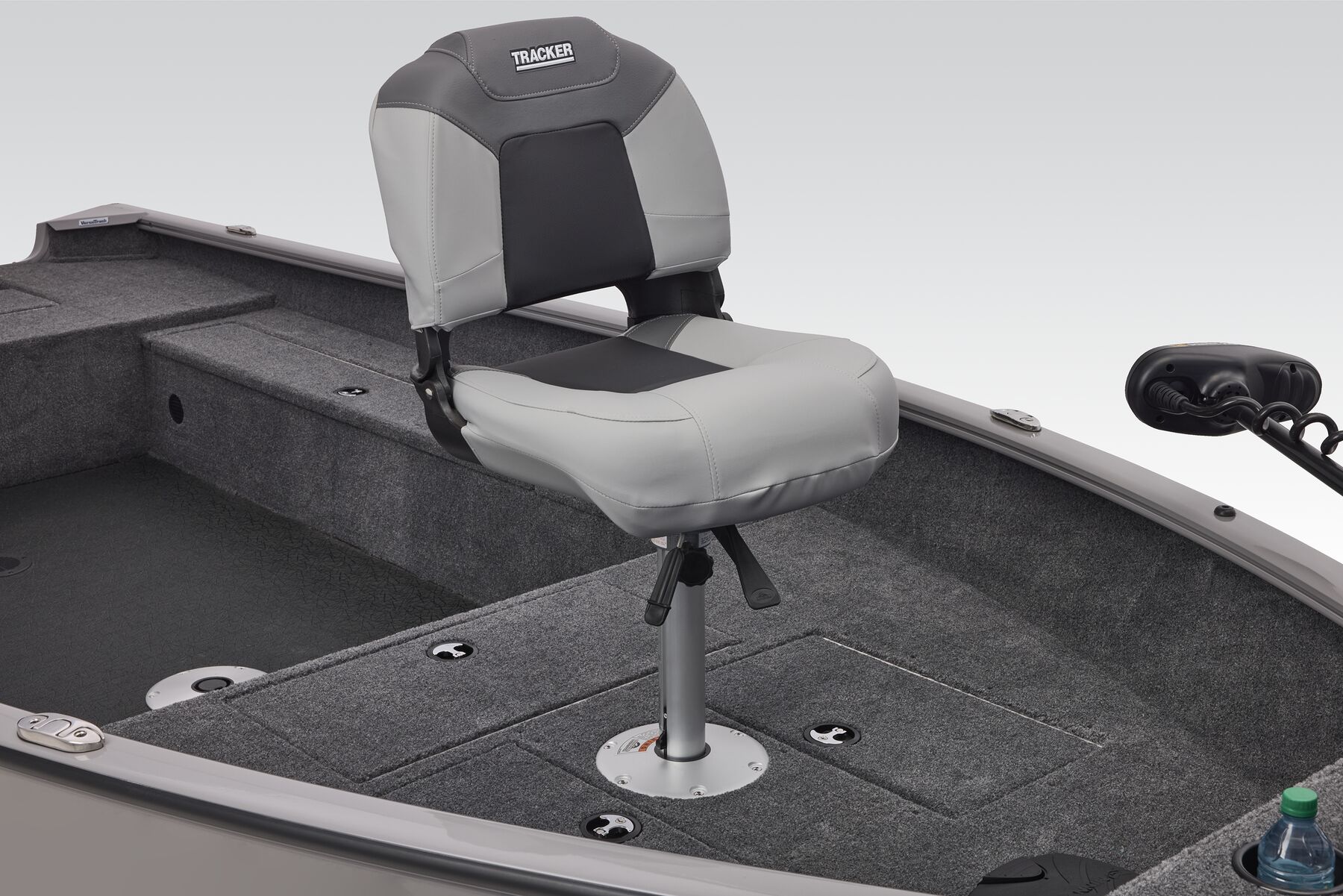

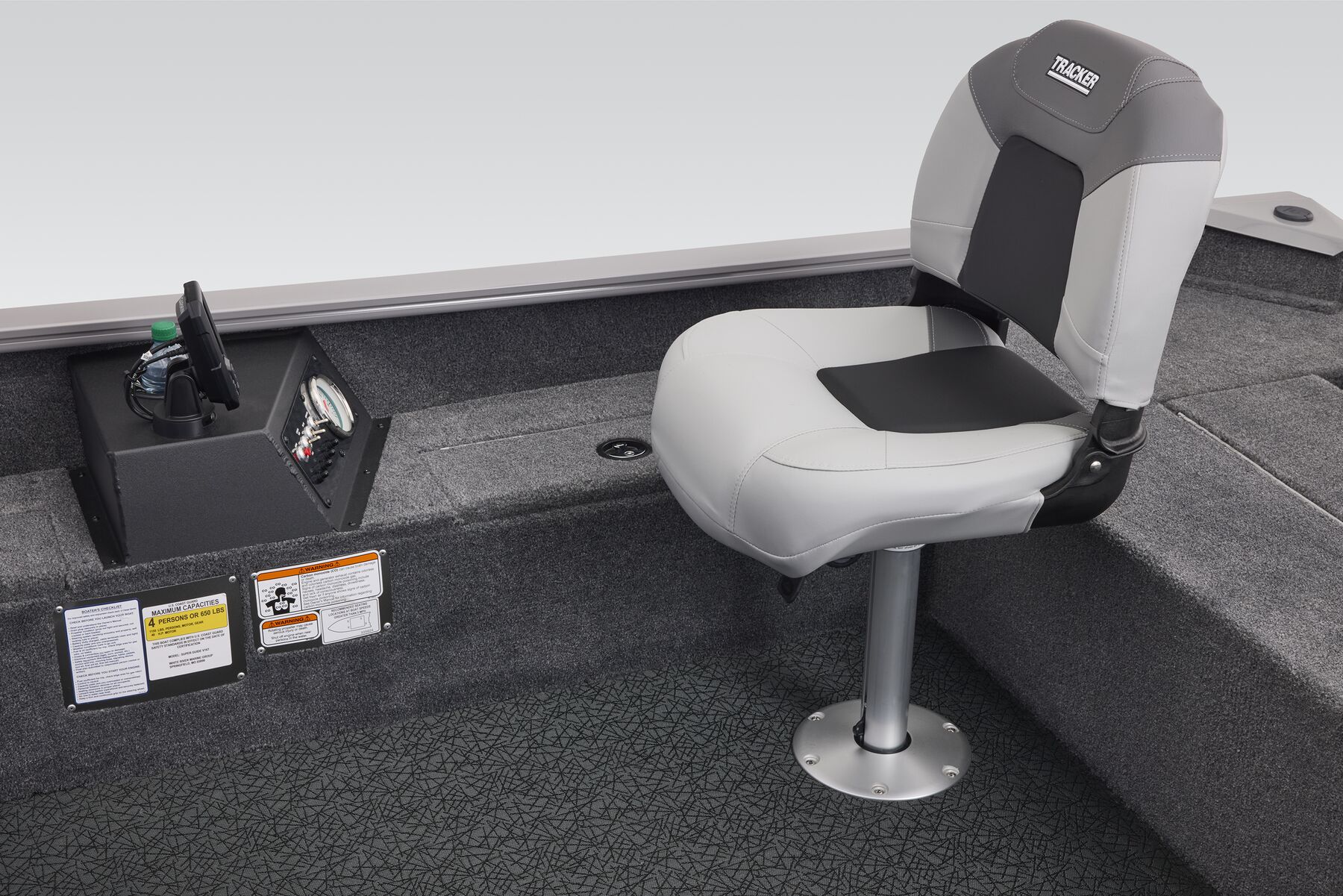

- 2 movable & folding fishing seats w/360°-swivel & lock, & sturdy 2-3/8" (6.03 cm) seat pedestals
- Carpeted trolling motor deck w/drink holder

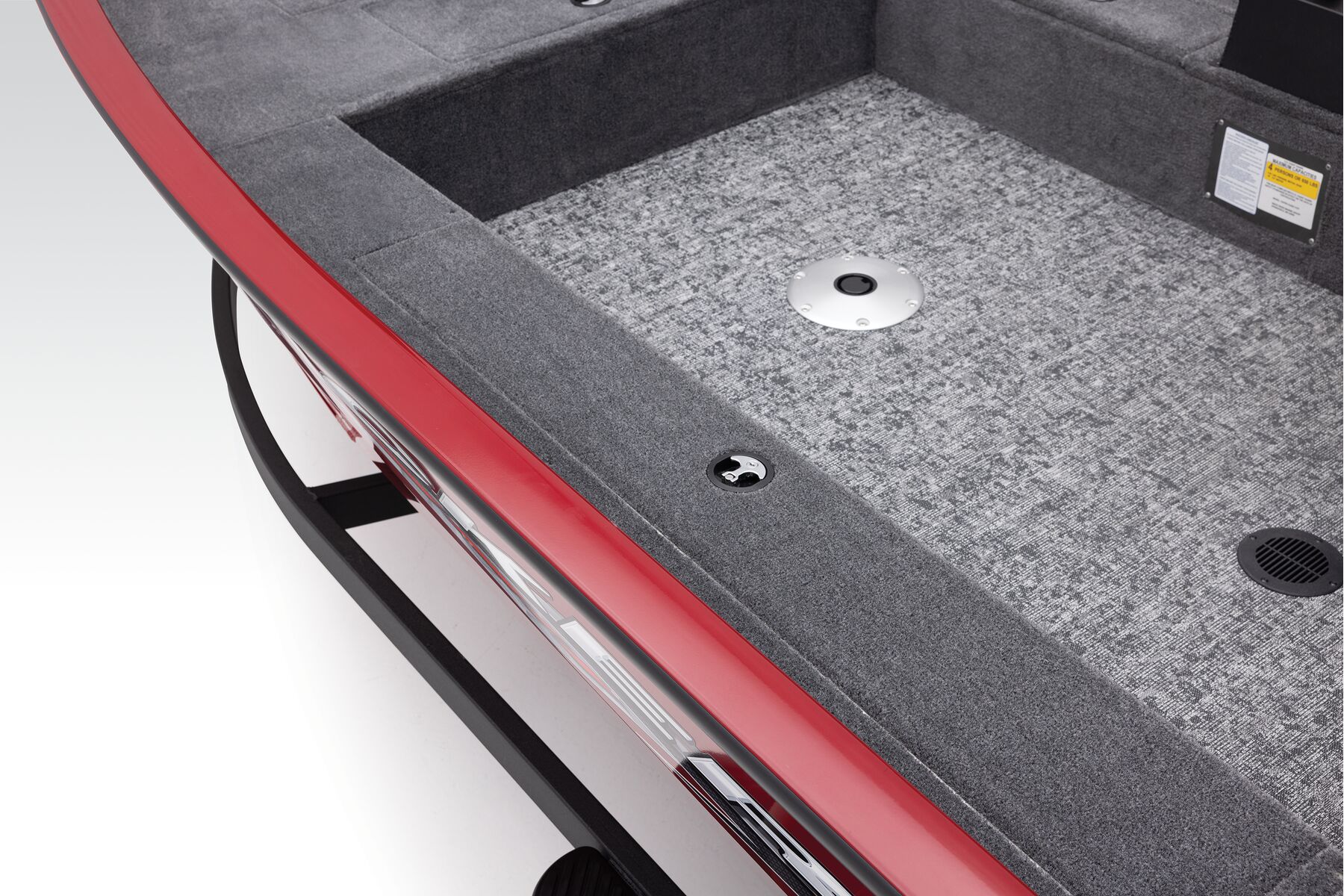

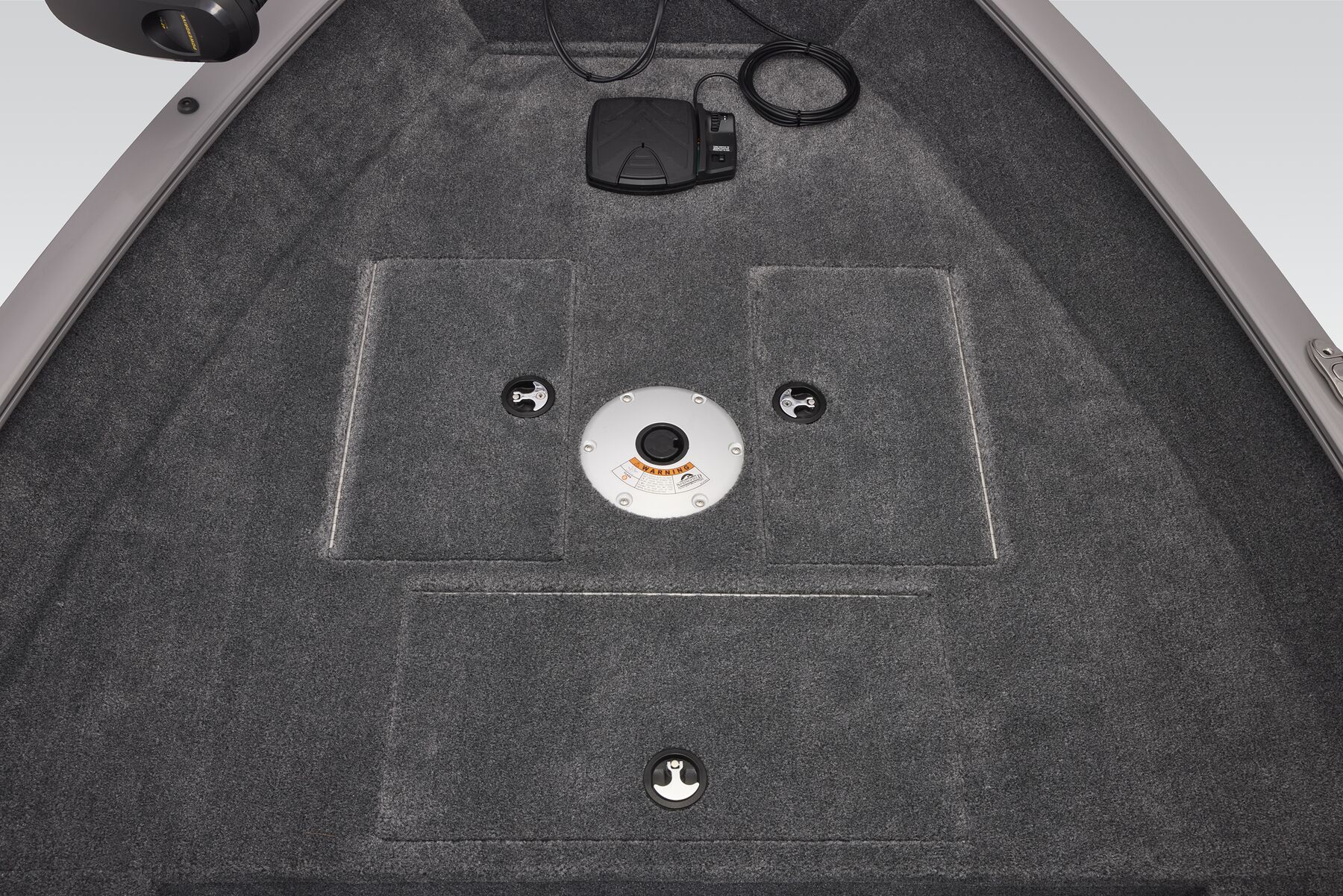

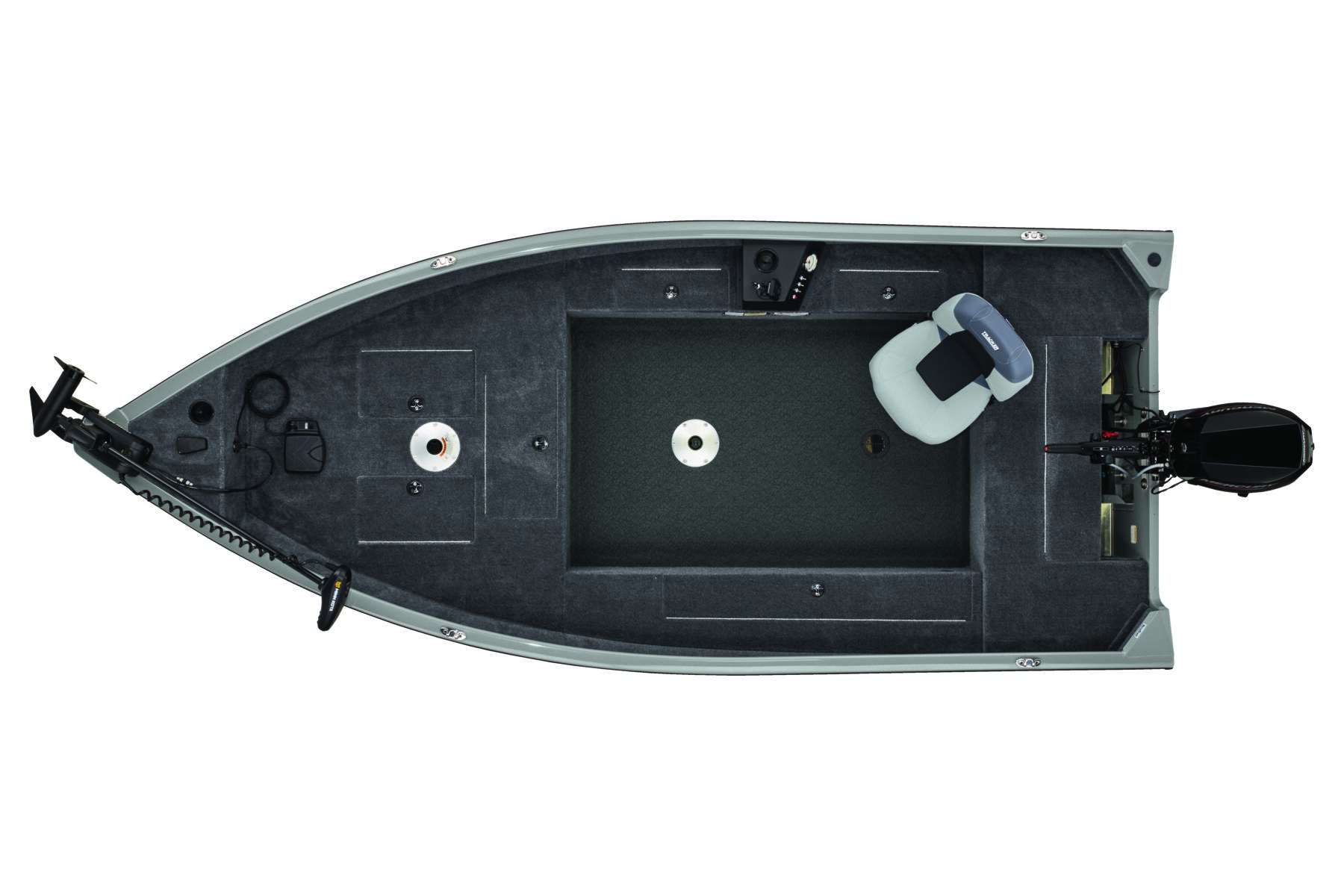

- Oversized elevated bow & aft fishing decks

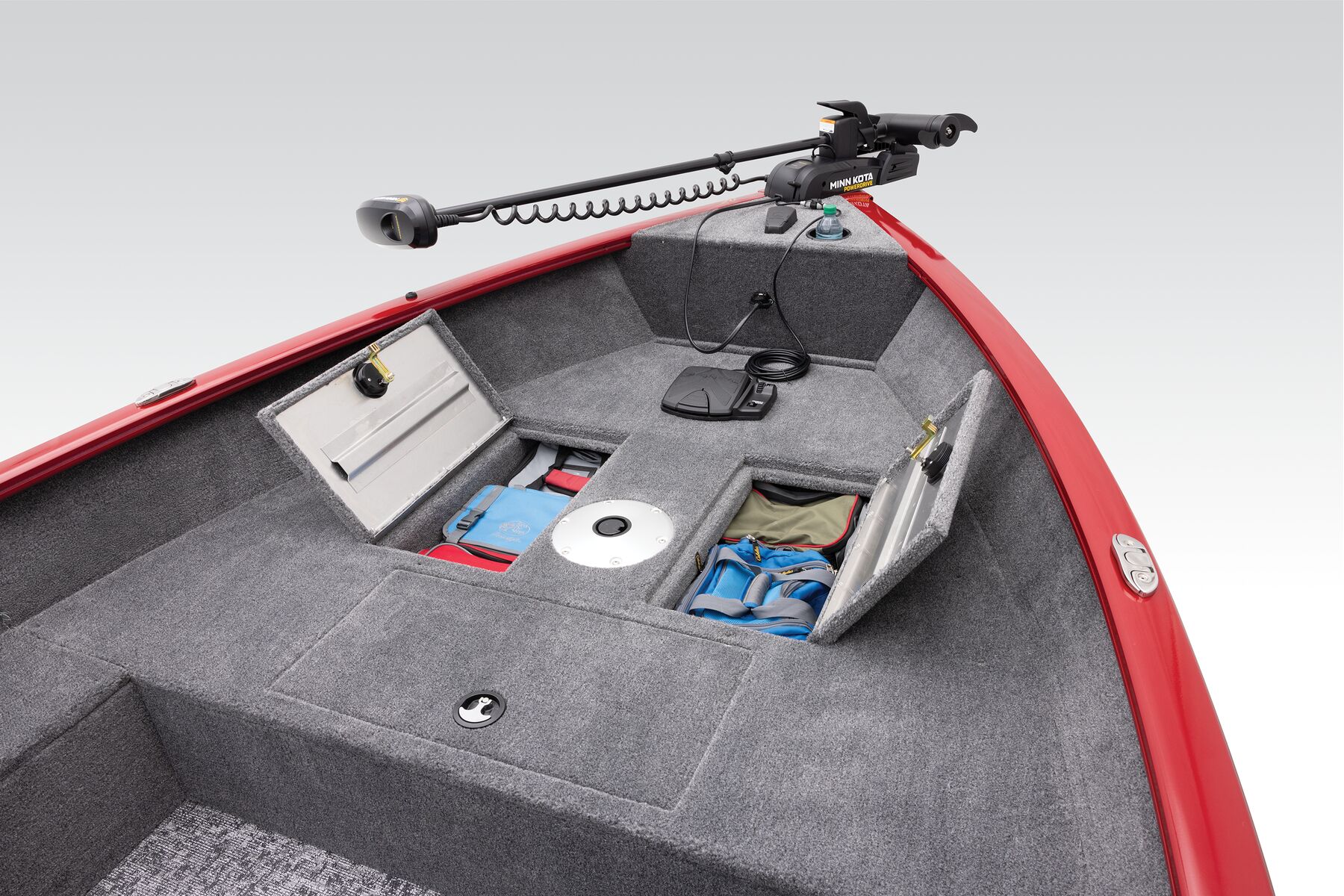

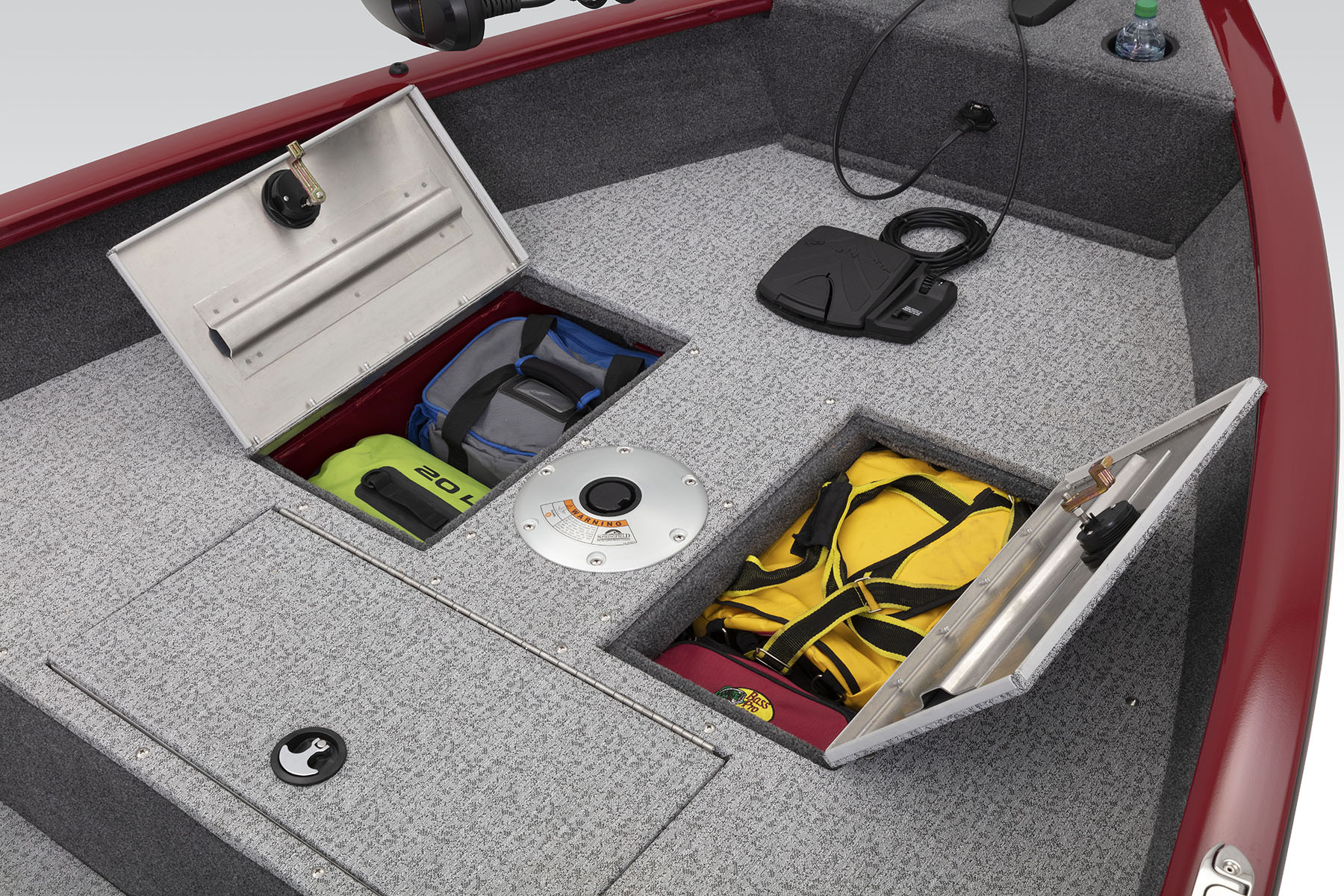

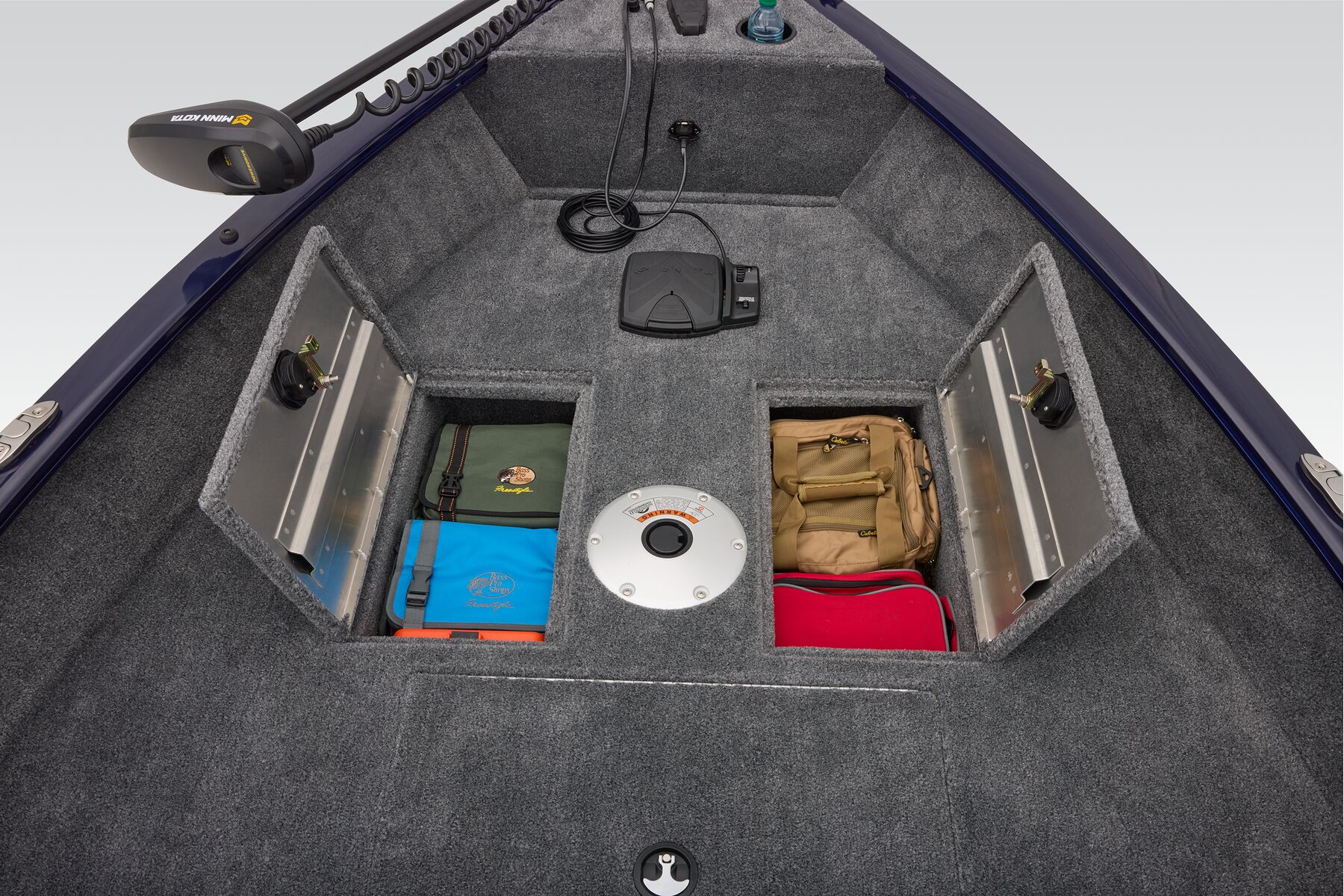

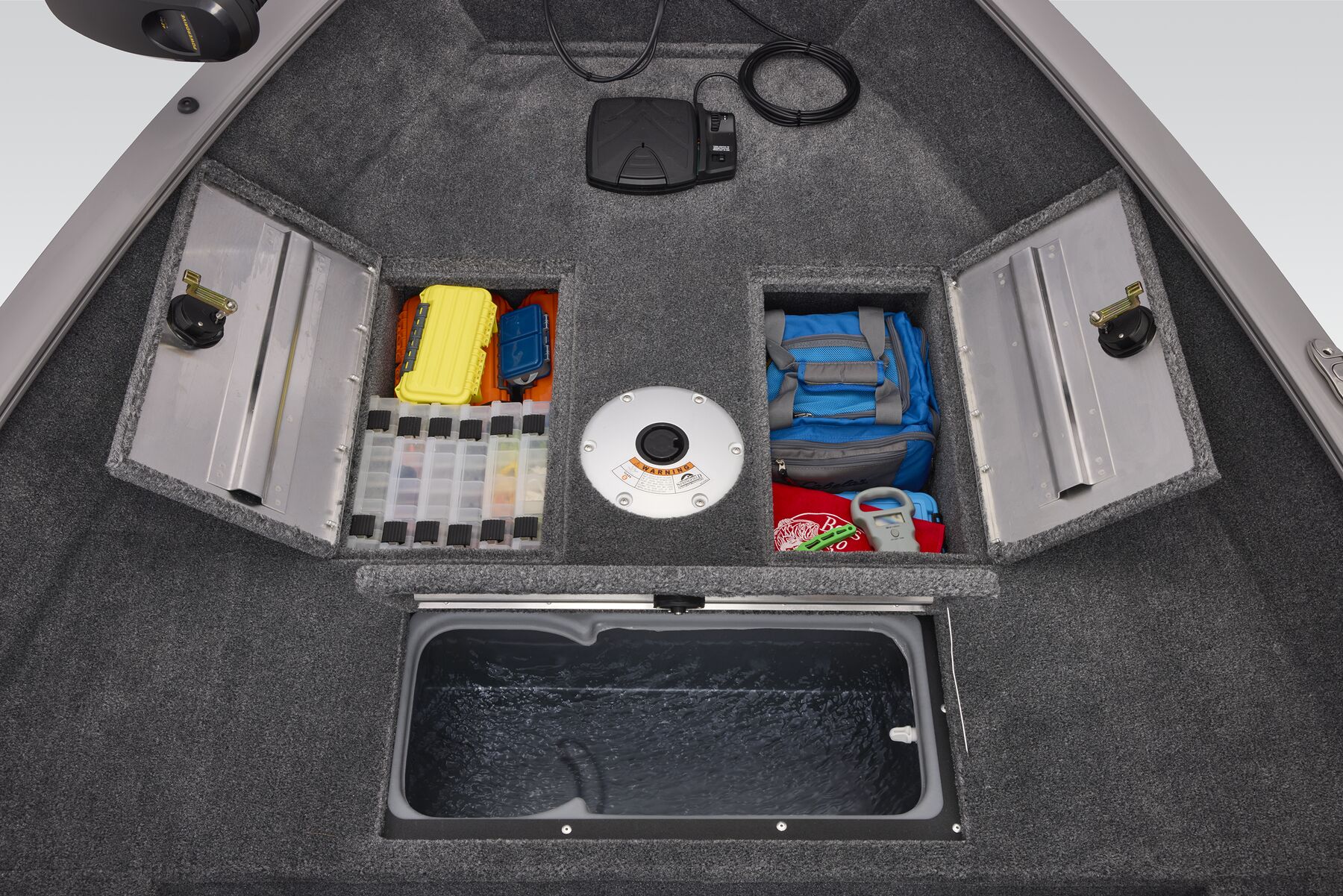

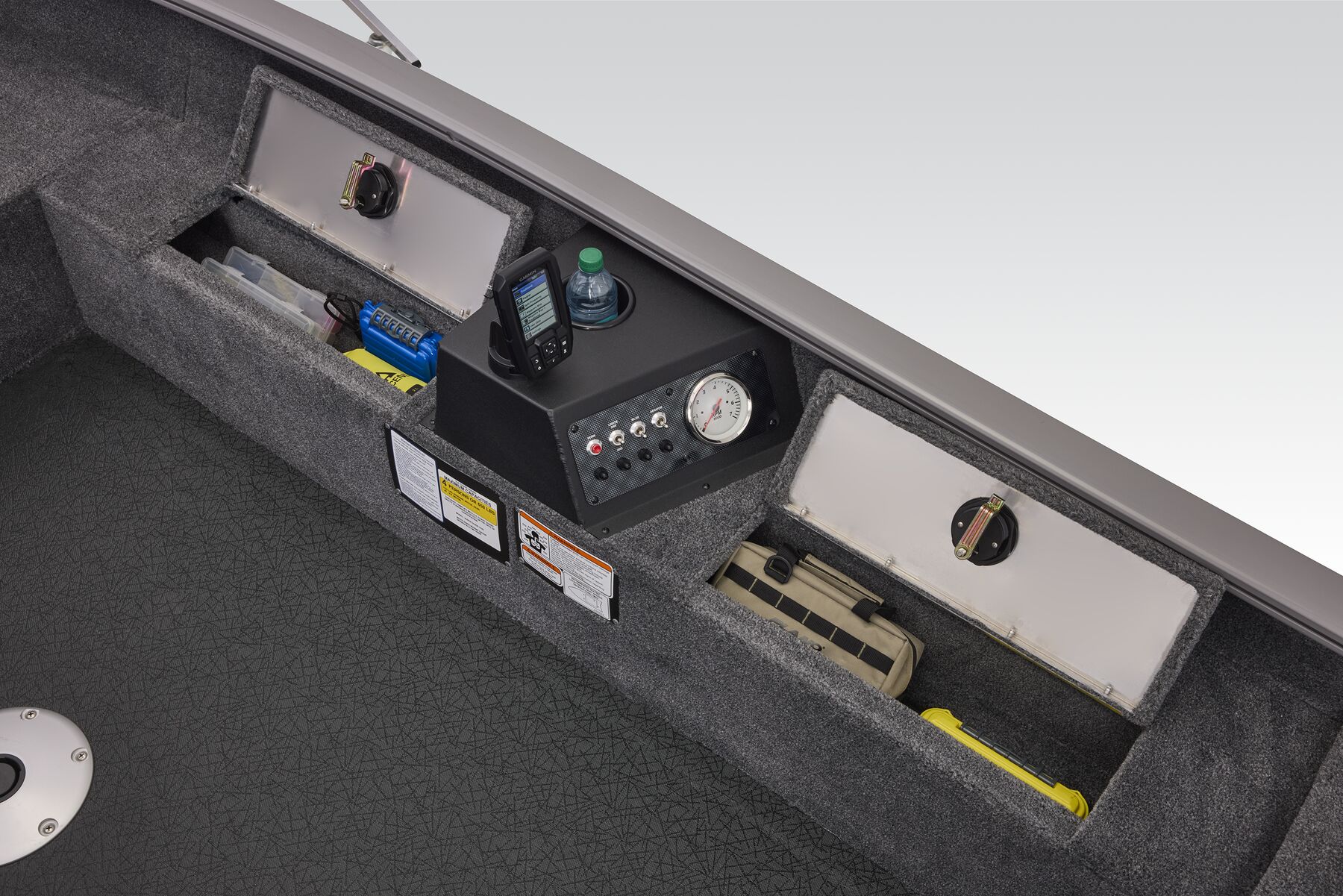

- Bow lockable storage compartments

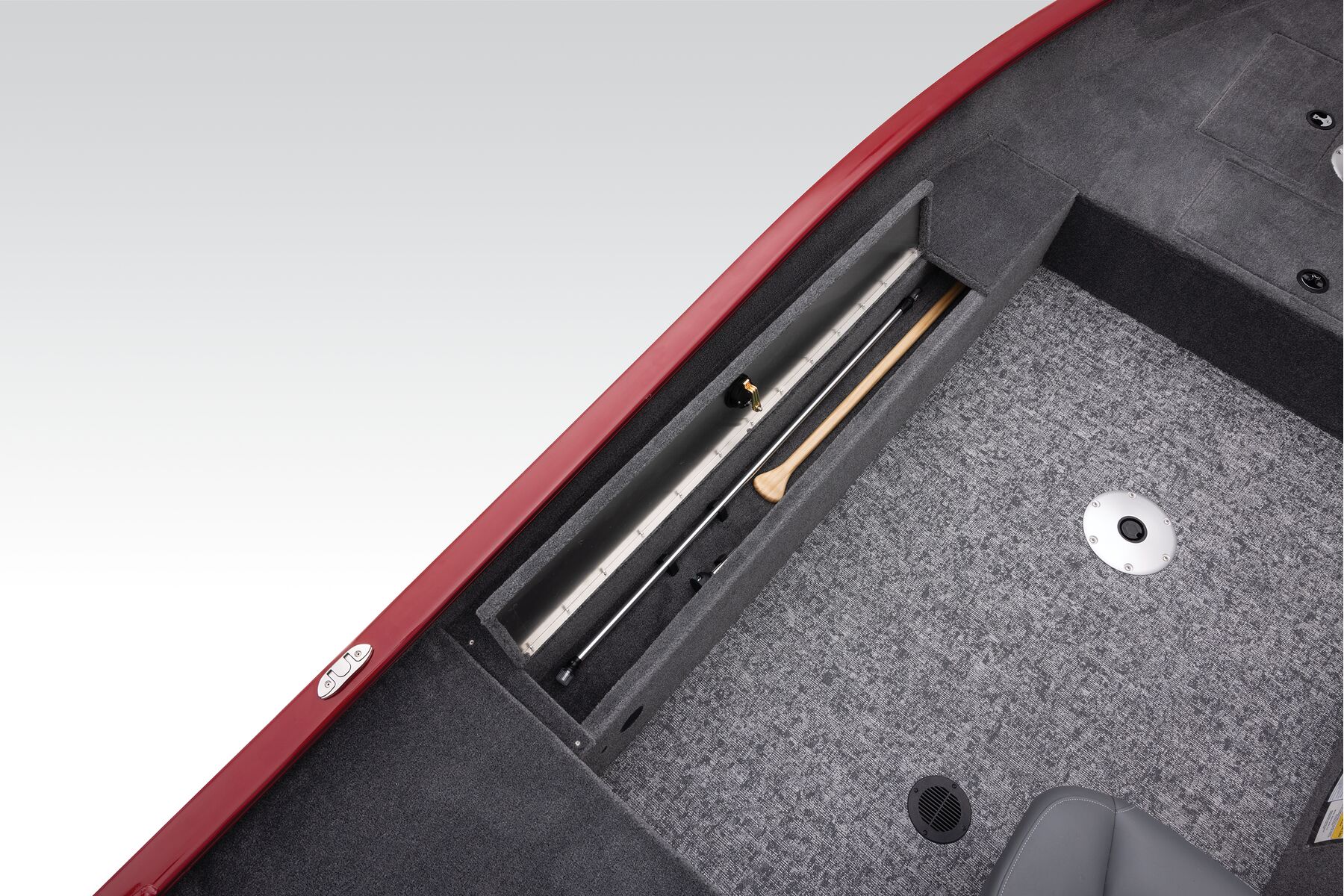

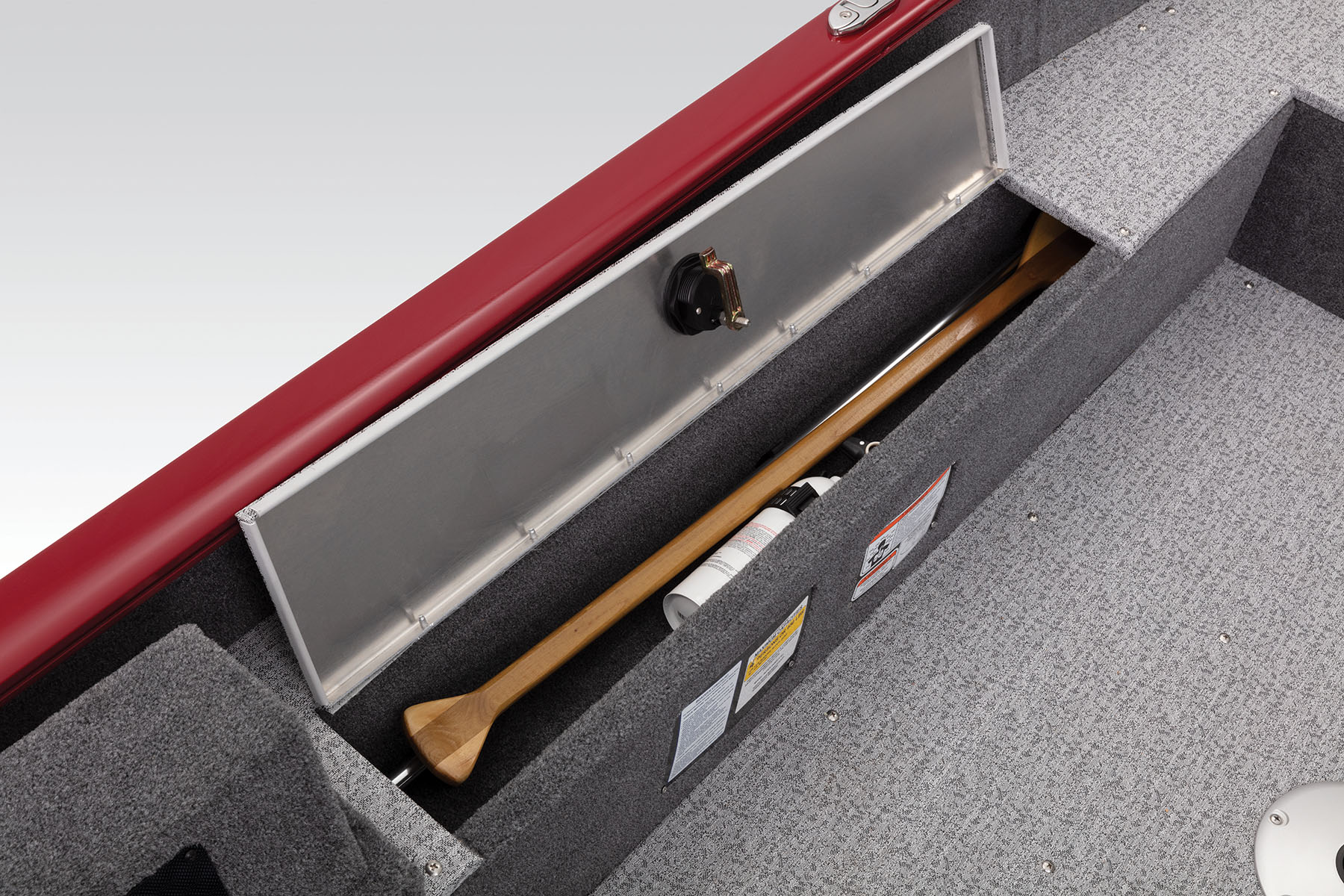

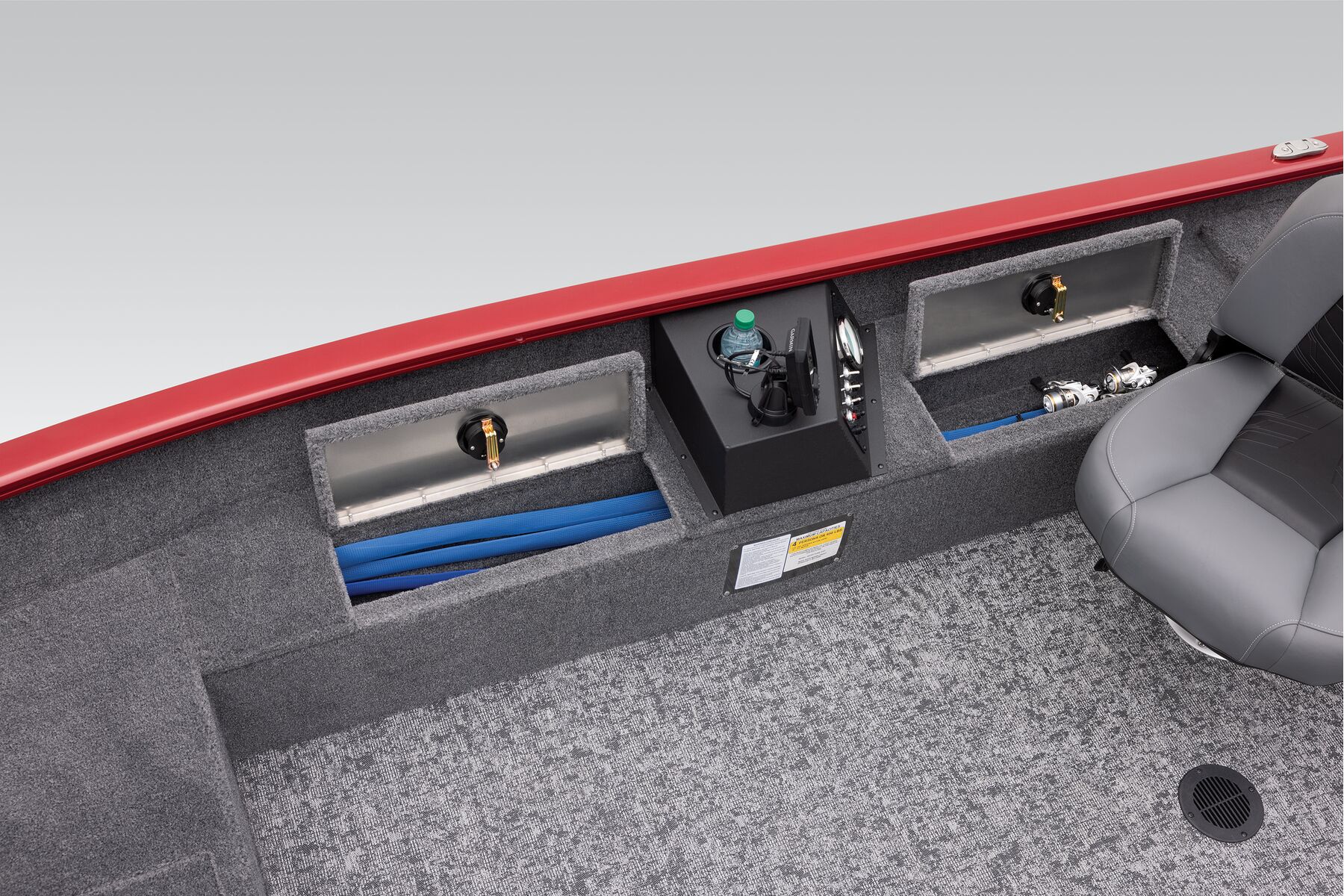

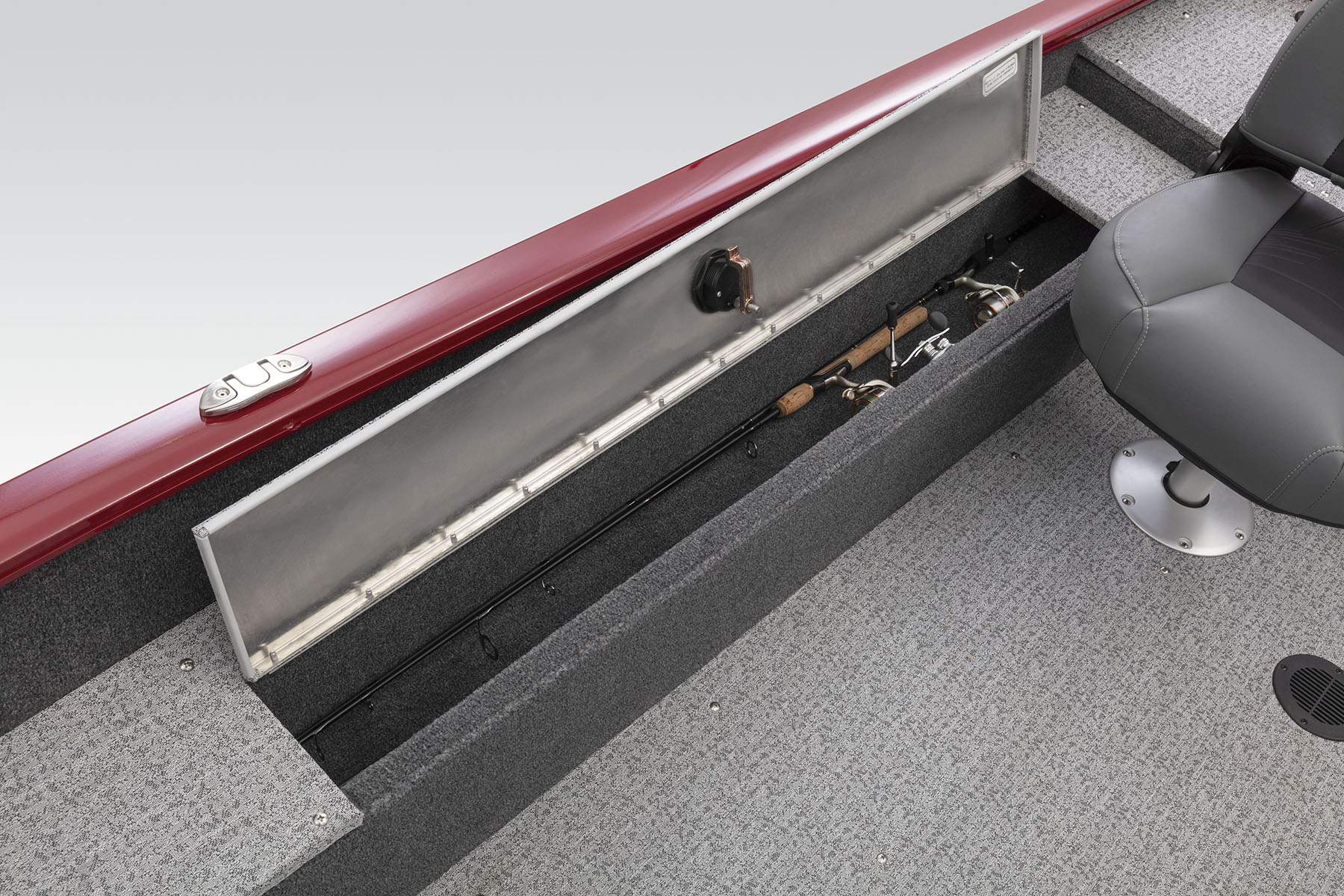

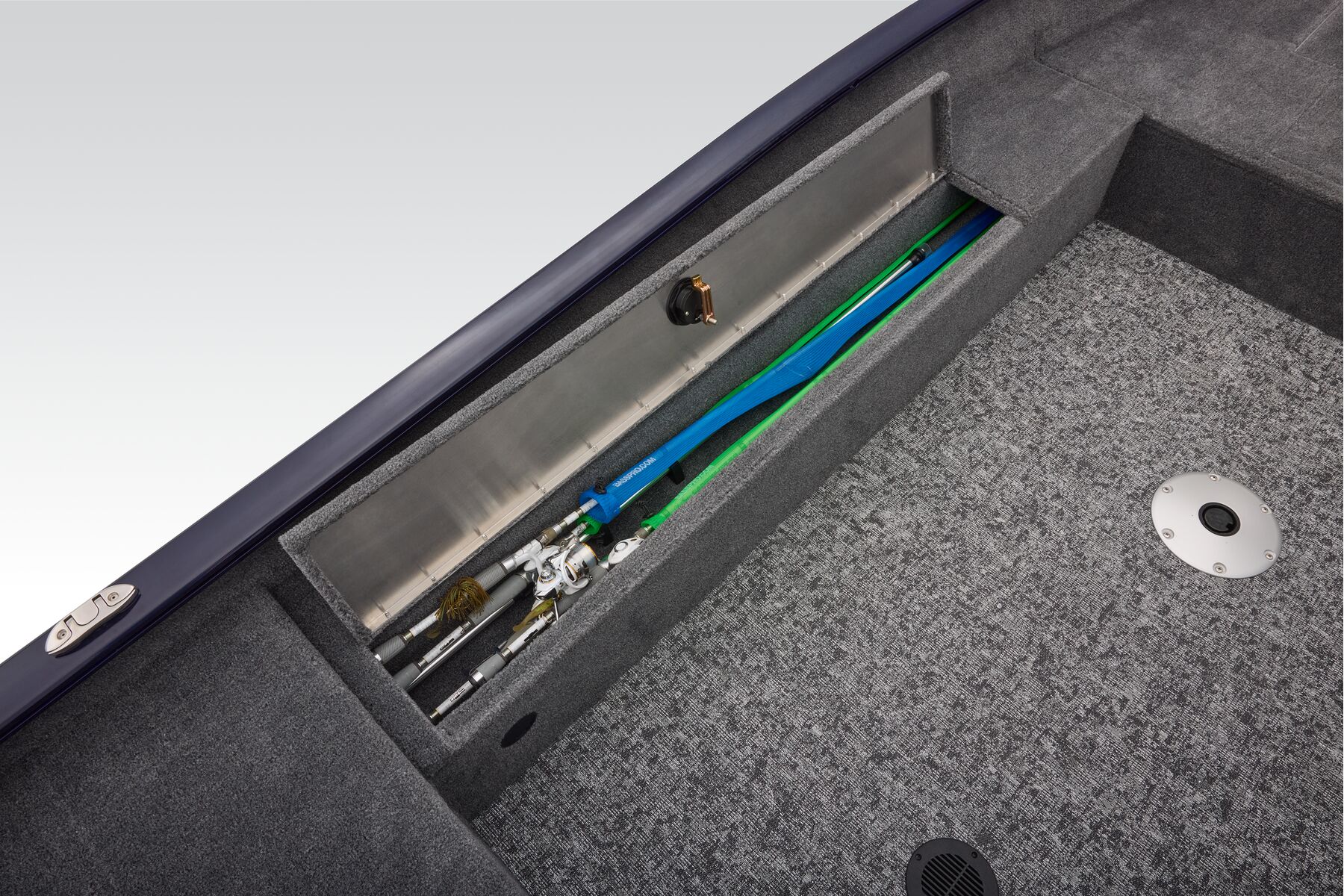

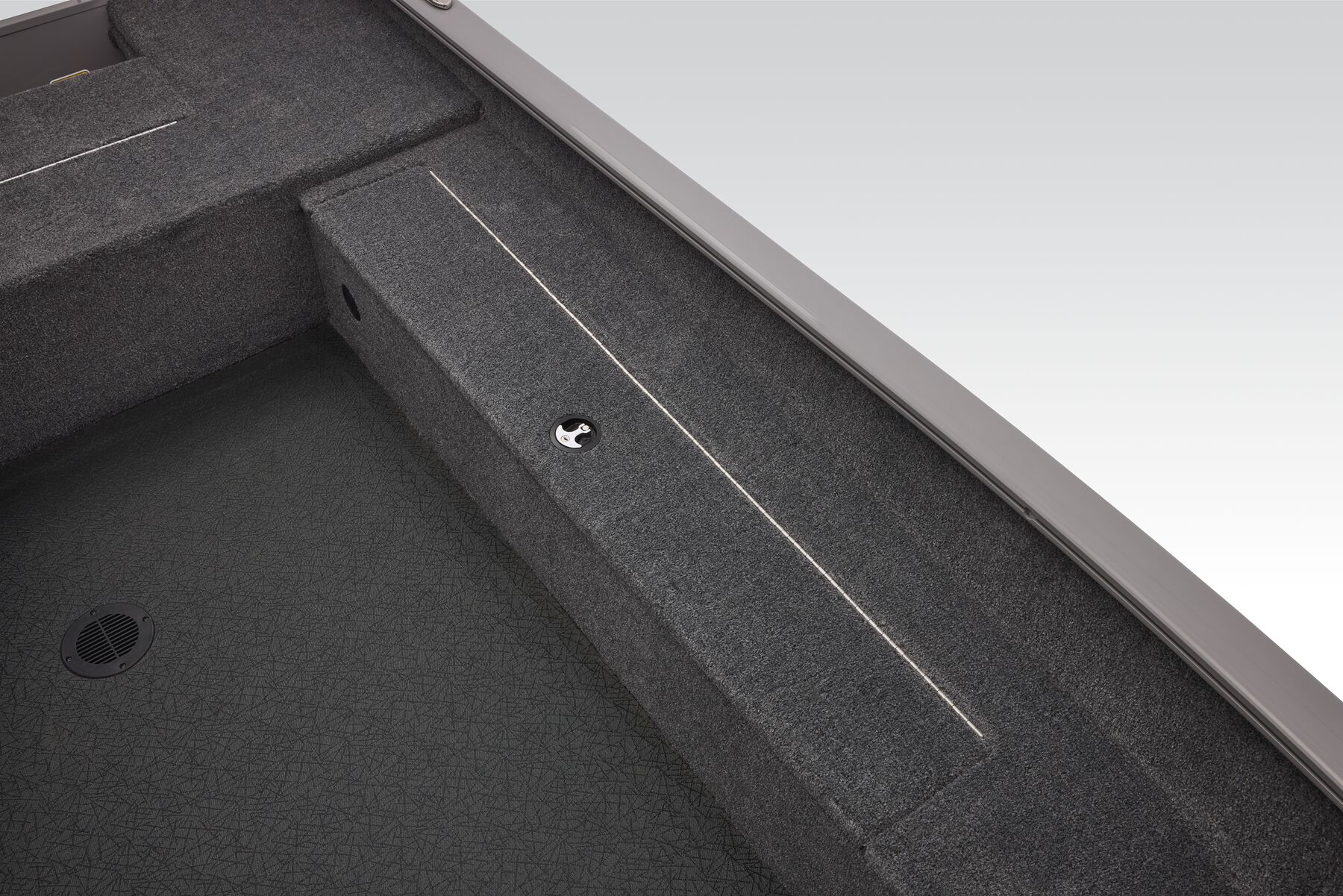

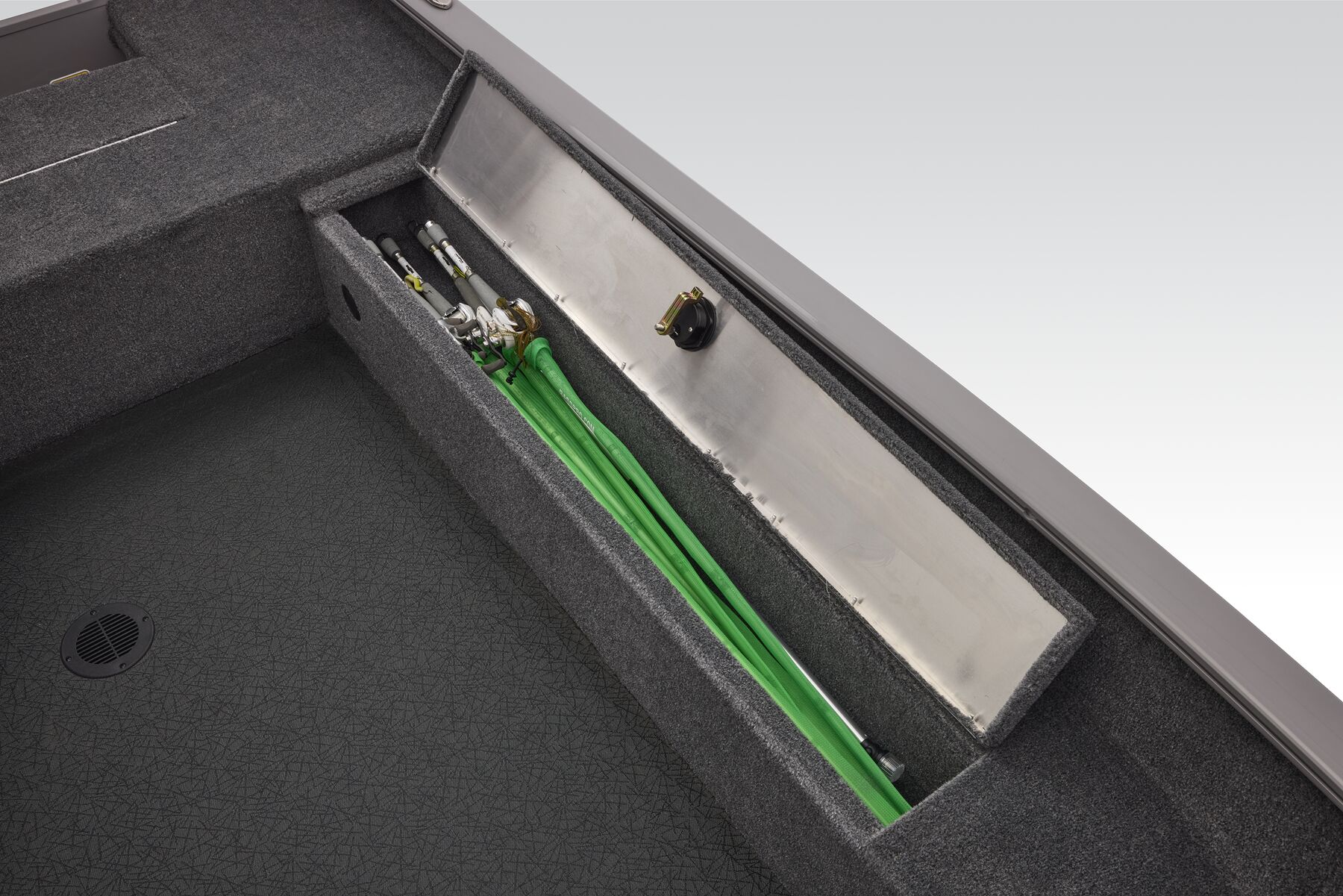

- Top-loading port side lockable rod box for rods to 7' 6" (2.29 m)

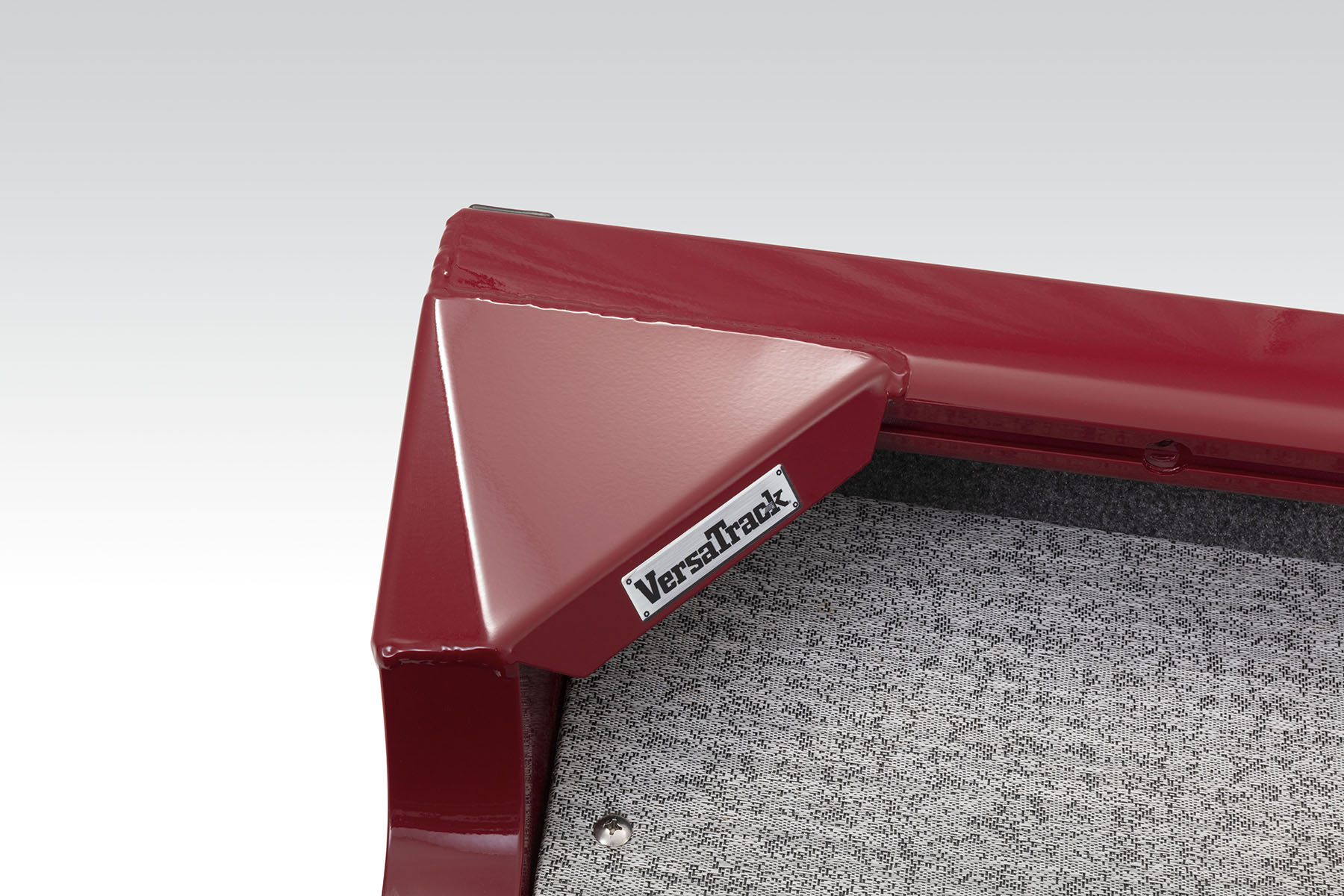

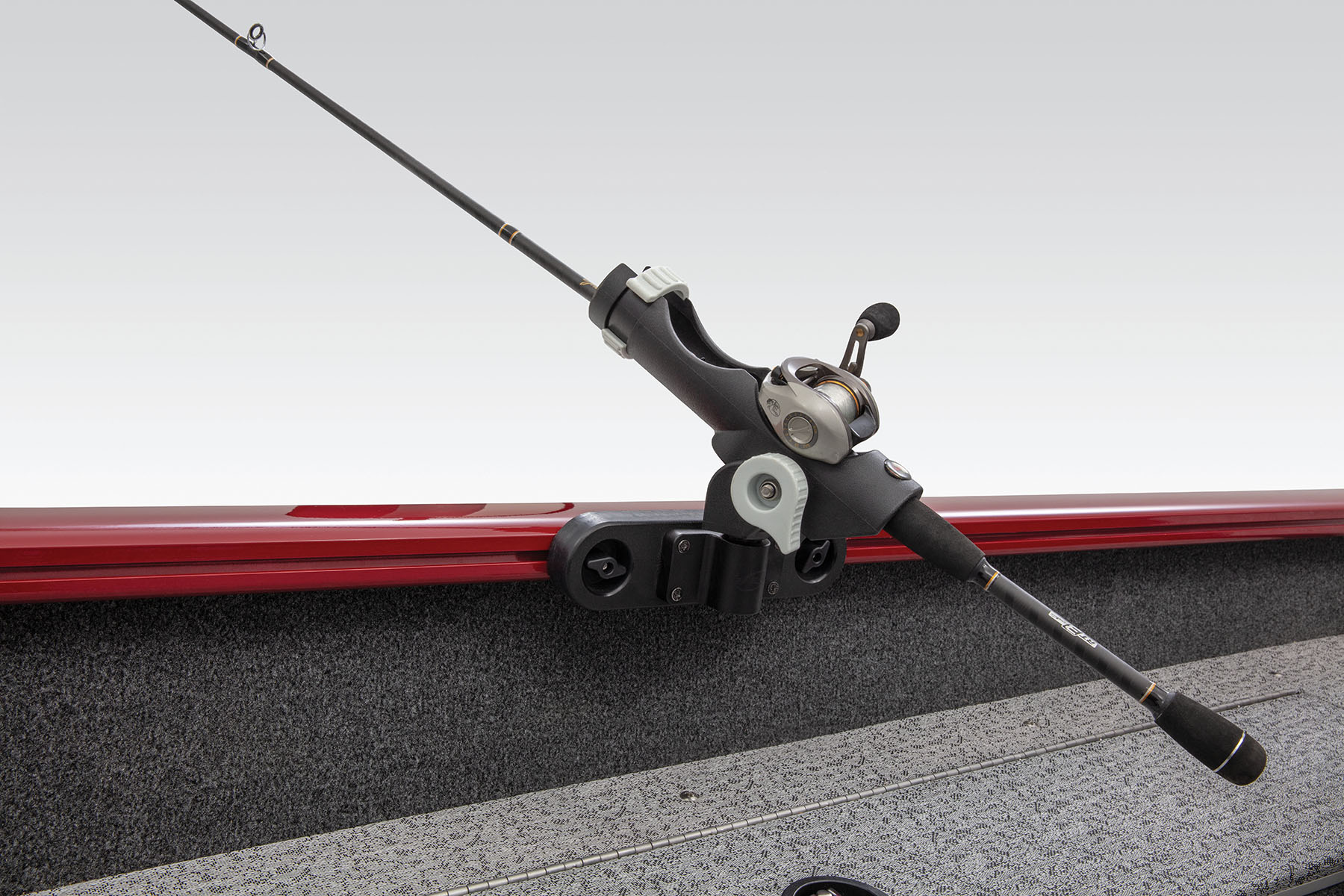

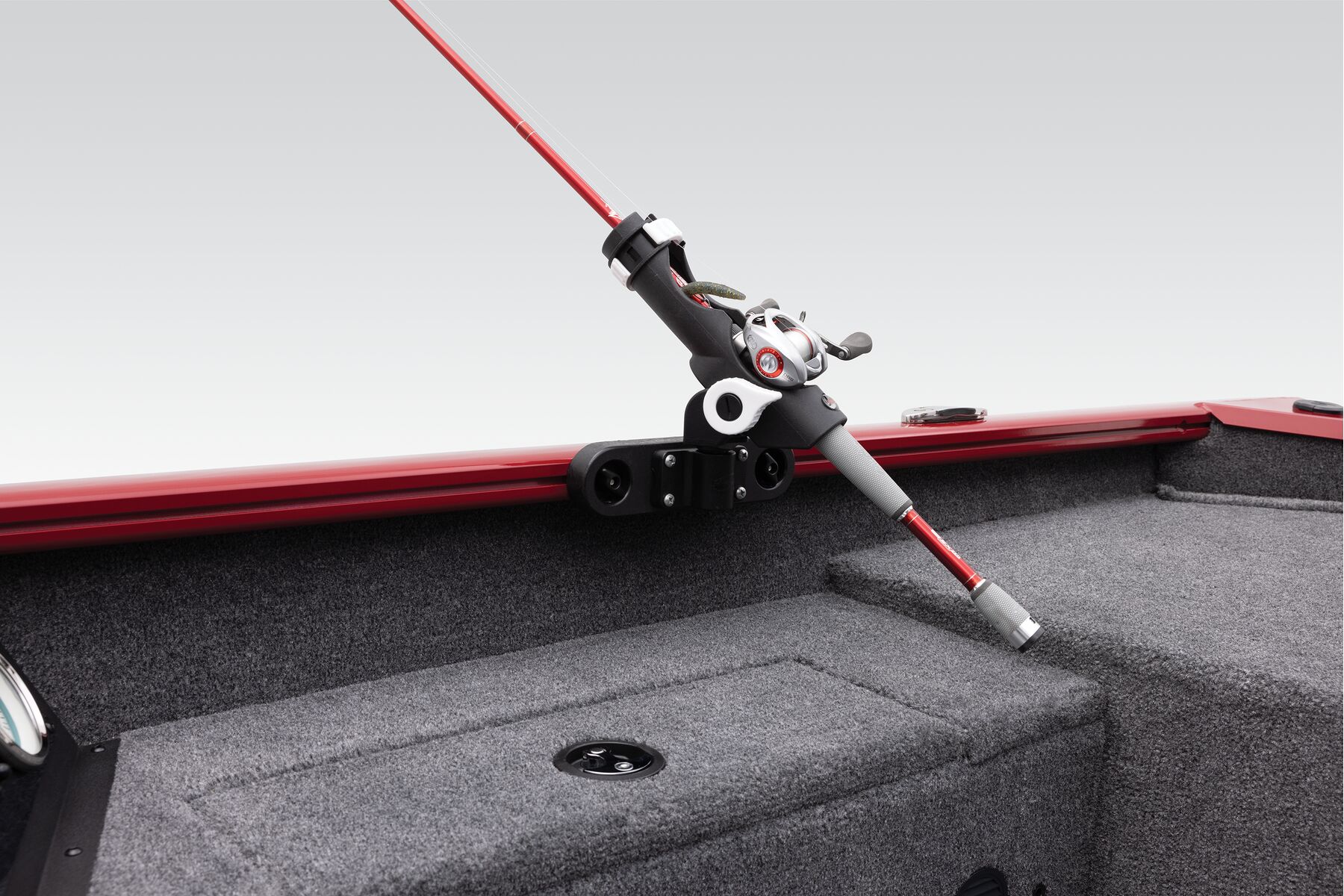

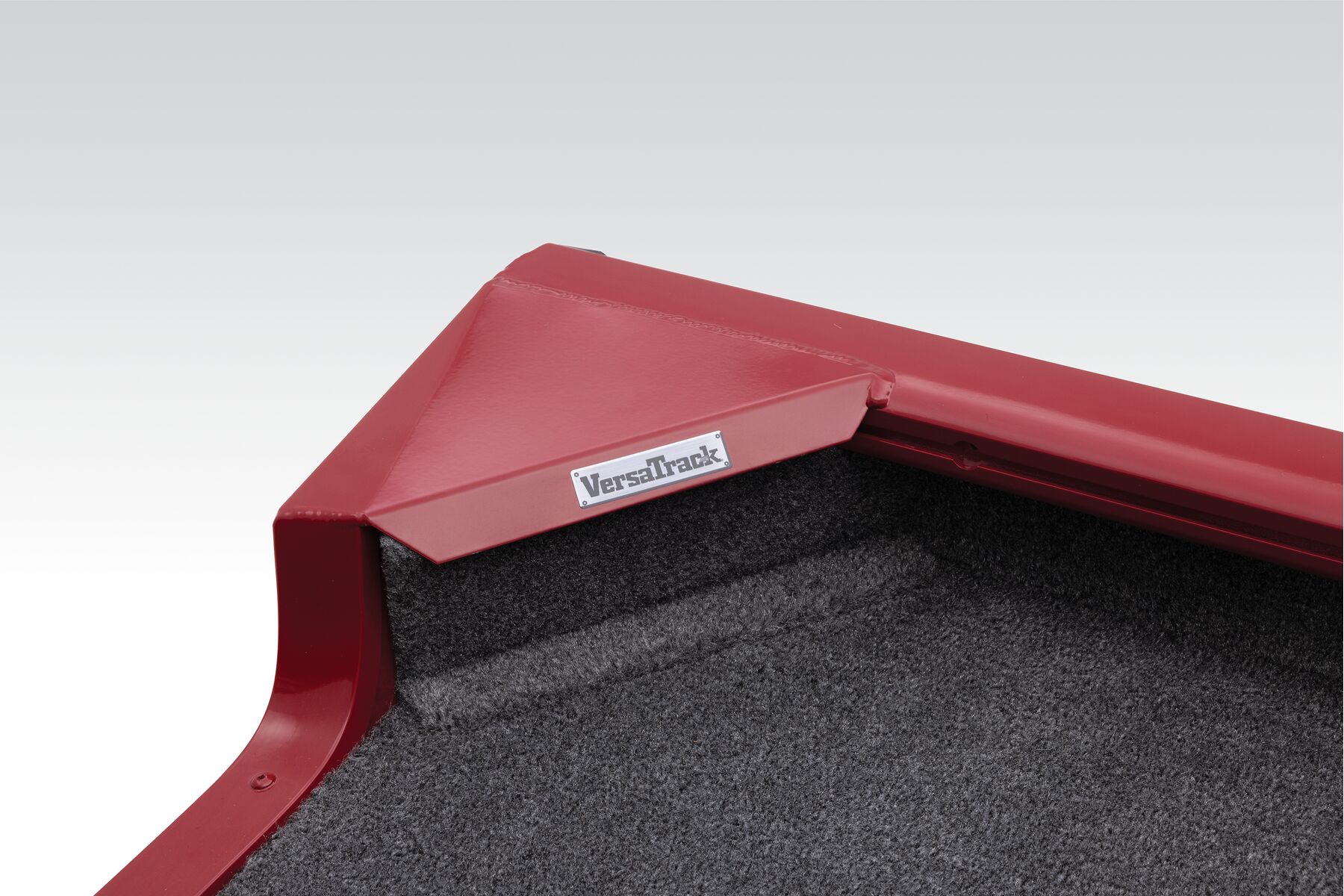

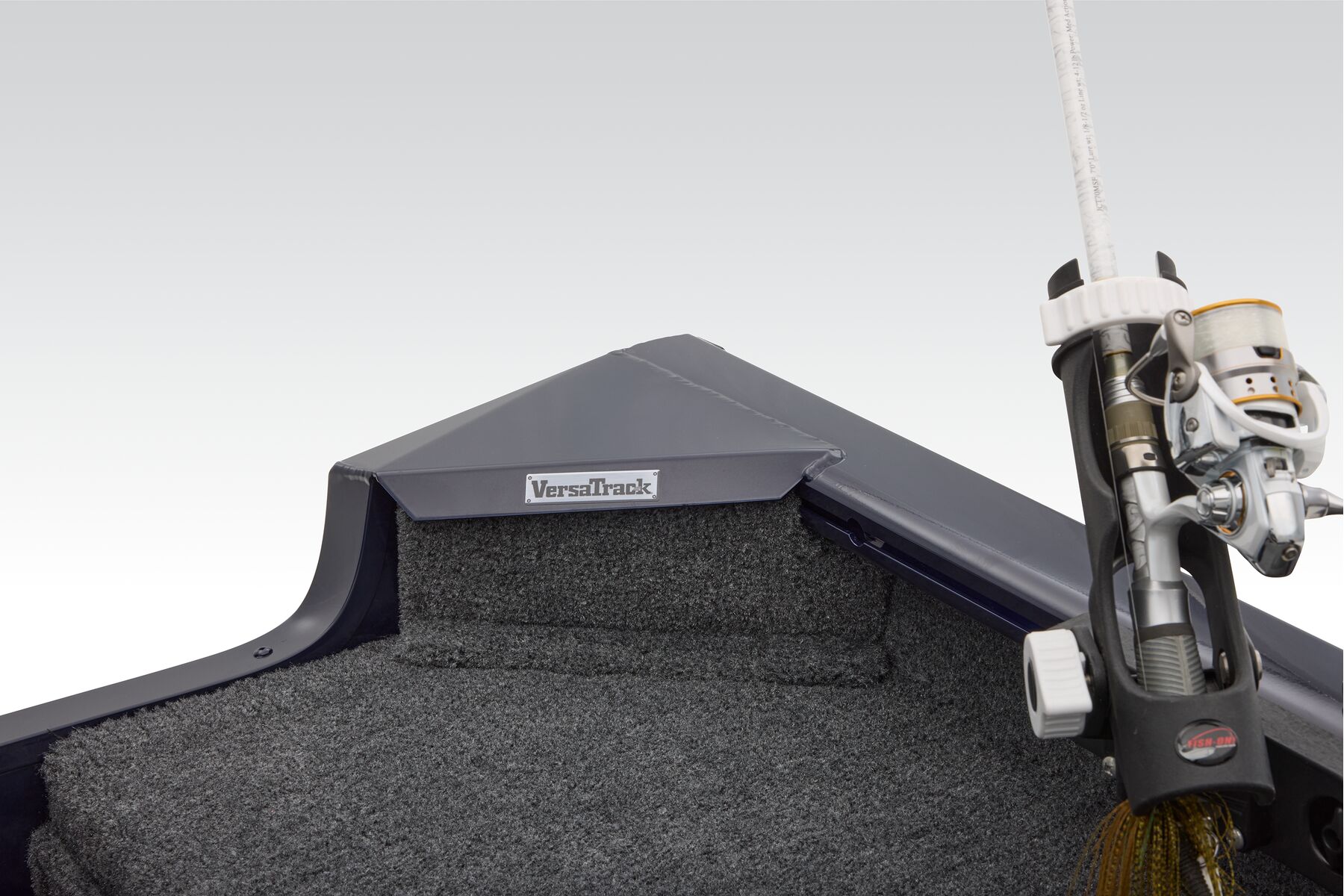

- Exclusive VERSATRACK® accessory-mounting channel in gunnels
- 16-oz. (.45 kg) marine-grade, fishing-friendly carpet on decks & trim

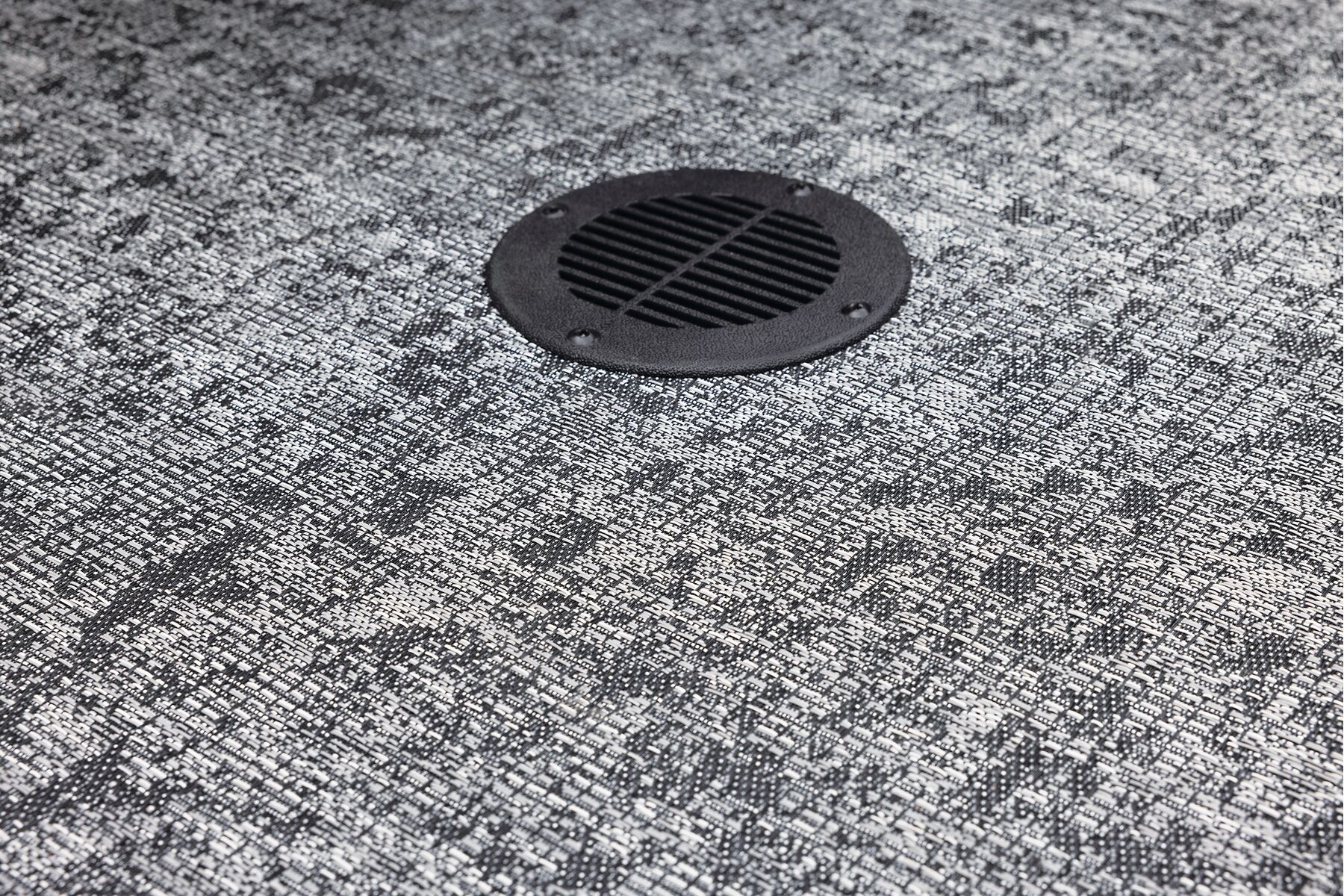

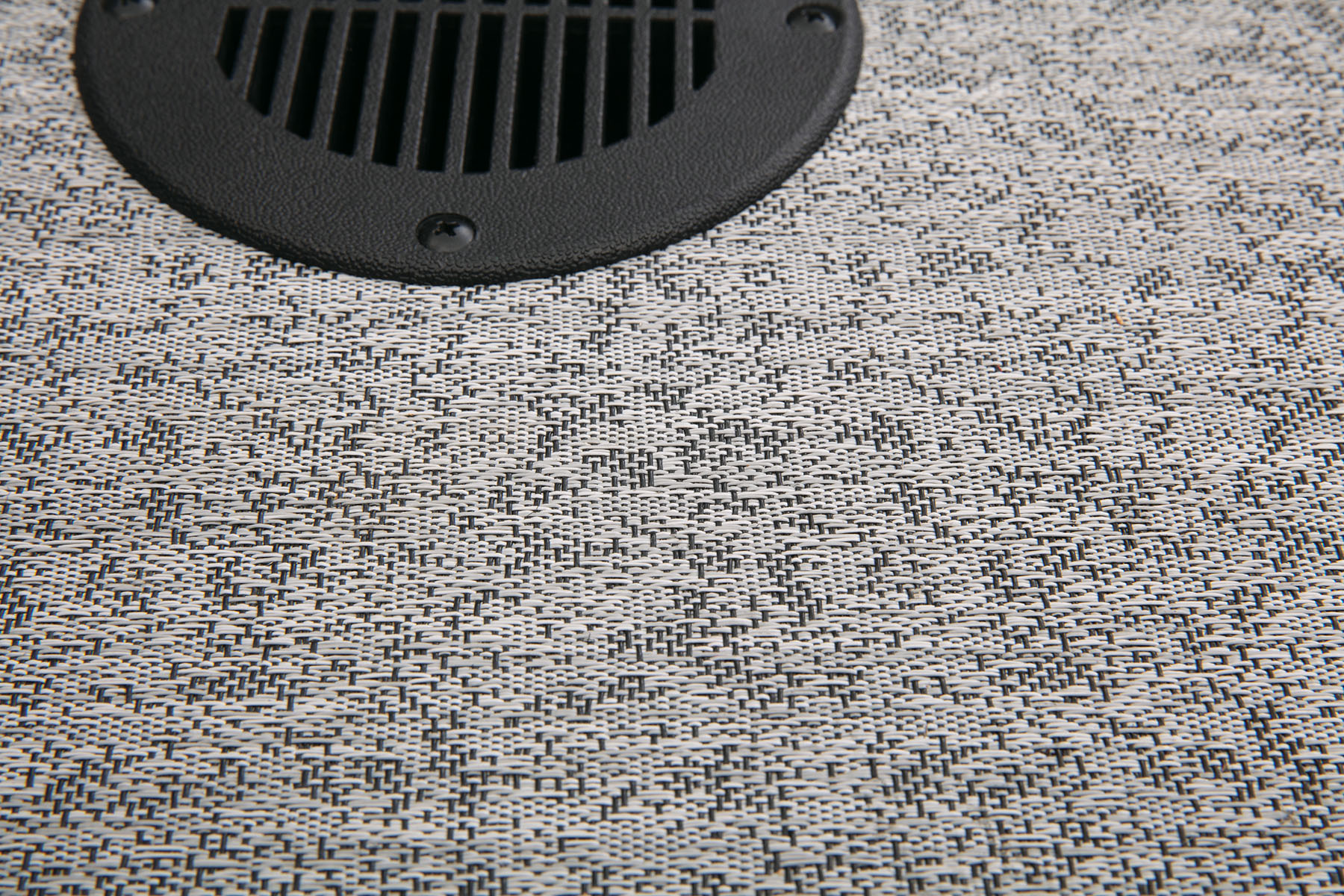

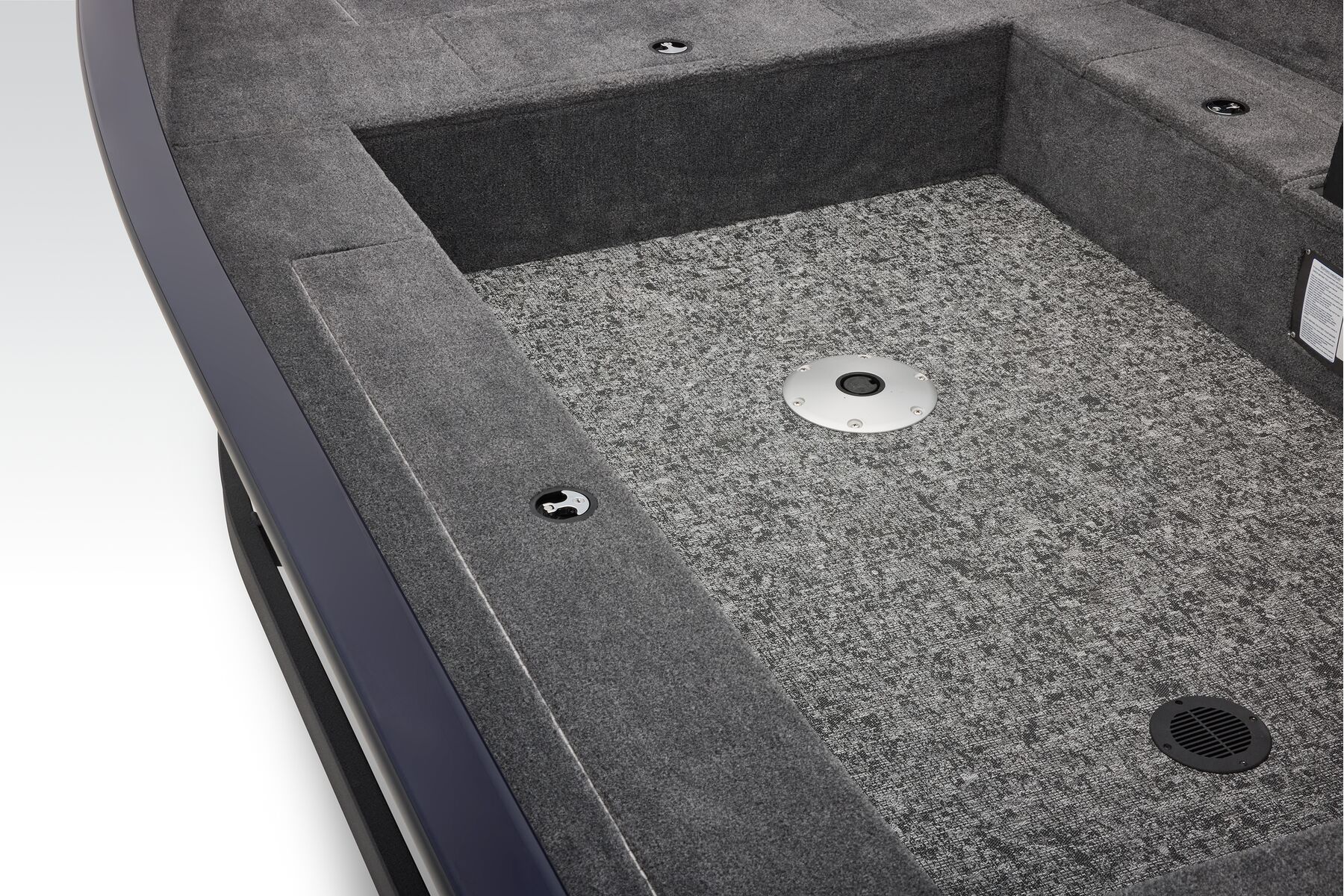

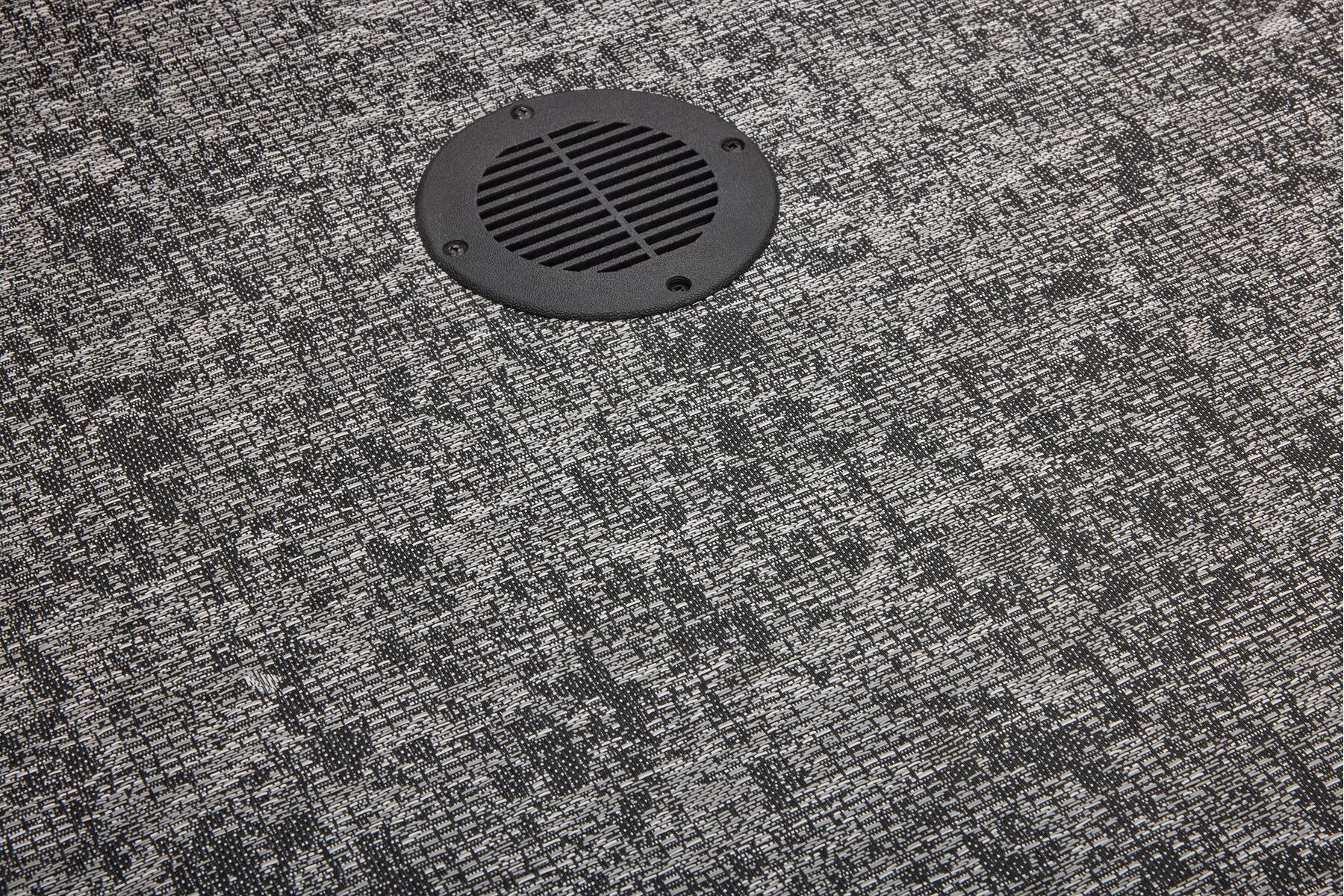

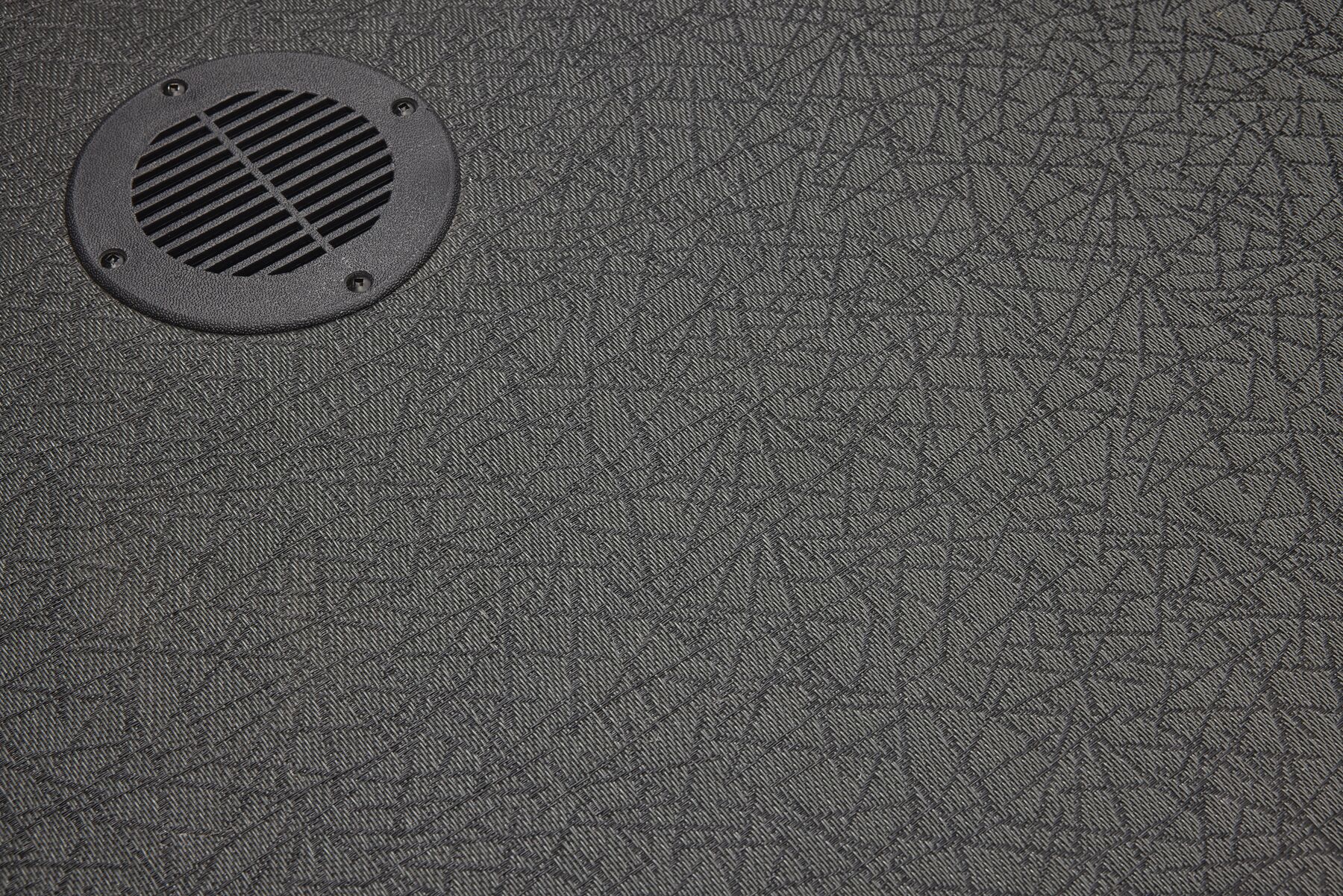

- Low-maintenance commercial-grade, chemical-resistant vinyl cockpit floor
Performance
- Deep deadrise & reversed chines for a smoother, drier ride & better overall performance
- Pressed-in strakes for optimal performance
- Factory-matched, performance-tested propeller
Construction & Exterior
- Color: DIAMOND COAT™ Starlite Black or Starlite Red gunnels & hull sides w/Starlite Gray bottom
- DIAMOND COAT™ 3.0 finish — an industry-exclusive powdercoat for brilliant durability

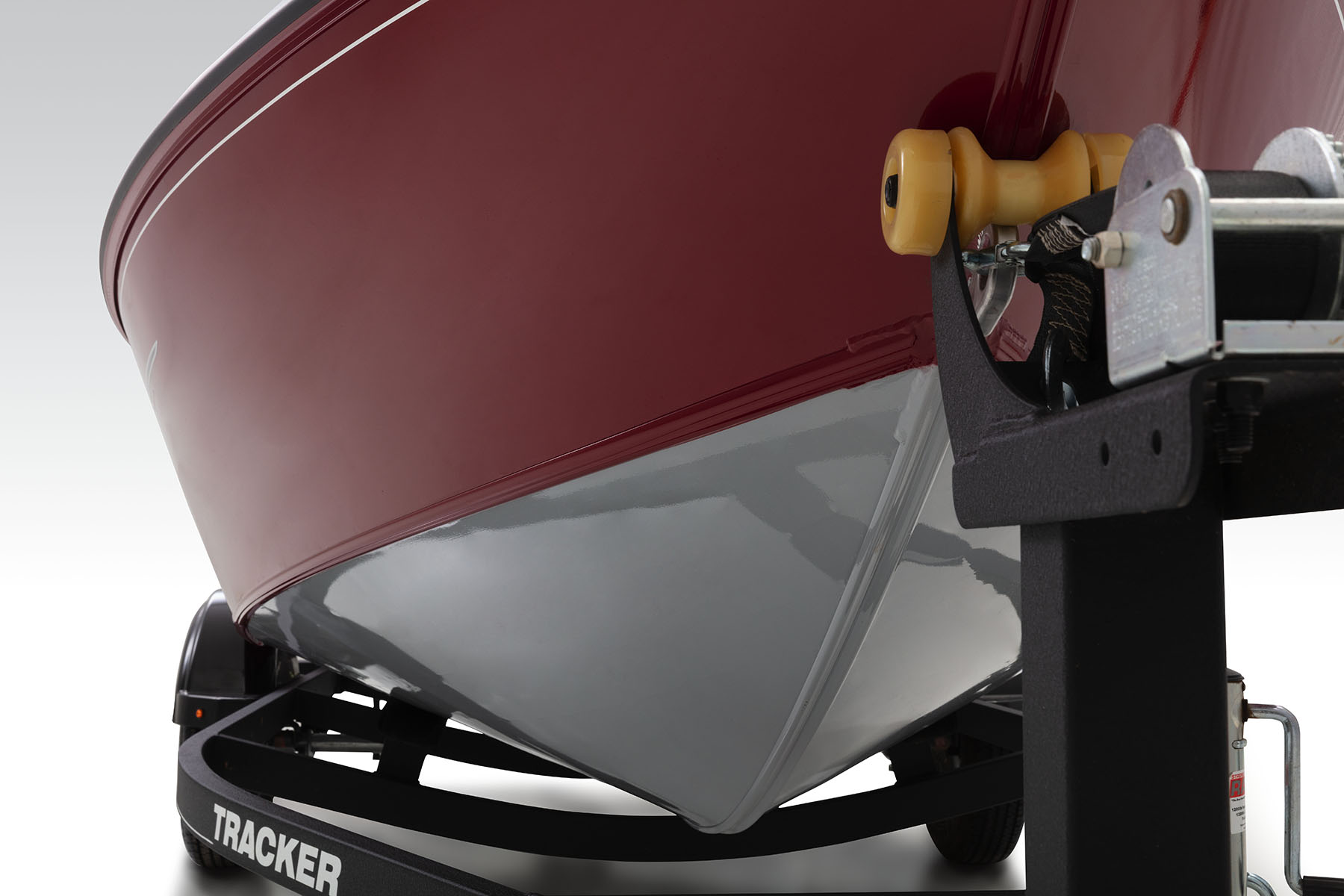

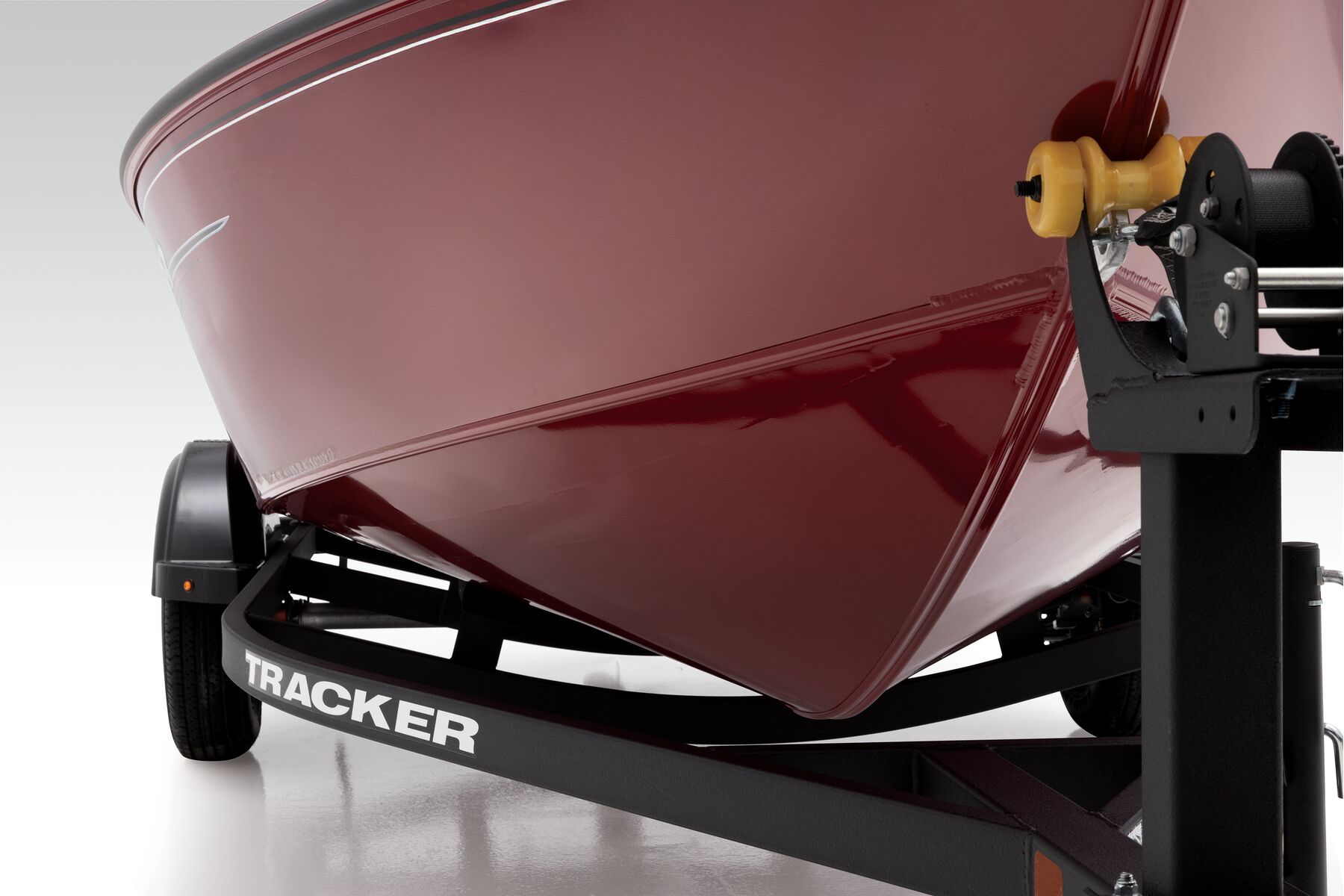

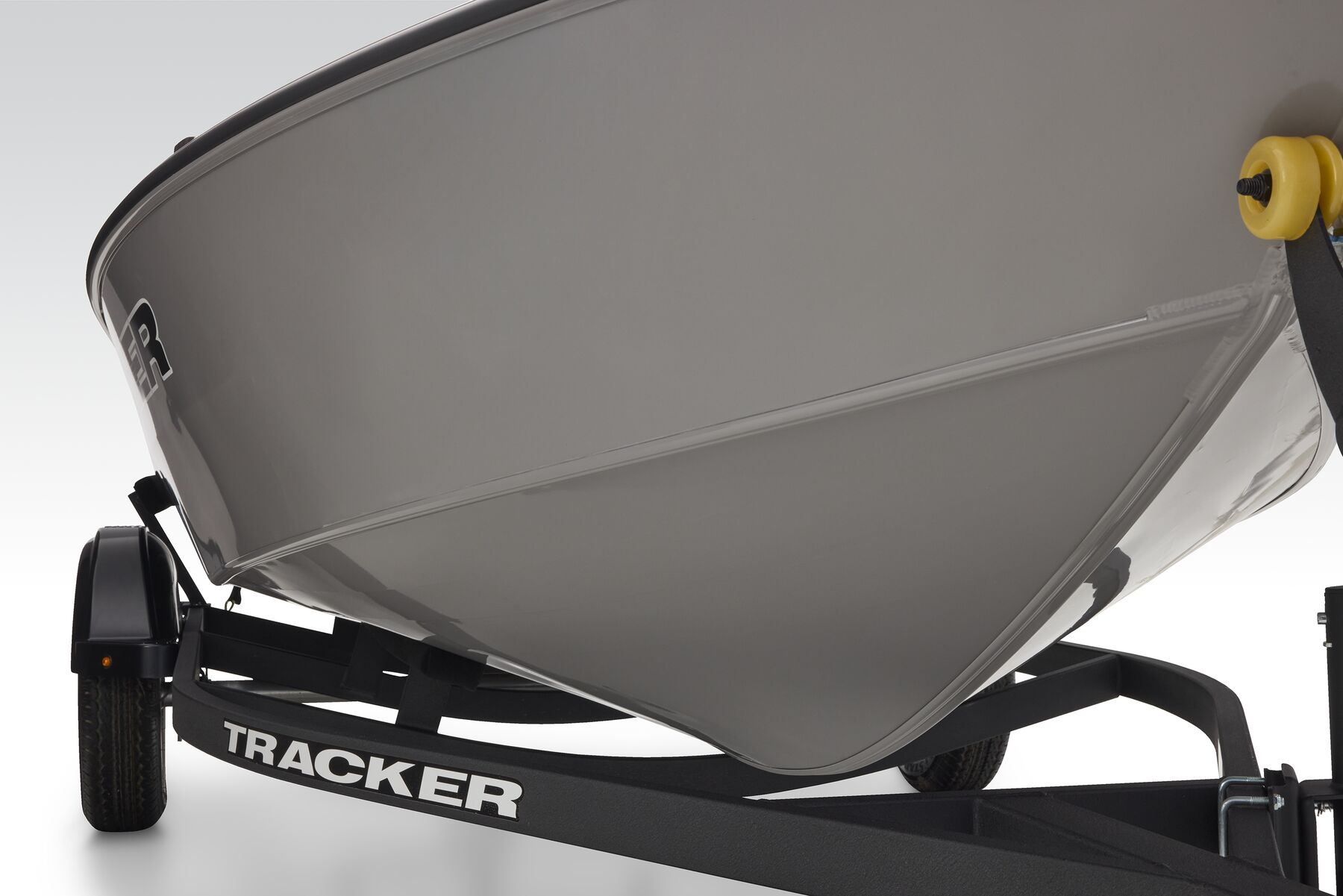

- All-welded, 2-piece .100 aluminum Deep V hull w/wide beam & stable bottom for a smoother, drier ride in rough waters

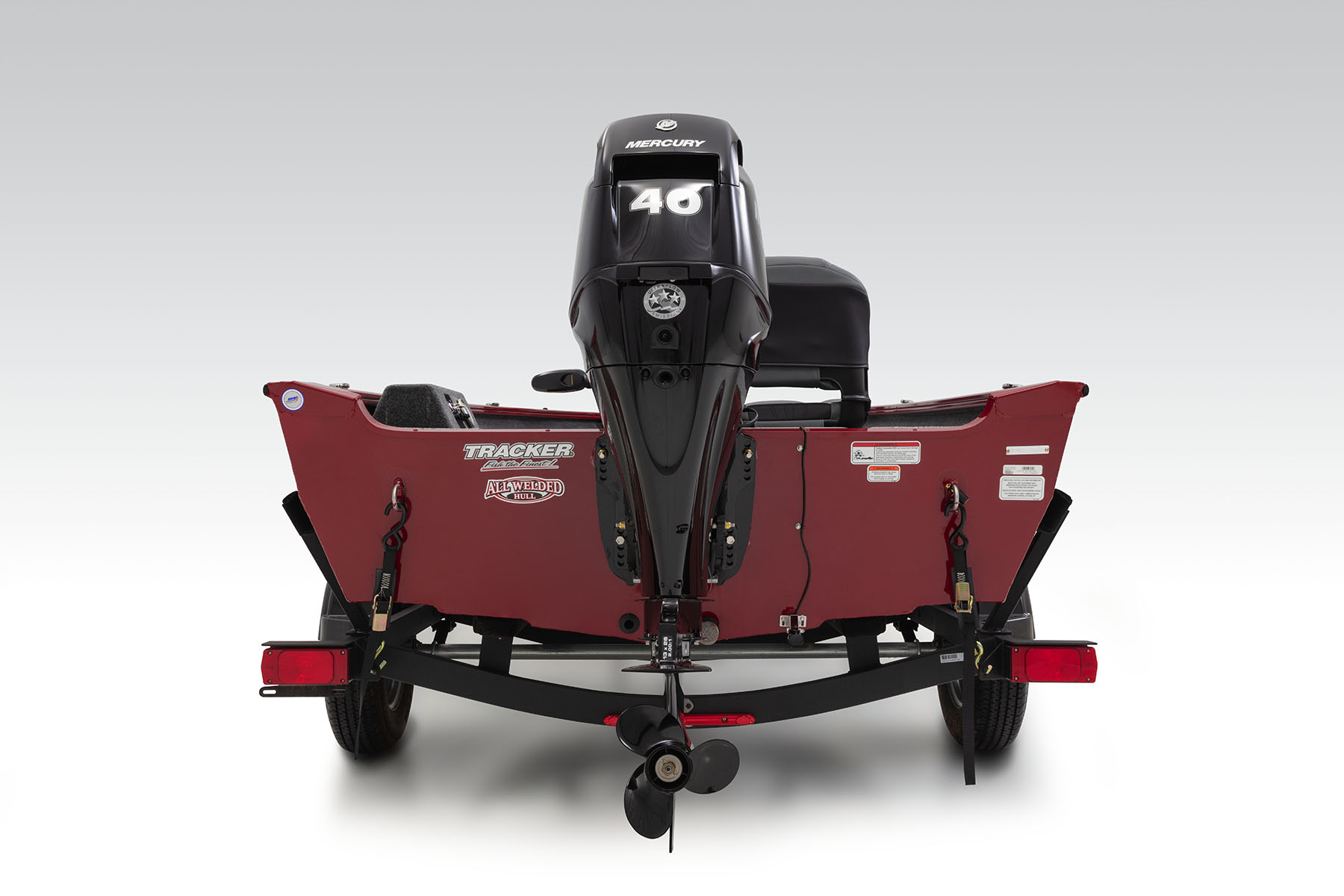

- Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull
- Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride
- Pressed-in hull strakes for enhanced performance
- Reverse chine hull design for drier ride & better handling
- Transom motor-mounting plate for increased strength & durability
- Welded-in longitudinal stringer system for full-length support along the running surface
- Pressure-treated floor & deck(s) w/limited lifetime warranty
- All compartment lids are flush-mount, carpeted & all-aluminum for structural rigidity, tight fit & long-term durability
Electrical
- 800 GPH (3,028.33 LPH) bilge pump

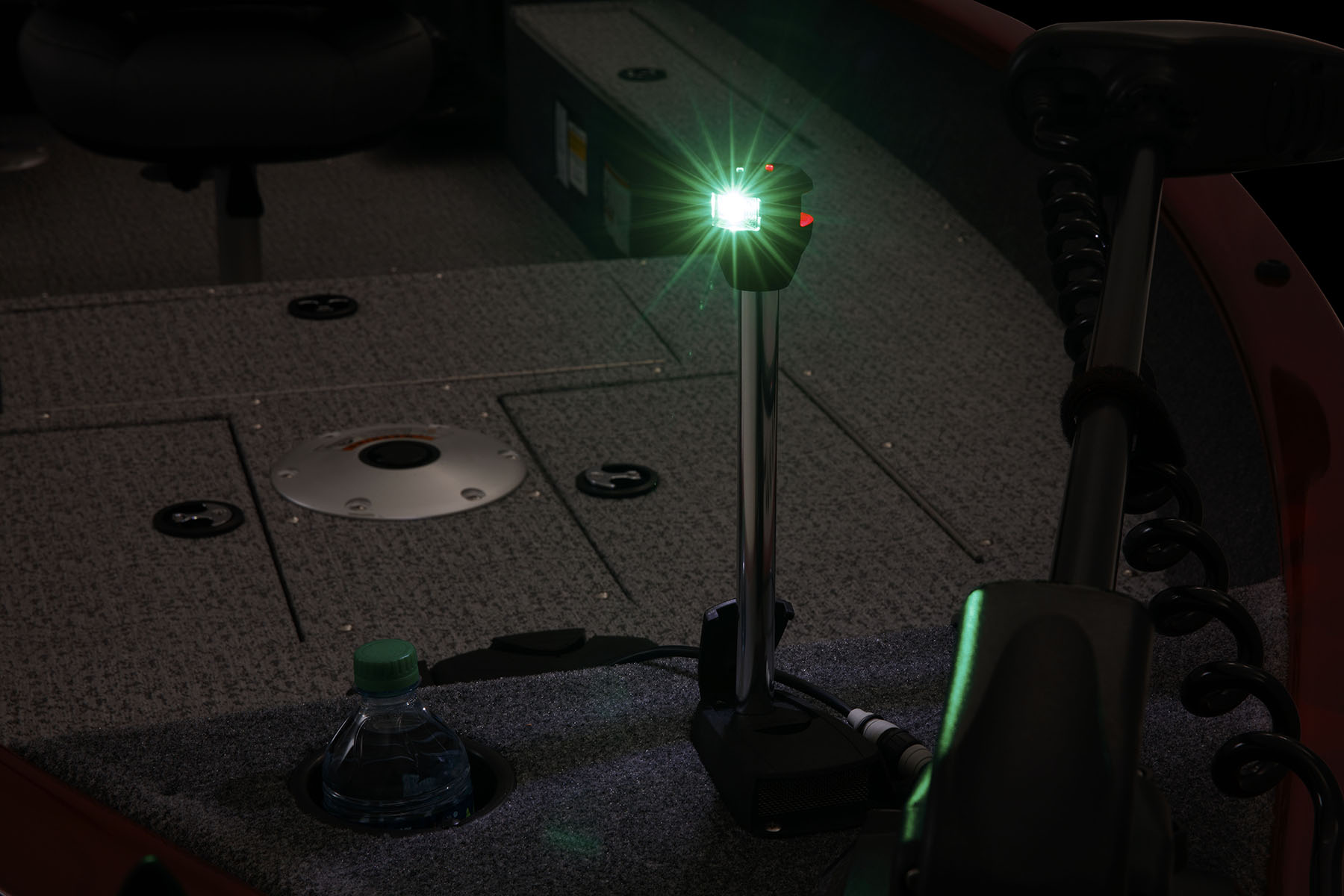

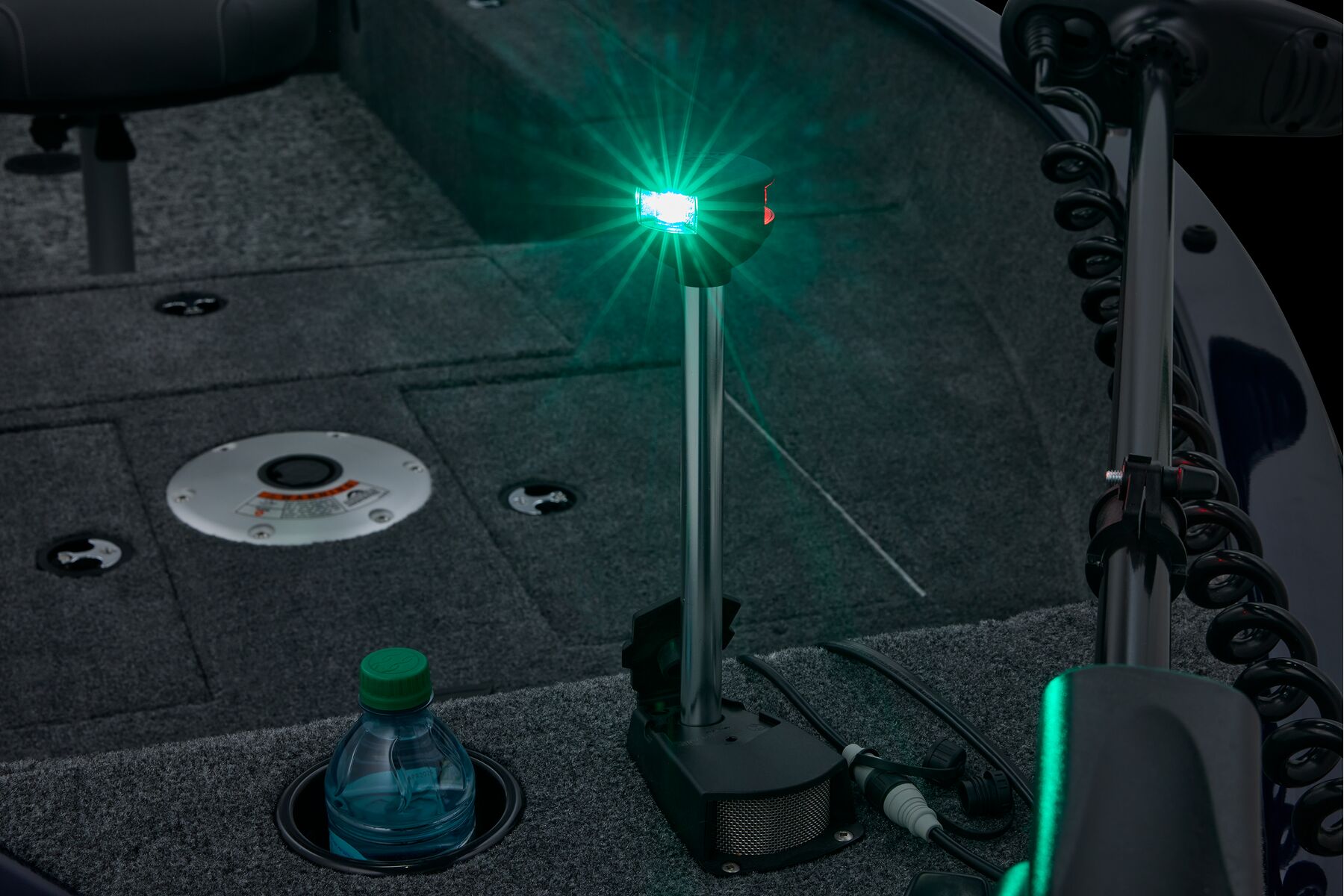

- Stowable navigation lights
- Bow courtesy light

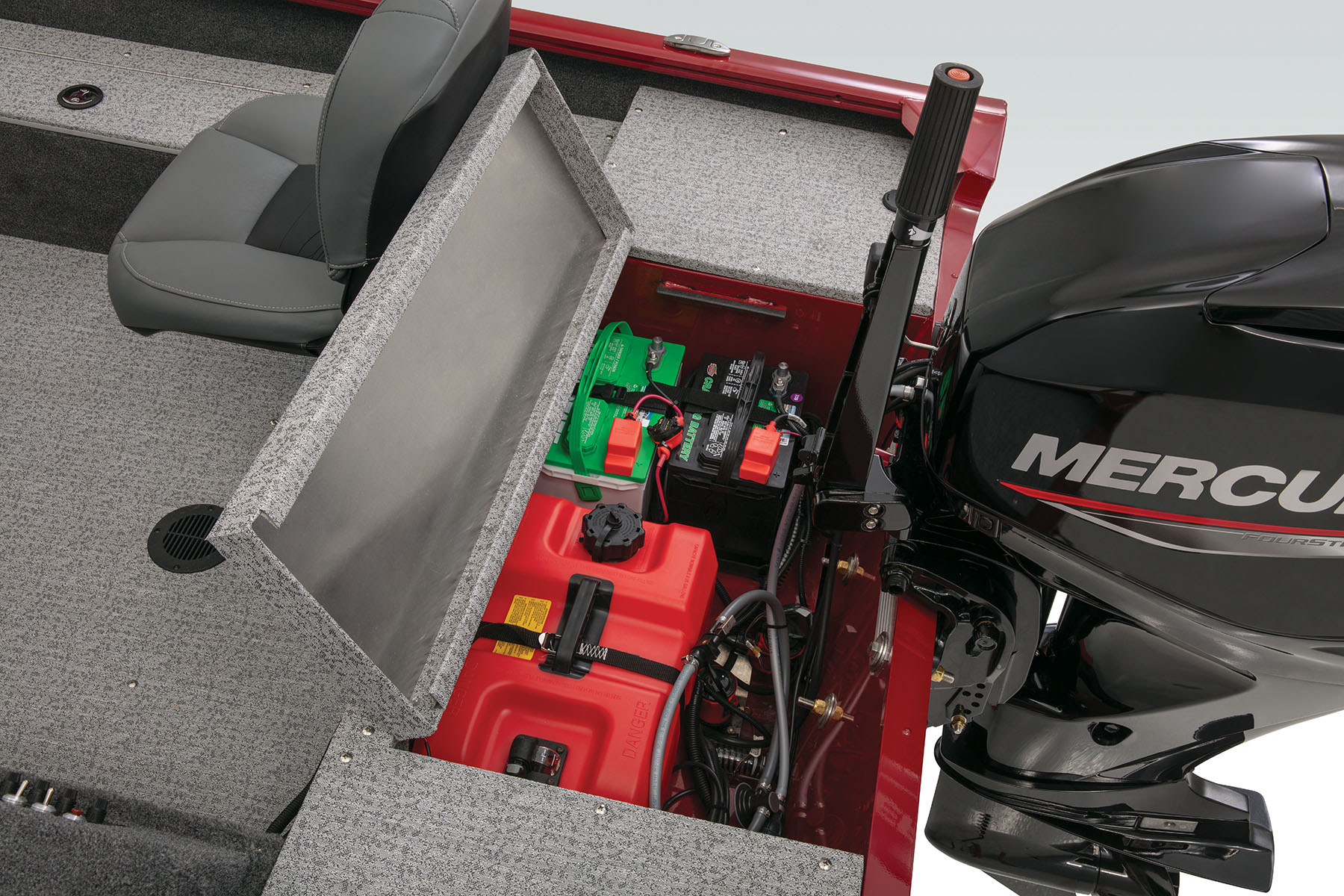

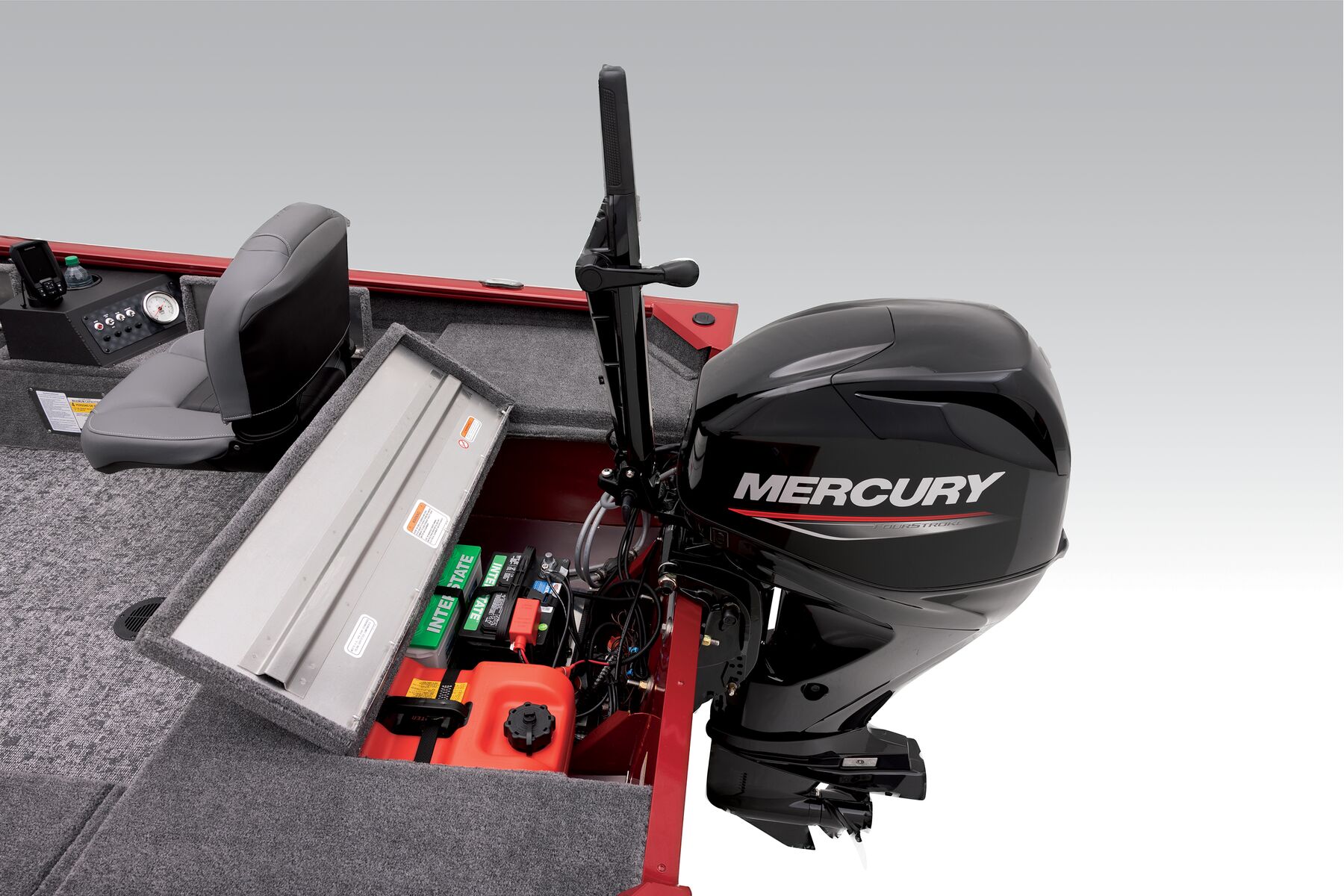

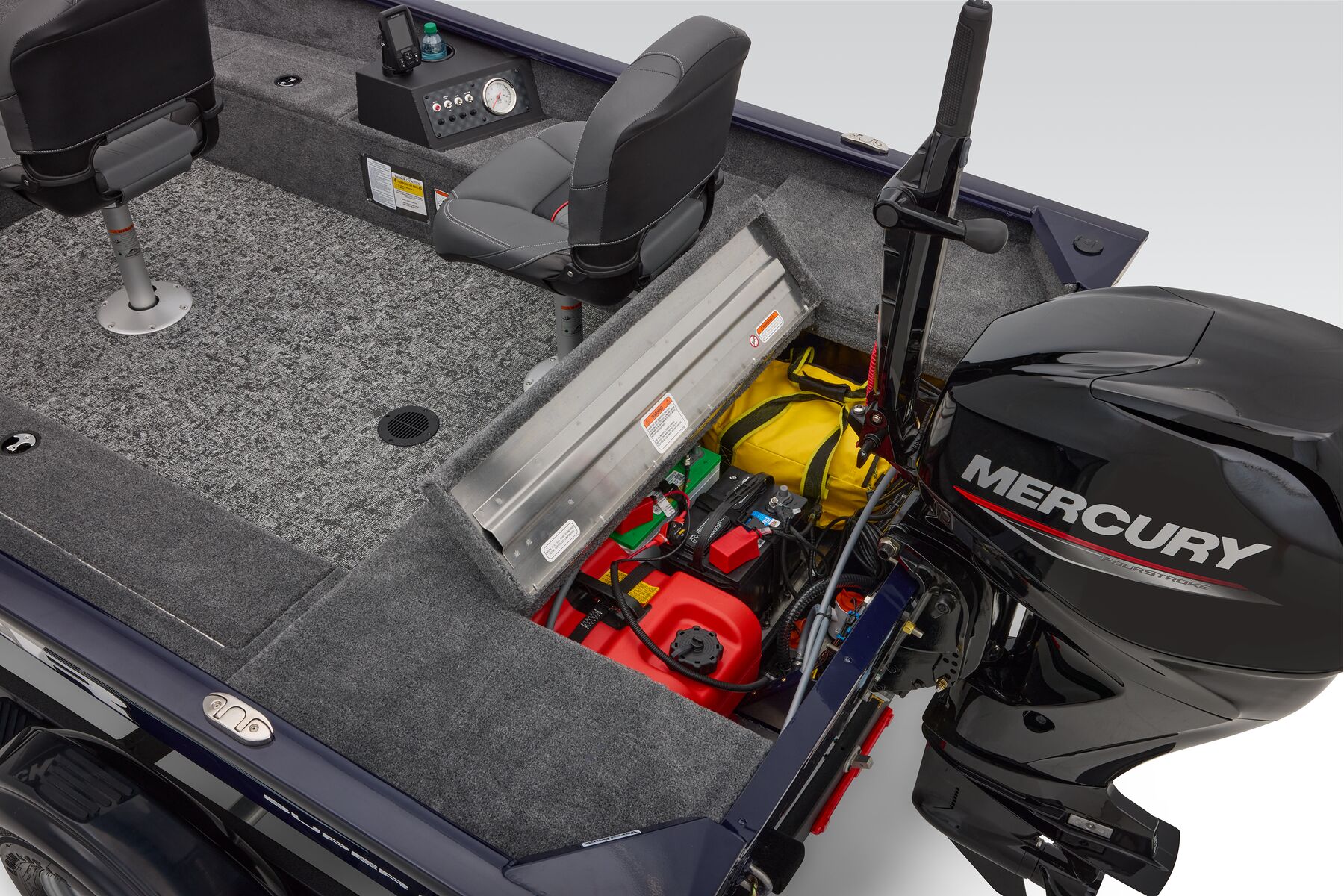

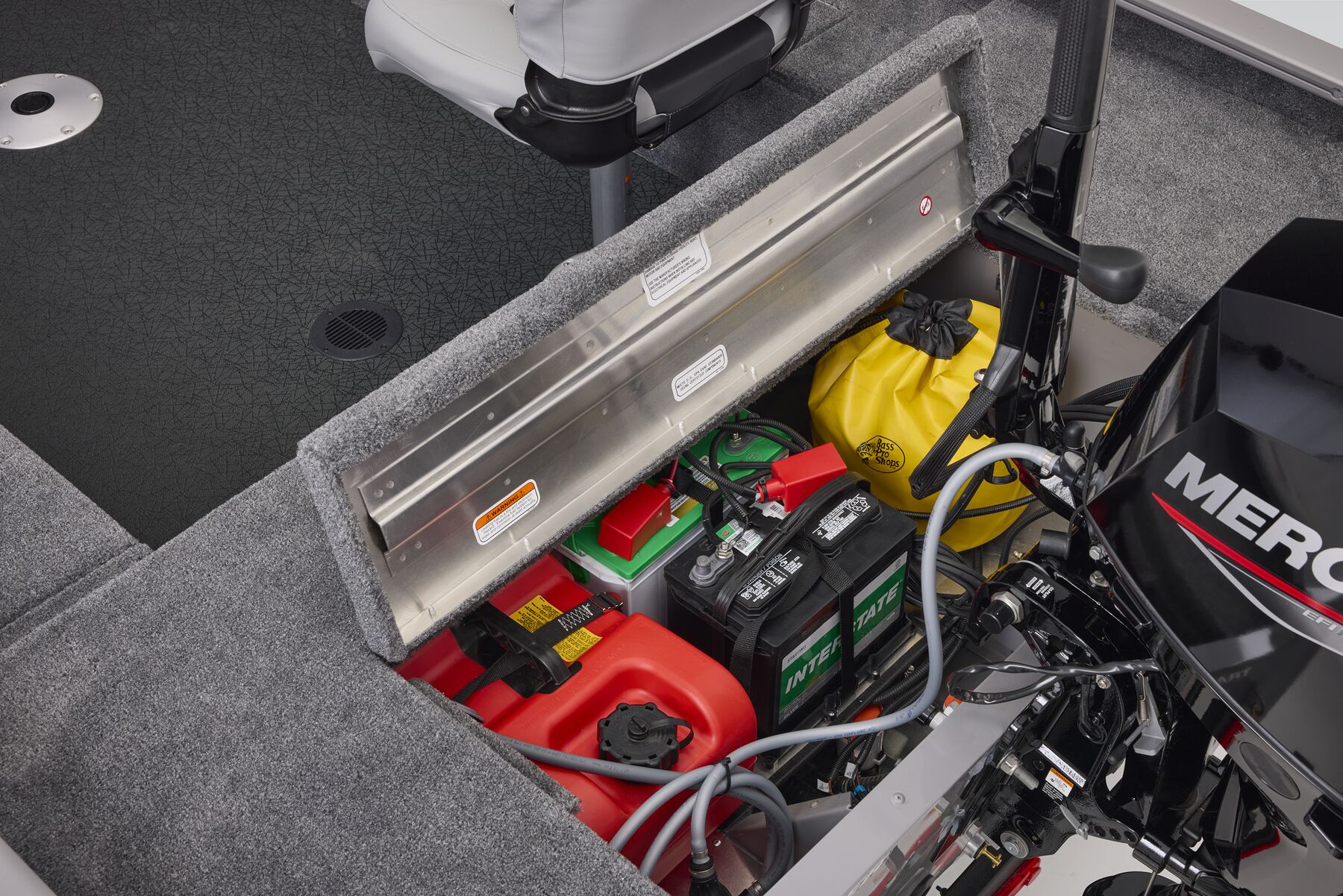

- 2 battery trays
- Interstate® batteries: 1 cranking & 1 trolling
- Console-mounted 12V outlet
- Wiring system wrapped in abrasion-resistant protective conduit
Trailer

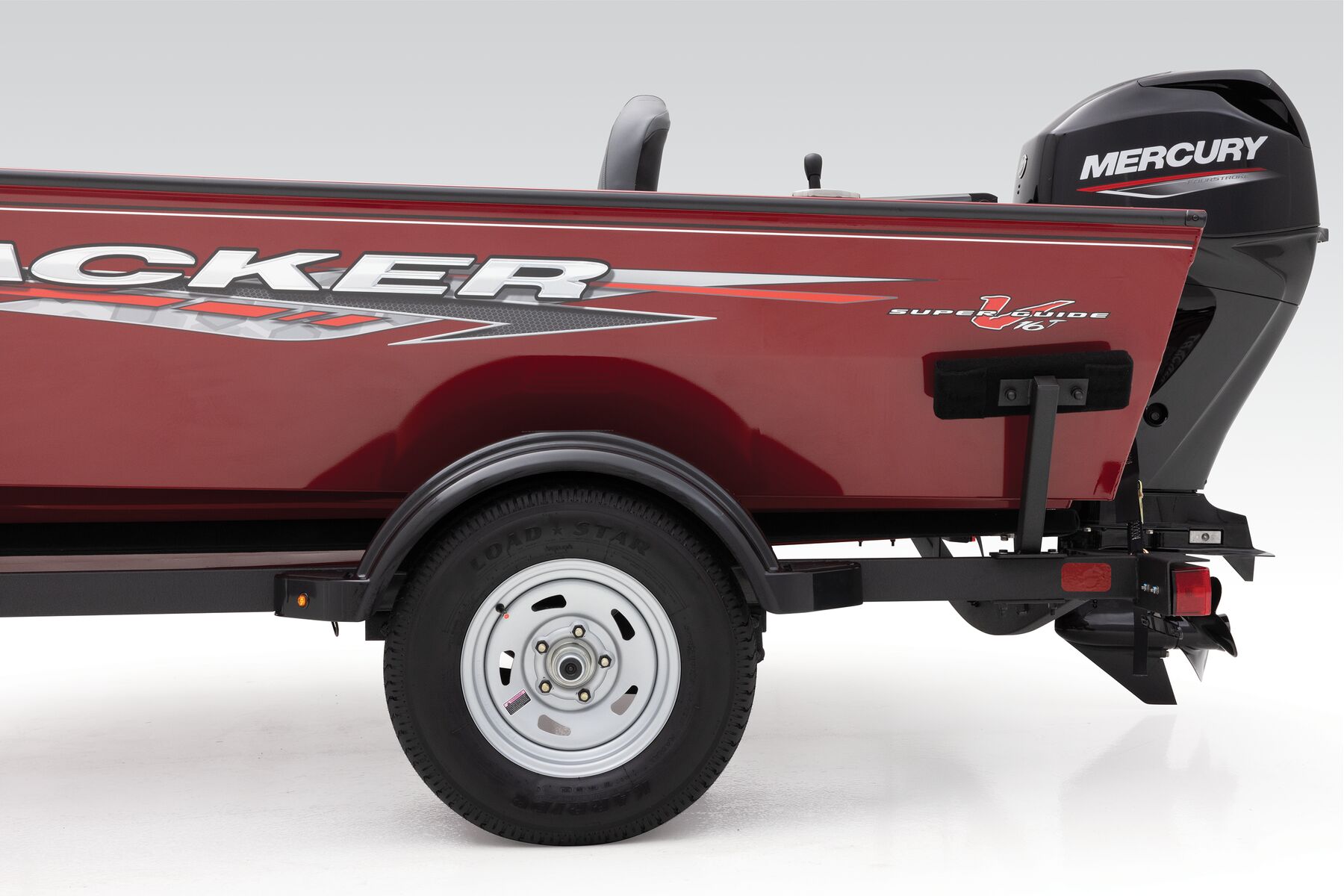

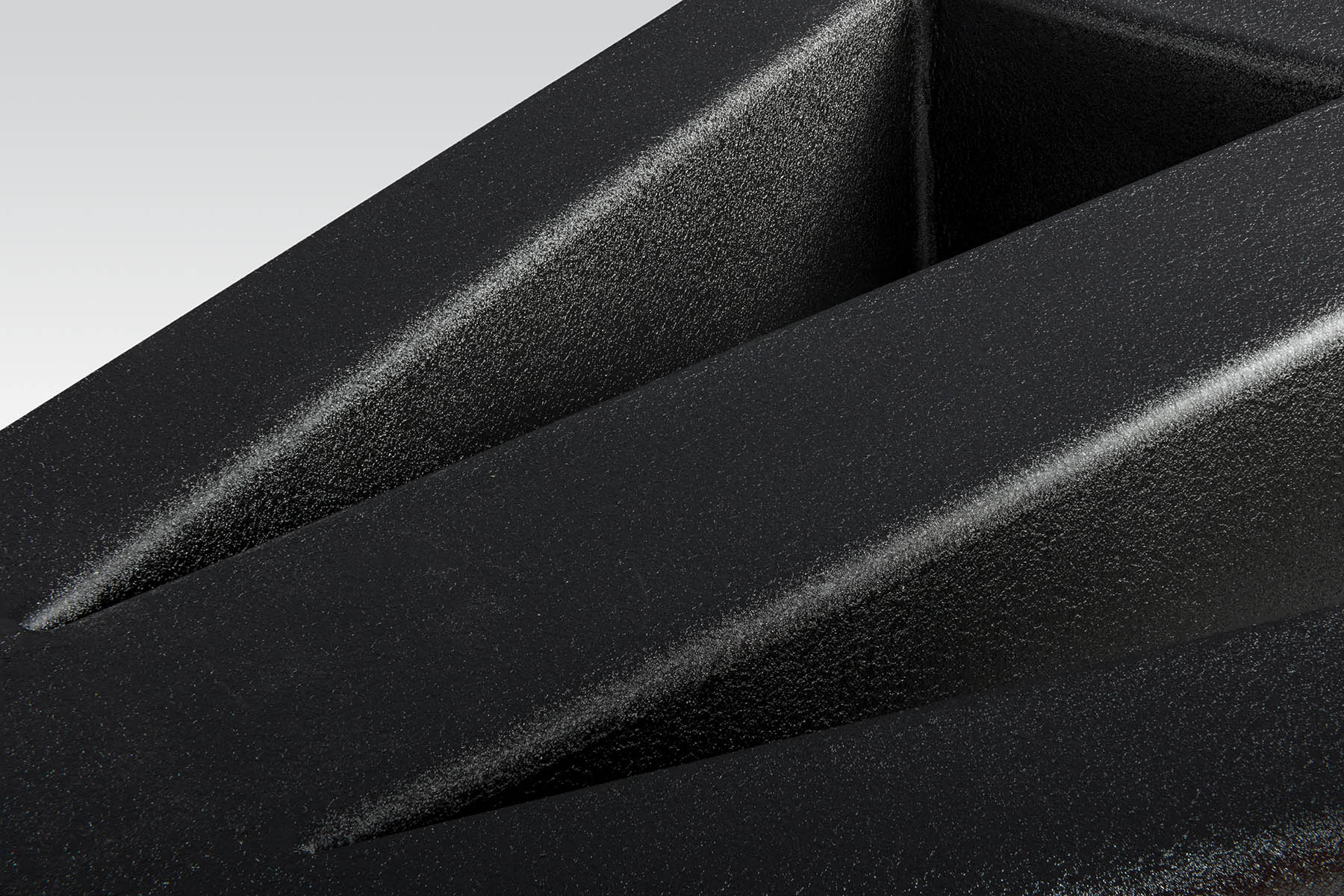

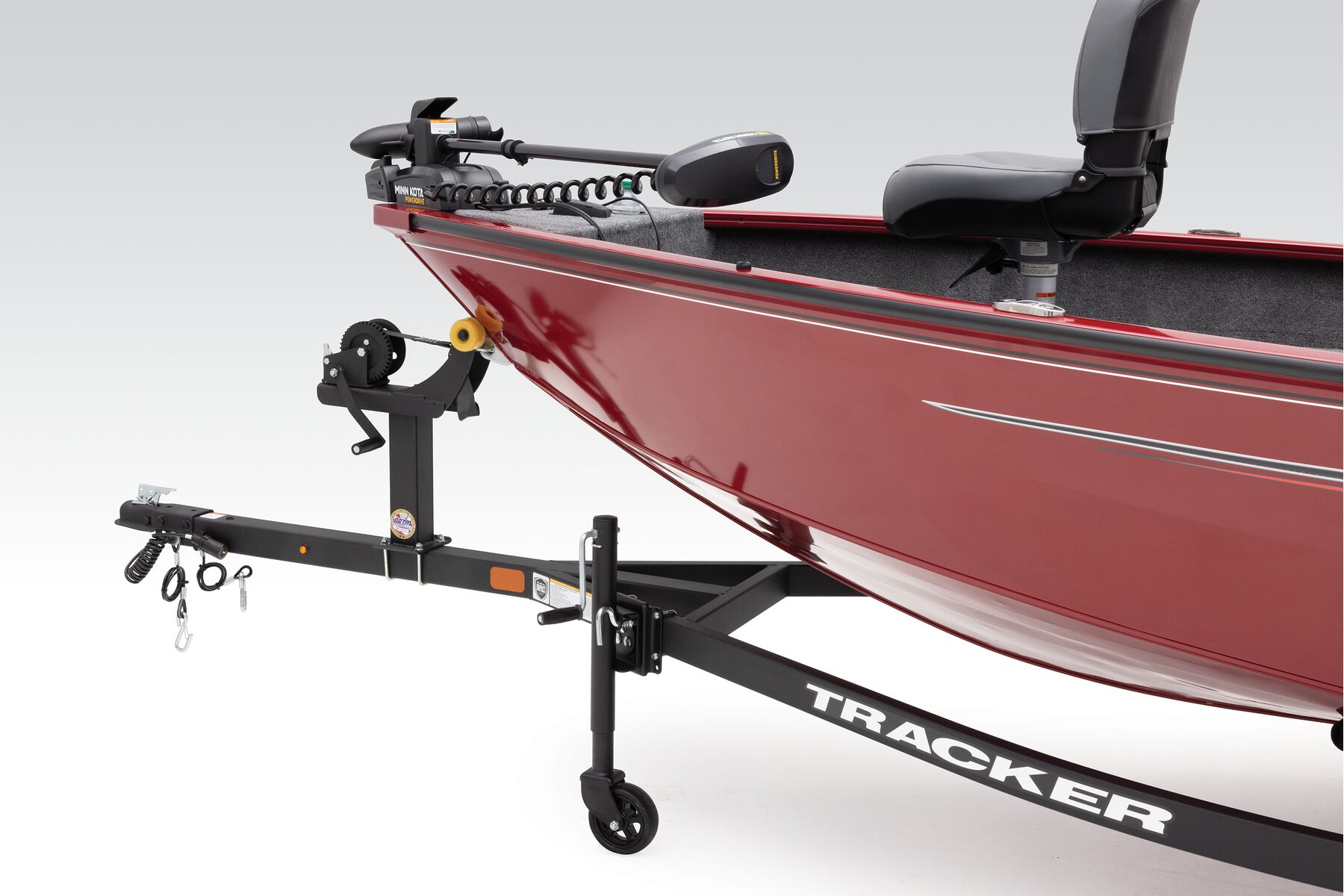

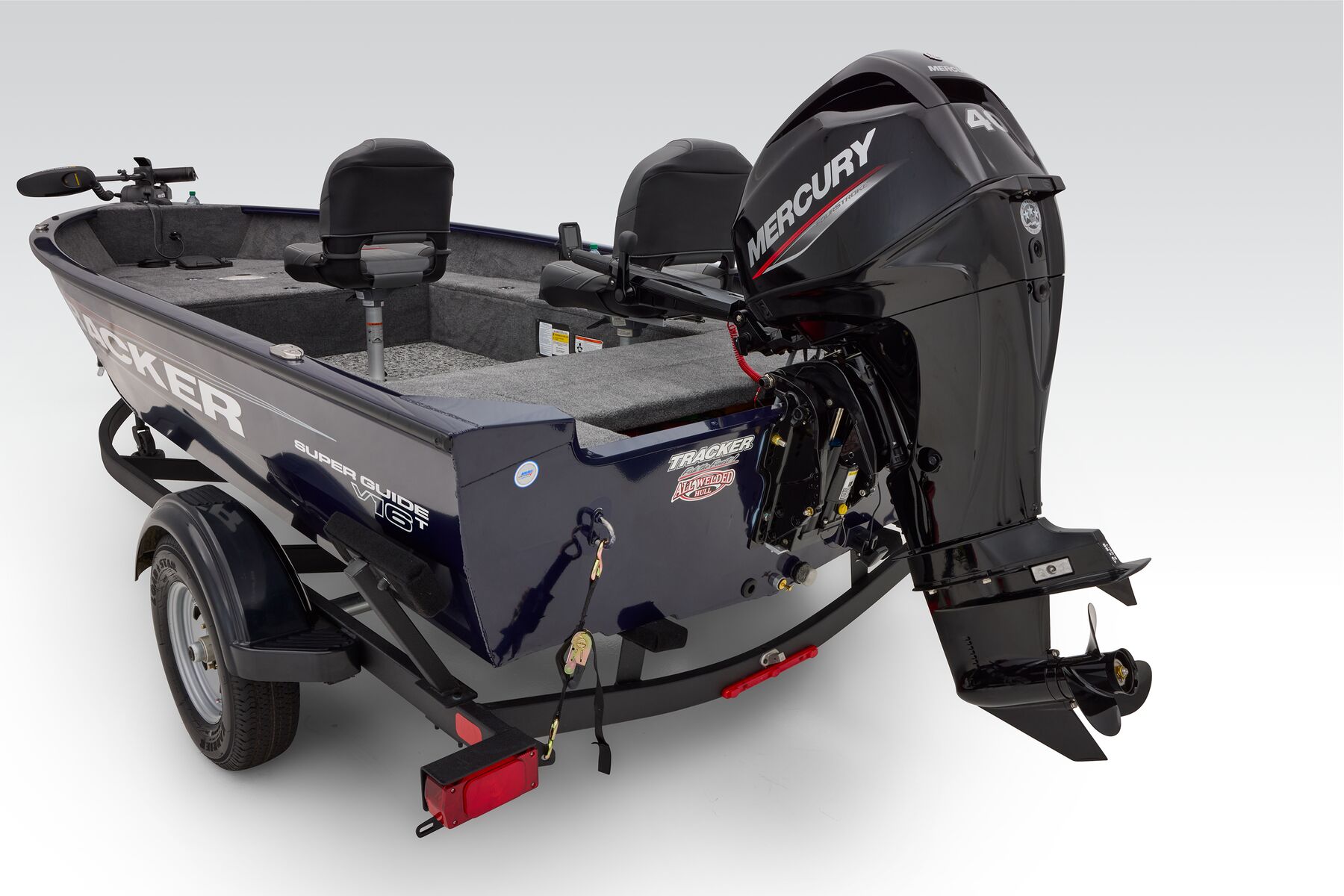

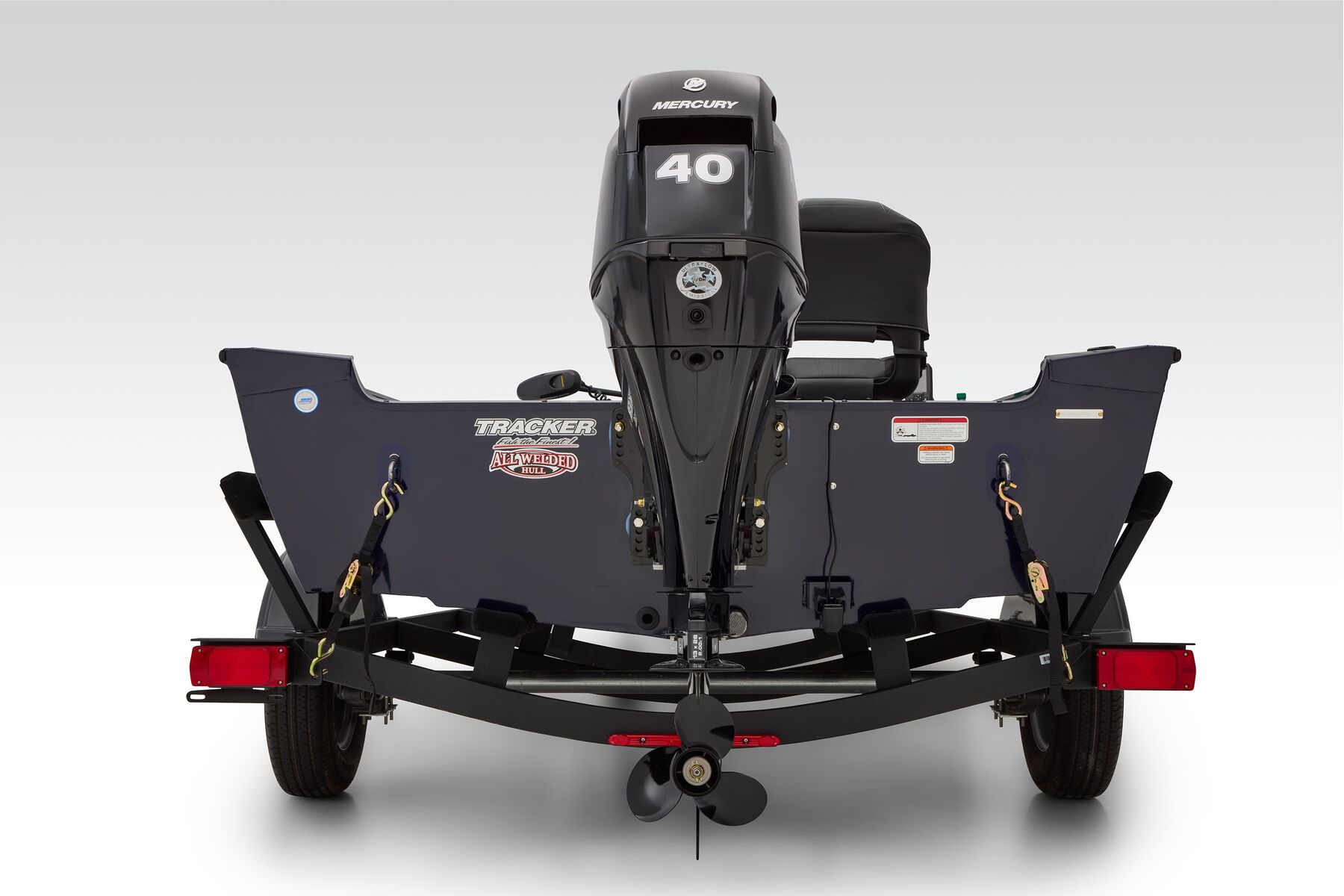

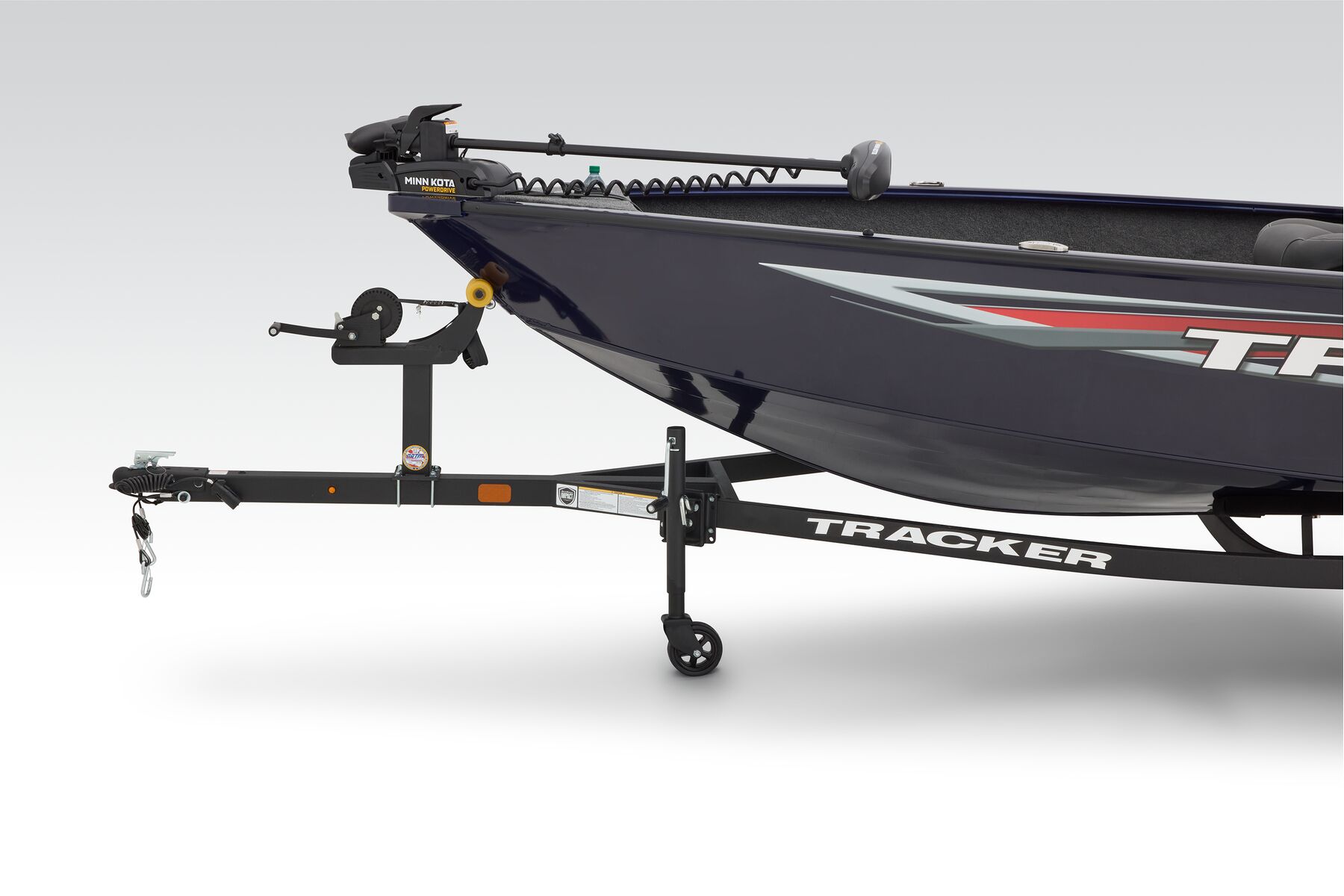

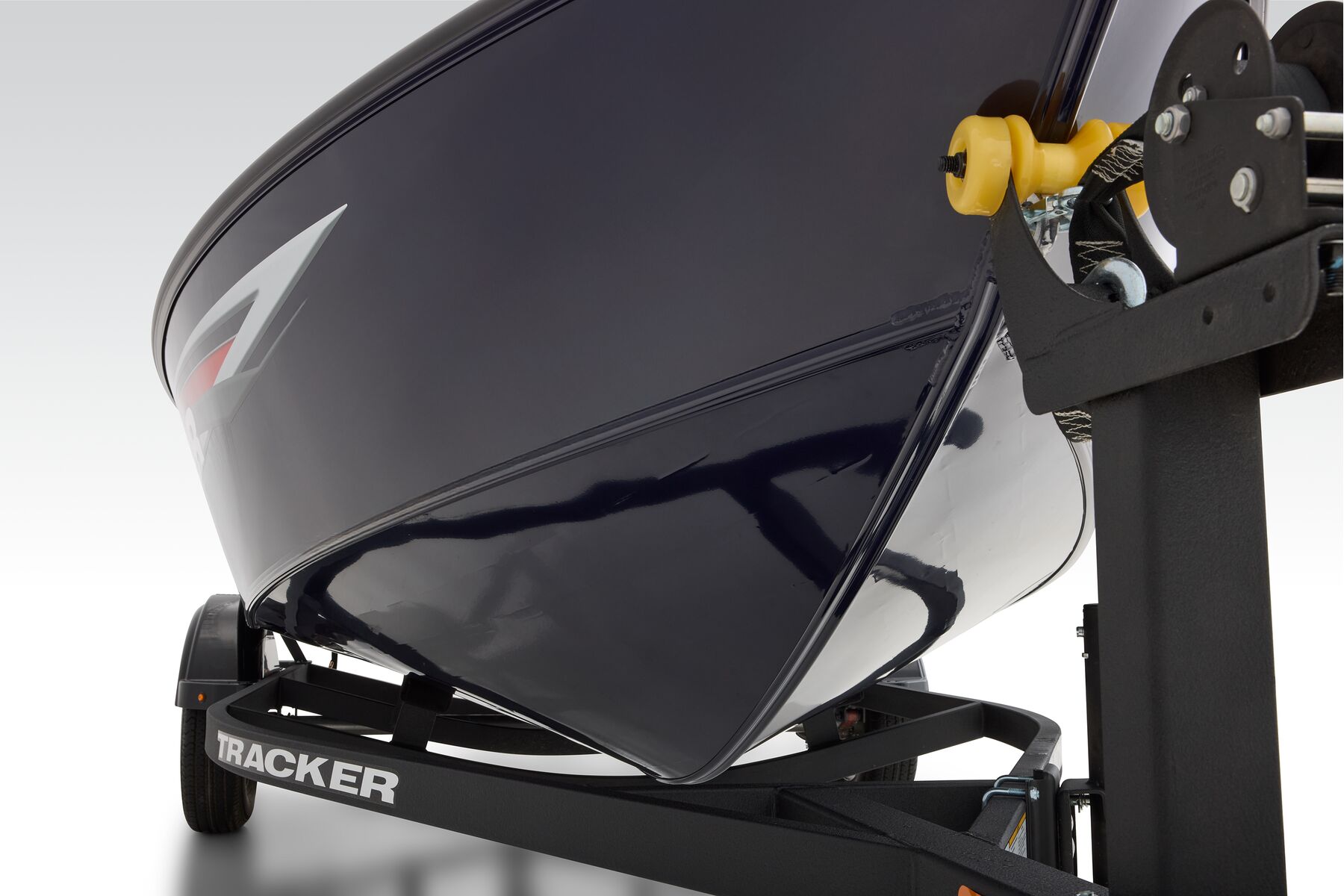

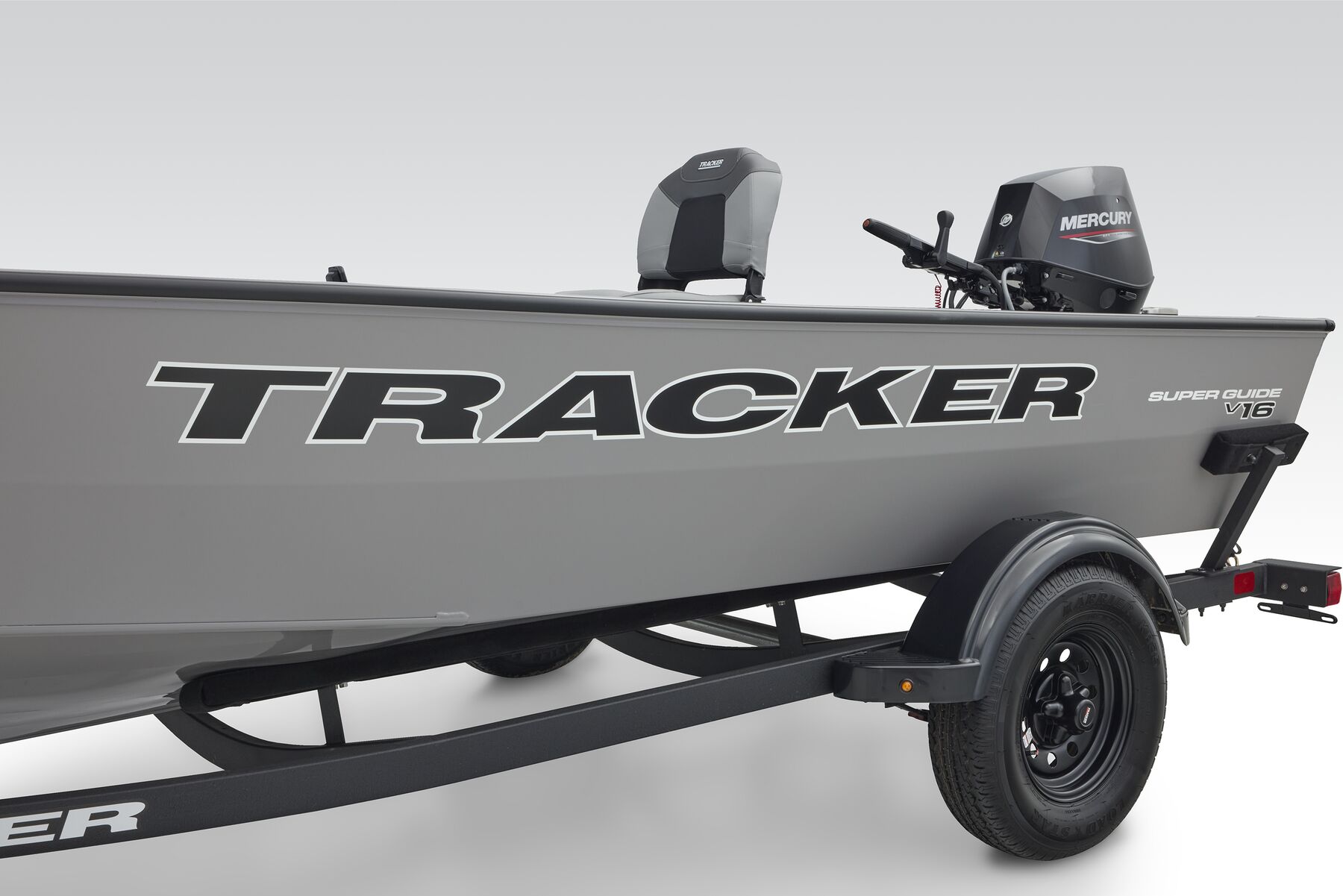

- Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability

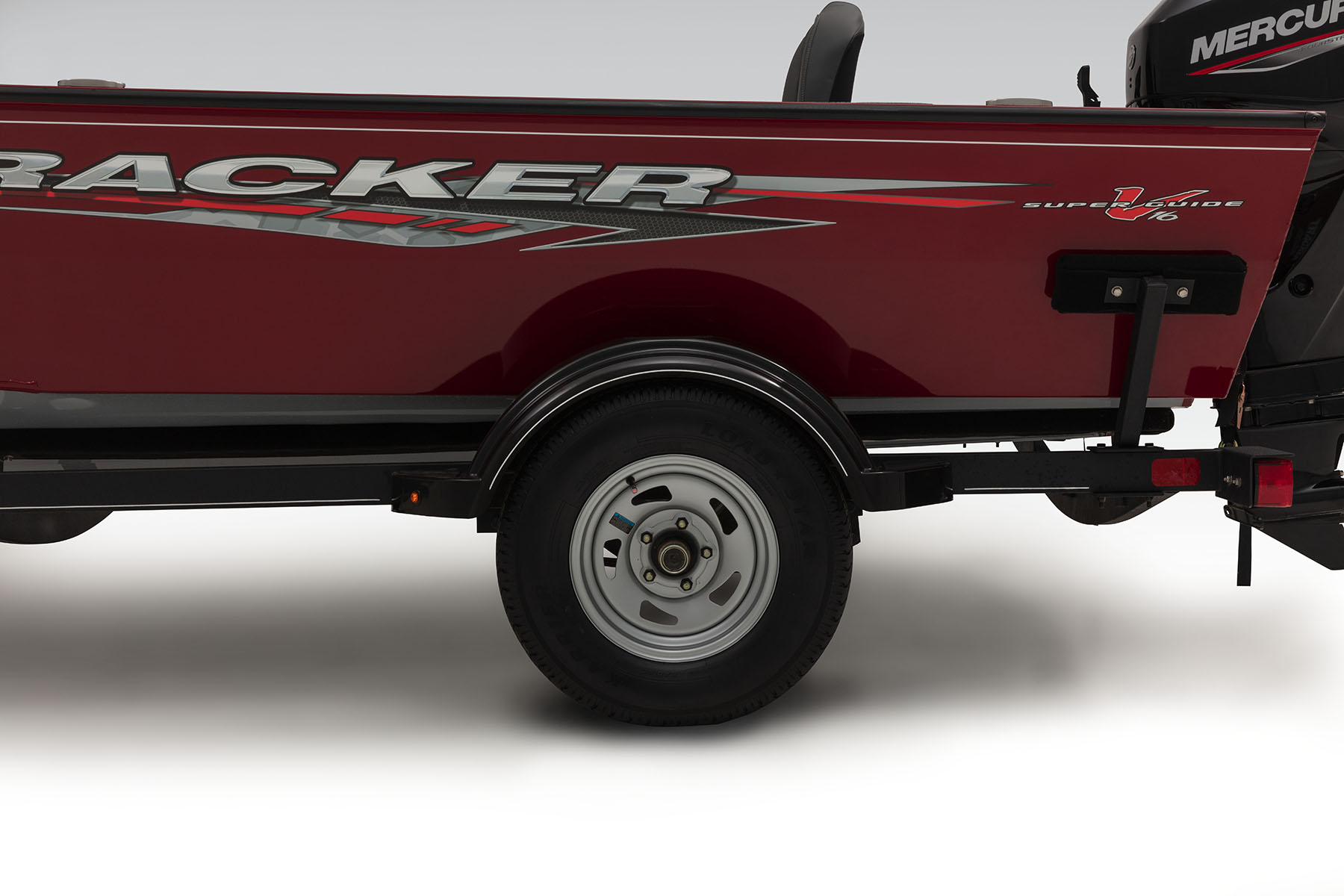

- 13" (33.02 cm) Silver Metallic powdercoated wheels w/radial tires
- Hubs designed for quick & easy hub lubrication

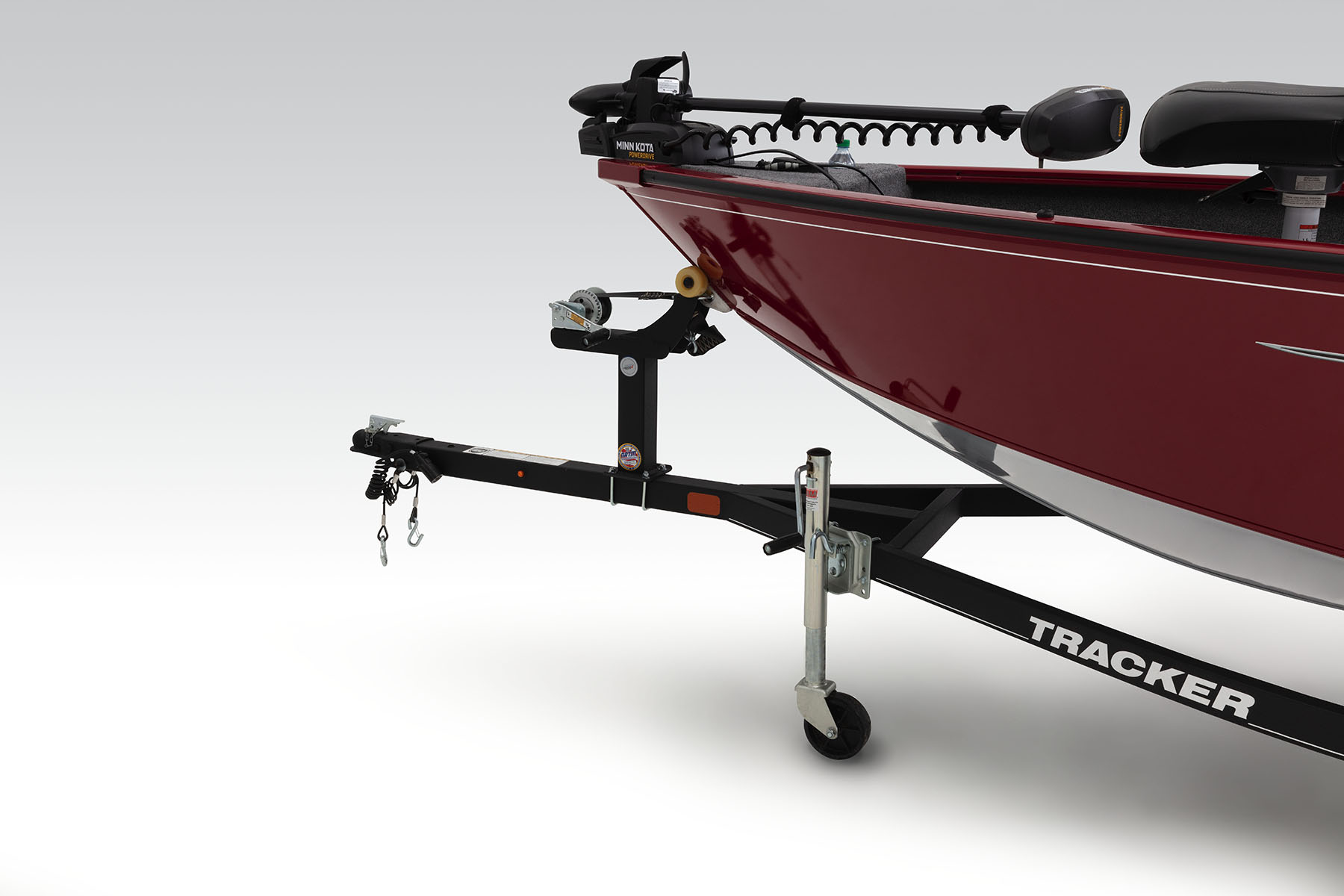

- Pivot-up locking jack w/swivel wheel
- Heavy-duty winch w/nylon strap & bow safety strap

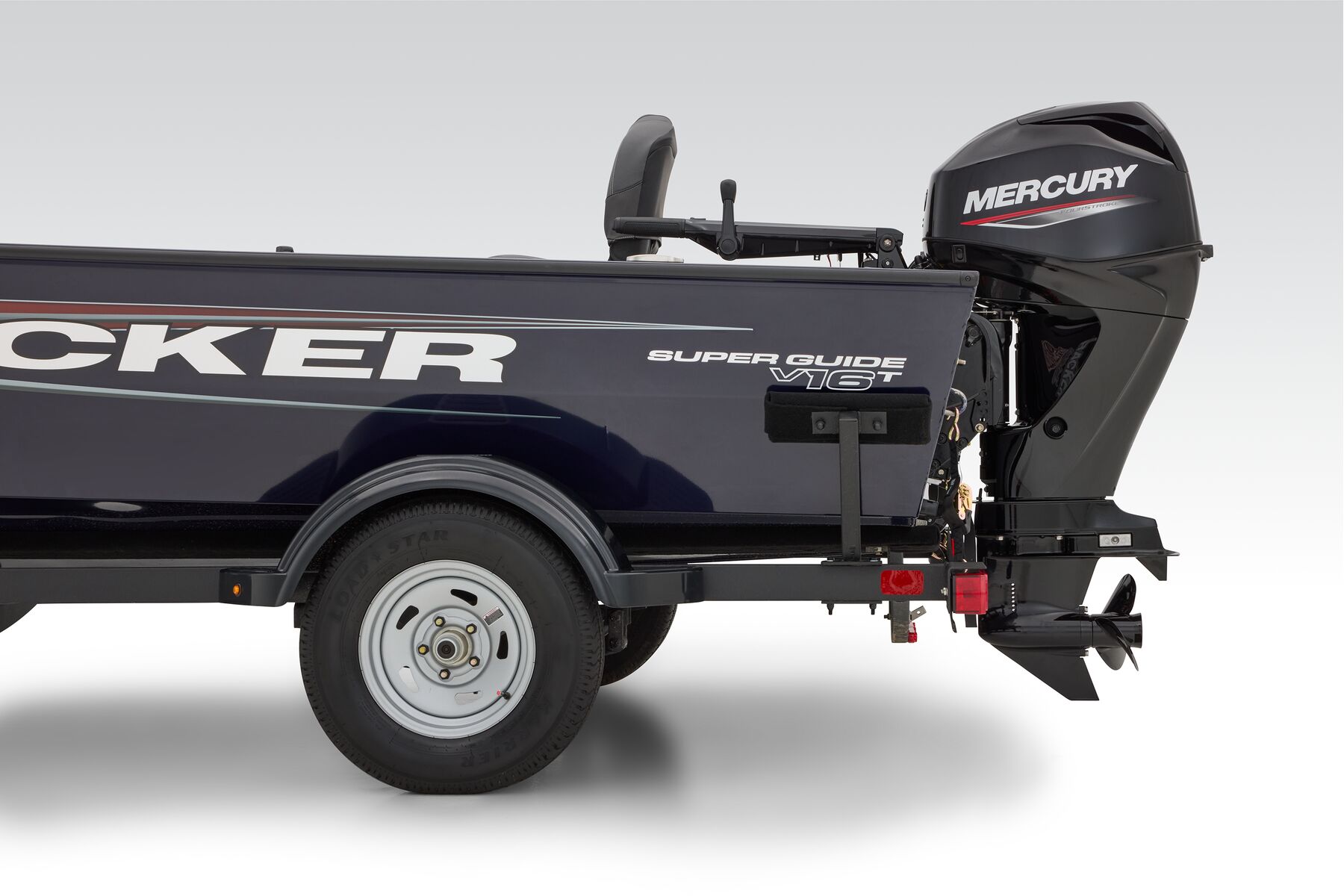

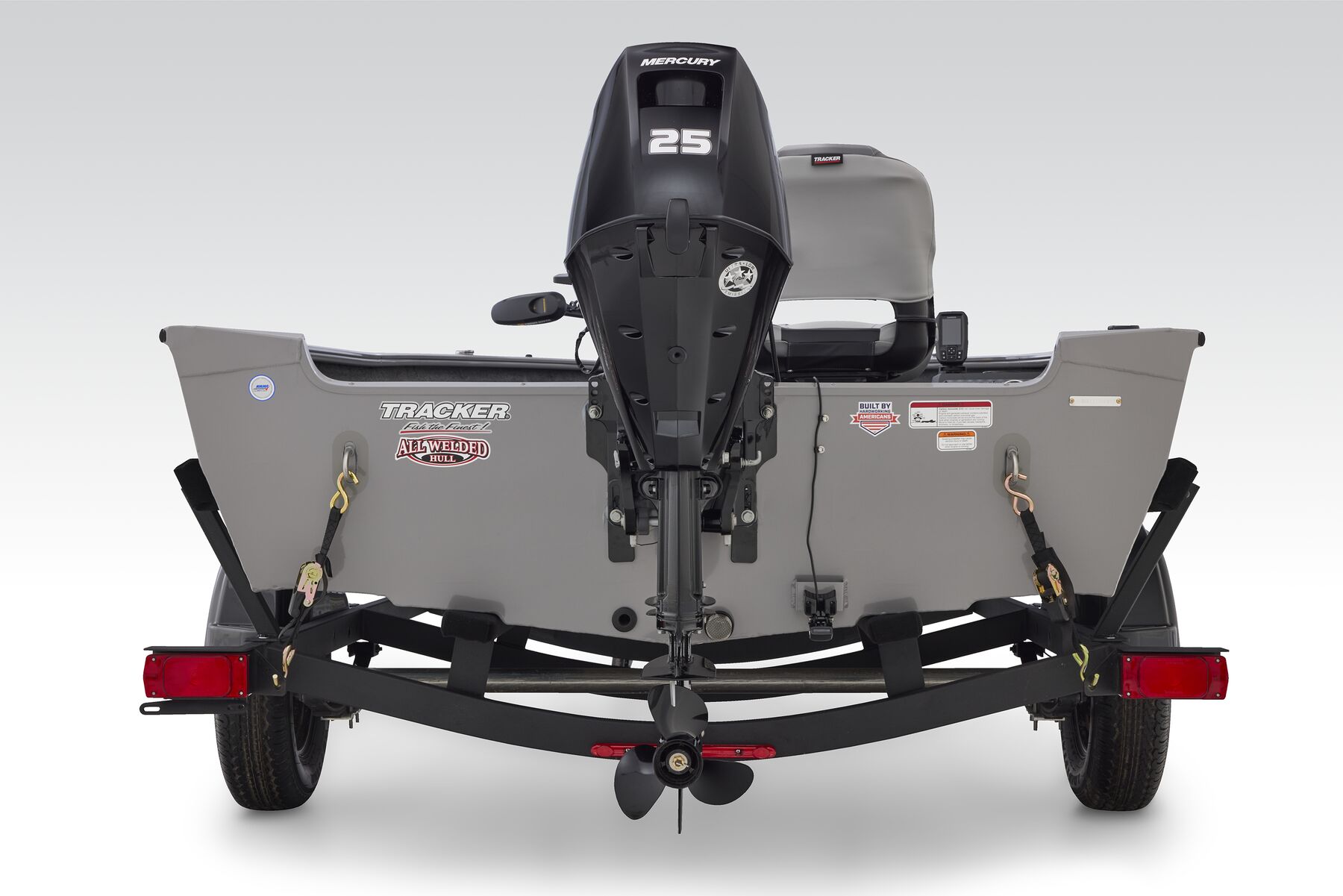

- Outboard motor support to reduce hull & transom stress while towing
- Heavy-duty upright load guides for easy, centered loading
- Carpeted bunks to protect hull
- Submersible LED lighting
- Nylon tie-down straps (supplied w/boat package)
- Safety cables
Options
