Limited 2024 Availability
2020
Guide V-16 Laker DLX T
w/ 20 ELH FourStroke Mercury® FourStroke

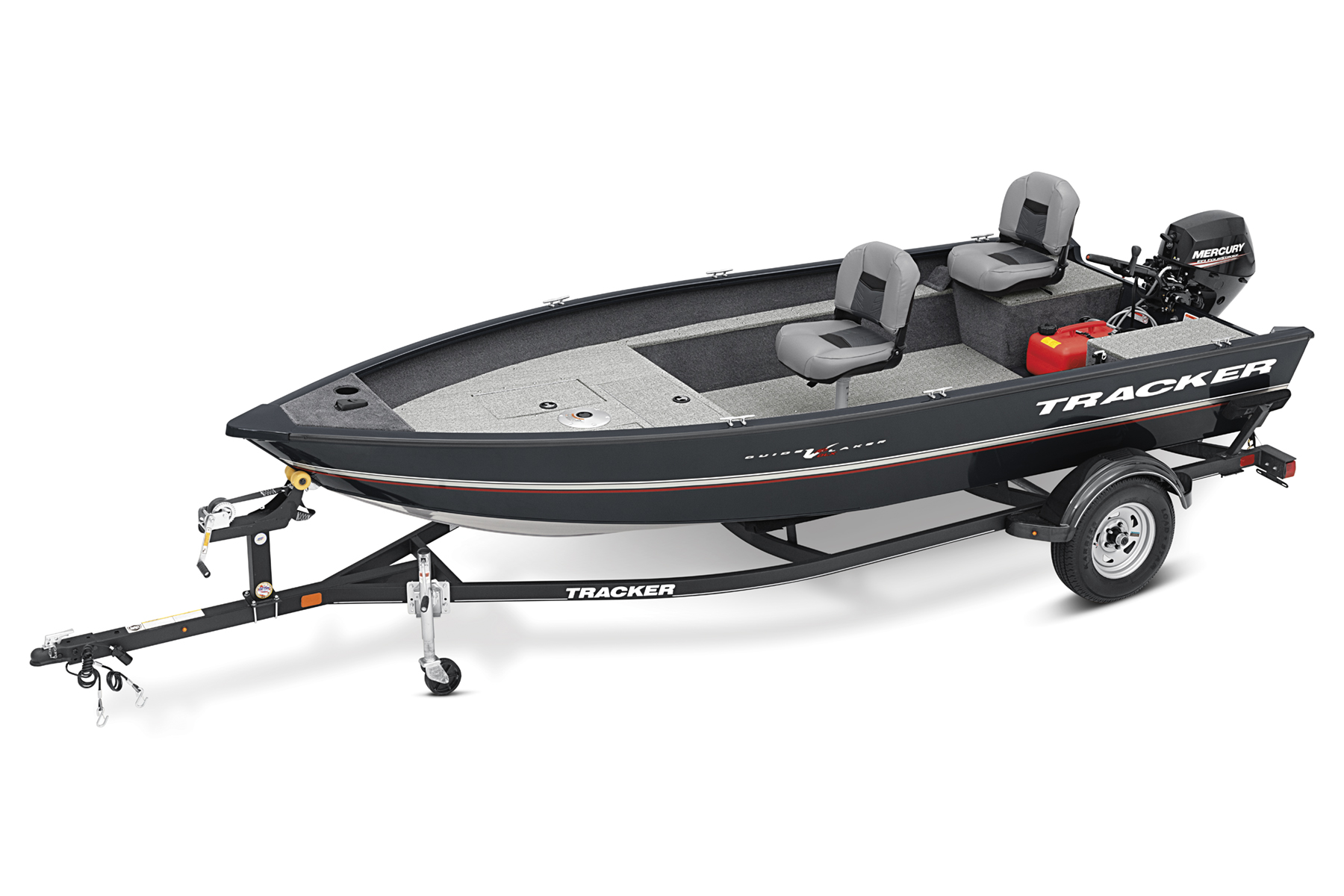

Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$10995
USD
|
Overview

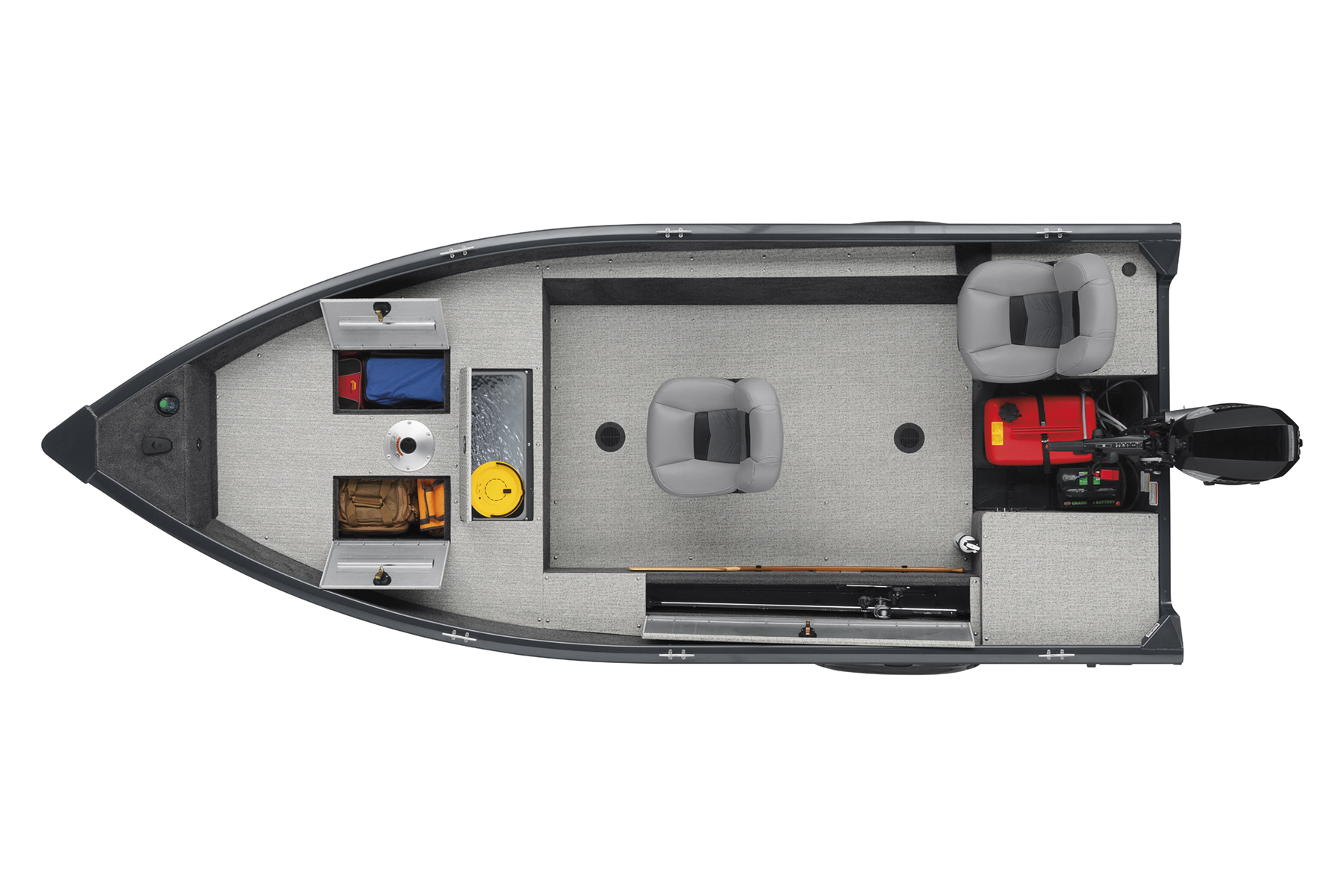

The TRACKER® Guide V-16 Laker DLX T is a no-frills, all-purpose fishing and utility boat that’s ideal trolling, casting, jugging or trotlining. The tiller-drive design leaves the entire cockpit open for unrestricted fishing, and the folding, movable fishing seat has bases in the cockpit floor and bow deck.
The Laker comes with a powerful, efficient Mercury® FourStroke outboard and a custom-matched GALVASHIELD® Impact trailer. And like every all-welded TRACKER, it’s backed by the TRACKER PROMISE—the best factory warranty in aluminum boats.
Specifications
| Length | 4.88 m | 16' |
| Beam | 1.88 m | 6' 2'' |
| Bottom Width | 1.52 m | 5' |
| Max. Recommended HP | 40 HP | |
| Fuel Capacity | 22.71 L | 6 gal. |
| Max. Person Capacity | 4 persons | |
| Max. Person Weight | 272.16 kg | 600 lbs. |
| Max. Person, Motor & Gear Weight | 498.95 kg | 1100 lbs. |
| Interior Depth | 48.26 cm | 19'' |
| Transom Height | 53.34 cm | 21'' |
| Deadrise At Bow | 12 degrees | |
| Deadrise At Transom | 8 degrees | |
| Hull Material | 0.100 5052 marine alloy | |
| Average Dry Weight | 321.14 kg | 708 lbs. |
| Average Package Weight | 673.13 kg | 1484 lbs. |
| Package Height | 1.73 m | 5' 8'' |
| Package Width | 2.08 m | 6' 10'' |
| Towing Length | 6.45 m | 21' 2'' |
| Storage Length (w/Outboard Trimmed Down) | 6.45 m | 21' 2'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELH FourStroke | - |
$9930 USD
|
Select Dealer | ||
| 20 ELH FourStroke | - |
$10995 USD
|
Select Dealer | ||
| 25 ELHPT FourStroke | - |
$12315 USD
|
Select Dealer | ||
| 40 ELHPT FourStroke | 28-31 mph |
$13715 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
- Limited lifetime hull warranty
- NMMA® certified
- Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
- Bow & stern eyes

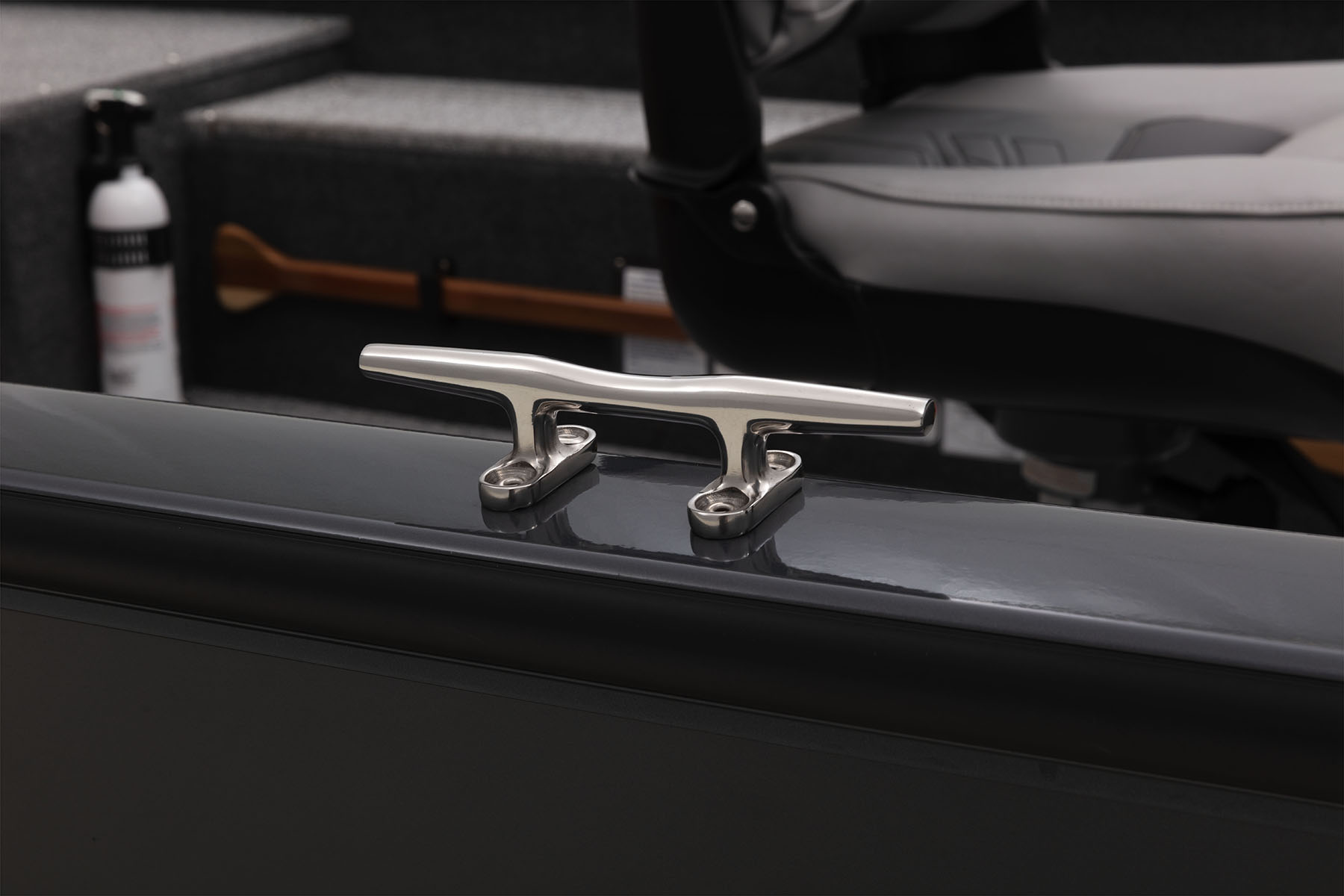

- 6 cleats including 2 midship cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn

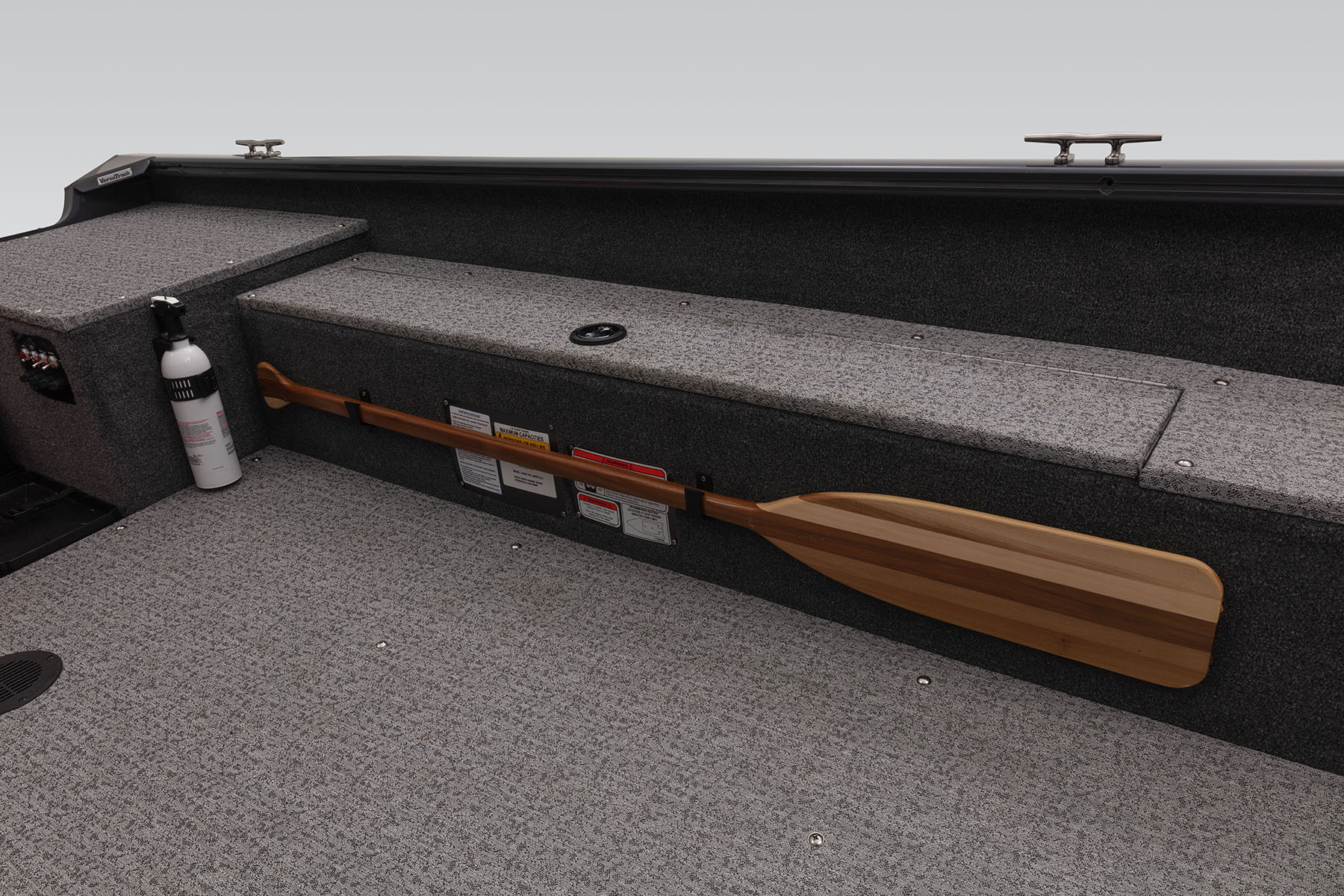

- Paddle
Livewell System

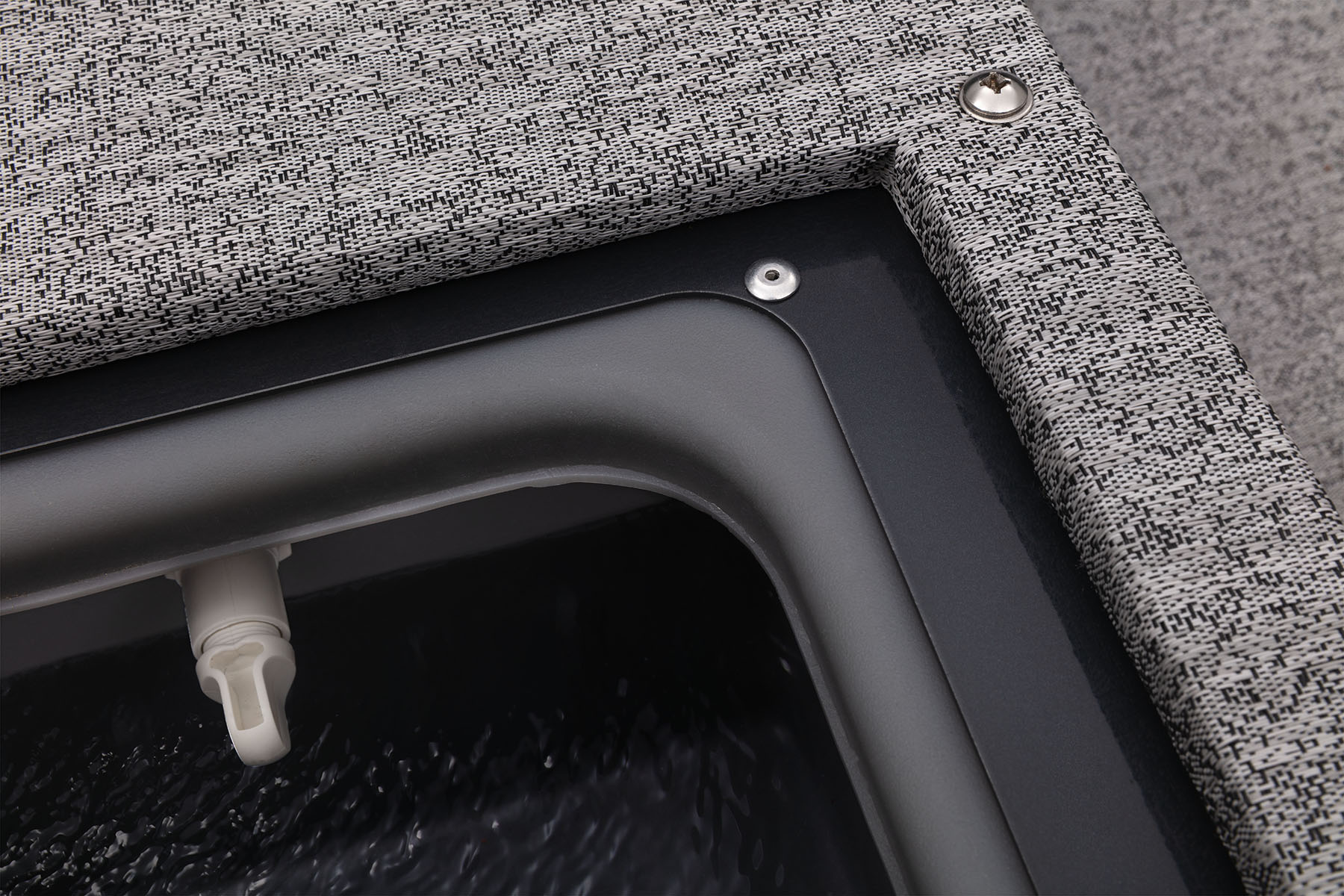

- Bow 15-gal. (56.78 L) aerated livewell w/bait bucket holder & standpipe overflow
- 500 GPH (1,892.71 LPH) aerator/fill pump
- Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
- Adjustable aerator heads for maximum water control

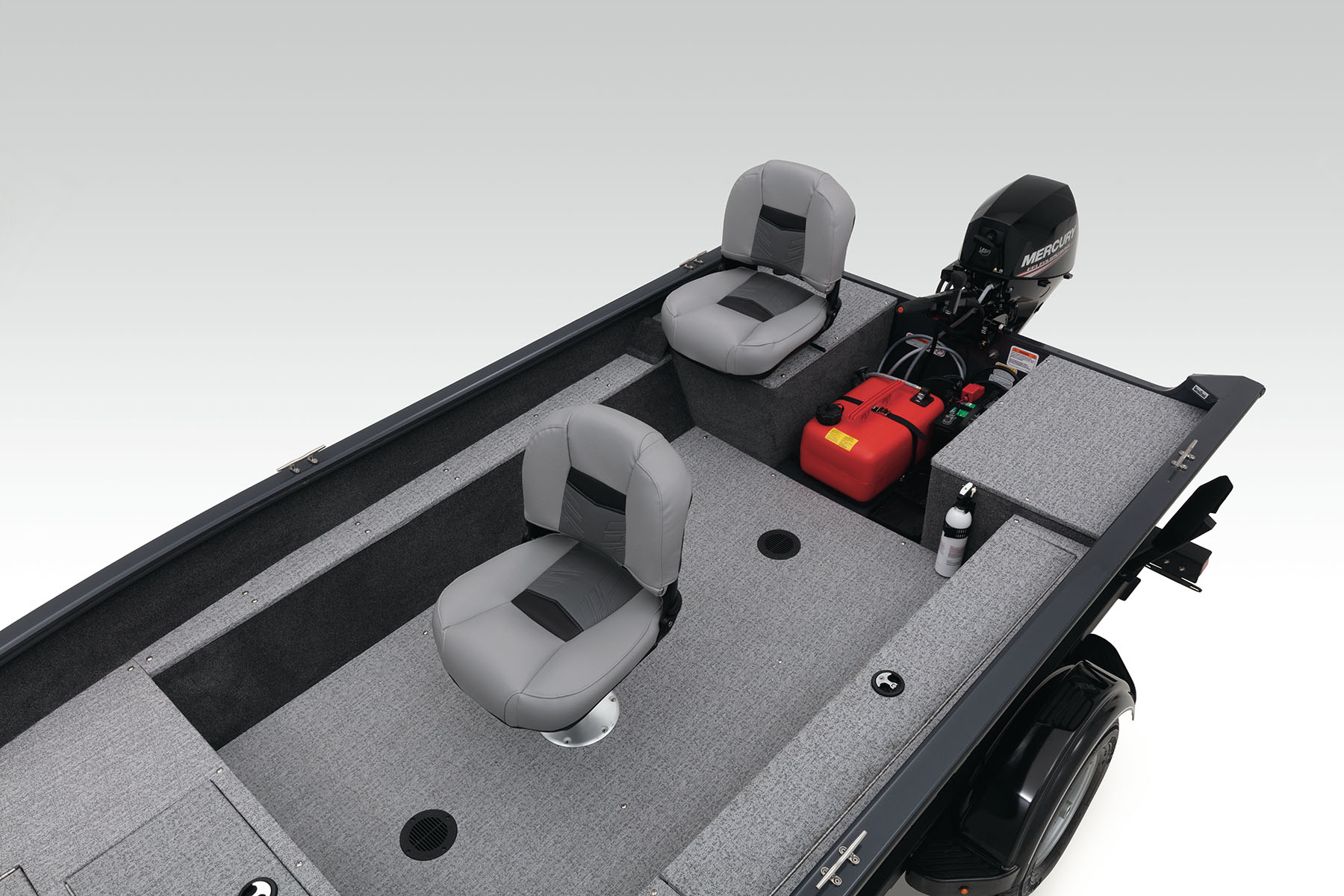

Interior

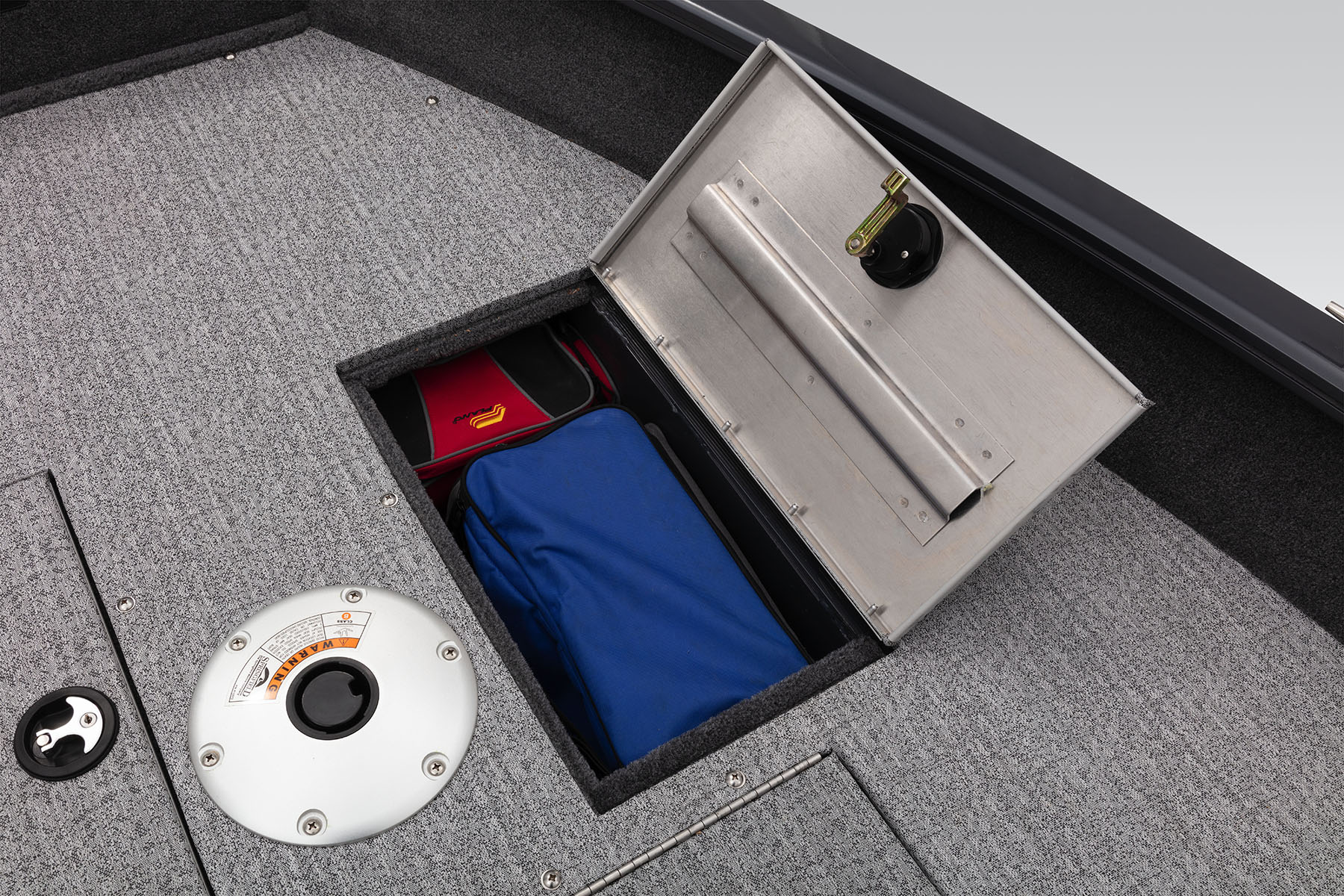

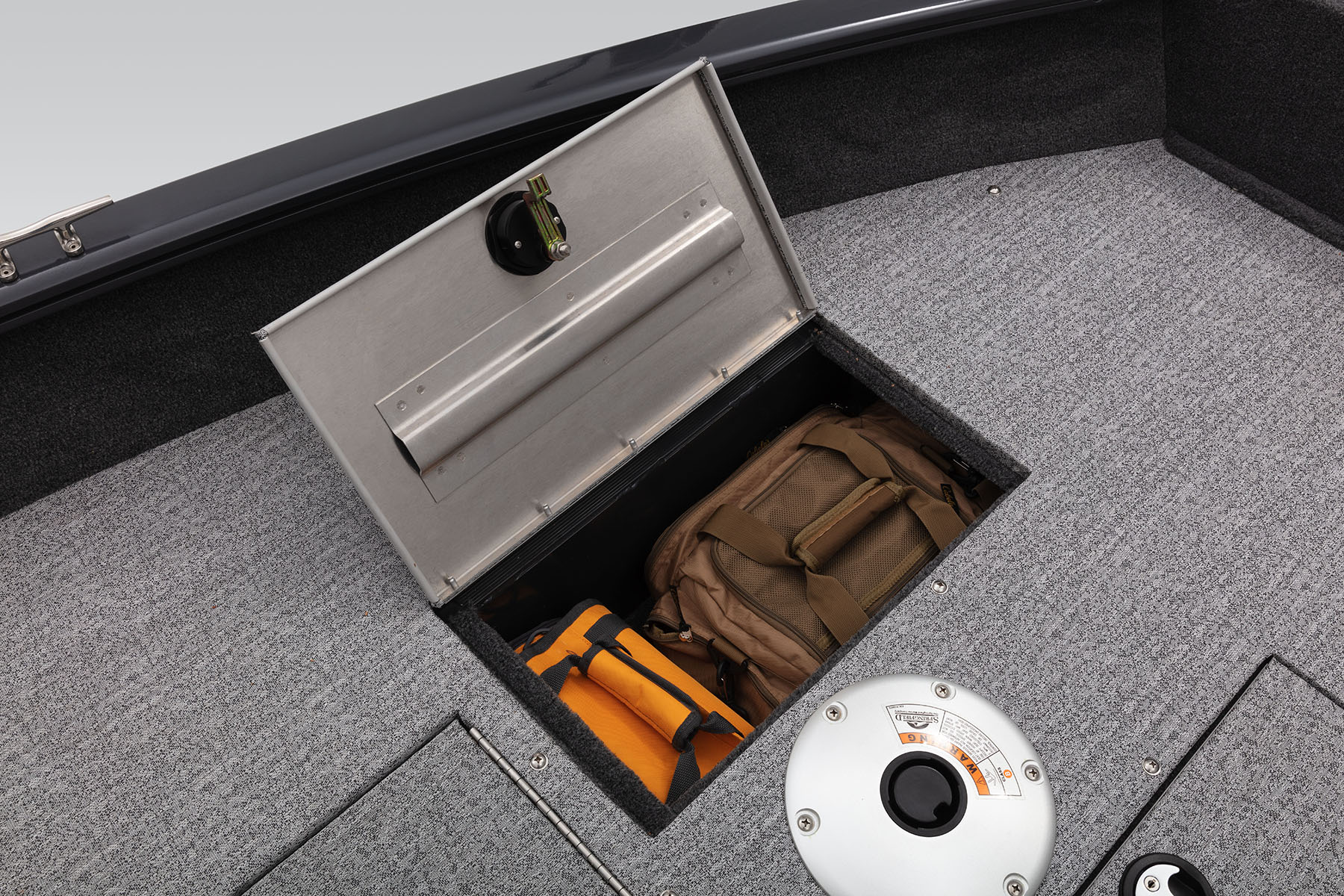

- Oversized raised bow deck w/port & starboard storage
- Bow & cockpit pedestal base locations

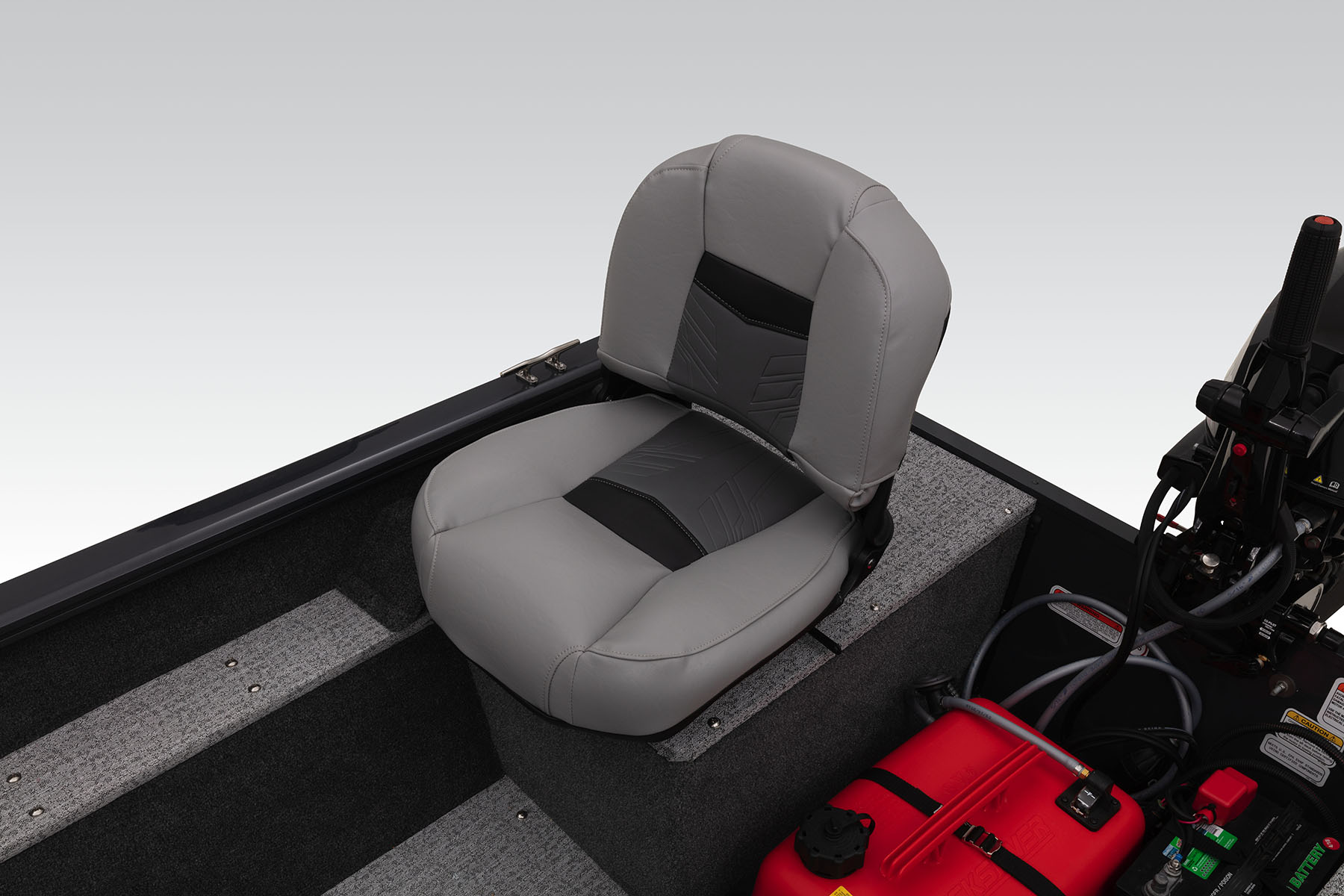

- Fixed-position driver's chair

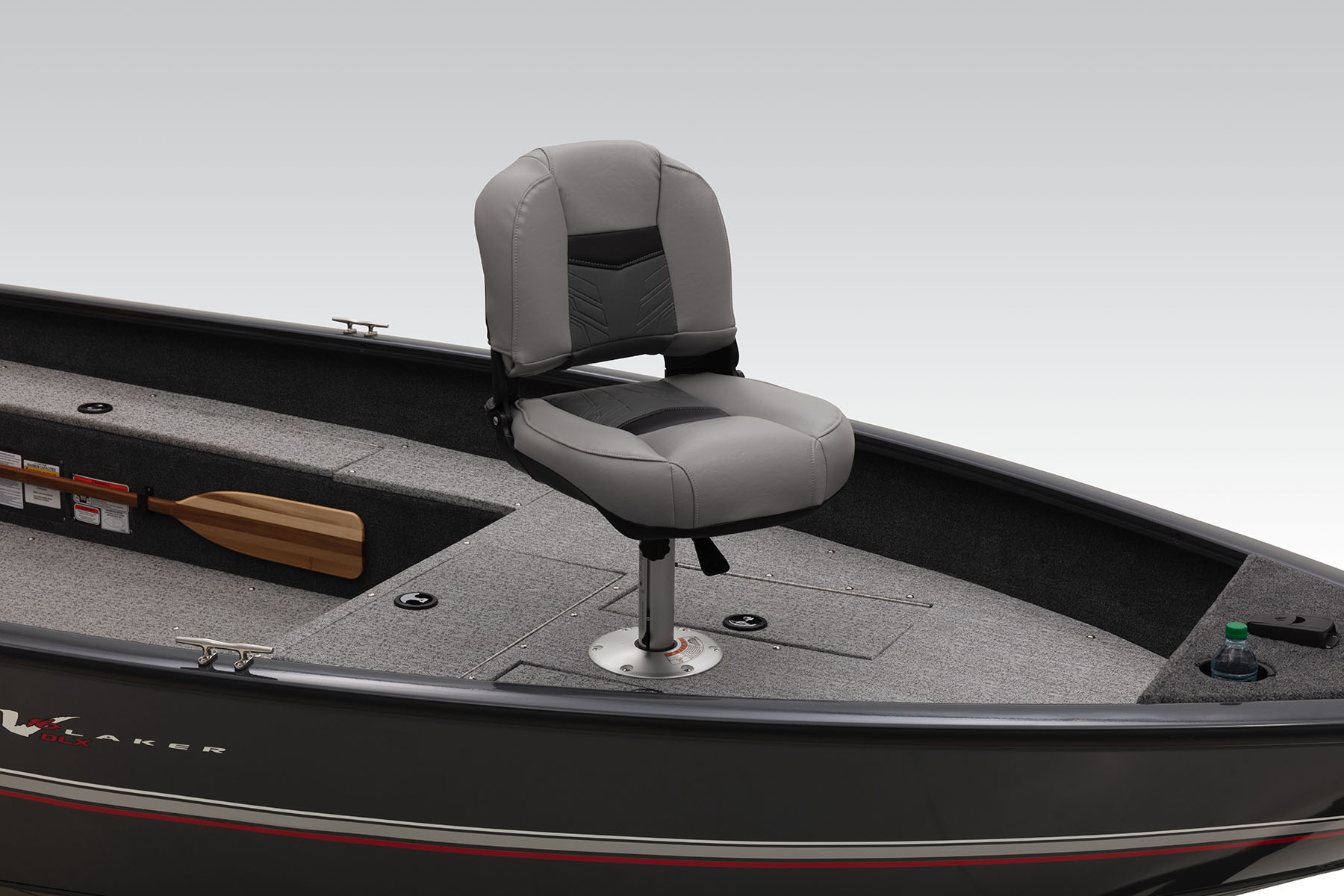

- Movable 360°-swivel & lock, folding fishing seat w/sturdy 2-3/8" (6.03 cm) seat pedestal
- Carpeted trolling motor deck w/drink holder

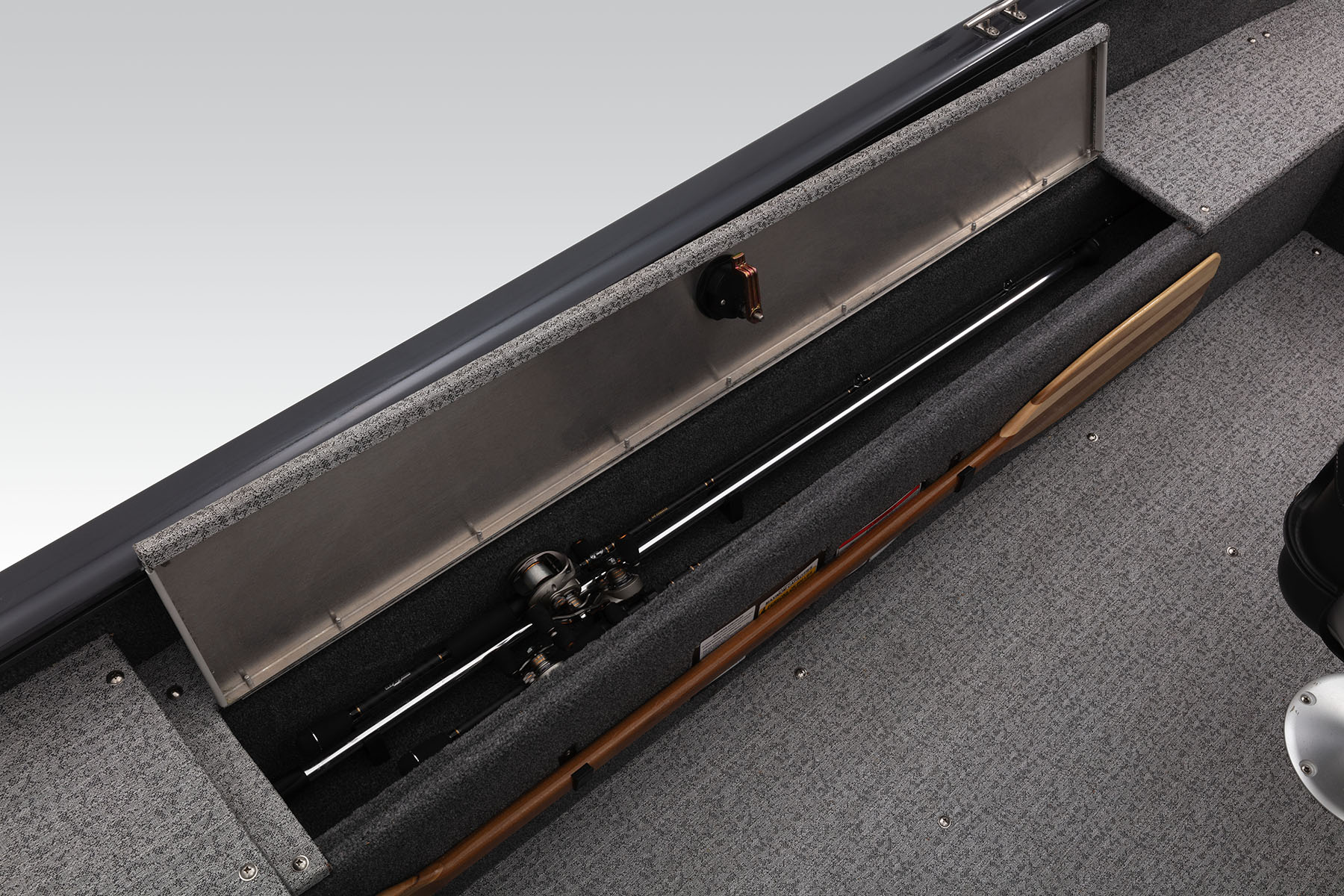

- Top-loading lockable port side rod box for rods to 7' 6" (2.29 m)

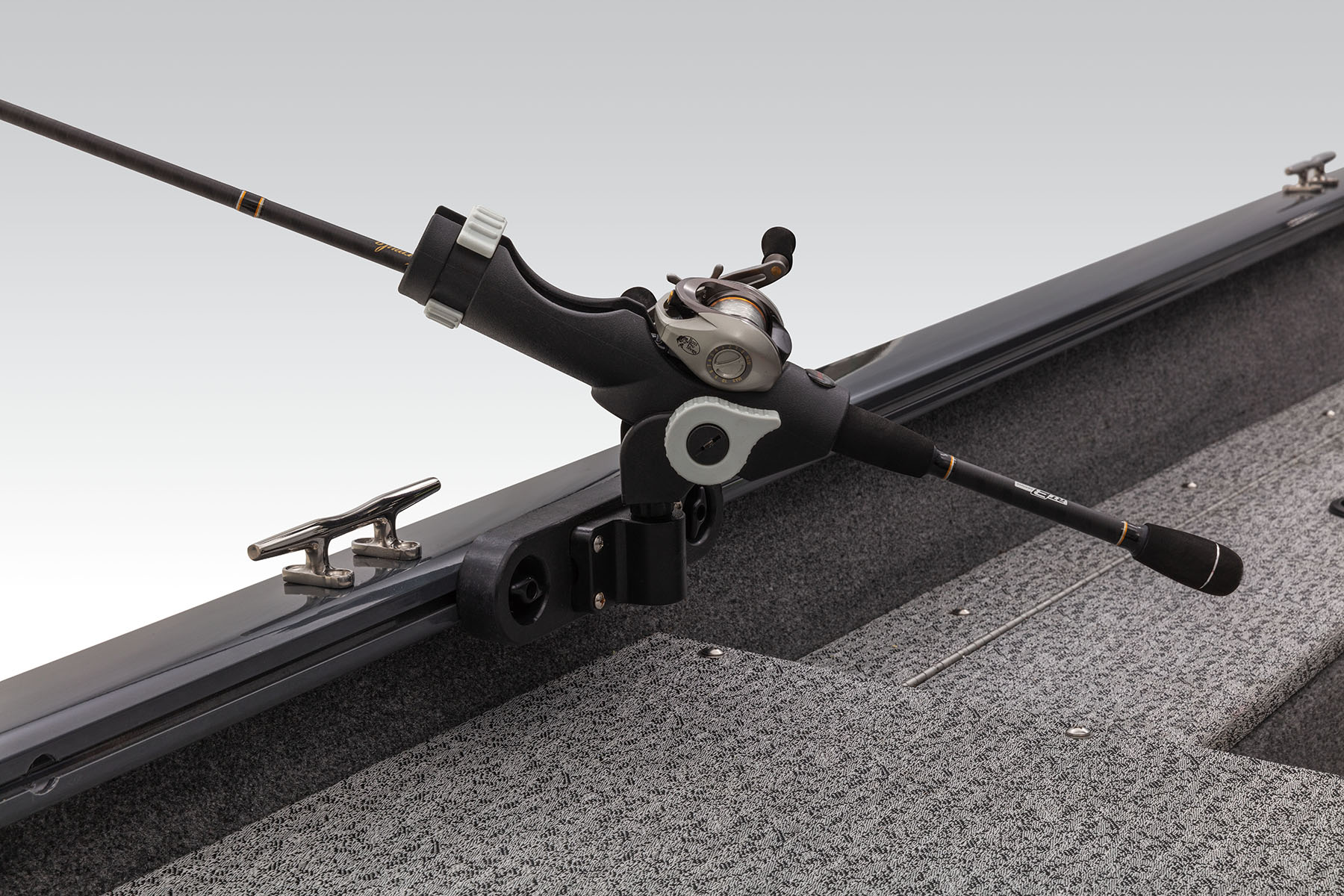

- Exclusive VERSATRACK® accessory-mounting channel in gunnels
- Low-maintenance commercial-grade, chemical-resistant vinyl floors/decks
Exterior

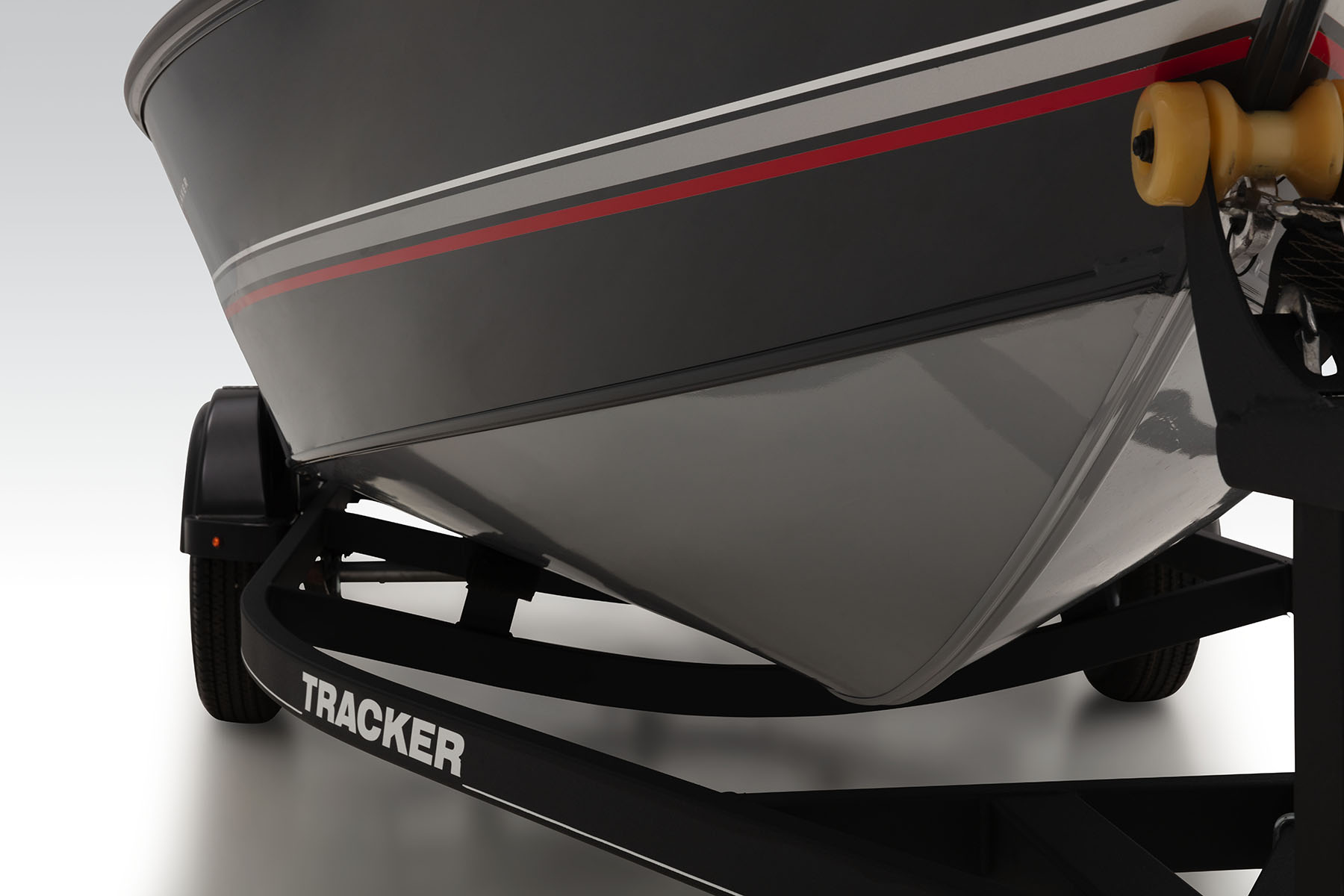

- Deep deadrise & reversed chines for a smoother, drier ride & better overall performance
- Pressed-in strakes for optimal performance
- Factory-matched, performance-tested propeller
Construction & Exterior
- Color: DIAMOND COAT™ Starlite Charcoal gunnels & sides w/Cool Gray bottom
- DIAMOND COAT™ finish features industry-exclusive powder coat & clearcoat for brilliant durability
- All-welded, 2-piece .100 aluminum Deep V hull w/wide beam & stable bottom for a smoother, drier ride in rough waters
- Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull
- Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride
- Pressed-in hull strakes for enhanced performance
- Reverse chine hull design for drier ride & better handling
- Transom motor-mounting plate for increased strength & durability
- Welded-in longitudinal stringer system for full-length support along the running surface
- Pressure-treated floor & deck(s) w/limited lifetime warranty
- All compartment lids are flush-mount, carpeted & all-aluminum for structural rigidity, tight fit & long-term durability

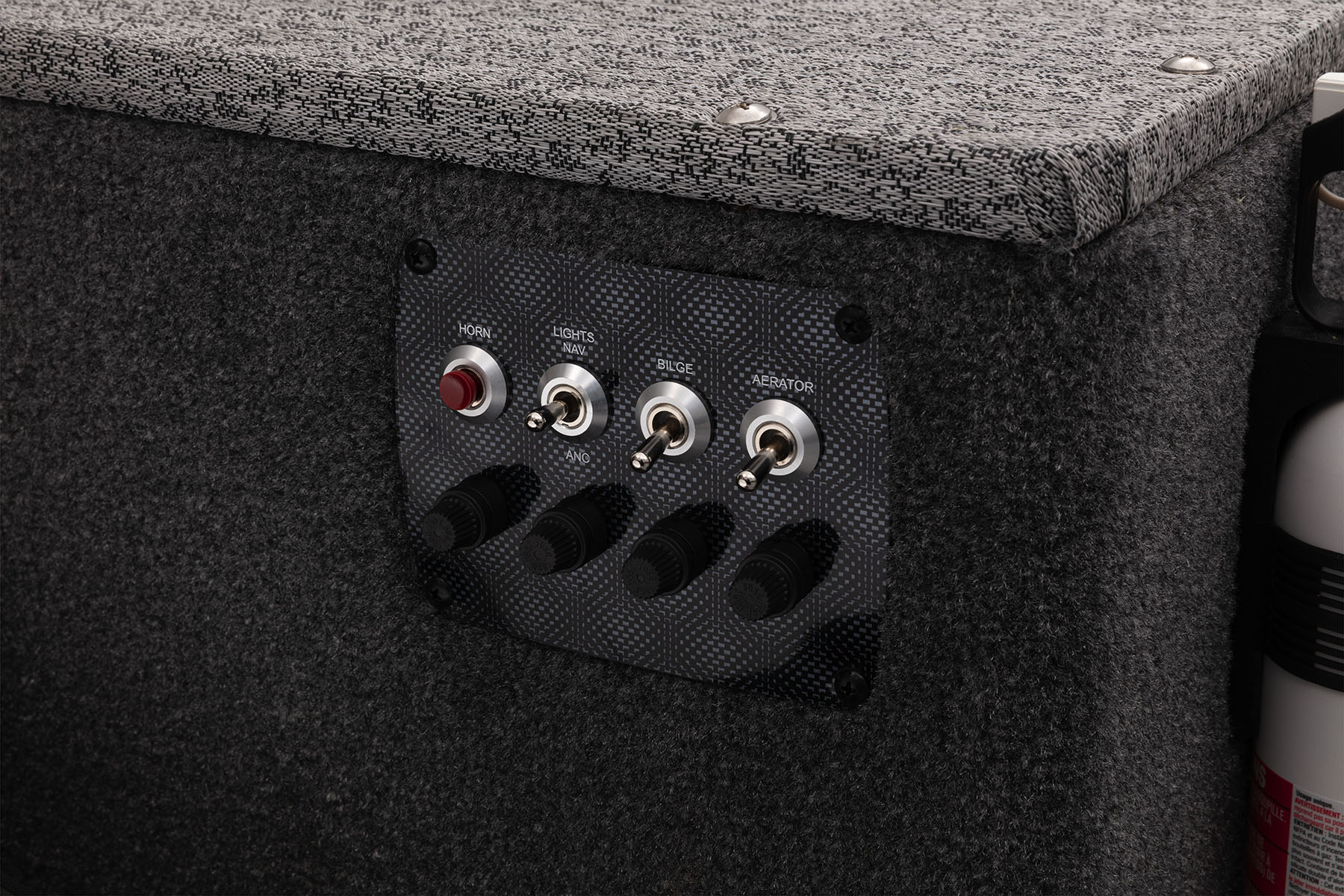

Electrical
- 500 GPH (1,892.71 LPH) bilge pump
- Bow courtesy light

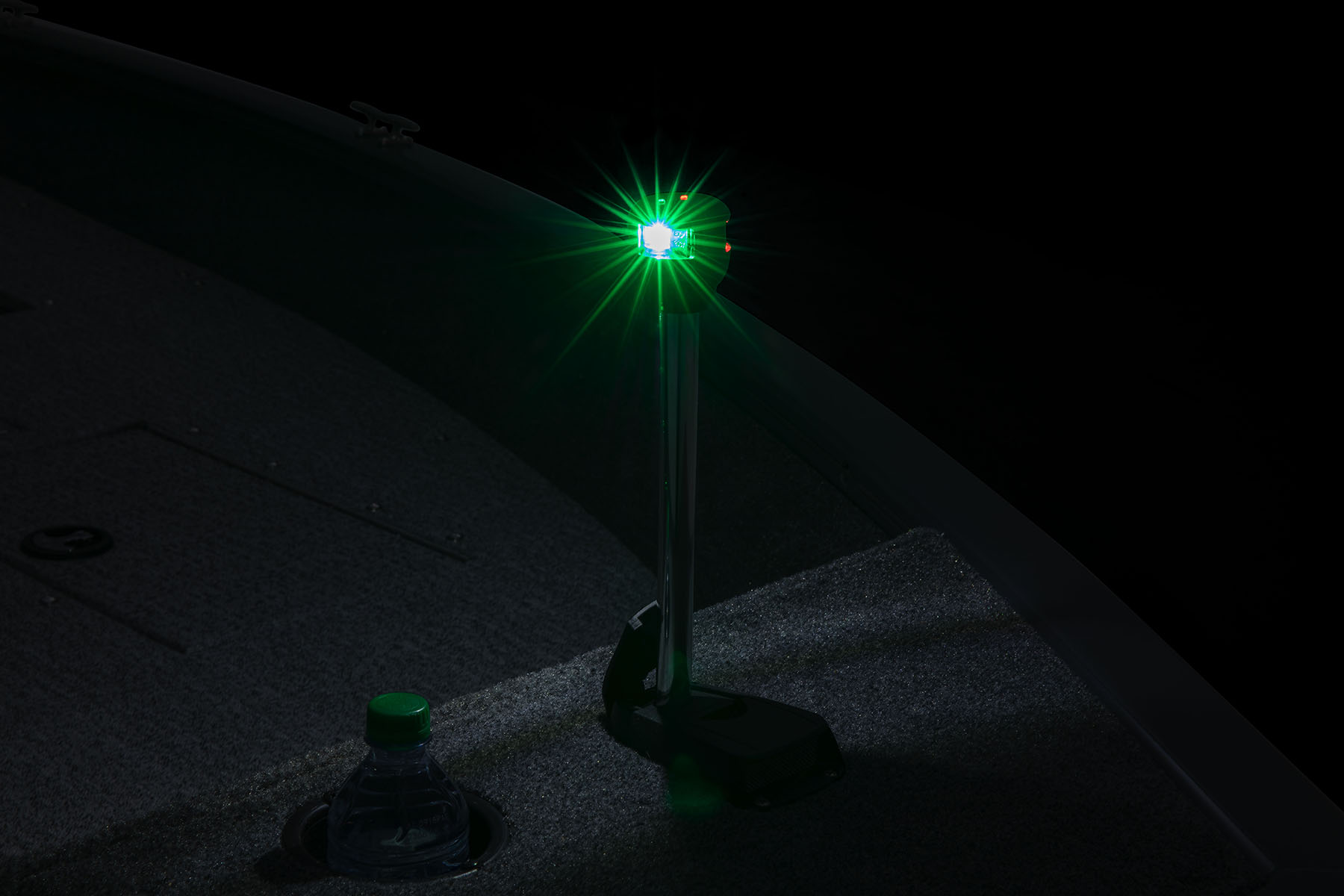

- Stowable navigation lights w/NEW LED courtesy light at bow

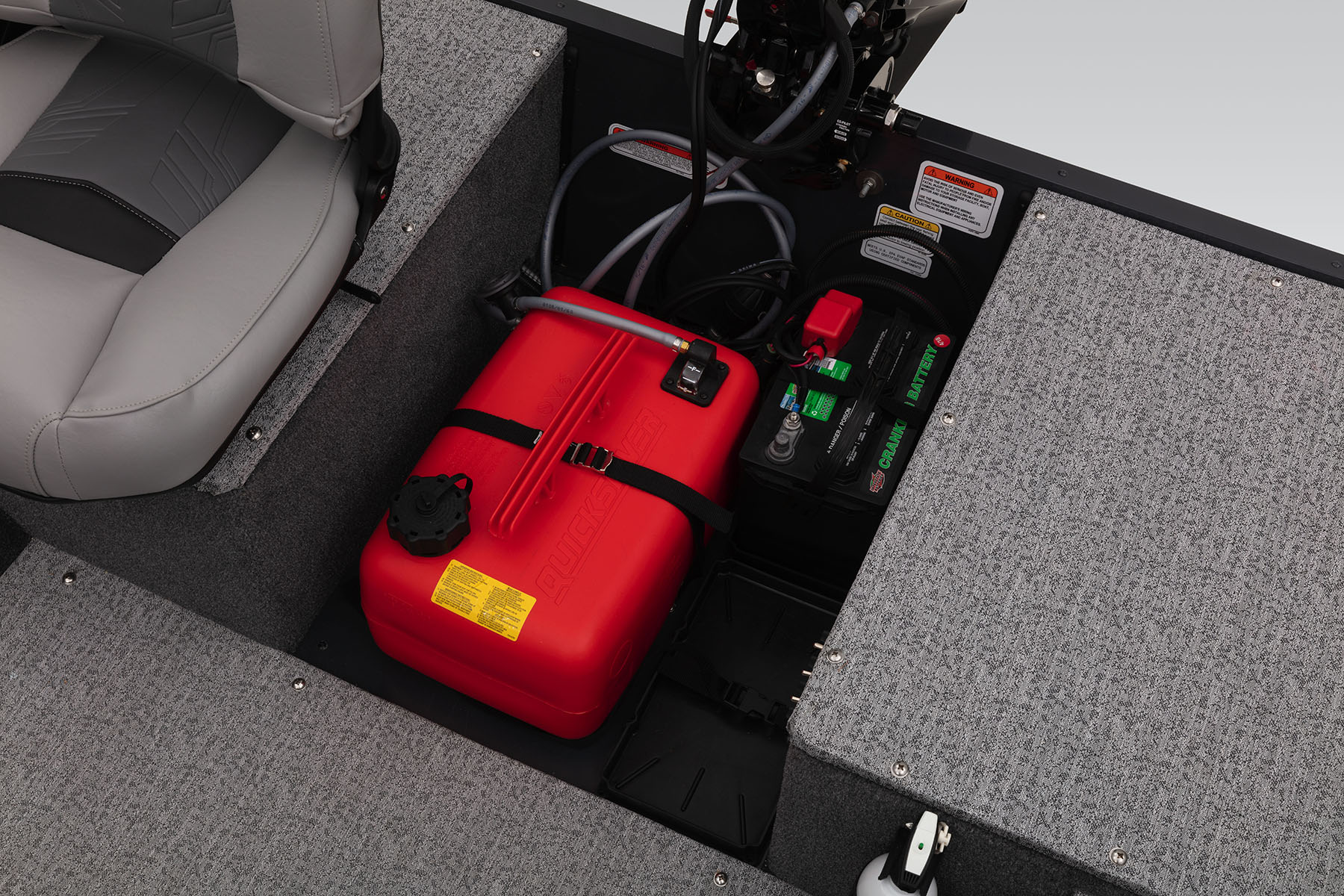

- 2 battery trays
- 1 Interstate® cranking battery
- Wiring system wrapped in abrasion-resistant protective conduit
- Pre-wired for optional trolling motor

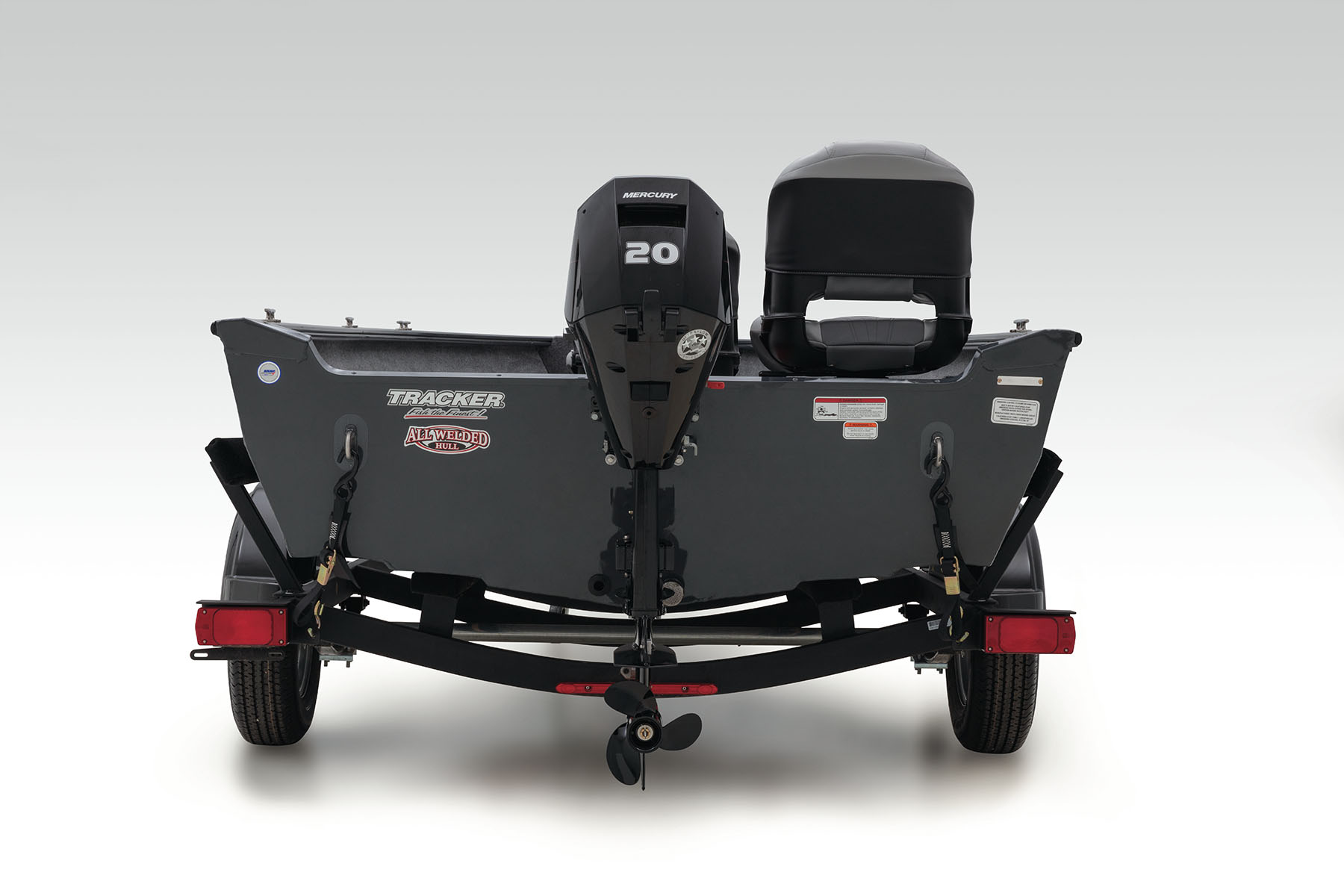

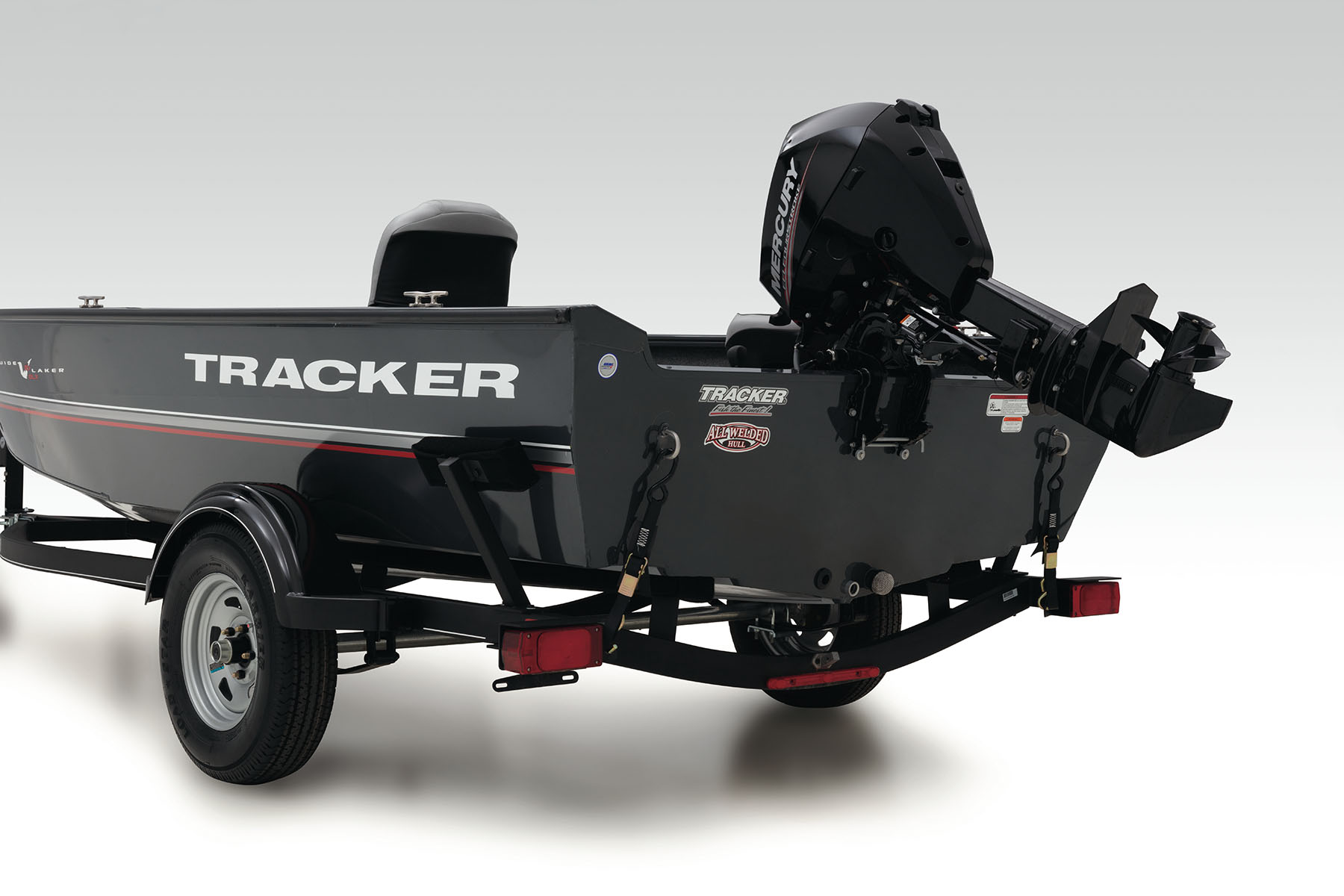

Trailer

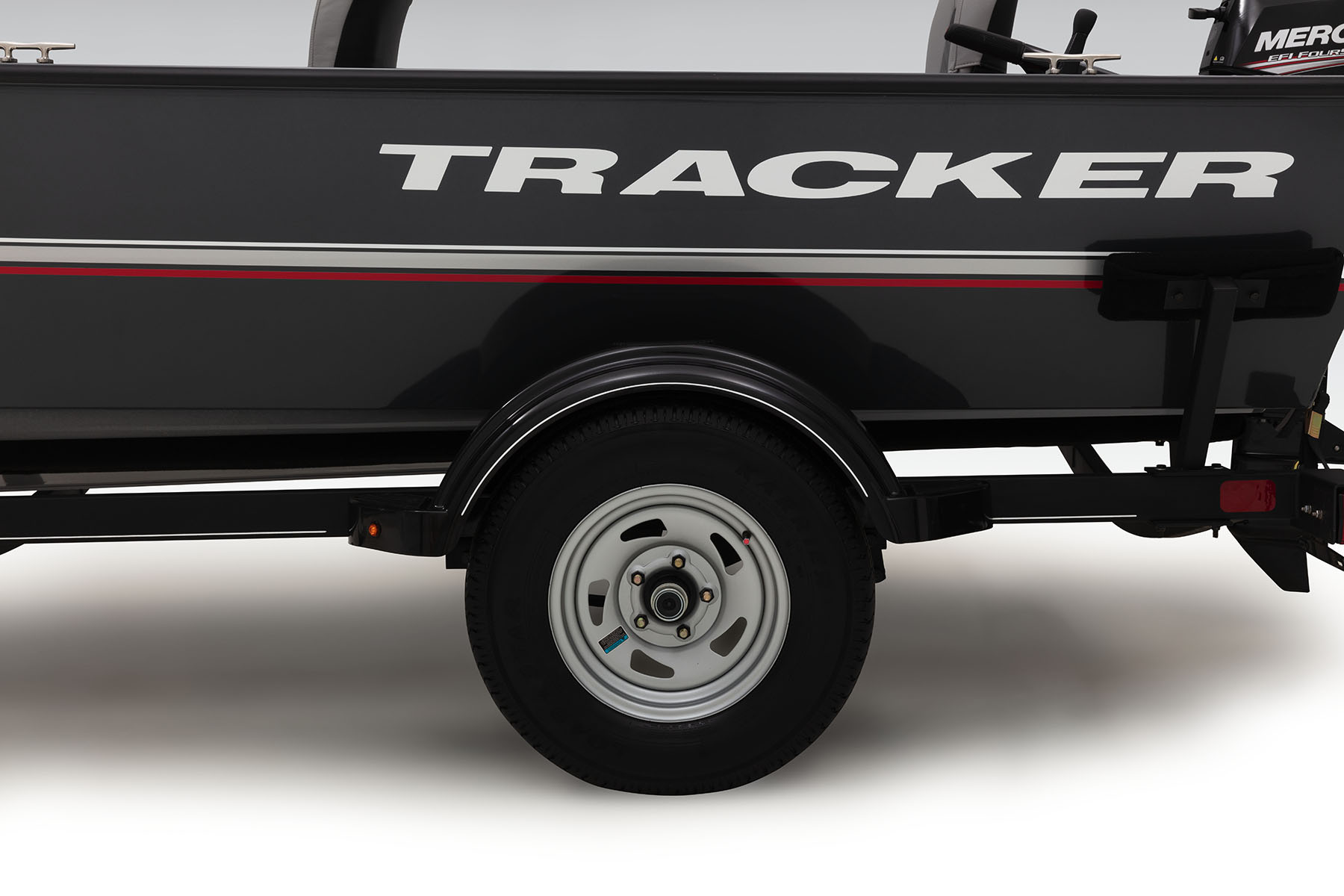

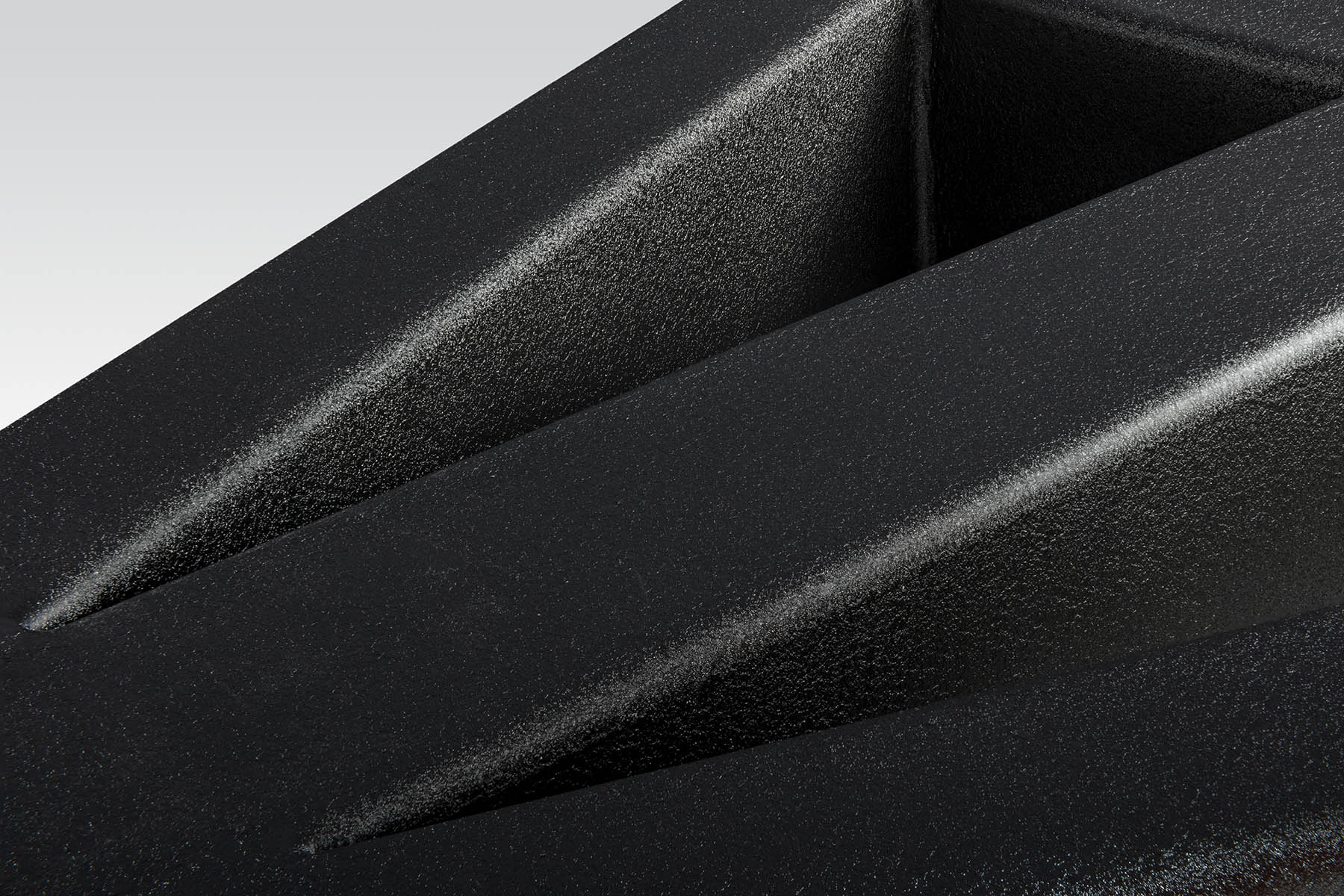

- Custom-fit, single-axle trailer powder-coated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
- Silver Metallic powder-coat wheels w/13" (33.02 cm) radial tires
- Super Lube hubs for quick & complete hub lubrication
- Pivot-up locking jack w/swivel wheel
- Heavy-duty winch w/nylon strap & bow safety strap
- Outboard motor support to reduce hull & transom stress while towing
- Heavy-duty upright load guides for easy, centered loading
- Carpeted bunks to protect hull
- Submersible LED lighting
- Nylon tie-down straps (supplied w/boat package)
- Safety cables
